IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

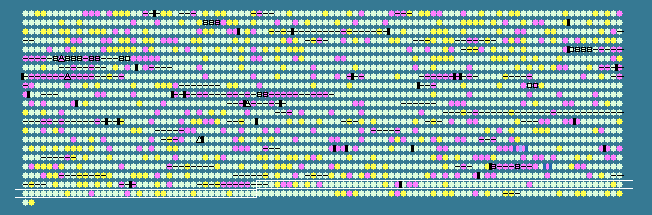

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1940	 59.52	0	1939108..1939401	-	97	161619931	rpmB	BCAN_A2061	-	50S ribosomal protein L28
1941	 55.02	0	1939763..1940578	+	271	161619932	-	BCAN_A2062	-	hypothetical protein
1942	 58.87	0	1940690..1941112	-	140	161619933	-	BCAN_A2063	-	heavy metal-dependent transcription regulator 1
1943	 60.74	0	1941201..1943645	+	814	161619934	-	BCAN_A2064	-	heavy metal translocating P-type ATPase
1944	 45.47	-2	1944052..1944801	+	249	161619935	-	BCAN_A2065	-	hypothetical protein
1945	 41.16	-2	1944828..1945913	+	361	161619936	-	BCAN_A2066	-	hypothetical protein
1946	 61.67	+1	1946086..1947987	-	633	161619937	cobT	BCAN_A2067	-	cobaltochelatase, CobT subunit
1947	 57.75	0	1948095..1949081	-	328	161619938	cobS	BCAN_A2068	-	cobalamin 5'-phosphate synthase
1948	 63.64	+1	1949160..1949390	+	76	161619939	-	BCAN_A2069	-	hypothetical protein
1949	 56.98	0	1949368..1949997	-	209	161619940	-	BCAN_A2070	-	hypothetical protein
1950	 49.49	-1	1949994..1950191	-	65	161619941	-	BCAN_A2071	-	hypothetical protein
1951	 57.78	0	1950184..1950498	+	104	161619942	-	BCAN_A2072	-	hypothetical protein
1952	 59.40	0	1950523..1951830	-	435	161619943	-	BCAN_A2073	-	hypothetical protein
1953	 60.33	0	1951894..1953030	-	378	161619944	aroB	BCAN_A2074	-	3-dehydroquinate synthase
1954	 58.21	0	1953123..1953725	-	200	161619945	aroK	BCAN_A2075	-	shikimate kinase
1955	 55.91	0	1953871..1954056	+	61	161619946	-	BCAN_A2076	-	hypothetical protein
1956	 59.74	0	1954059..1954982	+	307	161619947	xerD	BCAN_A2077	-	site-specific tyrosine recombinase XerD
1957	 59.54	0	1955121..1956074	+	317	161619948	accA	BCAN_A2078	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1958	 58.50	0	1956296..1957507	+	403	161619949	-	BCAN_A2079	-	hypothetical protein
1959	 54.65	0	1957486..1957743	+	85	161619950	-	BCAN_A2080	-	SirA family protein
1960	 59.68	0	1957761..1958933	-	390	161619951	-	BCAN_A2081	-	cobalamin synthesis protein P47K
1961	 60.74	0	1958935..1960047	-	370	161619952	-	BCAN_A2082	-	Serine-type D-Ala-D-Ala carboxypeptidase
1962	 59.54	0	1960345..1961508	+	387	161619953	-	BCAN_A2083	-	amidohydrolase
1963	 51.85	-1	1961505..1961639	+	44	161619954	-	BCAN_A2084	-	hypothetical protein
1964	 59.08	0	1961707..1962471	-	254	161619955	gdhII	BCAN_A2086	-	glucose 1-dehydrogenase 2
1965	 50.80	-1	1962579..1963013	+	144	161619956	-	BCAN_A2087	-	hypothetical protein
1966	 44.44	-2	1963112..1963507	+	131	161619957	-	BCAN_A2088	-	hypothetical protein
1967	 58.35	0	1963577..1965211	-	544	161619958	alkJ	BCAN_A2089	-	alcohol dehydrogenase (acceptor)
1968	 60.52	0	1965222..1965986	-	254	161619959	nodG	BCAN_A2090	-	3-ketoacyl-(acyl-carrier-protein) reductase
1969	 59.06	0	1965983..1967467	-	494	161619960	-	BCAN_A2091	-	glucose-methanol-choline oxidoreductase
1970	 59.89	0	1967480..1969000	-	506	161619961	-	BCAN_A2092	-	aldehyde dehydrogenase
1971	 61.00	0	1968994..1969770	-	258	161619962	-	BCAN_A2093	-	enoyl-CoA hydratase/isomerase
1972	 59.88	0	1971375..1972376	-	333	161619963	-	BCAN_A2095	-	hypothetical protein
1973	 59.30	0	1972355..1973413	-	352	161619964	ascG	BCAN_A2096	-	HTH-type transcriptional regulator ascG
1974	 58.80	0	1973664..1974833	+	389	161619965	-	BCAN_A2097	-	hypothetical protein
1975	 59.53	0	1974867..1975889	-	340	161619966	luxA	BCAN_A2098	-	alkanal monooxygenase subunit alpha
1976	 55.71	0	1975886..1976095	-	69	161619967	-	BCAN_A2099	-	hypothetical protein
1977	 60.35	0	1976158..1977123	+	321	161619968	-	BCAN_A2100	-	hypothetical protein
1978	 58.53	0	1977767..1978651	+	294	161619969	-	BCAN_A2101	-	hypothetical protein
1979	 59.62	0	1978648..1979442	+	264	161619970	-	BCAN_A2102	-	ABC transporter related
1980	 59.87	0	1979604..1980647	+	347	161619971	holA	BCAN_A2103	-	DNA polymerase III subunit delta
1981	 56.58	0	1980741..1981622	-	293	161619972	-	BCAN_A2104	-	parB-like partition protein
1982	 54.26	0	1981666..1982463	-	265	161619973	-	BCAN_A2105	-	hypothetical protein
1983	 54.67	0	1982516..1983157	-	213	161619974	gidB	BCAN_A2106	-	glucose-inhibited division protein B
1984	 56.72	0	1983154..1985064	-	636	161619975	gidA	BCAN_A2107	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1985	 52.60	-1	1985291..1986619	-	442	161619976	trmE	BCAN_A2108	-	tRNA modification GTPase TrmE
1986	 54.82	0	1986734..1988734	+	666	161619977	-	BCAN_A2109	-	spermatogenesis-associated protein 20 precursor
1987	 55.29	0	1988819..1990084	-	421	161619978	rho	BCAN_A2110	-	transcription termination factor Rho
1988	 54.00	0	1990466..1991002	-	178	161619979	-	BCAN_A2111	-	hypothetical protein
1989	 55.56	0	1990999..1992024	-	341	161619980	hemE	BCAN_A2112	-	uroporphyrinogen decarboxylase
1990	 55.83	0	1992477..1993316	+	279	161619981	-	BCAN_A2113	-	hypothetical protein
1991	 54.67	0	1993313..1993912	+	199	161619982	maf	BCAN_A2114	-	Maf-like protein
1992	 58.39	0	1993905..1994774	+	289	161619983	aroE	BCAN_A2115	-	shikimate 5-dehydrogenase
1993	 57.38	0	1994771..1995373	+	200	161619984	coaE	BCAN_A2116	-	dephospho-CoA kinase
1994	 58.30	0	1995415..1996119	+	234	161619985	dnaQ	BCAN_A2117	-	DNA polymerase III subunit epsilon
1995	 57.11	0	1996178..1996669	-	163	161619986	secB	BCAN_A2118	-	preprotein translocase subunit SecB
1996	 59.64	0	1996789..1997286	-	165	161619987	fxsA	BCAN_A2119	-	FxsA
1997	 55.46	0	1997503..1998198	+	231	161619988	-	BCAN_A2120	-	import inner membrane translocase subunit Tim44
1998	 60.09	0	1998262..1999371	+	369	161619989	-	BCAN_A2121	-	MltA domain-containing protein
1999	 63.18	+1	1999377..1999979	+	200	161619990	-	BCAN_A2122	-	Smr protein/MutS2
2000	 58.27	0	1999976..2000356	+	126	161619991	-	BCAN_A2123	-	XRE family transcriptional regulator
2001	 56.27	0	2000365..2001384	-	339	161619992	-	BCAN_A2124	-	hypothetical protein
2002	 59.64	0	2002909..2003463	-	184	161619993	hslV	BCAN_A2126	-	ATP-dependent protease peptidase subunit
2003	 59.61	0	2003760..2004368	+	202	161619994	hisB	BCAN_A2127	-	imidazoleglycerol-phosphate dehydratase
2004	 59.80	0	2004480..2004989	+	169	161619995	-	BCAN_A2128	-	hypothetical protein
2005	 58.06	0	2004992..2005642	+	216	161619996	hisH	BCAN_A2129	-	imidazole glycerol phosphate synthase subunit HisH
2006	 59.84	0	2005647..2006378	+	243	161619997	hisA	BCAN_A2130	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2007	 60.31	0	2006375..2007160	+	261	161619998	hisF	BCAN_A2131	-	imidazole glycerol phosphate synthase subunit HisF
2008	 62.04	+1	2007296..2007619	+	107	161619999	hisE	BCAN_A2132	-	phosphoribosyl-ATP pyrophosphatase
2009	 57.59	0	2007634..2008602	+	322	161620000	coaA	BCAN_A2133	-	pantothenate kinase
2010	 59.36	0	2008665..2009102	-	145	161620001	-	BCAN_A2134	-	hypothetical protein
2011	 59.40	0	2009213..2010823	-	536	161620002	pckA	BCAN_A2135	-	phosphoenolpyruvate carboxykinase
2012	 50.57	-1	2011109..2011282	-	57	161620003	-	BCAN_A2136	-	hypothetical protein
2013	 58.19	0	2011227..2011946	+	239	161620004	chvI	BCAN_A2137	-	transcriptional regulatory protein chvI
2014	 59.36	0	2012057..2013862	+	601	161620005	chvG	BCAN_A2138	-	sensor protein chvG
2015	 60.21	0	2013888..2014367	+	159	161620006	hprK	BCAN_A2139	-	HPr kinase/phosphorylase
2016	 55.22	0	2014619..2015020	+	133	161620007	-	BCAN_A2140	-	PTS system fructose subfamily IIA component
2017	 59.68	0	2015024..2015338	+	104	161620008	-	BCAN_A2141	-	HPr family phosphocarrier protein
2018	 50.63	-1	2015402..2015719	+	105	161620009	-	BCAN_A2142	-	hypothetical protein
2019	 58.24	0	2015716..2017116	+	466	161620010	ahcY	BCAN_A2143	-	S-adenosyl-L-homocysteine hydrolase
2020	 60.66	0	2017501..2020080	+	859	161620011	-	BCAN_A2144	-	histidine kinase
2021	 59.27	0	2020089..2021630	+	513	161620012	-	BCAN_A2145	-	hypothetical protein
2022	 59.44	0	2021617..2022336	+	239	161620013	-	BCAN_A2146	-	nucleotidyl transferase
2023	 62.93	+1	2022351..2025509	+	1052	161620014	addB	BCAN_A2147	-	double-strand break repair protein AddB
2024	 61.45	+1	2025506..2029048	+	1180	161620015	addA	BCAN_A2148	-	double-strand break repair helicase AddA
2025	 58.33	0	2029230..2029553	+	107	161620016	trx	BCAN_A2149	-	thioredoxin
2026	 59.89	0	2029767..2031095	-	442	161620017	folC	BCAN_A2150	-	FolC bifunctional protein
2027	 57.28	0	2031098..2032003	-	301	161620018	-	BCAN_A2151	-	acetyl-CoA carboxylase subunit beta
2028	 58.93	0	2032064..2032903	-	279	161620019	trpA	BCAN_A2152	-	tryptophan synthase subunit alpha
2029	 62.61	+1	2032900..2033367	-	155	161620020	-	BCAN_A2153	-	hypothetical protein
2030	 60.03	0	2033370..2034590	-	406	161620021	trpB	BCAN_A2154	-	tryptophan synthase subunit beta
2031	 58.59	0	2034610..2035278	-	222	161620022	trpF	BCAN_A2155	-	N-(5'-phosphoribosyl)anthranilate isomerase
2032	 57.70	0	2035317..2035952	-	211	161620023	-	BCAN_A2156	-	hypothetical protein
2033	 60.37	0	2035949..2036710	-	253	161620024	-	BCAN_A2157	-	hypothetical protein
2034	 60.18	0	2036819..2037265	-	148	161620025	-	BCAN_A2158	-	hypothetical protein
2035	 61.72	+1	2037447..2038598	-	383	161620026	-	BCAN_A2159	-	benzoate transporter
2036	 60.23	0	2038612..2039403	-	263	161620027	-	BCAN_A2160	-	hypothetical protein
2037	 54.57	0	2039835..2040239	+	134	161620028	infC	BCAN_A2161	-	translation initiation factor IF-3
2038	 54.80	0	2040368..2040982	+	204	161620029	nccN	BCAN_A2162	-	nickel-cobalt-cadmium resistance protein nccN
2039	 57.71	0	2041249..2041449	+	66	161620030	rpmI	BCAN_A2163	-	50S ribosomal protein L35
57.15	MEAN

4.17	STD DEV
