IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

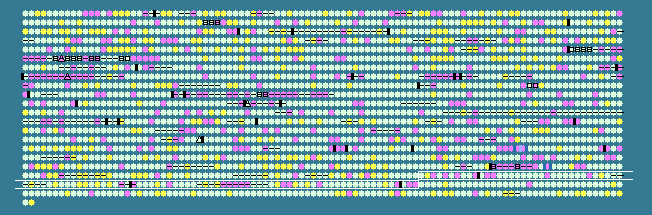

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1867	 59.60	0	1868757..1869548	-	263	161619858	-	BCAN_A1984	-	GCN5-related N-acetyltransferase
1868	 60.95	0	1869606..1870847	-	413	161619859	argJ	BCAN_A1985	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1869	 52.78	-1	1871081..1871224	-	47	161619860	-	BCAN_A1986	-	hypothetical protein
1870	 57.93	0	1871285..1872280	-	331	161619861	surA	BCAN_A1987	-	chaperone surA precursor
1871	 47.62	-2	1872408..1872575	-	55	161619862	-	BCAN_A1988	-	hypothetical protein
1872	 58.62	0	1872619..1875339	+	906	161619863	secA	BCAN_A1989	-	preprotein translocase subunit SecA
1873	 45.39	-2	1875367..1875507	+	46	161619864	-	BCAN_A1990	-	hypothetical protein
1874	 59.05	0	1876116..1877402	+	428	161619865	-	BCAN_A1991	-	hypothetical protein
1875	 55.54	0	1877571..1879205	+	544	161619866	-	BCAN_A1992	-	sulfatase
1876	 46.08	-2	1879559..1879660	+	33	161619867	-	BCAN_A1993	-	hypothetical protein
1877	 59.04	0	1880373..1881356	-	327	161619868	oxyR	BCAN_A1995	-	transcriptional regulator
1878	 42.47	-2	1881396..1881581	-	61	161619869	-	BCAN_A1996	-	hypothetical protein
1879	 50.48	-1	1881499..1881603	+	34	161619870	-	BCAN_A1997	-	hypothetical protein
1880	 58.16	0	1881647..1882492	+	281	161619871	patH	BCAN_A1998	-	amino-acid ABC transporter-binding protein patH precurso
1881	 58.63	0	1882432..1883277	+	281	161619872	-	BCAN_A1999	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
1882	 58.09	0	1883282..1884004	+	240	161619873	-	BCAN_A2000	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
1883	 59.80	0	1884001..1884816	+	271	161619874	occP	BCAN_A2001	-	octopine permease ATP-binding protein P
1884	 60.45	0	1884837..1885850	+	337	161619875	pah	BCAN_A2002	-	proclavaminate amidinohydrolase
1885	 58.61	0	1885859..1887310	+	483	161619876	aspA	BCAN_A2003	-	aspartate ammonia-lyase
1886	 57.54	0	1887294..1888049	+	251	161619877	bztD	BCAN_A2004	-	glutamate/glutamine/aspartate/asparagine transport ATP-binding protein bztD
1887	 58.86	0	1888058..1889056	+	332	161619878	ansA	BCAN_A2005	-	L-asparaginase
1888	 51.90	-1	1889193..1889876	-	227	161619879	-	BCAN_A2006	-	GntR family transcriptional regulator
1889	 56.36	0	1889900..1890889	-	329	161619880	ansA	BCAN_A2007	-	L-asparaginase
1890	 54.13	0	1890967..1892274	+	435	161619881	-	BCAN_A2008	-	major facilitator transporter
1891	 56.21	0	1892761..1892913	-	50	161619882	-	BCAN_A2009	-	hypothetical protein
1892	 59.03	0	1892960..1894243	-	427	161619883	mdeA	BCAN_A2010	-	methionine gamma-lyase
1893	 57.78	0	1894423..1894872	-	149	161619884	-	BCAN_A2011	-	UspA domain-containing protein
1894	 57.86	0	1895092..1896102	+	336	161619885	cysK	BCAN_A2012	-	cysteine synthase A
1895	 50.60	-1	1896184..1896432	-	82	161619886	-	BCAN_A2013	-	hypothetical protein
1896	 57.19	0	1896592..1897467	-	291	161619887	mmgB	BCAN_A2014	-	3-hydroxybutyryl-CoA dehydrogenase
1897	 60.65	0	1897951..1898880	-	309	161619888	-	BCAN_A2015	-	electron transfer flavoprotein, alpha subunit
1898	 58.37	0	1899033..1899779	-	248	161619889	etfB	BCAN_A2016	-	electron transfer flavoprotein subunit beta
1899	 59.51	0	1900115..1900813	+	232	161619890	-	BCAN_A2017	-	exsB protein
1900	 56.28	0	1900813..1901178	+	121	161619891	-	BCAN_A2018	-	hypothetical protein
1901	 58.07	0	1901178..1901933	+	251	161619892	-	BCAN_A2019	-	radical SAM domain-containing protein
1902	 61.05	0	1902070..1902657	-	195	161619893	-	BCAN_A2020	-	ATP:cob(I)alamin adenosyltransferase
1903	 54.41	0	1902659..1902862	-	67	161619894	-	BCAN_A2021	-	hypothetical protein
1904	 60.14	0	1902892..1903734	-	280	161619895	vdlC	BCAN_A2022	-	short chain dehydrogenase
1905	 56.68	0	1903892..1904752	+	286	161619896	yihY	BCAN_A2023	-	YihY family protein
1906	 60.91	0	1904770..1905255	+	161	161619897	-	BCAN_A2024	-	hypothetical protein
1907	 58.58	0	1905263..1905979	-	238	161619898	-	BCAN_A2025	-	redoxin domain-containing protein
1908	 59.60	0	1906033..1907433	+	466	161619899	argH	BCAN_A2026	-	argininosuccinate lyase
1909	 58.20	0	1907538..1907726	+	62	161619900	-	BCAN_A2027	-	hypothetical protein
1910	 61.06	0	1907754..1909019	+	421	161619901	lysA	BCAN_A2028	-	diaminopimelate decarboxylase
1911	 61.07	0	1909118..1911763	+	881	161619902	-	BCAN_A2029	-	hypothetical protein
1912	 55.49	0	1911803..1912339	-	178	161619903	hpt	BCAN_A2030	-	hypoxanthine phosphoribosyltransferase
1913	 62.82	+1	1912488..1913267	+	259	161619904	-	BCAN_A2031	-	ATP synthase subunits region ORF 4
1914	 59.08	0	1913412..1914518	+	368	161619905	hisC	BCAN_A2032	-	histidinol-phosphate aminotransferase
1915	 60.77	0	1914523..1915488	+	321	161619906	-	BCAN_A2033	-	cyclohexadienyl dehydrogenase
1916	 57.65	0	1915457..1916476	-	339	161619907	-	BCAN_A2034	-	hypothetical protein
1917	 48.53	-2	1916496..1916699	-	67	161619908	-	BCAN_A2035	-	hypothetical protein
1918	 58.11	0	1916688..1917248	+	186	161619909	-	BCAN_A2036	-	cation transport regulator-like protein 1
1919	 53.26	0	1917581..1917871	+	96	161619910	-	BCAN_A2038	-	protein of unknown function YGGT
1920	 55.18	0	1918042..1918572	-	176	161619911	ppa	BCAN_A2039	-	inorganic pyrophosphatase
1921	 58.88	0	1918725..1919507	-	260	161619912	-	BCAN_A2040	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1922	 56.55	0	1919686..1920219	-	177	161619913	-	BCAN_A2041	-	hypothetical protein
1923	 60.88	0	1920585..1921586	-	333	161619914	-	BCAN_A2042	-	hypothetical protein
1924	 60.15	0	1921579..1922238	-	219	161619915	ftsE	BCAN_A2043	-	cell division ATP-binding protein FtsE
1925	 53.11	0	1922243..1922419	-	58	161619916	-	BCAN_A2044	-	hypothetical protein
1926	 54.58	0	1922547..1922819	-	90	161619917	-	BCAN_A2045	-	hypothetical protein
1927	 56.29	0	1922596..1922913	+	105	161619918	-	BCAN_A2046	-	hypothetical protein
1928	 58.37	0	1923297..1923983	+	228	161619919	aqpZ	BCAN_A2047	-	aquaporin Z
1929	 55.03	0	1924364..1925059	+	231	161619920	-	BCAN_A2048	-	outer membrane lipoprotein carrier protein LolA
1930	 58.24	0	1925162..1925968	+	268	161619921	-	BCAN_A2049	-	exodeoxyribonuclease III (xth)
1931	 61.69	+1	1925974..1926435	-	153	161619922	-	BCAN_A2050	-	cAMP-dependent protein kinase regulatory subunit
1932	 55.99	0	1926470..1927153	-	227	161619923	pmrA	BCAN_A2051	-	transcriptional regulatory protein basR/pmrA
1933	 61.17	0	1927361..1927906	+	181	161619924	-	BCAN_A2052	-	hypothetical protein
1934	 44.33	-2	1927967..1928266	+	99	161619925	-	BCAN_A2053	-	hypothetical protein
1935	 45.73	-2	1928295..1929818	-	507	161619926	-	BCAN_A2054	-	Sulfated surface glycoprotein 185 precursor
1936	 43.15	-2	1929815..1930894	-	359	161619927	-	BCAN_A2055	-	hypothetical protein
1937	 46.15	-2	1931221..1931610	+	129	161619928	-	BCAN_A2056	-	hypothetical protein
1938	 42.96	-2	1931934..1932899	-	321	161619929	-	BCAN_A2057	-	hypothetical protein
1939	 58.93	0	1938357..1939028	-	223	161619930	-	BCAN_A2060	-	hypothetical protein
1940	 59.52	0	1939108..1939401	-	97	161619931	rpmB	BCAN_A2061	-	50S ribosomal protein L28
1941	 55.02	0	1939763..1940578	+	271	161619932	-	BCAN_A2062	-	hypothetical protein
1942	 58.87	0	1940690..1941112	-	140	161619933	-	BCAN_A2063	-	heavy metal-dependent transcription regulator 1
1943	 60.74	0	1941201..1943645	+	814	161619934	-	BCAN_A2064	-	heavy metal translocating P-type ATPase
1944	 45.47	-2	1944052..1944801	+	249	161619935	-	BCAN_A2065	-	hypothetical protein
1945	 41.16	-2	1944828..1945913	+	361	161619936	-	BCAN_A2066	-	hypothetical protein
1946	 61.67	+1	1946086..1947987	-	633	161619937	cobT	BCAN_A2067	-	cobaltochelatase, CobT subunit
1947	 57.75	0	1948095..1949081	-	328	161619938	cobS	BCAN_A2068	-	cobalamin 5'-phosphate synthase
1948	 63.64	+1	1949160..1949390	+	76	161619939	-	BCAN_A2069	-	hypothetical protein
1949	 56.98	0	1949368..1949997	-	209	161619940	-	BCAN_A2070	-	hypothetical protein
1950	 49.49	-1	1949994..1950191	-	65	161619941	-	BCAN_A2071	-	hypothetical protein
1951	 57.78	0	1950184..1950498	+	104	161619942	-	BCAN_A2072	-	hypothetical protein
1952	 59.40	0	1950523..1951830	-	435	161619943	-	BCAN_A2073	-	hypothetical protein
1953	 60.33	0	1951894..1953030	-	378	161619944	aroB	BCAN_A2074	-	3-dehydroquinate synthase
1954	 58.21	0	1953123..1953725	-	200	161619945	aroK	BCAN_A2075	-	shikimate kinase
1955	 55.91	0	1953871..1954056	+	61	161619946	-	BCAN_A2076	-	hypothetical protein
1956	 59.74	0	1954059..1954982	+	307	161619947	xerD	BCAN_A2077	-	site-specific tyrosine recombinase XerD
1957	 59.54	0	1955121..1956074	+	317	161619948	accA	BCAN_A2078	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1958	 58.50	0	1956296..1957507	+	403	161619949	-	BCAN_A2079	-	hypothetical protein
1959	 54.65	0	1957486..1957743	+	85	161619950	-	BCAN_A2080	-	SirA family protein
1960	 59.68	0	1957761..1958933	-	390	161619951	-	BCAN_A2081	-	cobalamin synthesis protein P47K
1961	 60.74	0	1958935..1960047	-	370	161619952	-	BCAN_A2082	-	Serine-type D-Ala-D-Ala carboxypeptidase
1962	 59.54	0	1960345..1961508	+	387	161619953	-	BCAN_A2083	-	amidohydrolase
1963	 51.85	-1	1961505..1961639	+	44	161619954	-	BCAN_A2084	-	hypothetical protein
1964	 59.08	0	1961707..1962471	-	254	161619955	gdhII	BCAN_A2086	-	glucose 1-dehydrogenase 2
1965	 50.80	-1	1962579..1963013	+	144	161619956	-	BCAN_A2087	-	hypothetical protein
1966	 44.44	-2	1963112..1963507	+	131	161619957	-	BCAN_A2088	-	hypothetical protein
57.15	MEAN

4.17	STD DEV
