IslandPathversion 1.0

IslandPath Analysis: Brucella canis ATCC 23365

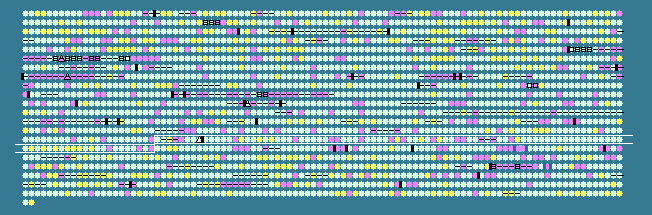

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1423	 54.35	0	1423009..1424112	-	367	161619414	-	BCAN_A1503	-	penicillin acylase precursor
1424	 54.48	0	1424388..1425191	+	267	161619415	-	BCAN_A1504	-	hypothetical protein
1425	 60.83	0	1425395..1425514	-	39	161619416	-	BCAN_A1505	-	hypothetical protein
1426	 48.28	-2	1425798..1425971	+	57	161619417	-	BCAN_A1506	-	hypothetical protein
1427	 43.42	-2	1426025..1426252	-	75	161619418	-	BCAN_A1507	-	hypothetical protein
1428	 59.89	0	1426379..1426732	+	117	161619419	-	BCAN_A1508	-	hypothetical protein
1429	 56.89	0	1426893..1427465	-	190	161619420	-	BCAN_A1509	-	hypothetical protein
1430	 55.35	0	1427701..1428195	+	164	161619421	-	BCAN_A1510	-	phage integrase
1431	 55.51	0	1428613..1429365	+	250	161619422	-	BCAN_A1512	-	26 kDa periplasmic immunogenic protein precursor
1432	 58.84	0	1429540..1429884	-	114	161619423	-	BCAN_A1513	-	hypothetical protein
1433	 54.68	0	1430128..1430586	-	152	161619424	-	BCAN_A1514	-	hypothetical protein
1434	 54.98	0	1430778..1431068	-	96	161619425	-	BCAN_A1515	-	hypothetical protein
1435	 56.81	0	1431092..1433110	-	672	161619426	rpoD	BCAN_A1516	-	RNA polymerase sigma factor RpoD
1436	 48.08	-2	1433141..1433296	-	51	161619427	-	BCAN_A1517	-	hypothetical protein
1437	 61.53	+1	1433578..1435545	-	655	161619428	dnaG	BCAN_A1518	-	DNA primase
1438	 59.39	0	1435915..1437591	+	558	161619429	-	BCAN_A1519	-	Na+ cotransporter
1439	 57.84	0	1437658..1438110	-	150	161619430	-	BCAN_A1520	-	GatB/Yqey domain-containing protein
1440	 60.70	0	1438490..1439713	+	407	161619431	carA	BCAN_A1521	-	carbamoyl phosphate synthase small subunit
1441	 54.63	0	1439526..1439849	+	107	161619432	-	BCAN_A1522	-	hypothetical protein
1442	 61.27	0	1439885..1440811	-	308	161619433	-	BCAN_A1523	-	protein of unknown function zinc metallopeptidase
1443	 54.34	0	1440928..1441446	-	172	161619434	-	BCAN_A1524	-	transmembrane protein
1444	 56.80	0	1441532..1442332	+	266	161619435	-	BCAN_A1525	-	hypothetical protein
1445	 60.50	0	1442567..1446055	+	1162	161619436	carB	BCAN_A1526	-	carbamoyl phosphate synthase large subunit
1446	 48.72	-2	1446403..1446714	+	103	161619437	-	BCAN_A1527	-	hypothetical protein
1447	 58.47	0	1446772..1448637	-	621	161619438	-	BCAN_A1528	-	ABC transporter
1448	 55.19	0	1448827..1449288	+	153	161619439	-	BCAN_A1529	-	NUDIX hydrolase
1449	 58.10	0	1449481..1449690	+	69	161619440	-	BCAN_A1530	-	hypothetical protein
1450	 57.03	0	1449820..1450431	-	203	161619441	gstA	BCAN_A1531	-	protein gstA
1451	 58.27	0	1450681..1451883	+	400	161619442	aspC	BCAN_A1532	-	aspartate aminotransferase
1452	 47.31	-2	1451825..1452010	+	61	161619443	-	BCAN_A1533	-	hypothetical protein
1453	 39.35	-2	1452086..1452301	+	71	161619444	-	BCAN_A1534	-	hypothetical protein
1454	 57.17	0	1452353..1453258	-	301	161619445	-	BCAN_A1535	-	hypothetical protein
1455	 59.59	0	1453329..1454303	-	324	161619446	trxB	BCAN_A1536	-	thioredoxin-disulfide reductase
1456	 57.53	0	1454625..1456025	+	466	161619447	-	BCAN_A1537	-	cation transporter
1457	 50.91	-1	1456032..1456196	+	54	161619448	-	BCAN_A1538	-	hypothetical protein
1458	 59.02	0	1456283..1456753	+	156	161619449	lrp	BCAN_A1539	-	leucine-responsive regulatory protein
1459	 57.65	0	1456760..1457824	-	354	161619450	lpcC	BCAN_A1540	-	lipopolysaccharide core biosynthesis mannosyltransferase lpcC
1460	 55.06	0	1457831..1458304	-	157	161619451	greA	BCAN_A1541	-	transcription elongation factor GreA
1461	 54.92	0	1458573..1459628	-	351	161619452	-	BCAN_A1542	-	hypothetical protein
1462	 48.68	-2	1459618..1459806	-	62	161619453	-	BCAN_A1543	-	hypothetical protein
1463	 60.75	0	1459784..1460695	+	303	161619454	-	BCAN_A1544	-	hypothetical protein
1464	 52.99	0	1460700..1461050	-	116	161619455	-	BCAN_A1545	-	hypothetical protein
1465	 59.87	0	1461328..1462239	+	303	161619456	-	BCAN_A1546	-	extensin family protein
1466	 57.95	0	1462372..1462761	-	129	161619457	-	BCAN_A1547	-	thioesterase superfamily protein
1467	 60.65	0	1462983..1463564	+	193	161619458	-	BCAN_A1548	-	SH3 type 3 domain-containing protein
1468	 60.29	0	1463690..1466512	+	940	161619459	uvrB	BCAN_A1549	-	excinuclease ABC subunit B
1469	 52.31	-1	1467942..1468157	+	71	161619460	-	BCAN_A1551	-	hypothetical protein
1470	 61.79	+1	1468574..1469086	+	170	161619461	-	BCAN_A1552	-	hypothetical protein
1471	 58.30	0	1469145..1469801	-	218	161619462	-	BCAN_A1553	-	beta-lactamase domain-containing protein
1472	 58.51	0	1470015..1470296	-	93	161619463	-	BCAN_A1554	-	hypothetical protein
1473	 46.46	-2	1470471..1470767	+	98	161619464	-	BCAN_A1555	-	hypothetical protein
1474	 53.54	0	1470764..1471357	+	197	161619465	petP	BCAN_A1556	-	HTH-type transcriptional regulator petP
1475	 59.23	0	1471439..1472164	+	241	161619466	petR	BCAN_A1557	-	protein petR
1476	 59.52	0	1472308..1473651	+	447	161619467	-	BCAN_A1558	-	hypothetical protein
1477	 50.39	-1	1473655..1473783	+	42	161619468	-	BCAN_A1559	-	hypothetical protein
1478	 55.17	0	1474083..1474430	-	115	161619469	csaA	BCAN_A1560	-	export-related chaperone CsaA
1479	 50.91	-1	1474408..1474572	-	54	161619470	-	BCAN_A1561	-	hypothetical protein
1480	 56.89	0	1474569..1475069	-	166	161619471	-	BCAN_A1562	-	hypothetical protein
1481	 56.39	0	1475498..1475818	-	106	161619472	-	BCAN_A1563	-	hypothetical protein
1482	 51.77	-1	1475836..1475976	-	46	161619473	-	BCAN_A1564	-	hypothetical protein
1483	 61.58	+1	1476003..1476848	+	281	161619474	lgt	BCAN_A1565	-	prolipoprotein diacylglyceryl transferase
1484	 59.38	0	1476841..1477938	+	365	161619475	-	BCAN_A1566	-	hypothetical protein
1485	 58.33	0	1478118..1478969	+	283	161619476	-	BCAN_A1567	-	hypothetical protein
1486	 57.73	0	1479082..1480233	+	383	161619477	pepQ	BCAN_A1568	-	Xaa-Pro dipeptidase
1487	 58.92	0	1480287..1480841	+	184	161619478	-	BCAN_A1569	-	hypothetical protein
1488	 59.38	0	1481180..1482112	+	310	161619479	prs	BCAN_A1570	-	ribose-phosphate pyrophosphokinase
1489	 58.17	0	1484493..1485116	+	207	161619480	-	BCAN_A1572	-	50S ribosomal protein L25/general stress protein Ctc
1490	 56.97	0	1485145..1485897	+	250	161619481	pth	BCAN_A1573	-	peptidyl-tRNA hydrolase
1491	 59.42	0	1485985..1487088	+	367	161619482	ychF	BCAN_A1574	-	translation-associated GTPase
1492	 57.29	0	1487150..1487650	+	166	161619483	-	BCAN_A1575	-	dehydratase
1493	 57.76	0	1487647..1488129	+	160	161619484	-	BCAN_A1576	-	dehydratase
1494	 56.33	0	1488171..1488731	-	186	161619485	apt	BCAN_A1577	-	adenine phosphoribosyltransferase
1495	 57.43	0	1489039..1489926	-	295	161619486	petC	BCAN_A1578	-	cytochrome c1 precursor
1496	 57.04	0	1489940..1491238	-	432	161619487	petB	BCAN_A1579	-	cytochrome b
1497	 58.16	0	1491260..1491823	-	187	161619488	petA	BCAN_A1580	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1498	 58.43	0	1492075..1493943	-	622	161619489	-	BCAN_A1581	-	ABC transporter related
1499	 57.16	0	1494097..1495989	-	630	161619490	-	BCAN_A1582	-	ABC transporter related
1500	 58.54	0	1496110..1496589	+	159	161619491	-	BCAN_A1583	-	tRNA/rRNA methyltransferase (SpoU)
1501	 56.96	0	1496624..1497736	+	370	161619492	-	BCAN_A1584	-	purine nucleoside permease
1502	 62.07	+1	1497848..1498108	-	86	161619493	-	BCAN_A1585	-	hypothetical protein
1503	 57.79	0	1498402..1499313	+	303	161619494	-	BCAN_A1586	-	coproporphyrinogen III oxidase
1504	 61.01	0	1499347..1499841	-	164	161619495	-	BCAN_A1587	-	GCN5-related N-acetyltransferase
1505	 59.36	0	1500874..1502145	-	423	161619496	-	BCAN_A1590	-	Poly-A polymerase/tRNA nucleotidyltransferase
1506	 61.22	0	1502142..1502765	-	207	161619497	-	BCAN_A1591	-	NUDIX hydrolase
1507	 60.06	0	1502762..1503427	-	221	161619498	-	BCAN_A1592	-	hypothetical protein
1508	 61.90	+1	1503547..1504554	+	335	161619499	-	BCAN_A1593	-	hypothetical protein
1509	 63.56	+1	1504554..1505486	+	310	161619500	-	BCAN_A1594	-	hypothetical protein
1510	 61.65	+1	1505483..1508332	+	949	161619501	-	BCAN_A1595	-	hypothetical protein
1511	 60.55	0	1508396..1510471	+	691	161619502	-	BCAN_A1596	-	hypothetical protein
1512	 63.12	+1	1510539..1511045	-	168	161619503	-	BCAN_A1597	-	GCN5-related N-acetyltransferase
1513	 56.81	0	1511349..1512332	+	327	161619504	-	BCAN_A1598	-	glutathione S-transferase
1514	 56.29	0	1512480..1513163	+	227	161619505	alkL	BCAN_A1599	-	Outer membrane protein alkL precursor
1515	 53.51	0	1513197..1513652	-	151	161619506	-	BCAN_A1600	-	hypothetical protein
1516	 60.02	0	1513761..1514663	+	300	161619507	-	BCAN_A1601	-	metallophosphoesterase
1517	 57.52	0	1514864..1516591	-	575	161619508	leuA	BCAN_A1602	-	2-isopropylmalate synthase
1518	 58.49	0	1516723..1516881	-	52	161619509	-	BCAN_A1603	-	hypothetical protein
1519	 58.53	0	1516896..1517804	-	302	161619510	-	BCAN_A1604	-	cation diffusion facilitator family transporter
1520	 45.39	-2	1517814..1518095	+	93	161619511	-	BCAN_A1605	-	hypothetical protein
1521	 58.38	0	1518274..1520469	-	731	161619512	-	BCAN_A1606	-	anthranilate synthase
1522	 52.85	-1	1520411..1520656	+	81	161619513	-	BCAN_A1607	-	hypothetical protein
57.15	MEAN

4.17	STD DEV
