IslandPath Analysis: Brucella canis ATCC 23365

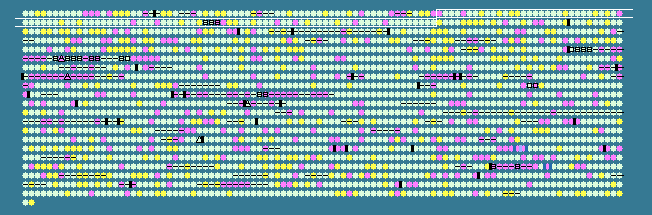

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
70	 53.52	0	81176..81913	+	245	161618061	-	BCAN_A0074	-	invasion associated locus B family protein
71	 58.23	0	81992..83212	-	406	161618062	argG	BCAN_A0075	-	argininosuccinate synthase
72	 57.74	0	84062..84565	-	167	161618063	-	BCAN_A0077	-	hypothetical protein
73	 59.22	0	84599..85834	-	411	161618064	-	BCAN_A0078	-	radical SAM protein
74	 51.04	-1	85778..85969	+	63	161618065	-	BCAN_A0079	-	hypothetical protein
75	 55.38	0	85954..86148	+	64	161618066	-	BCAN_A0080	-	hypothetical protein
76	 57.54	0	86094..86597	-	167	161618067	-	BCAN_A0081	-	hypothetical protein
77	 63.28	+1	87053..87436	-	127	161618068	-	BCAN_A0082	-	hypothetical protein
78	 54.76	0	87524..87817	-	97	161618069	-	BCAN_A0083	-	pterin-4-alpha-carbinolamine dehydratase
79	 55.61	0	88044..88649	+	201	161618070	-	BCAN_A0084	-	protein tyrosine phosphatase
80	 61.25	0	88559..89149	-	196	161618071	-	BCAN_A0085	-	2'-5' RNA ligase
81	 55.92	0	89330..90055	-	241	161618072	-	BCAN_A0086	-	arylesterase precursor
82	 61.73	+1	90202..90930	+	242	161618073	-	BCAN_A0087	-	ABC transporter related
83	 61.69	+1	90927..93476	+	849	161618074	-	BCAN_A0088	-	hypothetical protein
84	 57.99	0	93711..94448	+	245	161618075	-	BCAN_A0090	-	hypothetical protein
85	 59.44	0	94563..95102	+	179	161618076	pat	BCAN_A0091	-	phosphinothricin N-acetyltransferase
86	 54.73	0	95122..95523	-	133	161618077	-	BCAN_A0092	-	hypothetical protein
87	 56.87	0	96073..96807	-	244	161618078	-	BCAN_A0093	-	hypothetical protein
88	 56.74	0	96960..97100	-	46	161618079	-	BCAN_A0094	-	hypothetical protein
89	 60.27	0	97084..99771	-	895	161618080	acnA	BCAN_A0095	-	aconitate hydratase
90	 58.18	0	100115..100762	+	215	161618081	ccmA	BCAN_A0096	-	cytochrome c biogenesis protein CcmA
91	 62.31	+1	100762..101427	+	221	161618082	ccmB	BCAN_A0097	-	heme exporter protein CcmB
92	 58.52	0	101485..102270	+	261	161618083	ccmC	BCAN_A0098	-	heme exporter protein CcmC
93	 56.90	0	102267..102440	+	57	161618084	-	BCAN_A0099	-	Heme exporter protein D (CcmD)
94	 59.31	0	102437..103048	+	203	161618085	dsbE	BCAN_A0100	-	DsbE subfamily periplasmic protein thiol:disulfide oxidoreductase
95	 56.67	0	103235..103354	+	39	161618086	-	BCAN_A0101	-	hypothetical protein
96	 61.00	0	103297..105132	-	611	161618087	ilvD	BCAN_A0102	-	dihydroxy-acid dehydratase
97	 54.35	0	105314..105451	+	45	161618088	-	BCAN_A0103	-	hypothetical protein
98	 61.11	0	105532..105963	-	143	161618089	-	BCAN_A0104	-	hypothetical protein
99	 59.79	0	105990..106367	-	125	161618090	-	BCAN_A0105	-	response regulator receiver protein
100	 49.37	-1	106542..106778	-	78	161618091	-	BCAN_A0106	-	AsnC family transcriptional regulator
101	 57.04	0	107431..107835	+	134	161618092	-	BCAN_A0107	-	hypothetical protein
102	 57.02	0	107921..108625	-	234	161618093	-	BCAN_A0108	-	hypothetical protein
103	 53.85	0	108697..109515	+	272	161618094	-	BCAN_A0109	-	hypothetical protein
104	 57.63	0	109793..110821	+	342	161618095	-	BCAN_A0110	-	sulfate ABC transporter, sulfate-binding protein
105	 59.40	0	110916..111782	+	288	161618096	cysT	BCAN_A0111	-	sulfate ABC transporter, permease protein CysT
106	 59.05	0	111772..112638	+	288	161618097	cysW	BCAN_A0112	-	sulfate ABC transporter, permease protein CysW
107	 61.39	+1	112736..113815	+	359	161618098	cysA	BCAN_A0113	-	sulfate ABC transporter, ATP-binding protein
108	 60.51	0	114201..122804	+	2867	161618099	-	BCAN_A0114	-	glycosyltransferase 36
109	 58.47	0	122894..124198	+	434	161618100	pncB	BCAN_A0115	-	nicotinate phosphoribosyltransferase
110	 60.65	0	124240..125070	-	276	161618101	-	BCAN_A0116	-	PhzF family phenazine biosynthesis protein
111	 55.77	0	125180..125968	-	262	161618102	-	BCAN_A0117	-	methyltransferase type 11
112	 59.44	0	125991..126917	-	308	161618103	frk	BCAN_A0118	-	fructokinase
113	 59.60	0	127008..127814	-	268	161618104	-	BCAN_A0119	-	short-chain dehydrogenase/reductase SDR
114	 60.03	0	127935..130226	-	763	161618105	-	BCAN_A0120	-	1A family penicillin-binding protein
115	 56.13	0	130431..131123	-	230	161618106	ropB	BCAN_A0121	-	22 kDa outer membrane protein precursor
116	 56.19	0	131390..132076	-	228	161618107	ropB	BCAN_A0122	-	22 kDa outer membrane protein precursor
117	 56.15	0	132308..132925	-	205	161618108	-	BCAN_A0123	-	hypothetical protein
118	 59.39	0	132964..134379	-	471	161618109	-	BCAN_A0124	-	hypothetical protein
119	 52.61	-1	134610..134858	+	82	161618110	-	BCAN_A0125	-	hypothetical protein
120	 59.49	0	134940..137879	+	979	161618111	polA	BCAN_A0126	-	DNA polymerase I
121	 60.18	0	138021..139901	+	626	161618112	ydbR	BCAN_A0127	-	DEAD-box ATP-dependent RNA helicase ydbR
122	 59.66	0	139997..142438	-	813	161618113	gyrB	BCAN_A0128	-	DNA gyrase subunit B
123	 50.00	-1	142489..142656	-	55	161618114	-	BCAN_A0129	-	hypothetical protein
124	 57.95	0	142760..143596	-	278	161618115	fghA	BCAN_A0130	-	S-formylglutathione hydrolase
125	 57.84	0	143604..144260	-	218	161618116	-	BCAN_A0131	-	hypothetical protein
126	 56.84	0	144260..144727	-	155	161618117	-	BCAN_A0132	-	GCN5-related N-acetyltransferase
127	 61.19	0	144727..145839	-	370	161618118	-	BCAN_A0133	-	S-(hydroxymethyl)glutathione dehydrogenase/class III alcohol dehydrogenase
128	 57.33	0	145736..145885	+	49	161618119	-	BCAN_A0134	-	hypothetical protein
129	 58.60	0	145873..146157	-	94	161618120	-	BCAN_A0135	-	hypothetical protein
130	 60.94	0	148833..150125	+	430	161618121	regB	BCAN_A0137	-	sensor histidine kinase regB
131	 58.27	0	150195..150563	+	122	161618122	-	BCAN_A0138	-	transposase for insertion sequence element IS6501
132	 58.01	0	150217..150528	+	103	161618123	-	BCAN_A0139	-	IS711, transposase orfA
133	 50.36	-1	150560..150970	+	136	161618124	-	BCAN_A0140	-	transposase for insertion sequence element IS6501
134	 50.74	-1	151019..151357	+	112	161618125	-	BCAN_A0141	-	hypothetical protein
135	 60.64	0	151553..152116	+	187	161618126	regA	BCAN_A0142	-	photosynthetic apparatus regulatory protein regA
136	 63.70	+1	152122..152424	-	100	161618127	-	BCAN_A0143	-	hypothetical protein
137	 57.17	0	152886..153506	+	206	161618128	-	BCAN_A0144	-	ErfK/YbiS/YcfS/YnhG family protein
138	 59.51	0	153596..154168	-	190	161618129	-	BCAN_A0145	-	HIRA-interacting protein 5
139	 60.93	0	154277..154816	-	179	161618130	-	BCAN_A0146	-	UspA domain-containing protein
140	 59.33	0	154823..155980	-	385	161618131	trpS	BCAN_A0147	-	tryptophanyl-tRNA synthetase
141	 59.94	0	155987..157576	-	529	161618132	mviN	BCAN_A0148	-	integral membrane protein MviN
142	 58.47	0	157590..160394	-	934	161618133	glnD	BCAN_A0149	-	PII uridylyl-transferase
143	 45.83	-2	160460..160555	+	31	161618134	-	BCAN_A0150	-	hypothetical protein
144	 60.56	0	162966..165698	+	910	161618135	mutS	BCAN_A0152	-	DNA mismatch repair protein
145	 58.39	0	166004..166897	-	297	161618136	-	BCAN_A0153	-	hypothetical protein
146	 52.80	-1	167172..167654	-	160	161618137	lspA	BCAN_A0154	-	signal peptidase II
147	 60.18	0	167656..168549	-	297	161618138	-	BCAN_A0155	-	tRNA/rRNA methyltransferase (SpoU)
148	 61.08	0	168546..169691	-	381	161618139	-	BCAN_A0156	-	hypothetical protein
149	 58.95	0	169804..170127	-	107	161618140	-	BCAN_A0157	-	hypothetical protein
150	 57.19	0	170137..170421	-	94	161618141	ihfB	BCAN_A0158	-	integration host factor subunit beta
151	 60.06	0	170468..171451	-	327	161618142	sppA	BCAN_A0159	-	signal peptide peptidase SppA, 36K type
152	 56.02	0	171913..172635	+	240	161618143	-	BCAN_A0160	-	hypothetical protein
153	 60.98	0	172958..173572	+	204	161618144	-	BCAN_A0161	-	hypothetical protein
154	 59.95	0	173584..174417	+	277	161618145	-	BCAN_A0162	-	ABC transporter ATP-binding protein
155	 57.75	0	174713..176215	+	500	161618146	rpoN	BCAN_A0163	-	RNA polymerase factor sigma-54
156	 46.99	-2	176364..176729	-	121	161618147	-	BCAN_A0164	-	hypothetical protein
157	 58.92	0	176965..177558	+	197	161618148	yfiA	BCAN_A0165	-	ribosomal subunit interface protein
158	 58.49	0	177661..178125	+	154	161618149	ptsN	BCAN_A0166	-	PTS IIA-like nitrogen-regulatory protein PtsN
159	 58.54	0	178206..178451	-	81	161618150	-	BCAN_A0167	-	hypothetical protein
160	 56.50	0	178557..178979	-	140	161618151	hspD	BCAN_A0168	-	small heat shock protein hspD
161	 49.25	-1	179070..179270	-	66	161618152	-	BCAN_A0169	-	hypothetical protein
162	 58.05	0	179251..179865	-	204	161618153	-	BCAN_A0170	-	hypothetical protein
163	 60.51	0	179853..180599	+	248	161618154	nth	BCAN_A0171	-	endonuclease III
164	 58.40	0	180640..181353	-	237	161618155	-	BCAN_A0172	-	CysZ-like protein
165	 59.00	0	181350..181610	-	86	161618156	-	BCAN_A0173	-	hypothetical protein
166	 59.92	0	181613..182605	+	330	161618157	-	BCAN_A0174	-	fructokinase-2
167	 59.97	0	182624..183280	-	218	161618158	-	BCAN_A0175	-	hypothetical protein
168	 59.45	0	183413..184105	-	230	161618159	grpE	BCAN_A0176	-	protein grpE
169	 59.85	0	184211..185281	-	356	161618160	hrcA	BCAN_A0177	-	heat-inducible transcription repressor
57.15	MEAN

4.17	STD DEV
