IslandPath Analysis: Brucella canis ATCC 23365

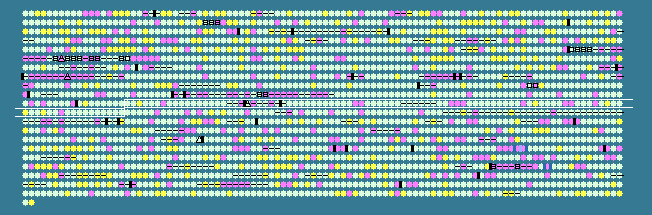

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.15 STD DEV: 4.17
Brucella canis ATCC 23365 chromosome I, complete sequence - 1..2105969
2102 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1018	 56.61	0	1027475..1029016	-	513	161619009	-	BCAN_A1074	-	EmrB/QacA family drug resistance transporter
1019	 57.67	0	1029016..1030116	-	366	161619010	-	BCAN_A1075	-	HlyD family protein secretion protein
1020	 62.20	+1	1030510..1031493	+	327	161619011	-	BCAN_A1076	-	zinc-binding alcohol dehydrogenase family protein
1021	 58.44	0	1031537..1032679	-	380	161619012	pepQ	BCAN_A1077	-	Xaa-Pro dipeptidase
1022	 55.84	0	1032938..1033768	-	276	161619013	-	BCAN_A1078	-	methyltransferase type 12
1023	 55.28	0	1033877..1034842	-	321	161619014	-	BCAN_A1079	-	Sodium/bile acid cotransporter 7-B
1024	 51.63	-1	1034870..1035022	-	50	161619015	-	BCAN_A1080	-	hypothetical protein
1025	 53.97	0	1034971..1035978	-	335	161619016	galE	BCAN_A1081	-	UDP-glucose 4-epimerase
1026	 53.94	0	1036123..1036947	+	274	161619017	-	BCAN_A1082	-	nucleoside triphosphate pyrophosphohydrolase
1027	 56.05	0	1036956..1037567	-	203	161619018	-	BCAN_A1083	-	hypothetical protein
1028	 58.29	0	1037610..1038194	-	194	161619019	-	BCAN_A1084	-	nitroreductase
1029	 57.47	0	1038414..1039424	+	336	161619020	-	BCAN_A1085	-	hypothetical protein
1030	 56.55	0	1039479..1041455	-	658	161619021	thrS	BCAN_A1086	-	threonyl-tRNA synthetase
1031	 57.91	0	1041670..1042902	-	410	161619022	-	BCAN_A1087	-	Serine-type D-Ala-D-Ala carboxypeptidase
1032	 59.79	0	1043009..1043488	-	159	161619023	-	BCAN_A1088	-	hypothetical protein
1033	 57.37	0	1043382..1043822	-	146	161619024	-	BCAN_A1089	-	NifU domain-containing protein
1034	 57.01	0	1044086..1044727	+	213	161619025	folE	BCAN_A1090	-	GTP cyclohydrolase I
1035	 57.14	0	1044750..1045169	+	139	161619026	hisI	BCAN_A1091	-	phosphoribosyl-AMP cyclohydrolase
1036	 59.28	0	1045386..1046333	+	315	161619027	-	BCAN_A1092	-	patatin
1037	 40.00	-2	1046420..1046599	+	59	161619028	-	BCAN_A1093	-	hypothetical protein
1038	 53.98	0	1046808..1048052	+	414	161619029	-	BCAN_A1095	-	site-specific recombinase, phage integrase family protein
1039	 53.33	0	1048191..1048595	+	134	161619030	-	BCAN_A1096	-	hypothetical protein
1040	 54.79	0	1050279..1051676	-	465	161619031	-	BCAN_A1097	-	hypothetical protein
1041	 58.25	0	1052201..1052830	-	209	161619032	cin	BCAN_A1098	-	DNA-invertase
1042	 52.63	-1	1053273..1053386	-	37	161619033	-	BCAN_A1099	-	hypothetical protein
1043	 55.03	0	1053945..1054520	-	191	161619034	-	BCAN_A1100	-	BRO domain-containing protein
1044	 56.81	0	1055047..1056192	-	381	161619035	-	BCAN_A1102	-	acyl-CoA transferase
1045	 56.88	0	1056271..1057455	-	394	161619036	acdA	BCAN_A1103	-	Acyl-CoA dehydrogenase
1046	 58.63	0	1057557..1058489	+	310	161619037	-	BCAN_A1104	-	LysR family transcriptional regulator
1047	 59.15	0	1058459..1059442	-	327	161619038	-	BCAN_A1105	-	luciferase family protein
1048	 57.22	0	1059523..1062612	-	1029	161619039	-	BCAN_A1106	-	acriflavin resistance protein
1049	 57.45	0	1062622..1063803	-	393	161619040	-	BCAN_A1107	-	RND family efflux transporter MFP subunit
1050	 54.32	0	1063911..1064477	+	188	161619041	-	BCAN_A1108	-	TetR family transcriptional regulator
1051	 58.91	0	1064514..1065647	-	377	161619042	tgt	BCAN_A1109	-	queuine tRNA-ribosyltransferase
1052	 58.42	0	1065644..1066735	-	363	161619043	queA	BCAN_A1110	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1053	 59.57	0	1066857..1067363	-	168	161619044	-	BCAN_A1111	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1054	 56.01	0	1067426..1068016	-	196	161619045	-	BCAN_A1112	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1055	 55.56	0	1068037..1068531	-	164	161619046	coaD	BCAN_A1113	-	phosphopantetheine adenylyltransferase
1056	 47.93	-2	1068268..1068726	+	152	161619047	-	BCAN_A1114	-	hypothetical protein
1057	 52.67	-1	1068726..1068875	+	49	161619048	-	BCAN_A1115	-	hypothetical protein
1058	 55.00	0	1068747..1068986	-	79	161619049	-	BCAN_A1116	-	hypothetical protein
1059	 58.90	0	1069042..1071810	-	922	161619050	gyrA	BCAN_A1117	-	DNA gyrase subunit A
1060	 56.51	0	1072098..1072727	+	209	161619051	-	BCAN_A1118	-	hypothetical protein
1061	 56.13	0	1072818..1073396	-	192	161619052	phnN	BCAN_A1119	-	phosphonate metabolism protein/1,5-bisphosphokinase (PRPP-forming) PhnN
1062	 54.86	0	1073583..1074344	+	253	161619053	phnF	BCAN_A1120	-	phosphonates metabolism transcriptional regulator PhnF
1063	 56.03	0	1074695..1074835	+	46	161619054	-	BCAN_A1121	-	hypothetical protein
1064	 56.61	0	1075029..1075535	-	168	161619055	ssb	BCAN_A1122	-	single-strand binding protein
1065	 54.23	0	1076103..1076303	+	66	161619056	-	BCAN_A1123	-	hypothetical protein
1066	 58.39	0	1076434..1079358	+	974	161619057	uvrA	BCAN_A1124	-	excinuclease ABC subunit A
1067	 60.51	0	1079544..1079819	-	91	161619058	-	BCAN_A1125	-	DNA-binding protein HRL18
1068	 56.83	0	1080000..1082438	-	812	161619059	lon	BCAN_A1126	-	ATP-dependent protease La
1069	 56.24	0	1082870..1084144	-	424	161619060	clpX	BCAN_A1127	-	ATP-dependent protease ATP-binding subunit
1070	 56.51	0	1084526..1085155	-	209	161619061	clpP	BCAN_A1128	-	ATP-dependent Clp protease proteolytic subunit
1071	 59.62	0	1085260..1086678	-	472	161619062	-	BCAN_A1129	-	GTP-binding protein HSR1-related
1072	 45.57	-2	1086869..1087105	-	78	161619063	hfq	BCAN_A1130	-	RNA-binding protein Hfq
1073	 48.33	-2	1087111..1087350	-	79	161619064	-	BCAN_A1131	-	hypothetical protein
1074	 51.62	-1	1087334..1088164	-	276	161619065	-	BCAN_A1132	-	hypothetical protein
1075	 56.06	0	1088213..1089589	-	458	161619066	-	BCAN_A1133	-	potassium transporter peripheral membrane component
1076	 60.28	0	1089614..1090975	-	453	161619067	ntrX	BCAN_A1134	-	nitrogen assimilation regulatory protein ntrX
1077	 57.16	0	1090977..1093301	-	774	161619068	-	BCAN_A1135	-	PAS domain-containing protein
1078	 59.35	0	1093392..1094867	-	491	161619069	ntrC	BCAN_A1136	-	nitrogen regulation protein NR(I)
1079	 59.58	0	1094864..1096006	-	380	161619070	ntrB	BCAN_A1137	-	nitrogen regulation protein ntrB
1080	 58.58	0	1096006..1097007	-	333	161619071	-	BCAN_A1138	-	NifR3 family TIM-barrel protein
1081	 57.82	0	1097019..1098374	+	451	161619072	ispF	BCAN_A1139	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1082	 59.44	0	1098371..1098868	+	165	161619073	-	BCAN_A1140	-	competence/damage inducible protein CinA
1083	 57.49	0	1098945..1099685	+	246	161619074	bacC	BCAN_A1141	-	bacilysin biosynthesis oxidoreductase bacC
1084	 53.16	0	1099743..1100201	-	152	161619075	-	BCAN_A1142	-	cyclase/dehydrase
1085	 56.45	0	1100207..1101175	-	322	161619076	lipA	BCAN_A1143	-	lipoyl synthase
1086	 64.81	+1	1101285..1101446	-	53	161619077	-	BCAN_A1144	-	hypothetical protein
1087	 58.81	0	1101565..1103028	-	487	161619078	lpdA	BCAN_A1145	-	dihydrolipoamide dehydrogenase
1088	 59.52	0	1103111..1104454	-	447	161619079	-	BCAN_A1146	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1089	 57.50	0	1104472..1105857	-	461	161619080	-	BCAN_A1147	-	pyruvate dehydrogenase subunit beta
1090	 55.81	0	1105876..1106916	-	346	161619081	-	BCAN_A1148	-	dehydrogenase E1 component
1091	 49.70	-1	1107055..1107384	-	109	161619082	-	BCAN_A1149	-	septum formation initiator
1092	 49.66	-1	1107656..1108237	-	193	161619083	-	BCAN_A1150	-	hypothetical protein
1093	 57.51	0	1108574..1109851	-	425	161619084	eno	BCAN_A1151	-	phosphopyruvate hydratase
1094	 57.07	0	1110038..1110871	-	277	161619085	kdsA	BCAN_A1152	-	2-dehydro-3-deoxyphosphooctonate aldolase
1095	 55.68	0	1110977..1112605	-	542	161619086	pyrG	BCAN_A1153	-	CTP synthetase
1096	 46.34	-2	1112618..1112740	-	40	161619087	-	BCAN_A1154	-	hypothetical protein
1097	 57.29	0	1112875..1113567	-	230	161619088	-	BCAN_A1155	-	ErfK/YbiS/YcfS/YnhG family protein
1098	 63.31	+1	1113821..1114267	-	148	161619089	secG	BCAN_A1156	-	preprotein translocase subunit SecG
1099	 59.61	0	1114367..1115131	-	254	161619090	tpiA	BCAN_A1157	-	triosephosphate isomerase
1100	 59.30	0	1115350..1117236	+	628	161619091	-	BCAN_A1158	-	rotamase family protein
1101	 61.57	+1	1117251..1118270	+	339	161619092	trpD	BCAN_A1159	-	anthranilate phosphoribosyltransferase
1102	 58.36	0	1118287..1119093	+	268	161619093	trpC	BCAN_A1160	-	indole-3-glycerol-phosphate synthase
1103	 60.24	0	1119090..1119587	+	165	161619094	moaC	BCAN_A1161	-	molybdenum cofactor biosynthesis protein C
1104	 60.91	0	1119683..1120897	+	404	161619095	-	BCAN_A1162	-	molybdenum cofactor synthesis domain-containing protein
1105	 57.81	0	1121145..1121867	+	240	161619096	lexA	BCAN_A1163	-	LexA repressor
1106	 57.42	0	1121861..1124392	-	843	161619097	-	BCAN_A1164	-	ComEC/Rec2-related protein
1107	 53.67	0	1124424..1124600	-	58	161619098	-	BCAN_A1165	-	hypothetical protein
1108	 60.13	0	1124613..1126034	+	473	161619099	gltX	BCAN_A1166	-	glutamyl-tRNA synthetase
1109	 57.31	0	1126263..1127555	+	430	161619100	gltA	BCAN_A1167	-	type II citrate synthase
1110	 57.91	0	1127728..1128915	-	395	161619101	lpxB	BCAN_A1168	-	lipid-A-disaccharide synthase
1111	 58.58	0	1128912..1129814	-	300	161619102	-	BCAN_A1169	-	hypothetical protein
1112	 57.47	0	1129795..1130631	-	278	161619103	lpxA	BCAN_A1170	-	UDP-N-acetylglucosamine acyltransferase
1113	 54.01	0	1130640..1131113	-	157	161619104	fabZ	BCAN_A1171	-	(3R)-hydroxymyristoyl-ACP dehydratase
1114	 58.43	0	1131106..1132161	-	351	161619105	lpxD	BCAN_A1172	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1115	 54.43	0	1132215..1134560	-	781	161619106	yaeT	BCAN_A1173	-	Outer membrane protein assembly factor yaeT precursor
1116	 57.11	0	1134896..1136035	-	379	161619107	-	BCAN_A1174	-	membrane-associated zinc metalloprotease
1117	 58.92	0	1136102..1136914	-	270	161619108	cdsA	BCAN_A1175	-	phosphatidate cytidylyltransferase
57.15	MEAN

4.17	STD DEV
