IslandPath Analysis: Brucella abortus S19

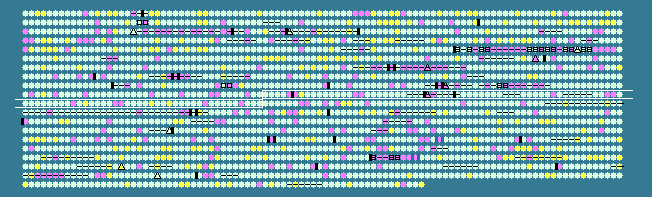

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
941	 57.17	0	1033154..1033753	-	199	189024209	-	BAbS19_I09880	-	Phosphoribosyltransferase
942	 59.34	0	1034116..1034961	-	281	189024210	-	BAbS19_I09890	-	Universal stress protein (Usp)
943	 57.44	0	1035039..1035797	-	252	189024211	-	BAbS19_I09900	-	Molybdenum cofactor biosynthesis protein
944	 59.00	0	1035958..1036557	+	199	189024212	-	BAbS19_I09910	-	Flavodoxin
945	 50.67	-1	1036535..1036684	-	49	189024213	-	BAbS19_I09920	-	hypothetical protein
946	 53.94	-1	1036862..1038118	+	418	189024214	-	BAbS19_I09930	-	threonine dehydratase
947	 61.97	+1	1038185..1039780	+	531	189024215	-	BAbS19_I09940	-	ATP-dependent RNA helicase, DEAD/DEAH box family
948	 58.11	0	1039951..1040979	+	342	189024216	-	BAbS19_I09950	-	cysteine synthase
949	 55.91	0	1040982..1041725	+	247	189024217	-	BAbS19_I09960	-	Alanyl-transfer RNA synthetase
950	 58.25	0	1041752..1042606	+	284	189024218	-	BAbS19_I09970	-	Thiosulfate sulfurtransferase
951	 55.17	0	1042608..1043129	+	173	189024219	-	BAbS19_I09980	-	GCN5-related N-acetyltransferase
952	 55.33	0	1043316..1044806	-	496	189024220	-	BAbS19_I09990	-	Acetyl-CoA hydrolase/transferase
953	 56.76	0	1046612..1047277	-	221	189024221	-	BAbS19_I10020	-	HlyD family secretion protein
954	 55.84	0	1049986..1050816	-	276	189024222	-	BAbS19_I10070	-	SAM (and some other nucleotide) binding motif
955	 55.28	0	1050925..1051890	-	321	189024223	-	BAbS19_I10080	-	Bile acid:sodium symporter
956	 53.97	-1	1052019..1053026	-	335	189024224	-	BAbS19_I10090	-	NAD-dependent epimerase/dehydratase
957	 53.45	-1	1053171..1053995	+	274	189024225	-	BAbS19_I10100	-	ATP/GTP-binding site motif A (P-loop)
958	 56.37	0	1054004..1054615	-	203	189024226	-	BAbS19_I10110	-	nitrilotriacetate monooxygenase component B
959	 58.12	0	1054658..1055242	-	194	189024227	-	BAbS19_I10120	-	Nitroreductase family
960	 57.67	0	1055462..1056472	+	336	189024228	-	BAbS19_I10130	-	hypothetical protein
961	 56.45	0	1056527..1058503	-	658	189024229	-	BAbS19_I10140	-	threonyl-tRNA synthetase
962	 58.54	0	1058718..1059911	-	397	189024230	-	BAbS19_I10150	-	D-alanyl-D-alanine carboxypeptidase 1, S11 family
963	 59.68	0	1060057..1060428	-	123	189024231	-	BAbS19_I10160	-	Protein of unknown function DUF37
964	 57.37	0	1060430..1060870	-	146	189024232	-	BAbS19_I10170	-	Nitrogen-fixing NifU-like, N-terminal
965	 57.01	0	1061134..1061775	+	213	189024233	-	BAbS19_I10180	-	GTP cyclohydrolase I
966	 57.38	0	1061798..1062217	+	139	189024234	-	BAbS19_I10190	-	phosphoribosyl-AMP cyclohydrolase
967	 59.39	0	1062434..1063381	+	315	189024235	-	BAbS19_I10200	-	Patatin
968	 53.82	-1	1063854..1065098	+	414	189024236	-	BAbS19_I10210	-	Phage integrase
969	 53.58	-1	1065237..1065641	+	134	189024237	-	BAbS19_I10220	-	hypothetical protein
970	 54.66	0	1067388..1068320	-	310	189024238	-	BAbS19_I10230	-	hypothetical protein
971	 58.25	0	1068986..1069603	-	205	189024239	-	BAbS19_I10240	-	Resolvase, N-terminal
972	 54.31	0	1070730..1071077	-	115	189024240	-	BAbS19_I10250	-	BRO family, N-terminal
973	 56.79	0	1073055..1074239	-	394	189024241	-	BAbS19_I10280	-	glutaryl-CoA dehydrogenase
974	 59.15	0	1074341..1075192	+	283	189024242	-	BAbS19_I10290	-	Bacterial regulatory protein LysR
975	 59.55	0	1075242..1076225	-	327	189024243	-	BAbS19_I10300	-	Bacterial luciferase
976	 57.38	0	1076306..1079395	-	1029	189024244	-	BAbS19_I10310	-	Acriflavin resistance protein
977	 57.28	0	1079405..1080586	-	393	189024245	-	BAbS19_I10320	-	hypothetical protein
978	 54.14	0	1080694..1081260	+	188	189024246	-	BAbS19_I10330	-	Bacterial regulatory protein TetR, HTH motif
979	 58.99	0	1081297..1082430	-	377	189024247	-	BAbS19_I10340	-	Queuine tRNA-ribosyltransferase
980	 58.42	0	1082427..1083518	-	363	189024248	-	BAbS19_I10350	-	Queuosine biosynthesis protein
981	 59.57	0	1083640..1084146	-	168	189024249	-	BAbS19_I10360	-	Peptidyl-prolyl cis-trans isomerase, cyclophilin type
982	 55.84	0	1084209..1084799	-	196	189024250	-	BAbS19_I10370	-	Peptidyl-prolyl cis-trans isomerase, cyclophilin type
983	 55.76	0	1084820..1085314	-	164	189024251	-	BAbS19_I10380	-	Coenzyme A biosynthesis protein
984	 55.00	0	1085530..1085769	-	79	189024252	-	BAbS19_I10390	-	hypothetical protein
985	 58.93	0	1085825..1088629	-	934	189024253	-	BAbS19_I10400	-	DNA gyrase subunit A
986	 56.67	0	1088881..1089510	+	209	189024254	-	BAbS19_I10410	-	Multiple antibiotic resistance (MarC)-related protein
987	 55.82	0	1089601..1090107	-	168	189024255	-	BAbS19_I10420	-	Guanylate kinase/L-type calcium channel region
988	 54.99	0	1090366..1091127	+	253	189024256	-	BAbS19_I10430	-	Bacterial regulatory protein, GntR family
989	 44.28	-2	1091270..1091671	+	133	189024257	-	BAbS19_I10440	-	hypothetical protein
990	 56.41	0	1091827..1092333	-	168	189024258	-	BAbS19_I10450	-	Single-strand binding protein
991	 58.36	0	1093232..1096156	+	974	189024259	-	BAbS19_I10460	-	excinuclease ABC subunit A
992	 60.51	0	1096343..1096618	-	91	189024260	-	BAbS19_I10470	-	Histone-like bacterial DNA-binding protein
993	 56.79	0	1096799..1099237	-	812	189024261	-	BAbS19_I10480	-	Lon, ATP-dependent protease La
994	 55.00	0	1099558..1099677	+	39	189024262	-	BAbS19_I10490	-	hypothetical protein
995	 56.31	0	1099669..1100943	-	424	189024263	-	BAbS19_I10500	-	ATP-dependent protease ATP-binding subunit
996	 56.51	0	1101325..1101954	-	209	189024264	-	BAbS19_I10510	-	Clp protease
997	 59.55	0	1102059..1103477	-	472	189024265	-	BAbS19_I10520	-	GTP1/OBG
998	 45.57	-2	1103668..1103904	-	78	189024266	-	BAbS19_I10530	-	Host factor Hfq
999	 51.34	-1	1104133..1104876	-	247	189024267	-	BAbS19_I10540	-	hypothetical protein
1000	 56.28	0	1105012..1106388	-	458	189024268	-	BAbS19_I10550	-	TrkA-N:TrkA potassium uptake protein
1001	 60.21	0	1106413..1107774	-	453	189024269	-	BAbS19_I10560	-	Nitrogen assimilation regulatory protein NTRX
1002	 57.47	0	1107776..1110058	-	760	189024270	-	BAbS19_I10570	-	nitrogen regulation protein NtrY
1003	 59.42	0	1110191..1111666	-	491	189024271	-	BAbS19_I10580	-	nitrogen regulation protein NtrC
1004	 59.67	0	1111663..1112805	-	380	189024272	-	BAbS19_I10590	-	NtrB, nitrogen regulation protein NtrB
1005	 58.68	0	1112805..1113806	-	333	189024273	-	BAbS19_I10600	-	nitrogen regulation protein NifR3
1006	 58.18	0	1113830..1115173	+	447	189024274	-	BAbS19_I10610	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1007	 59.24	0	1115170..1115667	+	165	189024275	-	BAbS19_I10620	-	CinA, C-terminal
1008	 57.39	0	1115744..1116562	+	272	189024276	-	BAbS19_I10630	-	Glucose 1-dehydrogenase II
1009	 53.16	-1	1116544..1117002	-	152	189024277	-	BAbS19_I10640	-	Hypothetical Cytosolic Protein
1010	 56.45	0	1117008..1117976	-	322	189024278	-	BAbS19_I10650	-	Lipoate synthase
1011	 64.65	+1	1118086..1118283	-	65	189024279	-	BAbS19_I10660	-	hypothetical protein
1012	 58.95	0	1118366..1119829	-	487	189024280	-	BAbS19_I10670	-	dihydrolipoamide dehydrogenase
1013	 59.67	0	1119912..1121255	-	447	189024281	-	BAbS19_I10680	-	AceF, pyruvate dehydrogenase complex, E2 component
1014	 57.58	0	1121273..1122658	-	461	189024282	-	BAbS19_I10690	-	dihydrolipoamide acetyltransferase
1015	 55.91	0	1122677..1123717	-	346	189024283	-	BAbS19_I10700	-	Dehydrogenase, E1 component
1016	 49.70	-2	1123856..1124185	-	109	189024284	-	BAbS19_I10710	-	Septum formation initiator
1017	 49.66	-2	1124457..1125038	-	193	189024285	-	BAbS19_I10720	-	hypothetical protein BruAb1_1137
1018	 57.51	0	1125375..1126652	-	425	189024286	-	BAbS19_I10730	-	Enolase
1019	 57.07	0	1126839..1127672	-	277	189024287	-	BAbS19_I10740	-	2-dehydro-3-deoxyphosphooctonate aldolase
1020	 55.56	0	1127778..1129406	-	542	189024288	-	BAbS19_I10750	-	Glutamine amidotransferase class-I
1021	 57.29	0	1129677..1130369	-	230	189024289	-	BAbS19_I10760	-	ErfK/YbiS/YcfS/YnhG
1022	 63.53	+1	1130623..1131069	-	148	189024290	-	BAbS19_I10770	-	Preprotein translocase SecG subunit
1023	 59.61	0	1131169..1131933	-	254	189024291	-	BAbS19_I10780	-	Triosephosphate isomerase
1024	 59.25	0	1132152..1134038	+	628	189024292	-	BAbS19_I10790	-	peptidyl-prolyl cis-trans isomerase D
1025	 61.76	+1	1134053..1135072	+	339	189024293	-	BAbS19_I10800	-	Glycosyl transferase, family
1026	 58.24	0	1135089..1135895	+	268	189024294	-	BAbS19_I10810	-	Indole-3-glycerol phosphate synthase
1027	 60.44	0	1135892..1136389	+	165	189024295	-	BAbS19_I10820	-	Molybdopterin cofactor biosynthesis protein MoaC
1028	 60.82	0	1136485..1137699	+	404	189024296	-	BAbS19_I10830	-	MoeA, molybdopterin biosynthesis protein MoeA
1029	 57.68	0	1137947..1138669	+	240	189024297	-	BAbS19_I10840	-	Peptidase family S24
1030	 57.49	0	1138663..1141212	-	849	189024298	-	BAbS19_I10850	-	ComEC/Rec2-related protein
1031	 53.67	-1	1141226..1141402	-	58	189024299	-	BAbS19_I10860	-	hypothetical protein
1032	 60.06	0	1141415..1142836	+	473	189024300	-	BAbS19_I10870	-	glutamyl-tRNA synthetase
1033	 57.15	0	1143065..1144357	+	430	189024301	-	BAbS19_I10880	-	Citrate synthase
1034	 57.83	0	1144530..1145717	-	395	189024302	-	BAbS19_I10890	-	Glycosyl transferase, family 19
1035	 58.36	0	1145714..1146616	-	300	189024303	-	BAbS19_I10900	-	hypothetical protein
1036	 57.47	0	1146597..1147433	-	278	189024304	-	BAbS19_I10910	-	Bacterial transferase hexapeptide repeat
1037	 53.80	-1	1147442..1147915	-	157	189024305	-	BAbS19_I10920	-	Thioesterase superfamily
1038	 58.43	0	1147908..1148963	-	351	189024306	-	BAbS19_I10930	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1039	 54.43	0	1149017..1151362	-	781	189024307	-	BAbS19_I10940	-	Bacterial surface antigen (D15)
1040	 57.11	0	1151698..1152837	-	379	189024308	-	BAbS19_I10950	-	membrane-associated zinc metalloprotease, putative
57.60	MEAN

3.62	STD DEV
