IslandPath Analysis: Brucella abortus S19

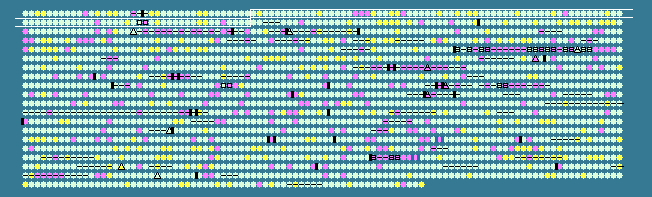

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.60   STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
39	 55.46	0	50148..50513	+	121	189023307	-	BAbS19_I00410	-	Prokaryotic Cytochrome C oxidase subunit IV
40	 62.57	+1	50964..51476	+	170	189023308	-	BAbS19_I00420	-	Hypothetical Membrane Spanning Protein
41	 59.02	0	51919..53880	+	653	189023309	-	BAbS19_I00430	-	Bacterial surface antigen (D15)
42	 59.79	0	53877..58616	+	1579	189023310	-	BAbS19_I00440	-	Gramicidin S biosynthesis GRST protein
43	 57.44	0	58761..59486	+	241	189023311	-	BAbS19_I00450	-	ErfK/YbiS/YcfS/YnhG
44	 55.56	0	59537..59752	-	71	189023312	-	BAbS19_I00460	-	hypothetical protein
45	 59.22	0	59822..60331	-	169	189023313	-	BAbS19_I00470	-	Hypothetical cytosolic protein (cysteine-rich)
46	 60.38	0	60663..60821	-	52	189023314	-	BAbS19_I00480	-	hypothetical protein
47	 58.61	0	60880..61884	-	334	189023315	-	BAbS19_I00490	-	Protein of unknown function DUF461
48	 59.65	0	62019..62417	-	132	189023316	-	BAbS19_I00500	-	hypothetical protein
49	 58.33	0	62638..63033	-	131	189023317	-	BAbS19_I00510	-	Glyoxalase/Bleomycin resistance protein
50	 62.20	+1	63230..64393	+	387	189023318	-	BAbS19_I00520	-	mrp-related protein
51	 57.84	0	64574..66205	-	543	189023319	-	BAbS19_I00530	-	phosphoglucomutase
52	 59.62	0	66421..67314	-	297	189023320	-	BAbS19_I00540	-	Bacterial regulatory protein LysR
53	 54.65	0	67439..68362	+	307	189023321	-	BAbS19_I00550	-	Esterase/lipase/thioesterase, active site
54	 58.94	0	68435..69133	+	232	189023322	-	BAbS19_I00560	-	Uridine kinase
55	 58.84	0	69233..69922	+	229	189023323	-	BAbS19_I00570	-	Fumarylacetoacetate (FAA) hydrolase
56	 52.60	-1	69942..70133	+	63	189023324	-	BAbS19_I00580	-	hypothetical protein
57	 46.67	-2	70201..70410	+	69	189023325	-	BAbS19_I00590	-	hypothetical protein
58	 51.85	-1	70576..70764	+	62	189023326	-	BAbS19_I00600	-	hypothetical protein
59	 62.38	+1	70779..71642	+	287	189023327	-	BAbS19_I00610	-	SLT domain protein
60	 57.84	0	71824..72480	+	218	189023328	-	BAbS19_I00620	-	Hly-III related protein
61	 60.57	0	72621..75836	-	1071	189023329	-	BAbS19_I00630	-	DNA polymerase III subunit alpha
62	 65.01	+2	75854..77305	-	483	189023330	-	BAbS19_I00640	-	hypothetical protein
63	 64.00	+1	77331..78194	-	287	189023331	-	BAbS19_I00650	-	hypothetical protein
64	 52.10	-1	78632..80938	+	768	189023332	-	BAbS19_I00660	-	outer membrane protein
65	 58.23	0	81774..82994	-	406	189023333	-	BAbS19_I00670	-	Argininosuccinate synthase
66	 56.82	0	83181..83840	+	219	189023334	-	BAbS19_I00680	-	Lysine exporter protein (LYSE/YGGA)
67	 57.94	0	83844..84347	-	167	189023335	-	BAbS19_I00690	-	hypothetical protein
68	 59.14	0	84381..85616	-	411	189023336	-	BAbS19_I00700	-	Conserved hypothetical protein 48
69	 57.54	0	85876..86379	-	167	189023337	-	BAbS19_I00710	-	hypothetical protein
70	 63.54	+1	86819..87202	-	127	189023338	-	BAbS19_I00720	-	hypothetical protein
71	 54.76	0	87290..87583	-	97	189023339	-	BAbS19_I00730	-	Transcriptional coactivator/pterin dehydratase
72	 55.89	0	87894..88190	+	98	189023340	-	BAbS19_I00740	-	Low molecular weight phosphotyrosine protein phosphatase
73	 61.25	+1	88323..88913	-	196	189023341	-	BAbS19_I00750	-	2`-5` RNA ligase, putative
74	 56.06	0	89094..89819	-	241	189023342	-	BAbS19_I00760	-	Lipolytic enzyme, G-D-S-L family
75	 61.87	+1	89966..90694	+	242	189023343	-	BAbS19_I00770	-	ATP/GTP-binding site motif A (P-loop)
76	 61.73	+1	90691..93240	+	849	189023344	-	BAbS19_I00780	-	Protein of unknown function DUF214
77	 57.86	0	93474..94211	+	245	189023345	-	BAbS19_I00790	-	hypothetical protein
78	 54.73	0	94884..95285	-	133	189023346	-	BAbS19_I00820	-	hypothetical protein
79	 56.99	0	95835..96671	-	278	189023347	-	BAbS19_I00830	-	hypothetical protein
80	 56.74	0	96722..96862	-	46	189023348	-	BAbS19_I00840	-	hypothetical protein
81	 60.27	0	96846..99533	-	895	189023349	-	BAbS19_I00850	-	Aconitate hydratase
82	 58.33	0	99877..100524	+	215	189023350	-	BAbS19_I00860	-	Heme exporter protein CcmA
83	 62.31	+1	100524..101189	+	221	189023351	-	BAbS19_I00870	-	SecY protein
84	 58.30	0	101244..102032	+	262	189023352	-	BAbS19_I00880	-	Cytochrome c assembly protein
85	 56.90	0	102029..102202	+	57	189023353	-	BAbS19_I00890	-	Heme exporter protein D (CcmD)
86	 59.31	0	102199..102810	+	203	189023354	-	BAbS19_I00900	-	Thiol:disulfide interchange protein CYCY precursor
87	 61.00	0	103059..104894	-	611	189023355	-	BAbS19_I00910	-	Dihydroxy-acid and 6-phosphogluconate dehydratase
88	 54.35	0	105075..105212	+	45	189023356	-	BAbS19_I00920	-	hypothetical protein
89	 61.57	+1	105293..105724	-	143	189023357	-	BAbS19_I00930	-	hypothetical protein
90	 59.73	0	105751..106125	-	124	189023358	-	BAbS19_I00940	-	Response regulator receiver
91	 49.37	-2	106303..106539	-	78	189023359	-	BAbS19_I00950	-	transcriptional regulator, putative
92	 56.79	0	107192..107596	+	134	189023360	-	BAbS19_I00960	-	hypothetical protein
93	 55.76	0	107682..108167	-	161	189023361	-	BAbS19_I00970	-	Formate/nitrite transporter
94	 54.42	0	108485..109276	+	263	189023362	-	BAbS19_I00980	-	hypothetical protein
95	 57.73	0	109554..110582	+	342	189023363	-	BAbS19_I00990	-	sulfate ABC transporter, sulfate-binding protein
96	 59.40	0	110677..111543	+	288	189023364	-	BAbS19_I01000	-	Binding-protein-dependent transport systems inner membrane component
97	 59.05	0	111533..112399	+	288	189023365	-	BAbS19_I01010	-	CysW-1, sulfate ABC transporter, permease protein
98	 61.56	+1	112362..113576	+	404	189023366	-	BAbS19_I01020	-	Sulfate transport atp-binding protein CYSA
99	 60.48	0	113962..122565	+	2867	189023367	-	BAbS19_I01030	-	cyclic beta 1-2 glucan synthetase
100	 58.39	0	122655..123959	+	434	189023368	-	BAbS19_I01040	-	Nicotinate phosphoribosyltransferase
101	 60.77	0	124001..124831	-	276	189023369	-	BAbS19_I01050	-	Phenazine biosynthesis PhzC/PhzF protein
102	 55.77	0	124941..125729	-	262	189023370	-	BAbS19_I01060	-	SAM methyltransferase
103	 59.33	0	125752..126678	-	308	189023371	-	BAbS19_I01070	-	Carbohydrate kinase, PfkB
104	 59.60	0	126769..127575	-	268	189023372	-	BAbS19_I01080	-	Short-chain dehydrogenase/reductase SDR
105	 60.12	0	127696..129987	-	763	189023373	-	BAbS19_I01090	-	penicillin-binding protein, 1A family
106	 56.13	0	130193..130885	-	230	189023374	-	BAbS19_I01100	-	outer membrane protein, putative
107	 56.19	0	131152..131838	-	228	189023375	-	BAbS19_I01110	-	outer membrane protein, putative
108	 56.31	0	132070..132687	-	205	189023376	-	BAbS19_I01120	-	3'-5' exonuclease
109	 59.46	0	132726..134141	-	471	189023377	-	BAbS19_I01130	-	Peptidase M20/M25/M40
110	 59.35	0	134702..137638	+	978	189023378	-	BAbS19_I01140	-	DNA polymerase I
111	 60.29	0	137780..139660	+	626	189023379	-	BAbS19_I01150	-	ATP-dependent RNA helicase, DEAD/DEAH box family
112	 59.83	0	139756..142197	-	813	189023380	-	BAbS19_I01160	-	DNA gyrase subunit B
113	 47.41	-2	142248..142382	-	44	189023381	-	BAbS19_I01170	-	hypothetical protein
114	 57.95	0	142516..143352	-	278	189023382	-	BAbS19_I01180	-	S-formylglutathione hydrolase
115	 56.62	0	144015..144482	-	155	189023383	-	BAbS19_I01210	-	GCN5-related N-acetyltransferase
116	 60.92	0	144482..145594	-	370	189023384	-	BAbS19_I01220	-	glutathione-dependent formaldehyde dehydrogenase
117	 59.39	0	145628..145888	-	86	189023385	-	BAbS19_I01230	-	Protein of unknown function DUF156
118	 64.94	+2	146040..147896	+	618	189023386	-	BAbS19_I01240	-	ATP-dependent helicase HRPB
119	 60.94	0	148589..149881	+	430	189023387	-	BAbS19_I01250	-	sensor histidine kinase
120	 58.27	0	149951..150319	+	122	189023388	-	BAbS19_I01260	-	Transposase
121	 49.08	-2	150436..150708	+	90	189023389	-	BAbS19_I01270	-	Transposase, IS4
122	 60.46	0	151308..151871	+	187	189023390	-	BAbS19_I01280	-	Response regulator receiver
123	 63.43	+1	151877..152371	-	164	189023391	-	BAbS19_I01290	-	hypothetical protein
124	 57.33	0	152641..153261	+	206	189023392	-	BAbS19_I01300	-	ErfK/YbiS/YcfS/YnhG
125	 59.69	0	153351..153923	-	190	189023393	-	BAbS19_I01310	-	Nitrogen-fixing NifU, C-terminal
126	 60.93	0	154032..154571	-	179	189023394	-	BAbS19_I01320	-	Hypothetical Cytosolic Protein
127	 59.83	0	154578..155645	-	355	189023395	-	BAbS19_I01330	-	tryptophanyl-tRNA synthetase
128	 60.10	0	155742..157325	-	527	189023396	-	BAbS19_I01340	-	Virulence factor MVIN-like protein
129	 58.54	0	157345..160149	-	934	189023397	-	BAbS19_I01350	-	PII uridylyl-transferase
130	 61.52	+1	160292..161185	-	297	189023398	-	BAbS19_I01360	-	NADP-dependent malic enzyme
131	 61.46	+1	161185..162585	-	466	189023399	-	BAbS19_I01370	-	NADP-dependent malic enzyme
132	 60.37	0	162742..165474	+	910	189023400	-	BAbS19_I01380	-	DNA mismatch repair protein
133	 58.50	0	165780..166673	-	297	189023401	-	BAbS19_I01390	-	hypothetical protein
134	 52.80	-1	166948..167430	-	160	189023402	-	BAbS19_I01400	-	Signal peptidase II, family A8
135	 59.96	0	167432..168325	-	297	189023403	-	BAbS19_I01410	-	tRNA/rRNA methyltransferase (SpoU)
136	 58.95	0	169579..169902	-	107	189023404	-	BAbS19_I01440	-	hypothetical protein
137	 56.84	0	169912..170196	-	94	189023405	-	BAbS19_I01450	-	Histone-like bacterial DNA-binding protein
138	 60.16	0	170243..171226	-	327	189023406	-	BAbS19_I01460	-	Clp protease
57.60	MEAN

3.62	STD DEV
