IslandPath Analysis: Brucella abortus S19

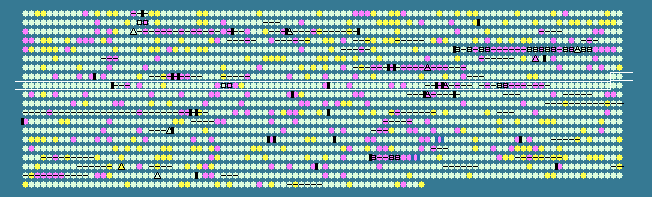

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
799	 60.74	0	875033..875758	+	241	189024067	-	BAbS19_I08400	-	Conserved hypothetical protein 281
800	 56.16	0	875904..876122	+	72	189024068	-	BAbS19_I08410	-	twin argininte translocase protein A
801	 56.36	0	876233..876814	+	193	189024069	-	BAbS19_I08420	-	sec-independent translocase
802	 57.21	0	876811..877635	+	274	189024070	-	BAbS19_I08430	-	Sec-independent periplasmic protein translocase
803	 59.35	0	877712..878995	+	427	189024071	-	BAbS19_I08440	-	seryl-tRNA synthetase
804	 60.81	0	879144..879911	+	255	189024072	-	BAbS19_I08450	-	Survival protein SurE
805	 58.45	0	879908..880576	+	222	189024073	-	BAbS19_I08460	-	protein-L-isoaspartate O-methyltransferase
806	 60.51	0	880955..882253	+	432	189024074	-	BAbS19_I08470	-	Peptidoglycan-binding LysM
807	 54.90	0	882302..883168	-	288	189024075	-	BAbS19_I08480	-	ATP/GTP-binding site motif A (P-loop)
808	 54.39	0	883329..883670	+	113	189024076	-	BAbS19_I08490	-	YajC
809	 56.74	0	883789..886116	+	775	189024077	-	BAbS19_I08500	-	Vacuolar H+-transporting two-sector ATPase, C subunit
810	 60.51	0	886119..886508	+	129	189024078	-	BAbS19_I08510	-	Hypothetical Cytosolic Protein
811	 58.03	0	886514..887347	+	277	189024079	-	BAbS19_I08520	-	hypothetical protein
812	 59.74	0	887399..888799	-	466	189024080	-	BAbS19_I08530	-	glucose-inhibited division protein A
813	 59.86	0	889041..889187	-	48	189024081	-	BAbS19_I08540	-	hypothetical protein
814	 56.73	0	889461..890597	+	378	189024082	-	BAbS19_I08550	-	hypothetical protein
815	 56.14	0	890594..891163	+	189	189024083	-	BAbS19_I08560	-	hypothetical protein
816	 56.43	0	891567..892982	+	471	189024084	-	BAbS19_I08570	-	Peptidylprolyl isomerase, FKBP-type
817	 57.22	0	893132..894634	+	500	189024085	-	BAbS19_I08580	-	Glutamyl-tRNA(Gln) amidotransferase B subunit
818	 53.57	-1	894634..895137	+	167	189024086	-	BAbS19_I08590	-	GCN5-related N-acetyltransferase
819	 58.88	0	895297..895707	+	136	189024087	-	BAbS19_I08600	-	NADH:ubiquinone oxidoreductase 17.2 kDa subunit
820	 46.83	-2	895767..895892	+	41	189024088	-	BAbS19_I08610	-	hypothetical protein
821	 58.11	0	895916..896371	+	151	189024089	-	BAbS19_I08620	-	hypothetical protein
822	 59.19	0	896415..897029	-	204	189024090	-	BAbS19_I08630	-	Aat, leucyl/phenylalanyl-tRNA--protein transferase
823	 57.54	0	897035..898393	-	452	189024091	-	BAbS19_I08640	-	acetyl-CoA carboxylase
824	 61.15	0	898443..898913	-	156	189024092	-	BAbS19_I08650	-	acetyl-CoA carboxylase
825	 54.64	0	898915..899388	-	157	189024093	-	BAbS19_I08660	-	Dehydroquinase, class II
826	 56.14	0	899632..900429	-	265	189024094	-	BAbS19_I08670	-	DSBA oxidoreductase
827	 58.47	0	900477..901892	-	471	189024095	-	BAbS19_I08680	-	Zinc metalloprotease
828	 59.36	0	902084..903247	+	387	189024096	-	BAbS19_I08690	-	1-aminocyclopropane-1-carboxylate synthase
829	 58.83	0	903366..906134	-	922	189024097	-	BAbS19_I08700	-	Ribonuclease E and G
830	 56.90	0	906813..908081	+	422	189024098	-	BAbS19_I08710	-	Cell wall hydrolase/autolysin
831	 58.29	0	908361..910820	+	819	189024099	-	BAbS19_I08720	-	Glycosyl transferase, family 51
832	 57.76	0	911124..912089	+	321	189024100	-	BAbS19_I08730	-	Peptide chain release factor 2
833	 42.11	-2	912148..912261	-	37	189024101	-	BAbS19_I08740	-	hypothetical protein
834	 58.81	0	912283..912651	+	122	189024102	-	BAbS19_I08750	-	Transposase
835	 50.92	-1	912768..913040	+	90	189024103	-	BAbS19_I08760	-	Transposase, IS4
836	 52.94	-1	913094..913195	-	33	189024104	-	BAbS19_I08770	-	hypothetical protein
837	 61.71	+1	913192..913554	-	120	189024105	-	BAbS19_I08780	-	hypothetical protein
838	 57.00	0	913725..914552	-	275	189024106	-	BAbS19_I08790	-	Protein of unknown function DUF455
839	 56.13	0	914574..915038	-	154	189024107	-	BAbS19_I08800	-	Alkyl hydroperoxide reductase
840	 56.50	0	915283..918723	+	1146	189024108	-	BAbS19_I08810	-	RNA-binding region RNP-1 (RNA recognition motif)
841	 58.37	0	918782..920035	-	417	189024109	-	BAbS19_I08820	-	tyrosyl-tRNA synthetase
842	 60.52	0	920151..921272	+	373	189024110	-	BAbS19_I08830	-	hypothetical protein
843	 55.56	0	921269..921601	-	110	189024111	-	BAbS19_I08840	-	Small multidrug resistance protein
844	 57.48	0	921713..922387	-	224	189024112	-	BAbS19_I08850	-	Esterase/lipase/thioesterase, active site
845	 58.47	0	922478..923770	+	430	189024113	-	BAbS19_I08860	-	Aminotransferase, class V
846	 55.91	0	923951..925474	+	507	189024114	-	BAbS19_I08870	-	hypothetical protein
847	 55.95	0	925542..926297	+	251	189024115	-	BAbS19_I08880	-	ABC transporter
848	 59.31	0	926311..927588	+	425	189024116	-	BAbS19_I08890	-	hypothetical protein
849	 55.58	0	927670..928914	+	414	189024117	-	BAbS19_I08900	-	Aminotransferase, class V
850	 57.62	0	928911..929330	+	139	189024118	-	BAbS19_I08910	-	Protein of unknown function DUF59
851	 51.65	-1	929364..930335	-	323	189024119	-	BAbS19_I08920	-	Glycosyl transferase, family 2
852	 54.52	0	930762..931535	+	257	189024120	-	BAbS19_I08930	-	ATP-NAD kinase
853	 57.83	0	931863..933311	+	482	189024121	-	BAbS19_I08940	-	ATP-dependent RNA helicase, DEAD/DEAH box family
854	 56.41	0	933548..934015	-	155	189024122	-	BAbS19_I08950	-	HESB protein
855	 53.22	-1	934121..934291	+	56	189024123	-	BAbS19_I08960	-	hypothetical protein
856	 56.48	0	934530..934637	+	35	189024124	-	BAbS19_I08970	-	hypothetical protein
857	 59.70	0	934718..934918	+	66	189024125	-	BAbS19_I08980	-	Heavy metal transport/detoxification protein
858	 56.05	0	935245..935913	+	222	189024126	-	BAbS19_I08990	-	Protein-L-isoaspartate O-methyltransferase
859	 59.16	0	936064..937422	+	452	189024127	-	BAbS19_I09000	-	Outer membrane efflux protein
860	 58.06	0	937672..938403	+	243	189024128	-	BAbS19_I09010	-	hypothetical protein
861	 57.15	0	938694..941426	+	910	189024129	-	BAbS19_I09020	-	valyl-tRNA synthetase
862	 52.92	-1	941817..943118	+	433	189024130	-	BAbS19_I09030	-	Outer membrane protein E
863	 56.55	0	944298..944831	-	177	189024131	-	BAbS19_I09060	-	Arginine/ornithine-binding periplasmic protein precursor
864	 52.53	-1	945176..945649	-	157	189024132	-	BAbS19_I09070	-	Rhodopsin-like GPCR superfamily
865	 54.20	0	945675..946340	-	221	189024133	-	BAbS19_I09080	-	molybdopterin-guanine dinucleotide biosynthesis protein A
866	 58.26	0	946516..947550	-	344	189024134	-	BAbS19_I09090	-	MoaA/nifB/pqqE family protein
867	 55.28	0	947737..948096	+	119	189024135	-	BAbS19_I09100	-	hypothetical protein
868	 57.42	0	948164..948736	-	190	189024136	-	BAbS19_I09110	-	Salicylate hydroxylase
869	 58.33	0	949615..951234	-	539	189024137	-	BAbS19_I09120	-	Fumarate hydratase class I, aerobic
870	 53.97	-1	954344..954595	-	83	189024138	-	BAbS19_I09150	-	Transglycosylase-associated protein
871	 50.78	-1	955104..956129	-	341	189024139	-	BAbS19_I09160	-	Phage integrase
872	 57.12	0	956304..957350	+	348	189024140	-	BAbS19_I09170	-	hypothetical protein
873	 51.52	-1	957502..957732	+	76	189024141	-	BAbS19_I09180	-	hypothetical protein
874	 57.61	0	957729..958004	+	91	189024142	-	BAbS19_I09190	-	hypothetical protein
875	 56.17	0	958180..958503	+	107	189024143	-	BAbS19_I09200	-	hypothetical protein
876	 54.59	0	958849..959055	+	68	189024144	-	BAbS19_I09210	-	outer membrane protein, putative
877	 55.56	0	960424..960738	-	104	189024145	-	BAbS19_I09220	-	hypothetical protein
878	 47.66	-2	960738..961058	-	106	189024146	-	BAbS19_I09230	-	hypothetical protein
879	 58.04	0	961245..961754	+	169	189024147	-	BAbS19_I09240	-	Queuine tRNA-ribosyltransferase
880	 58.81	0	961824..962192	+	122	189024148	-	BAbS19_I09250	-	Transposase
881	 49.08	-2	962309..962581	+	90	189024149	-	BAbS19_I09260	-	IS711, transposase orfB
882	 47.81	-2	963837..965135	+	432	189024150	-	BAbS19_I09290	-	hypothetical protein
883	 46.63	-2	965461..966693	+	410	189024151	-	BAbS19_I09300	-	glycosyltransferase
884	 45.00	-2	966690..968249	+	519	189024152	-	BAbS19_I09310	-	Glycosyl transferase, group 1
885	 59.68	0	968596..969354	+	252	189024153	-	BAbS19_I09320	-	Secretion activator protein
886	 51.11	-1	969839..969973	+	44	189024154	-	BAbS19_I09330	-	hypothetical protein
887	 46.08	-2	970075..970176	+	33	189024155	-	BAbS19_I09340	-	hypothetical protein
888	 55.46	0	970313..970660	+	115	189024156	-	BAbS19_I09350	-	Arsenate reductase
889	 57.82	0	971031..972296	+	421	189024157	-	BAbS19_I09360	-	Rare lipoprotein A
890	 58.19	0	972407..973597	+	396	189024158	-	BAbS19_I09370	-	D-alanyl-D-alanine carboxypeptidase 1, S11 family
891	 57.52	0	973679..974323	+	214	189024159	-	BAbS19_I09380	-	Thymidylate kinase
892	 59.74	0	974320..975402	+	360	189024160	-	BAbS19_I09390	-	Replication factor C conserved domain protein
893	 57.82	0	975571..977118	+	515	189024161	-	BAbS19_I09400	-	methionine--tRNA ligase
894	 55.72	0	977124..977918	+	264	189024162	-	BAbS19_I09410	-	Sec-independent protein TATD
895	 56.53	0	977921..978739	+	272	189024163	-	BAbS19_I09420	-	Beta-lactamase-like protein
896	 59.61	0	978789..980588	-	599	189024164	-	BAbS19_I09430	-	beta-(1--2)glucan export ATP-binding protein
897	 59.33	0	980901..981881	+	326	189024165	-	BAbS19_I09440	-	Pseudouridine synthase
898	 54.22	0	981884..982807	+	307	189024166	-	BAbS19_I09450	-	Protein of unknown function DUF6
57.60	MEAN

3.62	STD DEV
