IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

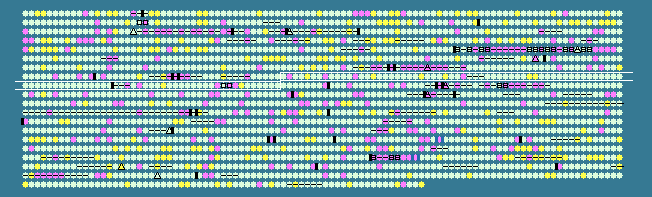

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
744	 57.28	0	816839..817243	+	134	189024012	-	BAbS19_I07820	-	Glyoxalase/Bleomycin resistance protein/dioxygenase domain protein
745	 53.70	-1	817246..817515	+	89	189024013	-	BAbS19_I07830	-	hypothetical protein
746	 56.88	0	818363..819691	+	442	189024014	-	BAbS19_I07840	-	prolyl-tRNA synthetase
747	 57.53	0	819688..821001	+	437	189024015	-	BAbS19_I07850	-	Bacterial general secretion pathway protein H
748	 61.55	+1	821001..821684	+	227	189024016	-	BAbS19_I07860	-	ATP/GTP-binding site motif A (P-loop)
749	 57.99	0	822343..825834	+	1163	189024017	-	BAbS19_I07870	-	DNA polymerase III subunit alpha
750	 55.56	0	825875..826072	+	65	189024018	-	BAbS19_I07880	-	hypothetical protein
751	 51.45	-1	826117..826530	-	137	189024019	-	BAbS19_I07890	-	hypothetical protein
752	 57.61	0	828109..828726	+	205	189024020	-	BAbS19_I07930	-	Ribosomal protein S4
753	 55.33	0	829255..830136	+	293	189024021	-	BAbS19_I07940	-	hypothetical protein
754	 57.97	0	830123..830950	+	275	189024022	-	BAbS19_I07950	-	Inositol phosphatase/fructose-1,6-bisphosphatase
755	 58.21	0	831165..832430	-	421	189024023	-	BAbS19_I07960	-	drug resistance transporter, Bcr/CflA family
756	 50.15	-2	832701..833033	-	110	189024024	-	BAbS19_I07970	-	Glutaredoxin-related protein
757	 58.55	0	833218..833451	-	77	189024025	-	BAbS19_I07980	-	ATP/GTP-binding site motif A (P-loop):BolA-like protein
758	 59.15	0	833721..835943	-	740	189024026	-	BAbS19_I07990	-	AIR synthase related protein
759	 62.44	+1	836130..836531	-	133	189024027	-	BAbS19_I08000	-	lipoprotein, putative
760	 56.94	0	836591..837238	-	215	189024028	-	BAbS19_I08010	-	Glutathione S-transferase
761	 60.57	0	837490..838161	-	223	189024029	-	BAbS19_I08020	-	phosphoribosylformylglycinamidine synthase
762	 58.85	0	838184..838426	-	80	189024030	-	BAbS19_I08030	-	phosphoribosylformylglycinamidine synthase
763	 55.95	0	838542..839306	-	254	189024031	-	BAbS19_I08040	-	SAICAR synthetase
764	 56.17	0	839562..839885	+	107	189024032	-	BAbS19_I08050	-	hypothetical protein
765	 57.94	0	839950..840717	+	255	189024033	-	BAbS19_I08060	-	HpcH/HpaI aldolase
766	 58.73	0	840766..841332	-	188	189024034	-	BAbS19_I08070	-	hypothetical protein
767	 61.42	+1	841601..842476	+	291	189024035	-	BAbS19_I08080	-	Biphenyl-2,3-diol 1,2-dioxygenase III
768	 59.45	0	842702..844003	-	433	189024036	-	BAbS19_I08090	-	Fumarate lyase
769	 60.62	0	844030..844707	-	225	189024037	-	BAbS19_I08100	-	Ribulose-phosphate 3-epimerase
770	 57.50	0	844865..845791	-	308	189024038	-	BAbS19_I08110	-	Bacterial lipid A biosynthesis acyltransferase
771	 61.42	+1	845805..846833	-	342	189024039	-	BAbS19_I08120	-	Zinc-containing alcohol dehydrogenase superfamily
772	 60.64	0	846915..848192	-	425	189024040	-	BAbS19_I08130	-	Beta-ketoacyl synthase
773	 60.83	0	848194..849375	-	393	189024041	-	BAbS19_I08140	-	Beta-ketoacyl synthase
774	 51.06	-1	849523..849804	-	93	189024042	-	BAbS19_I08150	-	Phosphopantetheine-binding domain protein
775	 60.24	0	850005..850766	-	253	189024043	-	BAbS19_I08160	-	hypothetical protein
776	 57.09	0	850982..852004	+	340	189024044	-	BAbS19_I08170	-	Aldose 1-epimerase
777	 59.85	0	851979..852917	-	312	189024045	-	BAbS19_I08180	-	2-dehydro-3-deoxygluconokinase
778	 58.33	0	853106..853837	+	243	189024046	-	BAbS19_I08190	-	hypothetical protein
779	 59.04	0	853841..854980	+	379	189024047	-	BAbS19_I08200	-	Amidohydrolase
780	 58.48	0	854977..855660	-	227	189024048	-	BAbS19_I08210	-	hydrolase, haloacid dehalogenase-like family
781	 55.01	0	855916..856704	+	262	189024049	-	BAbS19_I08220	-	Bacterial extracellular solute-binding protein, family 3
782	 59.34	0	856896..857918	+	340	189024050	-	BAbS19_I08230	-	TIM-barrel protein, yjbN family
783	 57.45	0	857915..858619	-	234	189024051	-	BAbS19_I08240	-	Eukaryotic/viral aspartic protease, active site
784	 54.67	0	858619..858768	-	49	189024052	-	BAbS19_I08250	-	hypothetical protein
785	 62.32	+1	858833..859615	-	260	189024053	-	BAbS19_I08260	-	Cobalamin-5-phosphate synthase CobS
786	 62.06	+1	859769..860788	+	339	189024054	-	BAbS19_I08270	-	Nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
787	 54.58	0	860896..861375	-	159	189024055	-	BAbS19_I08280	-	Bacterial regulatory protein, AsnC family
788	 58.82	0	861474..862136	-	220	189024056	-	BAbS19_I08290	-	hypothetical protein
789	 57.58	0	862242..862835	-	197	189024057	-	BAbS19_I08300	-	nuclease domain protein
790	 57.21	0	863431..864234	+	267	189024058	-	BAbS19_I08310	-	Sel1-like repeat
791	 55.11	0	864293..865183	-	296	189024059	-	BAbS19_I08320	-	Exodeoxyribonuclease III
792	 57.49	0	865244..865951	+	235	189024060	-	BAbS19_I08330	-	Protein of unknown function DUF533
793	 54.74	0	866031..866357	-	108	189024061	-	BAbS19_I08340	-	Protein of unknown function, HesB/YadR/YfhF
794	 58.56	0	866524..867732	+	402	189024062	-	BAbS19_I08350	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
795	 56.94	0	867955..869712	+	585	189024063	-	BAbS19_I08360	-	arginyl-tRNA synthetase
796	 59.30	0	869924..872896	+	990	189024064	-	BAbS19_I08370	-	Antifreeze protein, type I
797	 59.22	0	873097..874116	+	339	189024065	-	BAbS19_I08380	-	Glycoside hydrolase, family 3, N-terminal
798	 60.92	0	874189..875040	+	283	189024066	-	BAbS19_I08390	-	Hypothetical Cytosolic Protein
799	 60.74	0	875033..875758	+	241	189024067	-	BAbS19_I08400	-	Conserved hypothetical protein 281
800	 56.16	0	875904..876122	+	72	189024068	-	BAbS19_I08410	-	twin argininte translocase protein A
801	 56.36	0	876233..876814	+	193	189024069	-	BAbS19_I08420	-	sec-independent translocase
802	 57.21	0	876811..877635	+	274	189024070	-	BAbS19_I08430	-	Sec-independent periplasmic protein translocase
803	 59.35	0	877712..878995	+	427	189024071	-	BAbS19_I08440	-	seryl-tRNA synthetase
804	 60.81	0	879144..879911	+	255	189024072	-	BAbS19_I08450	-	Survival protein SurE
805	 58.45	0	879908..880576	+	222	189024073	-	BAbS19_I08460	-	protein-L-isoaspartate O-methyltransferase
806	 60.51	0	880955..882253	+	432	189024074	-	BAbS19_I08470	-	Peptidoglycan-binding LysM
807	 54.90	0	882302..883168	-	288	189024075	-	BAbS19_I08480	-	ATP/GTP-binding site motif A (P-loop)
808	 54.39	0	883329..883670	+	113	189024076	-	BAbS19_I08490	-	YajC
809	 56.74	0	883789..886116	+	775	189024077	-	BAbS19_I08500	-	Vacuolar H+-transporting two-sector ATPase, C subunit
810	 60.51	0	886119..886508	+	129	189024078	-	BAbS19_I08510	-	Hypothetical Cytosolic Protein
811	 58.03	0	886514..887347	+	277	189024079	-	BAbS19_I08520	-	hypothetical protein
812	 59.74	0	887399..888799	-	466	189024080	-	BAbS19_I08530	-	glucose-inhibited division protein A
813	 59.86	0	889041..889187	-	48	189024081	-	BAbS19_I08540	-	hypothetical protein
814	 56.73	0	889461..890597	+	378	189024082	-	BAbS19_I08550	-	hypothetical protein
815	 56.14	0	890594..891163	+	189	189024083	-	BAbS19_I08560	-	hypothetical protein
816	 56.43	0	891567..892982	+	471	189024084	-	BAbS19_I08570	-	Peptidylprolyl isomerase, FKBP-type
817	 57.22	0	893132..894634	+	500	189024085	-	BAbS19_I08580	-	Glutamyl-tRNA(Gln) amidotransferase B subunit
818	 53.57	-1	894634..895137	+	167	189024086	-	BAbS19_I08590	-	GCN5-related N-acetyltransferase
819	 58.88	0	895297..895707	+	136	189024087	-	BAbS19_I08600	-	NADH:ubiquinone oxidoreductase 17.2 kDa subunit
820	 46.83	-2	895767..895892	+	41	189024088	-	BAbS19_I08610	-	hypothetical protein
821	 58.11	0	895916..896371	+	151	189024089	-	BAbS19_I08620	-	hypothetical protein
822	 59.19	0	896415..897029	-	204	189024090	-	BAbS19_I08630	-	Aat, leucyl/phenylalanyl-tRNA--protein transferase
823	 57.54	0	897035..898393	-	452	189024091	-	BAbS19_I08640	-	acetyl-CoA carboxylase
824	 61.15	0	898443..898913	-	156	189024092	-	BAbS19_I08650	-	acetyl-CoA carboxylase
825	 54.64	0	898915..899388	-	157	189024093	-	BAbS19_I08660	-	Dehydroquinase, class II
826	 56.14	0	899632..900429	-	265	189024094	-	BAbS19_I08670	-	DSBA oxidoreductase
827	 58.47	0	900477..901892	-	471	189024095	-	BAbS19_I08680	-	Zinc metalloprotease
828	 59.36	0	902084..903247	+	387	189024096	-	BAbS19_I08690	-	1-aminocyclopropane-1-carboxylate synthase
829	 58.83	0	903366..906134	-	922	189024097	-	BAbS19_I08700	-	Ribonuclease E and G
830	 56.90	0	906813..908081	+	422	189024098	-	BAbS19_I08710	-	Cell wall hydrolase/autolysin
831	 58.29	0	908361..910820	+	819	189024099	-	BAbS19_I08720	-	Glycosyl transferase, family 51
832	 57.76	0	911124..912089	+	321	189024100	-	BAbS19_I08730	-	Peptide chain release factor 2
833	 42.11	-2	912148..912261	-	37	189024101	-	BAbS19_I08740	-	hypothetical protein
834	 58.81	0	912283..912651	+	122	189024102	-	BAbS19_I08750	-	Transposase
835	 50.92	-1	912768..913040	+	90	189024103	-	BAbS19_I08760	-	Transposase, IS4
836	 52.94	-1	913094..913195	-	33	189024104	-	BAbS19_I08770	-	hypothetical protein
837	 61.71	+1	913192..913554	-	120	189024105	-	BAbS19_I08780	-	hypothetical protein
838	 57.00	0	913725..914552	-	275	189024106	-	BAbS19_I08790	-	Protein of unknown function DUF455
839	 56.13	0	914574..915038	-	154	189024107	-	BAbS19_I08800	-	Alkyl hydroperoxide reductase
840	 56.50	0	915283..918723	+	1146	189024108	-	BAbS19_I08810	-	RNA-binding region RNP-1 (RNA recognition motif)
841	 58.37	0	918782..920035	-	417	189024109	-	BAbS19_I08820	-	tyrosyl-tRNA synthetase
842	 60.52	0	920151..921272	+	373	189024110	-	BAbS19_I08830	-	hypothetical protein
843	 55.56	0	921269..921601	-	110	189024111	-	BAbS19_I08840	-	Small multidrug resistance protein
57.60	MEAN

3.62	STD DEV
