IslandPath Analysis: Brucella abortus S19

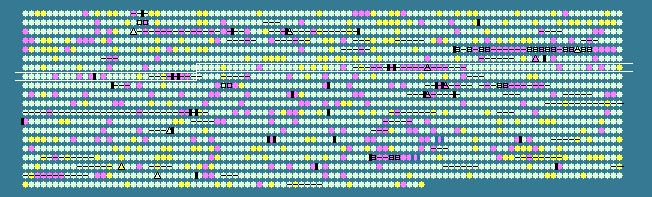

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
630	 54.27	0	694059..695147	-	362	189023898	-	BAbS19_I06610	-	Predicted permease YjgP/YjgQ family
631	 56.00	0	695144..696352	-	402	189023899	-	BAbS19_I06620	-	Predicted permease YjgP/YjgQ family
632	 58.63	0	696762..698255	+	497	189023900	-	BAbS19_I06630	-	Cytosol aminopeptidase
633	 56.22	0	698327..698776	+	149	189023901	-	BAbS19_I06640	-	DNA polymerase III chi subunit, HolC
634	 62.06	+1	698776..699339	+	187	189023902	-	BAbS19_I06650	-	hypothetical protein
635	 58.70	0	699416..701299	-	627	189023903	-	BAbS19_I06660	-	ATP/GTP-binding site motif A (P-loop)
636	 56.92	0	701342..701854	-	170	189023904	-	BAbS19_I06670	-	DinB
637	 57.92	0	702083..702505	+	140	189023905	-	BAbS19_I06680	-	Nucleoside diphosphate kinase
638	 56.29	0	702602..703507	-	301	189023906	-	BAbS19_I06690	-	Protein of unknown function DUF306
639	 56.50	0	703654..704145	-	163	189023907	-	BAbS19_I06700	-	Molybdopterin biosynthesis MoaE
640	 53.10	-1	704147..704404	-	85	189023908	-	BAbS19_I06710	-	thiamineS protein
641	 55.21	0	704409..704993	-	194	189023909	-	BAbS19_I06720	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
642	 59.58	0	705112..707184	-	690	189023910	-	BAbS19_I06730	-	excinuclease ABC subunit C
643	 58.12	0	707184..708002	-	272	189023911	-	BAbS19_I06740	-	short chain dehydrogenase
644	 56.10	0	708065..708982	+	305	189023912	-	BAbS19_I06750	-	OmpA-like transmembrane domain protein
645	 57.50	0	709079..709678	-	199	189023913	-	BAbS19_I06760	-	Aminoacyl-tRNA synthetase, class I
646	 58.70	0	709733..710422	-	229	189023914	-	BAbS19_I06770	-	Ribonuclease T2
647	 61.57	+1	710435..710905	-	156	189023915	-	BAbS19_I06780	-	hypothetical protein
648	 58.08	0	710988..711860	-	290	189023916	-	BAbS19_I06790	-	N-6 Adenine-specific DNA methylase
649	 62.41	+1	712016..712861	+	281	189023917	-	BAbS19_I06800	-	Protein of unknown function DUF6
650	 59.33	0	712939..715065	+	708	189023918	-	BAbS19_I06810	-	oxidoreductase, molybdopterin-binding, hypothetical
651	 63.05	+1	715292..715816	-	174	189023919	-	BAbS19_I06820	-	hypothetical protein
652	 59.87	0	715992..716609	-	205	189023920	-	BAbS19_I06830	-	phosphoribosylglycinamide formyltransferase
653	 60.74	0	716606..717685	-	359	189023921	-	BAbS19_I06840	-	Phosphoribosylformylglycinamidine cyclo-ligase
654	 51.67	-1	717727..717906	-	59	189023922	-	BAbS19_I06850	-	hypothetical protein
655	 57.75	0	718175..720058	+	627	189023923	-	BAbS19_I06860	-	ATP/GTP-binding protein
656	 58.97	0	720055..720924	+	289	189023924	-	BAbS19_I06870	-	UDP-glucose 4-epimerase
657	 62.60	+1	720921..721706	-	261	189023925	-	BAbS19_I06880	-	Proline-rich extensin
658	 58.30	0	721779..722483	-	234	189023926	-	BAbS19_I06890	-	Short-chain dehydrogenase/reductase SDR
659	 49.36	-2	722645..722800	-	51	189023927	-	BAbS19_I06900	-	hypothetical protein
660	 39.74	-2	722874..723029	+	51	189023928	-	BAbS19_I06910	-	hypothetical protein
661	 58.18	0	723182..724855	-	557	189023929	-	BAbS19_I06920	-	L-lactate permease
662	 53.27	-1	725389..725694	+	101	189023930	-	BAbS19_I06930	-	ETC complex I subunit conserved region
663	 54.89	0	726146..726850	+	234	189023931	-	BAbS19_I06940	-	hypothetical protein
664	 53.10	-1	727071..727682	-	203	189023932	-	BAbS19_I06950	-	Exonuclease
665	 53.48	-1	728007..728552	-	181	189023933	-	BAbS19_I06960	-	Adenylate kinase
666	 52.15	-1	728549..730084	-	511	189023934	-	BAbS19_I06970	-	GCN5-related N-acetyltransferase
667	 51.57	-1	730059..730853	-	264	189023935	-	BAbS19_I06980	-	Helix-turn-helix motif
668	 52.34	-1	732573..734687	+	704	189023936	-	BAbS19_I06990	-	Integrase, catalytic domain protein
669	 52.22	-1	734680..735558	+	292	189023937	-	BAbS19_I07000	-	transposition protein, putative
670	 48.44	-2	737503..737694	-	63	189023938	-	BAbS19_I07030	-	hypothetical protein
671	 46.33	-2	737941..739248	+	435	189023939	-	BAbS19_I07040	-	Beta and gamma crystallin
672	 56.88	0	741164..742042	+	292	189023940	-	BAbS19_I07080	-	hypothetical protein
673	 58.50	0	742329..742940	-	203	189023941	-	BAbS19_I07090	-	Bacterial SH3-like region
674	 48.72	-2	743451..743606	-	51	189023942	-	BAbS19_I07100	-	hypothetical protein
675	 56.32	0	743593..744762	-	389	189023943	-	BAbS19_I07110	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzyme
676	 56.51	0	744973..745740	+	255	189023944	-	BAbS19_I07120	-	PA-phosphatase related phosphoesterase
677	 55.56	0	747514..748197	+	227	189023945	-	BAbS19_I07150	-	General L-amino acid transport system permease protein AAPQ
678	 58.14	0	748711..748839	+	42	189023946	-	BAbS19_I07160	-	amino acid ABC transporter, permease protein
679	 56.55	0	748998..749867	+	289	189023947	-	BAbS19_I07170	-	Tetracycline resistance protein
680	 54.90	0	749882..750697	+	271	189023948	-	BAbS19_I07180	-	amino acid ABC transporter, ATP-binding protein
681	 58.96	0	750745..751950	-	401	189023949	-	BAbS19_I07190	-	Flavoprotein monooxygenase
682	 54.51	0	751980..752234	-	84	189023950	-	BAbS19_I07200	-	hypothetical protein
683	 56.89	0	752469..754760	+	763	189023951	-	BAbS19_I07210	-	polyphosphate kinase
684	 59.00	0	754757..756295	+	512	189023952	-	BAbS19_I07220	-	phosphatase, Ppx/GppA family
685	 60.36	0	756433..757590	-	385	189023953	-	BAbS19_I07230	-	Rnd, ribonuclease D
686	 58.39	0	757817..759604	+	595	189023954	-	BAbS19_I07240	-	aspartyl-tRNA synthetase
687	 55.89	0	759645..760841	-	398	189023955	-	BAbS19_I07250	-	hypothetical protein
688	 58.06	0	761241..763553	+	770	189023956	-	BAbS19_I07260	-	DNA topoisomerase IV subunit A
689	 58.67	0	763732..764481	-	249	189023957	-	BAbS19_I07270	-	arginyl-tRNA-protein transferase
690	 53.93	-1	764602..765072	-	156	189023958	-	BAbS19_I07280	-	hypothetical protein
691	 59.34	0	765219..766256	-	345	189023959	-	BAbS19_I07290	-	Delta-aminolevulinic acid dehydratase
692	 58.29	0	766424..767473	+	349	189023960	-	BAbS19_I07300	-	Enoyl-CoA hydratase/isomerase
693	 58.39	0	767487..767921	+	144	189023961	-	BAbS19_I07310	-	hypothetical protein
694	 55.62	0	768236..768751	+	171	189023962	-	BAbS19_I07320	-	Bacterial regulatory protein, MarR family
695	 53.19	-1	768838..768978	-	46	189023963	-	BAbS19_I07330	-	hypothetical protein
696	 58.06	0	769113..770414	+	433	189023964	-	BAbS19_I07340	-	Putative peptidoglycan binding domain protein
697	 52.59	-1	770507..770641	+	44	189023965	-	BAbS19_I07350	-	hypothetical protein
698	 58.24	0	770645..771961	+	438	189023966	-	BAbS19_I07360	-	Glycine hydroxymethyltransferase
699	 58.07	0	772203..772679	+	158	189023967	-	BAbS19_I07370	-	Protein of unknown function DUF193
700	 61.85	+1	772681..773802	+	373	189023968	-	BAbS19_I07380	-	riboflavin biosynthesis protein RibD
701	 57.31	0	773802..774410	+	202	189023969	-	BAbS19_I07390	-	Lumazine-binding protein
702	 58.23	0	774505..774966	+	153	189023970	-	BAbS19_I07400	-	6,7-dimethyl-8-ribityllumazine synthase
703	 59.11	0	774972..775487	+	171	189023971	-	BAbS19_I07410	-	Antitermination protein NusB
704	 59.83	0	775680..778094	+	804	189023972	-	BAbS19_I07420	-	membrane-bound proton-translocating pyrophosphatase
705	 58.33	0	778166..778669	-	167	189023973	-	BAbS19_I07430	-	SmpA/OmlA
706	 53.33	-1	778774..779328	+	184	189023974	-	BAbS19_I07440	-	Ubiquinol-cytochrome C chaperone
707	 55.20	0	779448..780005	+	185	189023975	-	BAbS19_I07450	-	hypothetical protein
708	 58.12	0	780123..781163	+	346	189023976	-	BAbS19_I07460	-	Fatty acid synthesis plsX protein
709	 59.57	0	781411..782382	+	323	189023977	-	BAbS19_I07470	-	Naringenin-chalcone synthase
710	 52.78	-1	782501..782824	+	107	189023978	-	BAbS19_I07480	-	Integration host factor, alpha subunit
711	 58.15	0	783361..783900	+	179	189023979	-	BAbS19_I07490	-	Bacterial regulatory protein, MerR family
712	 53.14	-1	783950..784267	-	105	189023980	-	BAbS19_I07500	-	Small multidrug resistance protein
713	 55.62	0	784613..786151	-	512	189023981	-	BAbS19_I07510	-	Bacterial sugar transferase
714	 53.30	-1	786505..787095	-	196	189023982	-	BAbS19_I07520	-	Polysaccharide export protein
715	 54.75	0	787216..787878	+	220	189023983	-	BAbS19_I07530	-	hypothetical protein
716	 54.79	0	787946..788164	-	72	189023984	-	BAbS19_I07540	-	hypothetical protein
717	 58.59	0	788516..789592	+	358	189023985	-	BAbS19_I07550	-	Cytochrome oxidase assembly
718	 59.27	0	789745..790677	-	310	189023986	-	BAbS19_I07560	-	N-acetyl-gamma-glutamyl-phosphate reductase
719	 59.52	0	790767..791717	-	316	189023987	-	BAbS19_I07570	-	Putative agmatinase
720	 61.43	+1	791808..792284	-	158	189023988	-	BAbS19_I07580	-	Ribosomal protein S9
721	 57.42	0	792287..792751	-	154	189023989	-	BAbS19_I07590	-	Ribosomal protein L13
722	 58.84	0	792987..793433	-	148	189023990	-	BAbS19_I07600	-	Phenylacetic acid degradation-related protein
723	 57.24	0	793667..794950	+	427	189023991	-	BAbS19_I07610	-	O-acetylhomoserine sulfhydrylase
724	 61.58	+1	795022..795414	-	130	189023992	-	BAbS19_I07620	-	Hypothetical Membrane Spanning Protein
725	 48.26	-2	797386..797787	-	133	189023993	-	BAbS19_I07630	-	hypothetical protein
726	 44.26	-2	798084..798266	+	60	189023994	-	BAbS19_I07640	-	hypothetical protein
727	 54.00	0	798650..798799	-	49	189023995	-	BAbS19_I07650	-	hypothetical protein
728	 52.46	-1	799361..799726	+	121	189023996	-	BAbS19_I07660	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
729	 59.97	0	799717..800298	+	193	189023997	-	BAbS19_I07670	-	NADH dehydrogenase beta subunit
57.60	MEAN

3.62	STD DEV
