IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

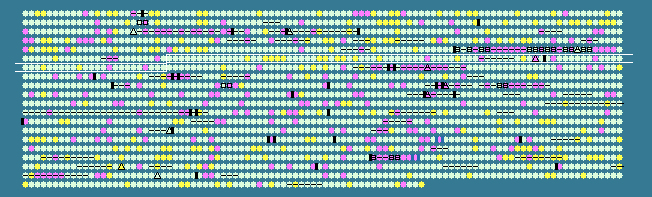

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
525	 57.75	0	582002..584110	-	702	189023793	-	BAbS19_I05540	-	PtrB, protease
526	 54.31	0	584683..585111	+	142	189023794	-	BAbS19_I05550	-	transcriptional regulatory protein MucR
527	 54.81	0	585319..585630	-	103	189023795	-	BAbS19_I05560	-	Hypothetical Cytosolic Protein
528	 57.02	0	585811..586266	+	151	189023796	-	BAbS19_I05570	-	DnaA domain protein
529	 59.50	0	586263..587057	+	264	189023797	-	BAbS19_I05580	-	Hypothetical Cytosolic Protein
530	 60.21	0	587168..588484	+	438	189023798	-	BAbS19_I05590	-	Amidase
531	 59.62	0	588525..588950	-	141	189023799	-	BAbS19_I05600	-	hypothetical protein
532	 56.44	0	589030..589479	-	149	189023800	-	BAbS19_I05610	-	hypothetical protein
533	 59.29	0	589770..591599	+	609	189023801	-	BAbS19_I05620	-	sensor histidine kinase
534	 60.37	0	591526..592542	+	338	189023802	-	BAbS19_I05630	-	Putative peptidoglycan binding domain 1
535	 56.90	0	592556..592903	+	115	189023803	-	BAbS19_I05640	-	hypothetical protein
536	 58.50	0	592914..593990	-	358	189023804	-	BAbS19_I05650	-	hypothetical protein
537	 54.88	0	594188..594730	-	180	189023805	-	BAbS19_I05660	-	hypothetical protein
538	 62.91	+1	594723..595334	-	203	189023806	-	BAbS19_I05670	-	hypothetical protein
539	 59.25	0	595341..597497	-	718	189023807	-	BAbS19_I05680	-	Glycosyl transferase
540	 60.04	0	597855..598367	+	170	189023808	-	BAbS19_I05690	-	hypothetical protein
541	 64.92	+2	598411..599553	+	380	189023809	-	BAbS19_I05700	-	ATP/GTP-binding site motif A (P-loop)
542	 62.06	+1	599585..600778	+	397	189023810	-	BAbS19_I05710	-	Phage portal protein, HK97 family
543	 61.38	+1	600775..601152	+	125	189023811	-	BAbS19_I05720	-	hypothetical protein
544	 62.93	+1	601139..601807	+	222	189023812	-	BAbS19_I05730	-	Phage prohead protease HK97
545	 59.92	0	601829..603103	+	424	189023813	-	BAbS19_I05740	-	Phage major capsid protein, HK97 family
546	 58.91	0	603268..603834	+	188	189023814	-	BAbS19_I05750	-	hypothetical protein
547	 58.11	0	603831..604169	+	112	189023815	-	BAbS19_I05760	-	Phage head-tail adaptor, putative
548	 57.68	0	604166..604699	+	177	189023816	-	BAbS19_I05770	-	hypothetical protein
549	 58.21	0	604740..605153	+	137	189023817	-	BAbS19_I05780	-	hypothetical protein
550	 61.40	+1	605150..605491	+	113	189023818	-	BAbS19_I05790	-	hypothetical protein
551	 63.55	+1	605710..606255	+	181	189023819	-	BAbS19_I05800	-	phage minor tail protein H
552	 59.08	0	606258..606890	+	210	189023820	-	BAbS19_I05810	-	hypothetical protein
553	 61.86	+1	606887..607573	+	228	189023821	-	BAbS19_I05820	-	hypothetical protein
554	 64.54	+1	607758..608180	+	140	189023822	-	BAbS19_I05830	-	NLP/P60
555	 56.04	0	612112..612318	+	68	189023823	-	BAbS19_I05860	-	hypothetical protein
556	 62.63	+1	612480..612776	+	98	189023824	-	BAbS19_I05870	-	hypothetical protein
557	 57.97	0	612855..613544	+	229	189023825	-	BAbS19_I05880	-	Transcriptional regulatory protein PHOP
558	 58.66	0	613694..614929	+	411	189023826	-	BAbS19_I05890	-	sensor histidine kinase
559	 59.82	0	615023..615475	+	150	189023827	-	BAbS19_I05900	-	outer membrane lipoprotein-related protein
560	 61.84	+1	615576..616715	+	379	189023828	-	BAbS19_I05910	-	TPR repeat-containing protein
561	 59.44	0	616712..617209	+	165	189023829	-	BAbS19_I05920	-	CcmE/CycJ protein
562	 60.04	0	617229..619220	+	663	189023830	-	BAbS19_I05930	-	Cytochrome C-type biogenesis protein CYCK
563	 55.56	0	619217..619693	+	158	189023831	-	BAbS19_I05940	-	Cytochrome C biogenesis protein
564	 60.51	0	619835..621376	+	513	189023832	-	BAbS19_I05950	-	Serine protease, V8 family
565	 60.03	0	621470..622177	+	235	189023833	-	BAbS19_I05960	-	Transcriptional regulatory protein
566	 58.90	0	622177..623580	+	467	189023834	-	BAbS19_I05970	-	sensor histidine kinase
567	 58.30	0	623703..626654	+	983	189023835	-	BAbS19_I05980	-	Rhodopsin-like GPCR superfamily
568	 50.13	-2	626699..628978	-	759	189023836	-	BAbS19_I05990	-	LPSA protein
569	 60.71	0	629081..631432	-	783	189023837	-	BAbS19_I06000	-	sensory box histidine kinase
570	 59.39	0	631823..634474	-	883	189023838	-	BAbS19_I06010	-	zinc-binding region
571	 58.80	0	634643..635659	+	338	189023839	-	BAbS19_I06020	-	Protein of unknown function DUF6
572	 58.87	0	635664..636920	-	418	189023840	-	BAbS19_I06030	-	General substrate transporter
573	 61.51	+1	637082..637954	-	290	189023841	-	BAbS19_I06040	-	DNA polymerase, bacteriophage-type
574	 59.22	0	638343..640034	+	563	189023842	-	BAbS19_I06050	-	electron transfer flavoprotein, oxidoreductase
575	 59.44	0	640150..641118	-	322	189023843	-	BAbS19_I06060	-	Endonuclease/exonuclease/phosphatase family
576	 58.48	0	641287..642789	-	500	189023844	-	BAbS19_I06070	-	Purine and other phosphorylase, family 1
577	 51.77	-1	642997..643278	+	93	189023845	-	BAbS19_I06080	-	hypothetical protein
578	 54.57	0	643356..644066	+	236	189023846	-	BAbS19_I06090	-	Glutathione S-transferase, N-terminal
579	 58.05	0	644125..644472	-	115	189023847	-	BAbS19_I06100	-	hypothetical protein
580	 54.70	0	644469..644702	-	77	189023848	-	BAbS19_I06110	-	hypothetical protein
581	 56.98	0	644972..645229	+	85	189023849	-	BAbS19_I06120	-	hypothetical protein
582	 56.42	0	645289..645942	-	217	189023850	-	BAbS19_I06130	-	Protein of unknown function DUF161
583	 57.76	0	646716..647366	+	216	189023851	-	BAbS19_I06140	-	Antifreeze protein, type I
584	 61.19	0	647411..647830	-	139	189023852	-	BAbS19_I06150	-	Protein of unknown function DUF423
585	 55.82	0	647803..648936	-	377	189023853	-	BAbS19_I06160	-	Aminotransferase, class-II
586	 52.21	-1	649299..650225	-	308	189023854	-	BAbS19_I06170	-	Phage integrase
587	 57.45	0	650499..651464	-	321	189023855	-	BAbS19_I06180	-	Porin
588	 57.02	0	652298..653458	-	386	189023856	-	BAbS19_I06190	-	hypothetical protein
589	 53.74	-1	653536..654177	+	213	189023857	-	BAbS19_I06200	-	hypothetical protein
590	 57.99	0	654494..655150	+	218	189023858	-	BAbS19_I06210	-	hypothetical protein
591	 59.65	0	655213..657351	-	712	189023859	-	BAbS19_I06220	-	transglycosylase SLT domain protein
592	 56.92	0	657746..658627	+	293	189023860	-	BAbS19_I06230	-	Dihydrodipicolinate synthetase
593	 55.77	0	658718..659194	+	158	189023861	-	BAbS19_I06240	-	SmpB protein
594	 58.18	0	659430..660101	-	223	189023862	-	BAbS19_I06250	-	Uracil-DNA glycosylase superfamily
595	 54.34	0	660132..660707	-	191	189023863	-	BAbS19_I06260	-	Protein of unknown function DUF88
596	 35.26	-2	660907..661062	-	51	189023864	-	BAbS19_I06270	-	hypothetical protein
597	 56.22	0	661104..661505	+	133	189023865	-	BAbS19_I06280	-	RNA polymerase, omega subunit
598	 58.34	0	661836..663998	+	720	189023866	-	BAbS19_I06290	-	RelA/SpoT family protein
599	 60.45	0	664006..664584	+	192	189023867	-	BAbS19_I06300	-	orotate phosphoribosyltransferase
600	 56.35	0	664744..665499	+	251	189023868	-	BAbS19_I06310	-	Cyclic nucleotide-binding domain protein
601	 57.23	0	665880..667214	+	444	189023869	-	BAbS19_I06320	-	Oxygen-independent coproporphyrinogen III oxidase HemN
602	 59.24	0	667398..668609	-	403	189023870	-	BAbS19_I06330	-	Major facilitator superfamily (MFS)
603	 58.51	0	668831..669700	+	289	189023871	-	BAbS19_I06340	-	Transcriptional regulator, ARAC family
604	 61.11	0	669750..670325	+	191	189023872	-	BAbS19_I06350	-	hypothetical protein
605	 54.81	0	670322..670726	+	134	189023873	-	BAbS19_I06360	-	Holo-acyl carrier protein synthase
606	 56.58	0	670837..671619	+	260	189023874	-	BAbS19_I06370	-	Bacterial signal peptidase S26A
607	 58.81	0	671588..672325	+	245	189023875	-	BAbS19_I06380	-	Ribonuclease III family
608	 57.59	0	672470..673405	+	311	189023876	-	BAbS19_I06390	-	GTP-binding protein Era
609	 59.01	0	673432..674175	+	247	189023877	-	BAbS19_I06400	-	Recombination protein O, RecO
610	 62.16	+1	674153..674662	-	169	189023878	-	BAbS19_I06410	-	Tyrosine specific protein phosphatase and dual specificity protein phosphatase
611	 59.74	0	674659..675279	-	206	189023879	-	BAbS19_I06420	-	hypothetical protein
612	 57.84	0	675279..676139	-	286	189023880	-	BAbS19_I06430	-	Glycine cleavage T protein (aminomethyl transferase)
613	 59.70	0	676228..677562	+	444	189023881	-	BAbS19_I06440	-	Dihydroorotase
614	 58.69	0	677611..678375	-	254	189023882	-	BAbS19_I06450	-	hypothetical protein
615	 51.31	-1	678424..678690	-	88	189023883	-	BAbS19_I06460	-	hypothetical protein
616	 55.73	0	678847..679230	-	127	189023884	-	BAbS19_I06470	-	hypothetical protein
617	 58.33	0	679310..679753	-	147	189023885	-	BAbS19_I06480	-	NUDIX hydrolase
618	 60.51	0	679839..680618	+	259	189023886	-	BAbS19_I06490	-	Protein of unknown function DUF159
619	 60.00	0	680673..681287	+	204	189023887	-	BAbS19_I06500	-	Lysine exporter protein (LYSE/YGGA)
620	 57.74	0	681264..681431	-	55	189023888	-	BAbS19_I06510	-	hypothetical protein
621	 48.15	-2	681436..681651	-	71	189023889	-	BAbS19_I06520	-	hypothetical protein
622	 59.11	0	681798..683318	+	506	189023890	-	BAbS19_I06530	-	Cysteinyl-tRNA synthetase, class Ia
623	 59.36	0	683739..685352	+	537	189023891	-	BAbS19_I06540	-	2-isopropylmalate synthase
624	 57.87	0	685599..686519	+	306	189023892	-	BAbS19_I06550	-	RarD protein
57.60	MEAN

3.62	STD DEV
