IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

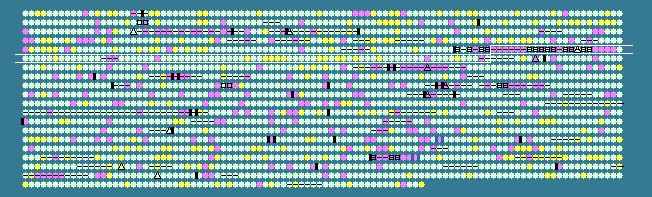

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
479	 45.13	-2	536525..537304	-	259	189023747	-	BAbS19_I05060	-	Formyl transferase, N-terminal
480	 44.56	-2	537331..538185	-	284	189023748	-	BAbS19_I05070	-	perosamine synthetase WbkB
481	 49.01	-2	538182..538940	-	252	189023749	-	BAbS19_I05080	-	ABC transporter
482	 45.99	-2	538937..539734	-	265	189023750	-	BAbS19_I05090	-	O-antigen export system permease protein RFBD
483	 47.28	-2	539734..540837	-	367	189023751	-	BAbS19_I05100	-	DegT/DnrJ/EryC1/StrS aminotransferase
484	 47.93	-2	540845..541933	-	362	189023752	-	BAbS19_I05110	-	Short-chain dehydrogenase/reductase SDR
485	 60.37	0	542452..542880	+	142	189023753	-	BAbS19_I05120	-	ISBm1, transposase orfA
486	 57.22	0	543209..543589	+	126	189023754	-	BAbS19_I05130	-	Transposase
487	 49.44	-2	543637..543996	+	119	189023755	-	BAbS19_I05140	-	Transposase
488	 58.54	0	544066..544434	+	122	189023756	-	BAbS19_I05150	-	Transposase
489	 49.45	-2	544551..544823	+	90	189023757	-	BAbS19_I05160	-	Transposase, IS4
490	 44.13	-2	545257..546312	+	351	189023758	-	BAbS19_I05170	-	Glycosyl transferase, group 1
491	 57.18	0	546370..546738	+	122	189023759	-	BAbS19_I05180	-	IS5 family element, transposase orfA
492	 47.37	-2	546834..547175	+	113	189023760	-	BAbS19_I05190	-	IS5 family element, transposase orfB
493	 54.35	0	547639..547776	-	45	189023761	-	BAbS19_I05200	-	Integrase, catalytic domain protein
494	 57.79	0	548329..548745	+	138	189023762	-	BAbS19_I05210	-	Transposase, IS4
495	 54.33	0	549105..549404	+	99	189023763	-	BAbS19_I05220	-	Transposase
496	 50.74	-1	549570..550925	+	451	189023764	-	BAbS19_I05230	-	Phosphomannomutase
497	 51.16	-1	550996..552420	+	474	189023765	-	BAbS19_I05240	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
498	 51.24	-1	552453..553625	+	390	189023766	-	BAbS19_I05250	-	ManA, mannose-6-phosphate isomerase
499	 51.17	-1	553708..554817	+	369	189023767	-	BAbS19_I05260	-	Glycosyl transferase, group 1
500	 57.21	0	555671..557044	+	457	189023768	-	BAbS19_I05270	-	ATP/GTP-binding site motif A (P-loop)
501	 56.89	0	557065..558066	+	333	189023769	-	BAbS19_I05280	-	Tetracycline resistance protein TetB
502	 57.11	0	558145..559107	+	320	189023770	-	BAbS19_I05290	-	Periplasmic binding protein/LacI transcriptional regulator
503	 57.74	0	559165..560217	+	350	189023771	-	BAbS19_I05300	-	iolE protein
504	 59.02	0	560225..561322	+	365	189023772	-	BAbS19_I05310	-	oxidoreductase
505	 56.27	0	561364..562671	-	435	189023773	-	BAbS19_I05320	-	Xylose isomerase
506	 61.78	+1	562718..564169	-	483	189023774	-	BAbS19_I05330	-	Carbohydrate kinase, FGGY
507	 59.21	0	564202..565233	-	343	189023775	-	BAbS19_I05340	-	transcriptional regulator
508	 59.17	0	565495..565854	-	119	189023776	-	BAbS19_I05350	-	Transcriptional Regulator, ARAC family
509	 57.41	0	565920..566459	-	179	189023777	-	BAbS19_I05360	-	Transcriptional Regulator, ARAC family
510	 58.81	0	567027..568490	-	487	189023778	-	BAbS19_I05370	-	Aldehyde dehydrogenase
511	 59.66	0	568642..570324	-	560	189023779	-	BAbS19_I05380	-	Glucose-methanol-choline oxidoreductase
512	 58.09	0	570327..570932	-	201	189023780	-	BAbS19_I05390	-	Bacterial regulatory protein TetR, HTH motif
513	 60.58	0	571069..572136	+	355	189023781	-	BAbS19_I05400	-	hypothetical protein
514	 58.81	0	572181..572651	+	156	189023782	-	BAbS19_I05410	-	Prokaryotic transcription elongation factor GreA/GreB
515	 50.00	-2	572648..573037	-	129	189023783	-	BAbS19_I05420	-	Death-on-curing family protein
516	 51.08	-1	573034..573264	-	76	189023784	-	BAbS19_I05430	-	Transcriptional regulator AbrB
517	 55.79	0	573325..574317	-	330	189023785	-	BAbS19_I05440	-	Mg2+ transporter protein, CorA-like protein
518	 59.78	0	575876..576427	+	183	189023786	-	BAbS19_I05470	-	Cyanate transport protein CYNX
519	 60.06	0	576484..576846	-	120	189023787	-	BAbS19_I05480	-	hypothetical protein
520	 59.59	0	577182..578693	+	503	189023788	-	BAbS19_I05490	-	ATP/GTP-binding site motif A (P-loop)
521	 60.67	0	578883..579599	-	238	189023789	-	BAbS19_I05500	-	ErfK/YbiS/YcfS/YnhG family protein
522	 58.26	0	579902..580555	-	217	189023790	-	BAbS19_I05510	-	haloacid dehalogenase
523	 53.83	-1	580778..581377	+	199	189023791	-	BAbS19_I05520	-	Manganese and iron superoxide dismutase
524	 60.12	0	581549..581884	-	111	189023792	-	BAbS19_I05530	-	Metallo-phosphoesterase
525	 57.75	0	582002..584110	-	702	189023793	-	BAbS19_I05540	-	PtrB, protease
526	 54.31	0	584683..585111	+	142	189023794	-	BAbS19_I05550	-	transcriptional regulatory protein MucR
527	 54.81	0	585319..585630	-	103	189023795	-	BAbS19_I05560	-	Hypothetical Cytosolic Protein
528	 57.02	0	585811..586266	+	151	189023796	-	BAbS19_I05570	-	DnaA domain protein
529	 59.50	0	586263..587057	+	264	189023797	-	BAbS19_I05580	-	Hypothetical Cytosolic Protein
530	 60.21	0	587168..588484	+	438	189023798	-	BAbS19_I05590	-	Amidase
531	 59.62	0	588525..588950	-	141	189023799	-	BAbS19_I05600	-	hypothetical protein
532	 56.44	0	589030..589479	-	149	189023800	-	BAbS19_I05610	-	hypothetical protein
533	 59.29	0	589770..591599	+	609	189023801	-	BAbS19_I05620	-	sensor histidine kinase
534	 60.37	0	591526..592542	+	338	189023802	-	BAbS19_I05630	-	Putative peptidoglycan binding domain 1
535	 56.90	0	592556..592903	+	115	189023803	-	BAbS19_I05640	-	hypothetical protein
536	 58.50	0	592914..593990	-	358	189023804	-	BAbS19_I05650	-	hypothetical protein
537	 54.88	0	594188..594730	-	180	189023805	-	BAbS19_I05660	-	hypothetical protein
538	 62.91	+1	594723..595334	-	203	189023806	-	BAbS19_I05670	-	hypothetical protein
539	 59.25	0	595341..597497	-	718	189023807	-	BAbS19_I05680	-	Glycosyl transferase
540	 60.04	0	597855..598367	+	170	189023808	-	BAbS19_I05690	-	hypothetical protein
541	 64.92	+2	598411..599553	+	380	189023809	-	BAbS19_I05700	-	ATP/GTP-binding site motif A (P-loop)
542	 62.06	+1	599585..600778	+	397	189023810	-	BAbS19_I05710	-	Phage portal protein, HK97 family
543	 61.38	+1	600775..601152	+	125	189023811	-	BAbS19_I05720	-	hypothetical protein
544	 62.93	+1	601139..601807	+	222	189023812	-	BAbS19_I05730	-	Phage prohead protease HK97
545	 59.92	0	601829..603103	+	424	189023813	-	BAbS19_I05740	-	Phage major capsid protein, HK97 family
546	 58.91	0	603268..603834	+	188	189023814	-	BAbS19_I05750	-	hypothetical protein
547	 58.11	0	603831..604169	+	112	189023815	-	BAbS19_I05760	-	Phage head-tail adaptor, putative
548	 57.68	0	604166..604699	+	177	189023816	-	BAbS19_I05770	-	hypothetical protein
549	 58.21	0	604740..605153	+	137	189023817	-	BAbS19_I05780	-	hypothetical protein
550	 61.40	+1	605150..605491	+	113	189023818	-	BAbS19_I05790	-	hypothetical protein
551	 63.55	+1	605710..606255	+	181	189023819	-	BAbS19_I05800	-	phage minor tail protein H
552	 59.08	0	606258..606890	+	210	189023820	-	BAbS19_I05810	-	hypothetical protein
553	 61.86	+1	606887..607573	+	228	189023821	-	BAbS19_I05820	-	hypothetical protein
554	 64.54	+1	607758..608180	+	140	189023822	-	BAbS19_I05830	-	NLP/P60
555	 56.04	0	612112..612318	+	68	189023823	-	BAbS19_I05860	-	hypothetical protein
556	 62.63	+1	612480..612776	+	98	189023824	-	BAbS19_I05870	-	hypothetical protein
557	 57.97	0	612855..613544	+	229	189023825	-	BAbS19_I05880	-	Transcriptional regulatory protein PHOP
558	 58.66	0	613694..614929	+	411	189023826	-	BAbS19_I05890	-	sensor histidine kinase
559	 59.82	0	615023..615475	+	150	189023827	-	BAbS19_I05900	-	outer membrane lipoprotein-related protein
560	 61.84	+1	615576..616715	+	379	189023828	-	BAbS19_I05910	-	TPR repeat-containing protein
561	 59.44	0	616712..617209	+	165	189023829	-	BAbS19_I05920	-	CcmE/CycJ protein
562	 60.04	0	617229..619220	+	663	189023830	-	BAbS19_I05930	-	Cytochrome C-type biogenesis protein CYCK
563	 55.56	0	619217..619693	+	158	189023831	-	BAbS19_I05940	-	Cytochrome C biogenesis protein
564	 60.51	0	619835..621376	+	513	189023832	-	BAbS19_I05950	-	Serine protease, V8 family
565	 60.03	0	621470..622177	+	235	189023833	-	BAbS19_I05960	-	Transcriptional regulatory protein
566	 58.90	0	622177..623580	+	467	189023834	-	BAbS19_I05970	-	sensor histidine kinase
567	 58.30	0	623703..626654	+	983	189023835	-	BAbS19_I05980	-	Rhodopsin-like GPCR superfamily
568	 50.13	-2	626699..628978	-	759	189023836	-	BAbS19_I05990	-	LPSA protein
569	 60.71	0	629081..631432	-	783	189023837	-	BAbS19_I06000	-	sensory box histidine kinase
570	 59.39	0	631823..634474	-	883	189023838	-	BAbS19_I06010	-	zinc-binding region
571	 58.80	0	634643..635659	+	338	189023839	-	BAbS19_I06020	-	Protein of unknown function DUF6
572	 58.87	0	635664..636920	-	418	189023840	-	BAbS19_I06030	-	General substrate transporter
573	 61.51	+1	637082..637954	-	290	189023841	-	BAbS19_I06040	-	DNA polymerase, bacteriophage-type
574	 59.22	0	638343..640034	+	563	189023842	-	BAbS19_I06050	-	electron transfer flavoprotein, oxidoreductase
575	 59.44	0	640150..641118	-	322	189023843	-	BAbS19_I06060	-	Endonuclease/exonuclease/phosphatase family
576	 58.48	0	641287..642789	-	500	189023844	-	BAbS19_I06070	-	Purine and other phosphorylase, family 1
577	 51.77	-1	642997..643278	+	93	189023845	-	BAbS19_I06080	-	hypothetical protein
578	 54.57	0	643356..644066	+	236	189023846	-	BAbS19_I06090	-	Glutathione S-transferase, N-terminal
57.60	MEAN

3.62	STD DEV
