IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

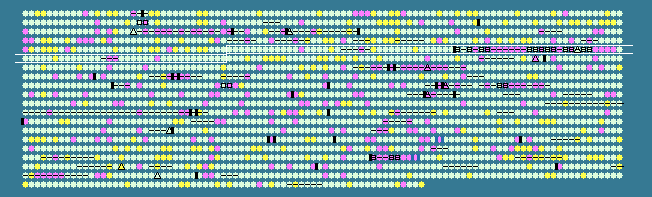

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
435	 57.79	0	490826..491704	+	292	189023703	-	BAbS19_I04600	-	Cytochrome c oxidase, subunit III
436	 60.13	0	492203..492952	+	249	189023704	-	BAbS19_I04630	-	Surf1 protein
437	 58.79	0	493061..494101	+	346	189023705	-	BAbS19_I04640	-	LytB protein
438	 58.72	0	494107..495087	+	326	189023706	-	BAbS19_I04650	-	Aminoglycoside phosphotransferase
439	 59.78	0	495084..495548	+	154	189023707	-	BAbS19_I04660	-	RNase H
440	 58.64	0	495578..496063	-	161	189023708	-	BAbS19_I04670	-	Alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
441	 59.55	0	496243..497043	-	266	189023709	-	BAbS19_I04680	-	Ribosomal protein S7
442	 59.19	0	497313..497780	+	155	189023710	-	BAbS19_I04690	-	Protein of unknown function DUF179
443	 60.14	0	497894..500788	-	964	189023711	-	BAbS19_I04700	-	PAS domain protein
444	 54.95	0	500785..501330	-	181	189023712	-	BAbS19_I04710	-	GCN5-related N-acetyltransferase
445	 59.16	0	501576..502868	-	430	189023713	-	BAbS19_I04720	-	Insulinase-like peptidase, family M16
446	 58.76	0	502922..504313	-	463	189023714	-	BAbS19_I04730	-	threonine synthase
447	 47.97	-2	504393..504515	-	40	189023715	-	BAbS19_I04740	-	hypothetical protein
448	 55.27	0	504675..505253	+	192	189023716	-	BAbS19_I04750	-	lipoprotein, putative
449	 56.27	0	505567..507201	+	544	189023717	-	BAbS19_I04760	-	EAL domain protein
450	 56.99	0	507330..507515	+	61	189023718	-	BAbS19_I04770	-	hypothetical protein
451	 59.97	0	507557..508243	-	228	189023719	-	BAbS19_I04780	-	hydrolase, haloacid dehalogenase-like family
452	 61.69	+1	508391..510097	-	568	189023720	-	BAbS19_I04790	-	Cl-channel, voltage gated
453	 59.69	0	510407..511567	+	386	189023721	-	BAbS19_I04800	-	Adenine-specific methyltransferase
454	 57.61	0	511650..512267	-	205	189023722	-	BAbS19_I04810	-	Haloacid dehalogenase-like hydrolase
455	 60.46	0	512264..513391	-	375	189023723	-	BAbS19_I04820	-	A/G-specific adenine glycosylase
456	 60.98	0	513614..514141	+	175	189023724	-	BAbS19_I04830	-	hypothetical protein
457	 53.33	-1	514198..514332	+	44	189023725	-	BAbS19_I04840	-	hypothetical protein
458	 54.28	0	514379..515032	+	217	189023726	-	BAbS19_I04850	-	DSBA oxidoreductase
459	 63.46	+1	515111..518569	+	1152	189023727	-	BAbS19_I04860	-	SMC family protein
460	 58.16	0	518611..519468	+	285	189023728	-	BAbS19_I04870	-	Cobalt-zinc-cadmium resistance protein CZCD
461	 56.83	0	519578..519943	-	121	189023729	-	BAbS19_I04880	-	putative hydroxlase
462	 60.85	0	520183..522846	+	887	189023730	-	BAbS19_I04890	-	PEP-utilizing enzyme
463	 57.26	0	523060..523878	+	272	189023731	-	BAbS19_I04900	-	Polysaccharide deacetylase
464	 60.69	0	524173..524490	-	105	189023732	-	BAbS19_I04910	-	hypothetical protein
465	 59.01	0	524783..525631	+	282	189023733	-	BAbS19_I04920	-	hypothetical protein
466	 61.26	+1	525632..526537	-	301	189023734	-	BAbS19_I04930	-	Beta-lactamase-like protein
467	 59.50	0	526738..527337	+	199	189023735	-	BAbS19_I04940	-	BioY protein
468	 55.88	0	527473..527982	+	169	189023736	-	BAbS19_I04950	-	Ureidoglycolate hydrolase
469	 58.26	0	527994..528350	+	118	189023737	-	BAbS19_I04960	-	Transthyretin
470	 57.95	0	528421..529257	+	278	189023738	-	BAbS19_I04970	-	ribonuclease III
471	 56.66	0	529794..531662	+	622	189023739	-	BAbS19_I04980	-	Polysaccharide biosynthesis protein CapD
472	 55.95	0	531649..532656	-	335	189023740	-	BAbS19_I04990	-	Glycosyl transferase, family 4
473	 58.36	0	533315..534133	+	272	189023741	-	BAbS19_I05000	-	Transposase
474	 58.25	0	534144..534452	+	102	189023742	-	BAbS19_I05010	-	Bacterial regulatory protein LacI, HTH motif
475	 54.55	0	534866..535096	+	76	189023743	-	BAbS19_I05020	-	Transposase
476	 53.17	-1	535347..535472	+	41	189023744	-	BAbS19_I05030	-	P1 ISBm2
477	 56.44	0	535740..536189	+	149	189023745	-	BAbS19_I05040	-	Transposase
478	 46.30	-2	536400..536507	+	35	189023746	-	BAbS19_I05050	-	Transposase
479	 45.13	-2	536525..537304	-	259	189023747	-	BAbS19_I05060	-	Formyl transferase, N-terminal
480	 44.56	-2	537331..538185	-	284	189023748	-	BAbS19_I05070	-	perosamine synthetase WbkB
481	 49.01	-2	538182..538940	-	252	189023749	-	BAbS19_I05080	-	ABC transporter
482	 45.99	-2	538937..539734	-	265	189023750	-	BAbS19_I05090	-	O-antigen export system permease protein RFBD
483	 47.28	-2	539734..540837	-	367	189023751	-	BAbS19_I05100	-	DegT/DnrJ/EryC1/StrS aminotransferase
484	 47.93	-2	540845..541933	-	362	189023752	-	BAbS19_I05110	-	Short-chain dehydrogenase/reductase SDR
485	 60.37	0	542452..542880	+	142	189023753	-	BAbS19_I05120	-	ISBm1, transposase orfA
486	 57.22	0	543209..543589	+	126	189023754	-	BAbS19_I05130	-	Transposase
487	 49.44	-2	543637..543996	+	119	189023755	-	BAbS19_I05140	-	Transposase
488	 58.54	0	544066..544434	+	122	189023756	-	BAbS19_I05150	-	Transposase
489	 49.45	-2	544551..544823	+	90	189023757	-	BAbS19_I05160	-	Transposase, IS4
490	 44.13	-2	545257..546312	+	351	189023758	-	BAbS19_I05170	-	Glycosyl transferase, group 1
491	 57.18	0	546370..546738	+	122	189023759	-	BAbS19_I05180	-	IS5 family element, transposase orfA
492	 47.37	-2	546834..547175	+	113	189023760	-	BAbS19_I05190	-	IS5 family element, transposase orfB
493	 54.35	0	547639..547776	-	45	189023761	-	BAbS19_I05200	-	Integrase, catalytic domain protein
494	 57.79	0	548329..548745	+	138	189023762	-	BAbS19_I05210	-	Transposase, IS4
495	 54.33	0	549105..549404	+	99	189023763	-	BAbS19_I05220	-	Transposase
496	 50.74	-1	549570..550925	+	451	189023764	-	BAbS19_I05230	-	Phosphomannomutase
497	 51.16	-1	550996..552420	+	474	189023765	-	BAbS19_I05240	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
498	 51.24	-1	552453..553625	+	390	189023766	-	BAbS19_I05250	-	ManA, mannose-6-phosphate isomerase
499	 51.17	-1	553708..554817	+	369	189023767	-	BAbS19_I05260	-	Glycosyl transferase, group 1
500	 57.21	0	555671..557044	+	457	189023768	-	BAbS19_I05270	-	ATP/GTP-binding site motif A (P-loop)
501	 56.89	0	557065..558066	+	333	189023769	-	BAbS19_I05280	-	Tetracycline resistance protein TetB
502	 57.11	0	558145..559107	+	320	189023770	-	BAbS19_I05290	-	Periplasmic binding protein/LacI transcriptional regulator
503	 57.74	0	559165..560217	+	350	189023771	-	BAbS19_I05300	-	iolE protein
504	 59.02	0	560225..561322	+	365	189023772	-	BAbS19_I05310	-	oxidoreductase
505	 56.27	0	561364..562671	-	435	189023773	-	BAbS19_I05320	-	Xylose isomerase
506	 61.78	+1	562718..564169	-	483	189023774	-	BAbS19_I05330	-	Carbohydrate kinase, FGGY
507	 59.21	0	564202..565233	-	343	189023775	-	BAbS19_I05340	-	transcriptional regulator
508	 59.17	0	565495..565854	-	119	189023776	-	BAbS19_I05350	-	Transcriptional Regulator, ARAC family
509	 57.41	0	565920..566459	-	179	189023777	-	BAbS19_I05360	-	Transcriptional Regulator, ARAC family
510	 58.81	0	567027..568490	-	487	189023778	-	BAbS19_I05370	-	Aldehyde dehydrogenase
511	 59.66	0	568642..570324	-	560	189023779	-	BAbS19_I05380	-	Glucose-methanol-choline oxidoreductase
512	 58.09	0	570327..570932	-	201	189023780	-	BAbS19_I05390	-	Bacterial regulatory protein TetR, HTH motif
513	 60.58	0	571069..572136	+	355	189023781	-	BAbS19_I05400	-	hypothetical protein
514	 58.81	0	572181..572651	+	156	189023782	-	BAbS19_I05410	-	Prokaryotic transcription elongation factor GreA/GreB
515	 50.00	-2	572648..573037	-	129	189023783	-	BAbS19_I05420	-	Death-on-curing family protein
516	 51.08	-1	573034..573264	-	76	189023784	-	BAbS19_I05430	-	Transcriptional regulator AbrB
517	 55.79	0	573325..574317	-	330	189023785	-	BAbS19_I05440	-	Mg2+ transporter protein, CorA-like protein
518	 59.78	0	575876..576427	+	183	189023786	-	BAbS19_I05470	-	Cyanate transport protein CYNX
519	 60.06	0	576484..576846	-	120	189023787	-	BAbS19_I05480	-	hypothetical protein
520	 59.59	0	577182..578693	+	503	189023788	-	BAbS19_I05490	-	ATP/GTP-binding site motif A (P-loop)
521	 60.67	0	578883..579599	-	238	189023789	-	BAbS19_I05500	-	ErfK/YbiS/YcfS/YnhG family protein
522	 58.26	0	579902..580555	-	217	189023790	-	BAbS19_I05510	-	haloacid dehalogenase
523	 53.83	-1	580778..581377	+	199	189023791	-	BAbS19_I05520	-	Manganese and iron superoxide dismutase
524	 60.12	0	581549..581884	-	111	189023792	-	BAbS19_I05530	-	Metallo-phosphoesterase
525	 57.75	0	582002..584110	-	702	189023793	-	BAbS19_I05540	-	PtrB, protease
526	 54.31	0	584683..585111	+	142	189023794	-	BAbS19_I05550	-	transcriptional regulatory protein MucR
527	 54.81	0	585319..585630	-	103	189023795	-	BAbS19_I05560	-	Hypothetical Cytosolic Protein
528	 57.02	0	585811..586266	+	151	189023796	-	BAbS19_I05570	-	DnaA domain protein
529	 59.50	0	586263..587057	+	264	189023797	-	BAbS19_I05580	-	Hypothetical Cytosolic Protein
530	 60.21	0	587168..588484	+	438	189023798	-	BAbS19_I05590	-	Amidase
531	 59.62	0	588525..588950	-	141	189023799	-	BAbS19_I05600	-	hypothetical protein
532	 56.44	0	589030..589479	-	149	189023800	-	BAbS19_I05610	-	hypothetical protein
533	 59.29	0	589770..591599	+	609	189023801	-	BAbS19_I05620	-	sensor histidine kinase
534	 60.37	0	591526..592542	+	338	189023802	-	BAbS19_I05630	-	Putative peptidoglycan binding domain 1
57.60	MEAN

3.62	STD DEV
