IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

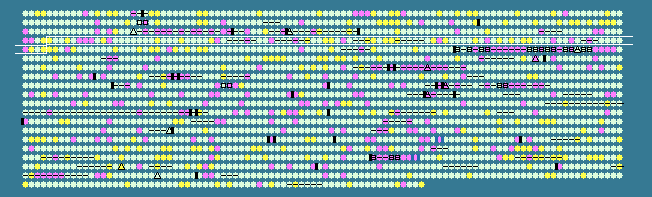

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
305	 62.71	+1	357382..358089	+	235	189023573	-	BAbS19_I03260	-	LrgB-like protein
306	 58.94	0	358635..359876	+	413	189023574	-	BAbS19_I03270	-	Esterase/lipase/thioesterase, active site
307	 61.00	0	359963..360844	+	293	189023575	-	BAbS19_I03280	-	Pantoate-beta-alanine ligase
308	 62.44	+1	360846..361673	+	275	189023576	-	BAbS19_I03290	-	Ketopantoate hydroxymethyltransferase
309	 54.83	0	361858..362634	-	258	189023577	-	BAbS19_I03300	-	Ferredoxin-NADP reductase
310	 53.76	-1	362812..362997	-	61	189023578	-	BAbS19_I03310	-	Manganese and iron superoxide dismutase
311	 51.02	-1	363163..363309	-	48	189023579	-	BAbS19_I03320	-	hypothetical protein
312	 52.73	-1	363426..364523	+	365	189023580	-	BAbS19_I03330	-	Orn/DAP/Arg decarboxylase, family 2
313	 55.23	0	364704..365945	+	413	189023581	-	BAbS19_I03340	-	ATP/GTP-binding site motif A (P-loop)
314	 61.32	+1	366201..367229	-	342	189023582	-	BAbS19_I03350	-	ATP/GTP-binding site motif A (P-loop)
315	 43.52	-2	367284..367391	-	35	189023583	-	BAbS19_I03360	-	hypothetical protein
316	 59.39	0	369143..369664	-	173	189023584	-	BAbS19_I03390	-	invasion protein B
317	 58.48	0	369912..371279	+	455	189023585	-	BAbS19_I03400	-	Gliadin, alpha/beta
318	 55.92	0	371276..371917	+	213	189023586	-	BAbS19_I03410	-	Bacterial regulatory protein, LuxR family
319	 54.24	0	372205..372687	+	160	189023587	-	BAbS19_I03420	-	hypothetical protein
320	 59.46	0	372699..374267	+	522	189023588	-	BAbS19_I03430	-	TRAP dicarboxylate transporter, DctM subunit, hypothetical
321	 58.51	0	374329..375456	+	375	189023589	-	BAbS19_I03440	-	TRAP dicarboxylate transporter-DctP subunit
322	 59.83	0	375539..376357	-	272	189023590	-	BAbS19_I03450	-	hypothetical protein
323	 61.13	0	376370..377797	-	475	189023591	-	BAbS19_I03460	-	Polysaccharide deacetylase
324	 56.52	0	378064..378339	+	91	189023592	-	BAbS19_I03470	-	hypothetical protein
325	 61.05	0	378345..379823	+	492	189023593	-	BAbS19_I03480	-	xanthine dehydrogenase, hypothetical
326	 59.73	0	379836..381953	+	705	189023594	-	BAbS19_I03490	-	Xanthine dehydrogenase
327	 64.20	+1	381978..382139	+	53	189023595	-	BAbS19_I03500	-	Xanthine dehydrogenase
328	 58.99	0	382144..383016	+	290	189023596	-	BAbS19_I03510	-	XdhC protein
329	 58.36	0	383097..384011	-	304	189023597	-	BAbS19_I03520	-	Transcriptional regulator, LysR family
330	 58.43	0	384192..385442	+	416	189023598	-	BAbS19_I03530	-	Cytochrome c heme-binding site
331	 58.70	0	385439..386743	+	434	189023599	-	BAbS19_I03540	-	Amidohydrolase
332	 62.08	+1	386823..388109	+	428	189023600	-	BAbS19_I03550	-	putative hydroxypyruvate reductase
333	 53.46	-1	388090..388248	-	52	189023601	-	BAbS19_I03560	-	Cytochrome oxidase maturation protein cbb3-type
334	 60.82	0	388245..390503	-	752	189023602	-	BAbS19_I03570	-	nitrogen fixation protein FixI, hypothetical
335	 56.83	0	390500..390997	-	165	189023603	-	BAbS19_I03580	-	nitrogen fixation protein FixH
336	 58.28	0	390997..392547	-	516	189023604	-	BAbS19_I03590	-	4Fe-4S ferredoxin, iron-sulfur binding domain protein
337	 60.88	0	392699..393562	-	287	189023605	-	BAbS19_I03600	-	CcoP, cytochrome c oxidase, cbb3-type, subunit III
338	 49.69	-2	393555..393713	-	52	189023606	-	BAbS19_I03610	-	cytochrome c oxidase, cbb3-type, CcoQ subunit
339	 58.88	0	393728..394459	-	243	189023607	-	BAbS19_I03620	-	Cytochrome C oxidase, mono-heme subunit/FixO
340	 57.87	0	394474..396099	-	541	189023608	-	BAbS19_I03630	-	Cytochrome c oxidase cbb3-type
341	 58.82	0	396317..396775	-	152	189023610	-	BAbS19_I03640	-	Ferric-uptake regulator
342	 52.02	-1	396774..397094	+	106	189023609	-	BAbS19_I03650	-	hypothetical protein
343	 57.24	0	397206..397820	+	204	189023611	-	BAbS19_I03660	-	DSBA oxidoreductase
344	 60.54	0	397869..399026	-	385	189023612	-	BAbS19_I03670	-	aldehyde dehydrogenase family protein
345	 59.39	0	399512..400597	+	361	189023613	-	BAbS19_I03680	-	Ada, ada regulatory protein
346	 52.99	-1	400779..401129	+	116	189023614	-	BAbS19_I03690	-	Conserved hypothetical protein, ArsC related
347	 60.06	0	401466..402509	+	347	189023615	-	BAbS19_I03700	-	hypothetical protein
348	 61.78	+1	402596..403843	+	415	189023616	-	BAbS19_I03710	-	Tetracycline resistance protein
349	 55.93	0	404065..405312	+	415	189023617	-	BAbS19_I03720	-	bacteroid development protein BacA
350	 59.59	0	405351..406424	-	357	189023618	-	BAbS19_I03730	-	Polysaccharide deacetylase
351	 62.50	+1	406595..407266	+	223	189023619	-	BAbS19_I03740	-	hypothetical protein
352	 61.57	+1	407288..408739	+	483	189023620	-	BAbS19_I03750	-	GTP-binding protein EngA
353	 57.02	0	408898..410214	+	438	189023621	-	BAbS19_I03760	-	Heat shock protein Hsp70
354	 52.38	-1	410303..410428	-	41	189023622	-	BAbS19_I03770	-	hypothetical protein
355	 60.39	0	410650..411939	+	429	189023623	-	BAbS19_I03780	-	ATP/GTP-binding site motif A (P-loop)
356	 56.14	0	412210..412608	+	132	189023624	-	BAbS19_I03790	-	ATP synthase I
357	 55.87	0	412716..413465	+	249	189023625	-	BAbS19_I03800	-	ATP synthase subunit A
358	 62.28	+1	413533..413760	+	75	189023626	-	BAbS19_I03810	-	ATP synthase subunit C
359	 63.00	+1	413932..414558	+	208	189023627	-	BAbS19_I03820	-	H+-transporting two-sector ATPase, B/B' subunit
360	 56.25	0	414569..415048	+	159	189023628	-	BAbS19_I03830	-	H+-transporting two-sector ATPase, B/B' subunit
361	 63.76	+1	415171..415755	-	194	189023629	-	BAbS19_I03840	-	Ribonuclease HII/HIII
362	 61.13	0	416010..417182	-	390	189023630	-	BAbS19_I03850	-	Protein of unknown function DUF85
363	 62.33	+1	417318..417824	+	168	189023631	-	BAbS19_I03860	-	hypothetical protein
364	 58.23	0	417904..418140	-	78	189023632	-	BAbS19_I03870	-	hypothetical protein
365	 56.14	0	418320..418547	-	75	189023633	-	BAbS19_I03880	-	hypothetical protein
366	 60.22	0	418954..419853	-	299	189023634	-	BAbS19_I03890	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
367	 60.75	0	419883..420068	-	61	189023635	-	BAbS19_I03900	-	hypothetical protein
368	 59.48	0	420535..422745	-	736	189023636	-	BAbS19_I03910	-	Clp protease
369	 65.26	+2	423035..423817	-	260	189023637	-	BAbS19_I03920	-	Methyltransferase
370	 53.07	-1	423814..424041	-	75	189023638	-	BAbS19_I03930	-	hypothetical protein
371	 61.95	+1	424310..425326	+	338	189023639	-	BAbS19_I03940	-	Polyprenyl synthetase
372	 59.11	0	425630..427495	+	621	189023640	-	BAbS19_I03950	-	TPR repeat-containing protein
373	 57.10	0	427623..428573	+	316	189023641	-	BAbS19_I03960	-	Glycyl-tRNA synthetase alpha subunit
374	 54.39	0	428579..428692	+	37	189023642	-	BAbS19_I03970	-	Glycyl-tRNA synthetase, beta subunit
375	 59.85	0	428692..431025	+	777	189023643	-	BAbS19_I03980	-	Glycyl-tRNA synthetase, beta subunit
376	 64.92	+2	431164..432135	+	323	189023644	-	BAbS19_I03990	-	Sua5/YciO/YrdC/YwlC protein family
377	 59.02	0	432161..433573	+	470	189023645	-	BAbS19_I04000	-	oxidoreductase, FAD-binding
378	 52.52	-1	433611..433928	-	105	189023646	-	BAbS19_I04010	-	Plasmid stabilization system
379	 54.79	0	433925..434185	-	86	189023647	-	BAbS19_I04020	-	hypothetical protein
380	 62.08	+1	434433..434999	+	188	189023648	-	BAbS19_I04030	-	hypothetical protein
381	 60.69	0	435142..435894	-	250	189023649	-	BAbS19_I04040	-	Enoyl-CoA hydratase/isomerase
382	 61.16	0	435897..437675	-	592	189023650	-	BAbS19_I04050	-	Acyl-CoA dehydrogenase
383	 57.85	0	437993..439138	+	381	189023651	-	BAbS19_I04060	-	GGDEF domain protein
384	 61.14	0	439151..440434	-	427	189023652	-	BAbS19_I04070	-	Phosphoribosylglycinamide synthetase
385	 61.48	+1	440579..441580	+	333	189023653	-	BAbS19_I04080	-	UbiA prenyltransferase
386	 60.13	0	441620..442231	-	203	189023654	-	BAbS19_I04090	-	Pyridoxamine 5'-phosphate oxidase
387	 56.26	0	442505..442975	+	156	189023655	-	BAbS19_I04100	-	hypothetical protein
388	 60.19	0	443120..444061	+	313	189023656	-	BAbS19_I04110	-	Heat shock protein DnaJ
389	 48.15	-2	444065..444172	-	35	189023657	-	BAbS19_I04120	-	hypothetical protein
390	 56.90	0	444205..445023	+	272	189023658	-	BAbS19_I04130	-	Short-chain dehydrogenase/reductase SDR
391	 58.71	0	445138..445728	+	196	189023659	-	BAbS19_I04140	-	Phosphoglycerate/bisphosphoglycerate mutase
392	 53.33	-1	445990..446199	+	69	189023660	-	BAbS19_I04150	-	ATP/GTP-binding site motif A (P-loop)
393	 55.87	0	446671..446883	+	70	189023661	-	BAbS19_I04160	-	hypothetical protein
394	 60.06	0	446960..447640	+	226	189023662	-	BAbS19_I04170	-	putative lipoprotein
395	 50.00	-2	447785..448036	-	83	189023663	-	BAbS19_I04180	-	hypothetical protein
396	 60.82	0	448311..449405	+	364	189023664	-	BAbS19_I04190	-	Chorismate synthase
397	 60.22	0	449541..450656	+	371	189023665	-	BAbS19_I04200	-	3,4-Dihydroxy-2-butanone 4-phosphate synthase
398	 58.25	0	450872..451822	+	316	189023666	-	BAbS19_I04210	-	Histone deacetylase family
399	 56.86	0	451827..452081	+	84	189023667	-	BAbS19_I04220	-	Exonuclease VII, small subunit
400	 57.61	0	452088..452606	-	172	189023668	-	BAbS19_I04230	-	DedA family
401	 52.87	-1	452848..453108	-	86	189023669	-	BAbS19_I04240	-	Transglycosylase-associated protein
402	 63.78	+1	453268..453822	+	184	189023670	-	BAbS19_I04250	-	Ribosomal protein P2
403	 60.94	0	454026..454898	+	290	189023671	-	BAbS19_I04260	-	Protein of unknown function DUF209
404	 62.01	+1	455041..456972	+	643	189023672	-	BAbS19_I04270	-	1-deoxy-D-xylulose-5-phosphate synthase
57.60	MEAN

3.62	STD DEV
