IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

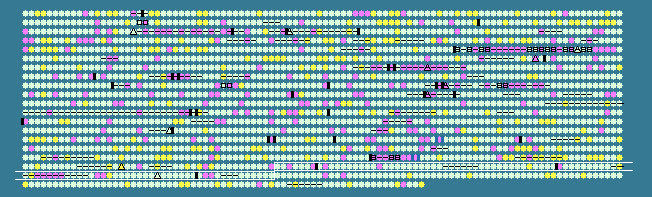

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1743	 58.03	0	1888409..1889404	-	331	189025011	-	BAbS19_I18230	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1744	 58.58	0	1889743..1892463	+	906	189025012	-	BAbS19_I18240	-	SecA protein
1745	 46.10	-2	1892491..1892631	+	46	189025013	-	BAbS19_I18250	-	hypothetical protein
1746	 59.05	0	1892973..1894259	+	428	189025014	-	BAbS19_I18260	-	hypothetical protein
1747	 55.67	0	1894428..1895336	+	302	189025015	-	BAbS19_I18270	-	Integral membrane protein
1748	 55.69	0	1895336..1896073	+	245	189025016	-	BAbS19_I18280	-	Integral membrane protein
1749	 46.08	-2	1896401..1896502	+	33	189025017	-	BAbS19_I18290	-	hypothetical protein
1750	 59.04	0	1897216..1898199	-	327	189025018	-	BAbS19_I18300	-	Bacterial regulatory protein LysR, HTH motif
1751	 42.47	-2	1898239..1898424	-	61	189025019	-	BAbS19_I18310	-	hypothetical protein
1752	 58.04	0	1898490..1899335	+	281	189025020	-	BAbS19_I18320	-	Bacterial extracellular solute-binding protein, family 3
1753	 59.61	0	1899867..1900121	+	84	189025021	-	BAbS19_I18330	-	Asparagine transport system permease protein
1754	 58.09	0	1900126..1900848	+	240	189025022	-	BAbS19_I18340	-	Binding-protein-dependent transport systems inner membrane component
1755	 59.68	0	1900845..1901660	+	271	189025023	-	BAbS19_I18350	-	ATP/GTP-binding site motif A (P-loop)
1756	 60.26	0	1901681..1902694	+	337	189025024	-	BAbS19_I18360	-	Arginase/agmatinase/formiminoglutamase
1757	 58.40	0	1902703..1904154	+	483	189025025	-	BAbS19_I18370	-	Fumarate lyase
1758	 57.41	0	1904138..1904893	+	251	189025026	-	BAbS19_I18380	-	ATP/GTP-binding site motif A (P-loop)
1759	 58.86	0	1904902..1905900	+	332	189025027	-	BAbS19_I18390	-	Asparaginase/glutaminase
1760	 51.90	-1	1906037..1906720	-	227	189025028	-	BAbS19_I18400	-	Bacterial regulatory protein, AsnC family
1761	 56.04	0	1906698..1907732	-	344	189025029	-	BAbS19_I18410	-	Asparaginase/glutaminase
1762	 54.13	0	1907810..1909117	+	435	189025030	-	BAbS19_I18420	-	Glucarate transporter
1763	 56.21	0	1909604..1909756	-	50	189025031	-	BAbS19_I18430	-	hypothetical protein
1764	 58.96	0	1909803..1911086	-	427	189025032	-	BAbS19_I18440	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzyme
1765	 57.78	0	1911266..1911715	-	149	189025033	-	BAbS19_I18450	-	Universal stress protein (Usp)
1766	 57.14	0	1911962..1912423	+	153	189025034	-	BAbS19_I18460	-	ATP/GTP-binding site motif A (P-loop)
1767	 58.11	0	1912386..1912946	+	186	189025035	-	BAbS19_I18470	-	Cysteine synthase A
1768	 57.31	0	1913437..1914312	-	291	189025036	-	BAbS19_I18480	-	3-hydroxybutyryl-CoA dehydrogenase
1769	 60.65	0	1914785..1915714	-	309	189025037	-	BAbS19_I18490	-	Antifreeze protein, type I
1770	 58.10	0	1915867..1916613	-	248	189025038	-	BAbS19_I18500	-	Electron transfer flavoprotein beta-subunit
1771	 59.37	0	1916949..1917647	+	232	189025039	-	BAbS19_I18510	-	ExsB protein
1772	 56.28	0	1917647..1918012	+	121	189025040	-	BAbS19_I18520	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
1773	 57.66	0	1918213..1918767	+	184	189025041	-	BAbS19_I18530	-	Proline-rich extensin
1774	 60.71	0	1918904..1919491	-	195	189025042	-	BAbS19_I18540	-	Protein of unknown function DUF80
1775	 54.90	0	1919493..1919696	-	67	189025043	-	BAbS19_I18550	-	hypothetical protein
1776	 60.02	0	1919726..1920568	-	280	189025044	-	BAbS19_I18560	-	Short-chain dehydrogenase/reductase SDR
1777	 56.68	0	1920726..1921586	+	286	189025045	-	BAbS19_I18570	-	Ribonuclease BN
1778	 60.70	0	1921604..1922089	+	161	189025046	-	BAbS19_I18580	-	Protein of unknown function DUF188
1779	 58.72	0	1922097..1922813	-	238	189025047	-	BAbS19_I18590	-	Sodium:dicarboxylate symporter
1780	 59.53	0	1922867..1924267	+	466	189025048	-	BAbS19_I18600	-	Fumarate lyase
1781	 58.20	0	1924372..1924560	+	62	189025049	-	BAbS19_I18610	-	hypothetical protein
1782	 61.06	0	1924588..1925853	+	421	189025050	-	BAbS19_I18620	-	diaminopimelate decarboxylase
1783	 61.07	0	1925952..1928612	+	886	189025051	-	BAbS19_I18630	-	hypothetical protein
1784	 55.68	0	1928652..1929188	-	178	189025052	-	BAbS19_I18640	-	Phosphoribosyltransferase
1785	 62.95	+1	1929337..1930116	+	259	189025053	-	BAbS19_I18650	-	Generic methyltransferase
1786	 59.17	0	1930261..1931367	+	368	189025054	-	BAbS19_I18660	-	histidinol-phosphate aminotransferase
1787	 60.66	0	1931372..1932337	+	321	189025055	-	BAbS19_I18670	-	Prephenate dehydrogenase
1788	 57.75	0	1932306..1933325	-	339	189025056	-	BAbS19_I18680	-	hypothetical protein
1789	 57.93	0	1933537..1934097	+	186	189025057	-	BAbS19_I18690	-	ChaC-like protein
1790	 53.26	-1	1934430..1934720	+	96	189025058	-	BAbS19_I18700	-	Family of unknown function YGGT
1791	 55.18	0	1934891..1935421	-	176	189025059	-	BAbS19_I18710	-	Inorganic pyrophosphatase
1792	 59.58	0	1935574..1936293	-	239	189025060	-	BAbS19_I18720	-	Mercuric reductase
1793	 54.49	0	1936535..1937437	-	300	189025061	-	BAbS19_I18730	-	hypothetical protein
1794	 60.88	0	1937434..1938435	-	333	189025062	-	BAbS19_I18740	-	hypothetical protein
1795	 60.15	0	1938428..1939087	-	219	189025063	-	BAbS19_I18750	-	ATP/GTP-binding site motif A (P-loop)
1796	 54.58	0	1939396..1939668	-	90	189025064	-	BAbS19_I18760	-	hypothetical protein
1797	 58.52	0	1940146..1940832	+	228	189025065	-	BAbS19_I18770	-	Aromatic amino acid permease
1798	 54.89	0	1941213..1941908	+	231	189025066	-	BAbS19_I18780	-	hypothetical protein
1799	 57.24	0	1941948..1942817	+	289	189025067	-	BAbS19_I18790	-	Exodeoxyribonuclease III
1800	 61.90	+1	1942823..1943284	-	153	189025068	-	BAbS19_I18800	-	cAMP-dependent protein kinase
1801	 55.99	0	1943319..1944002	-	227	189025069	-	BAbS19_I18810	-	Transcriptional regulatory protein
1802	 61.17	0	1944210..1944755	+	181	189025070	-	BAbS19_I18820	-	Hypothetical Cytosolic Protein
1803	 44.79	-2	1945506..1946648	-	380	189025071	-	BAbS19_I18830	-	intimin/invasin family protein
1804	 43.33	-2	1946657..1947736	-	359	189025072	-	BAbS19_I18840	-	Glyceraldehyde 3-phosphate dehydrogenase
1805	 43.42	-2	1948539..1950095	-	518	189025073	-	BAbS19_I18850	-	hypothetical protein
1806	 51.16	-1	1950733..1952964	+	743	189025074	-	BAbS19_I18860	-	outer membrane autotransporter
1807	 51.67	-1	1953196..1955055	+	619	189025075	-	BAbS19_I18870	-	outer membrane autotransporter
1808	 58.63	0	1955196..1955867	-	223	189025076	-	BAbS19_I18880	-	Protein of unknown function DUF165
1809	 59.52	0	1955947..1956240	-	97	189025077	-	BAbS19_I18890	-	Ribosomal protein L28
1810	 55.16	0	1956566..1957417	+	283	189025078	-	BAbS19_I18900	-	hypothetical protein
1811	 58.87	0	1957529..1957951	-	140	189025079	-	BAbS19_I18910	-	Bacterial regulatory protein, MerR family
1812	 60.61	0	1958028..1960454	+	808	189025080	-	BAbS19_I18920	-	CadA-1, cadmium-translocating P-type ATPase
1813	 44.54	-2	1960933..1961610	+	225	189025081	-	BAbS19_I18930	-	hypothetical protein
1814	 41.25	-2	1961637..1962722	+	361	189025082	-	BAbS19_I18940	-	hypothetical protein
1815	 61.60	+1	1962895..1964808	-	637	189025083	-	BAbS19_I18950	-	Von Willebrand factor, type A
1816	 57.75	0	1964882..1965868	-	328	189025084	-	BAbS19_I18960	-	Chaperonin clpA/B
1817	 56.83	0	1966143..1966772	-	209	189025085	-	BAbS19_I18970	-	Heat shock protein DnaJ, N-terminal
1818	 57.78	0	1966959..1967273	+	104	189025086	-	BAbS19_I18980	-	Basic helix-loop-helix dimerization domain bHLH
1819	 59.40	0	1967298..1968605	-	435	189025087	-	BAbS19_I18990	-	CBS domain:CBS:Transporter associated domain protein
1820	 60.25	0	1968669..1969805	-	378	189025088	-	BAbS19_I19000	-	Pyruvate kinase
1821	 58.21	0	1969898..1970500	-	200	189025089	-	BAbS19_I19010	-	Shikimate kinase
1822	 55.91	0	1970646..1970831	+	61	189025090	-	BAbS19_I19020	-	hypothetical protein
1823	 59.63	0	1970834..1971757	+	307	189025091	-	BAbS19_I19030	-	Phage integrase
1824	 59.54	0	1971896..1972849	+	317	189025092	-	BAbS19_I19040	-	Acetyl-CoA carboxylase, alpha subunit
1825	 58.50	0	1973071..1974282	+	403	189025093	-	BAbS19_I19050	-	Pollen allergen Poa pIX/Phl pVI, C-terminal
1826	 54.79	0	1974258..1974518	+	86	189025094	-	BAbS19_I19060	-	hypothetical protein
1827	 59.59	0	1974536..1975708	-	390	189025095	-	BAbS19_I19070	-	ATP/GTP-binding site motif A (P-loop)
1828	 60.83	0	1975710..1976822	-	370	189025096	-	BAbS19_I19080	-	D-alanyl-D-alanine carboxypeptidase 1, S11 family
1829	 59.54	0	1977120..1978283	+	387	189025097	-	BAbS19_I19090	-	Antifreeze protein, type I
1830	 59.08	0	1978482..1979246	-	254	189025098	-	BAbS19_I19100	-	Glucose/ribitol dehydrogenase
1831	 50.57	-1	1979354..1979788	+	144	189025099	-	BAbS19_I19110	-	Protein of unknown function DUF636
1832	 44.44	-2	1979887..1980282	+	131	189025100	-	BAbS19_I19120	-	ATP/GTP-binding site motif A (P-loop)
1833	 58.59	0	1980352..1981986	-	544	189025101	-	BAbS19_I19130	-	Glucose-methanol-choline oxidoreductase
1834	 60.39	0	1981997..1982761	-	254	189025102	-	BAbS19_I19140	-	Short-chain dehydrogenase/reductase SDR
1835	 59.12	0	1982758..1984242	-	494	189025103	-	BAbS19_I19150	-	oxidoreductase, GMC family
1836	 59.93	0	1984255..1985769	-	504	189025104	-	BAbS19_I19160	-	Aldehyde dehydrogenase
1837	 61.00	0	1985769..1986545	-	258	189025105	-	BAbS19_I19170	-	Enoyl-CoA hydratase/isomerase
1838	 57.60	0	1987025..1988149	-	374	189025106	-	BAbS19_I19180	-	Acetyl-CoA:acetoacetyl-CoA transferase alpha subunit
1839	 59.78	0	1988155..1989156	-	333	189025107	-	BAbS19_I19190	-	Oxidoreductase
1840	 58.92	0	1989135..1990193	-	352	189025108	-	BAbS19_I19200	-	transcriptional regulator, LacI family
1841	 58.80	0	1990444..1991613	+	389	189025109	-	BAbS19_I19210	-	hypothetical protein
1842	 59.34	0	1991647..1992669	-	340	189025110	-	BAbS19_I19220	-	Bacterial luciferase
57.60	MEAN

3.62	STD DEV
