IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

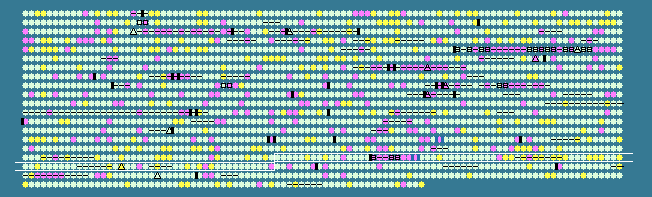

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1643	 58.82	0	1782617..1782871	-	84	189024911	-	BAbS19_I17230	-	Transglycosylase-associated protein
1644	 60.15	0	1782987..1783523	-	178	189024912	-	BAbS19_I17240	-	NUDIX hydrolase
1645	 58.92	0	1783741..1785069	-	442	189024913	-	BAbS19_I17250	-	carboxyl-terminal protease
1646	 59.48	0	1785059..1786408	-	449	189024914	-	BAbS19_I17260	-	Peptidase M23/M37
1647	 57.11	0	1786521..1787420	-	299	189024915	-	BAbS19_I17270	-	hypothetical protein
1648	 62.75	+1	1787538..1788047	-	169	189024916	-	BAbS19_I17280	-	Protein of unknown function DUF163
1649	 56.99	0	1788066..1788437	-	123	189024917	-	BAbS19_I17290	-	iojap-related protein
1650	 59.11	0	1788600..1789274	-	224	189024918	-	BAbS19_I17300	-	nicotinic acid mononucleotide adenyltransferase
1651	 61.14	0	1789274..1790557	-	427	189024919	-	BAbS19_I17310	-	gamma-glutamyl phosphate reductase
1652	 60.16	0	1790567..1791703	-	378	189024920	-	BAbS19_I17320	-	gamma-glutamyl kinase
1653	 59.36	0	1791731..1792756	-	341	189024921	-	BAbS19_I17330	-	GTP-binding protein, GTP1/OBG family
1654	 51.55	-1	1793012..1793785	-	257	189024922	-	BAbS19_I17340	-	hypothetical protein
1655	 57.17	0	1794127..1794684	-	185	189024923	-	BAbS19_I17350	-	GCN5-related N-acetyltransferase
1656	 57.60	0	1794738..1795388	-	216	189024924	-	BAbS19_I17360	-	GCN5-related N-acetyltransferase
1657	 57.78	0	1795509..1795778	-	89	189024925	-	BAbS19_I17370	-	Regulator of chromosome condensation, RCC1
1658	 61.07	0	1795804..1796232	-	142	189024926	-	BAbS19_I17380	-	Ribosomal protein L21
1659	 49.77	-2	1796753..1797628	+	291	189024927	-	BAbS19_I17390	-	Transposase
1660	 52.74	-1	1797845..1799797	+	650	189024928	-	BAbS19_I17400	-	transcriptional regulator, Cro/CI family
1661	 51.85	-1	1799794..1800468	+	224	189024929	-	BAbS19_I17410	-	AzlC protein
1662	 47.75	-2	1800883..1800993	+	36	189024930	-	BAbS19_I17420	-	Transposase
1663	 48.03	-2	1801026..1801712	-	228	189024931	-	BAbS19_I17430	-	transposase, putative
1664	 50.35	-2	1801823..1803262	-	479	189024932	-	BAbS19_I17440	-	hypothetical protein
1665	 50.22	-2	1803438..1804112	-	224	189024933	-	BAbS19_I17450	-	hypothetical protein
1666	 45.10	-2	1804984..1805136	+	50	189024934	-	BAbS19_I17460	-	hypothetical protein
1667	 59.00	0	1811248..1813203	+	651	189024935	-	BAbS19_I17470	-	Peptidase M23/M37
1668	 58.86	0	1813271..1814704	-	477	189024936	-	BAbS19_I17480	-	ErfK/YbiS/YcfS/YnhG
1669	 58.78	0	1815171..1817795	-	874	189024937	-	BAbS19_I17490	-	ClpB, ATP-dependent Clp protease, ATP-binding subunit ClpB
1670	 62.85	+1	1817994..1818779	-	261	189024938	-	BAbS19_I17500	-	hypothetical protein
1671	 58.11	0	1819197..1820084	-	295	189024939	-	BAbS19_I17510	-	Methyltransferase
1672	 60.09	0	1820081..1821160	-	359	189024940	-	BAbS19_I17520	-	Class I peptide chain release factor domain protein
1673	 60.37	0	1821357..1823627	-	756	189024941	-	BAbS19_I17530	-	PEP-utilizing enzyme
1674	 59.28	0	1823955..1825226	-	423	189024942	-	BAbS19_I17540	-	aspartate kinase
1675	 59.97	0	1825444..1826190	+	248	189024943	-	BAbS19_I17550	-	SAM (and some other nucleotide) binding motif
1676	 59.18	0	1826140..1827087	-	315	189024944	-	BAbS19_I17560	-	Transporter, DME family
1677	 55.87	0	1827115..1827540	-	141	189024945	-	BAbS19_I17570	-	hypothetical protein
1678	 59.77	0	1827546..1828400	-	284	189024946	-	BAbS19_I17580	-	nitrilase/cyanide hydratase/apolipoprotein N-acyltransferase
1679	 56.55	0	1828411..1828677	-	88	189024948	-	BAbS19_I17590	-	glutaredoxin 3
1680	 45.00	-2	1828664..1828783	+	39	189024947	-	BAbS19_I17600	-	hypothetical protein
1681	 61.72	+1	1828761..1829549	-	262	189024949	-	BAbS19_I17610	-	competence protein F
1682	 62.53	+1	1829732..1830625	+	297	189024950	-	BAbS19_I17620	-	hypothetical protein
1683	 59.89	0	1830764..1832002	+	412	189024951	-	BAbS19_I17630	-	hypothetical protein BruAb1_1858
1684	 63.41	+1	1832028..1832150	-	40	189024952	-	BAbS19_I17640	-	Hypothetical Cytosolic Protein
1685	 51.11	-1	1832328..1832507	-	59	189024953	-	BAbS19_I17650	-	Hypothetical Cytosolic Protein
1686	 62.09	+1	1832923..1834494	-	523	189024954	-	BAbS19_I17660	-	hypothetical protein
1687	 62.09	+1	1834507..1835883	-	458	189024955	-	BAbS19_I17670	-	hypothetical protein
1688	 58.76	0	1835966..1836673	-	235	189024956	-	BAbS19_I17680	-	Uroporphyrinogen III synthase HEM4
1689	 62.65	+1	1836697..1837641	-	314	189024957	-	BAbS19_I17690	-	Porphobilinogen deaminase
1690	 63.52	+1	1837760..1838839	+	359	189024958	-	BAbS19_I17700	-	Glycoprotease (M22) metalloprotease
1691	 62.49	+1	1838836..1839816	+	326	189024959	-	BAbS19_I17710	-	Adrenodoxin reductase
1692	 60.48	0	1839818..1840108	+	96	189024960	-	BAbS19_I17720	-	YCII-related domain protein
1693	 58.04	0	1840121..1840549	+	142	189024961	-	BAbS19_I17730	-	Family of unknown function DUF589
1694	 58.90	0	1840549..1841205	+	218	189024962	-	BAbS19_I17740	-	SAM (and some other nucleotide) binding motif
1695	 61.54	+1	1841251..1842108	-	285	189024963	-	BAbS19_I17750	-	Protein of unknown function DUF6
1696	 61.91	+1	1842224..1843717	+	497	189024964	-	BAbS19_I17760	-	Bacterial regulatory protein, GntR family
1697	 61.17	0	1843779..1846343	-	854	189024965	-	BAbS19_I17770	-	cell division protein FtsK, putative
1698	 58.99	0	1846553..1847854	-	433	189024966	-	BAbS19_I17780	-	Ammonium transporter
1699	 59.22	0	1848077..1849030	-	317	189024967	-	BAbS19_I17790	-	Acyl-CoA thioesterase
1700	 62.41	+1	1849199..1850443	+	414	189024968	-	BAbS19_I17800	-	2-octaprenyl-6-methoxyphenyl hydroxylase
1701	 56.18	0	1850529..1850900	-	123	189024969	-	BAbS19_I17810	-	Glyoxalase/Bleomycin resistance protein/dioxygenase domain protein
1702	 57.05	0	1851269..1852048	-	259	189024970	-	BAbS19_I17820	-	succinate dehydrogenase catalytic subunit
1703	 61.73	+1	1852064..1853905	-	613	189024971	-	BAbS19_I17830	-	succinate dehydrogenase
1704	 54.29	0	1853913..1854308	-	131	189024972	-	BAbS19_I17840	-	succinate dehydrogenase
1705	 59.40	0	1854322..1854885	-	187	189024973	-	BAbS19_I17850	-	Succinate dehydrogenase
1706	 57.08	0	1855065..1855523	-	152	189024974	-	BAbS19_I17860	-	GCN5-related N-acetyltransferase
1707	 60.43	0	1855780..1857189	-	469	189024975	-	BAbS19_I17870	-	Aconitate hydratase
1708	 58.68	0	1857400..1857837	-	145	189024976	-	BAbS19_I17880	-	Ribosomal protein L19
1709	 57.24	0	1858361..1859590	+	409	189024977	-	BAbS19_I17890	-	putative allantoin permease
1710	 60.32	0	1859743..1859994	-	83	189024978	-	BAbS19_I17900	-	Hypothetical Membrane Spanning Protein
1711	 59.12	0	1859991..1860401	-	136	189024979	-	BAbS19_I17910	-	hypothetical protein
1712	 59.23	0	1860394..1860756	-	120	189024980	-	BAbS19_I17920	-	Antibiotic biosynthesis monooxygenase
1713	 55.26	0	1860753..1861094	-	113	189024981	-	BAbS19_I17930	-	hypothetical protein
1714	 59.16	0	1861147..1861812	+	221	189024982	-	BAbS19_I17940	-	Bacterial regulatory protein LysR
1715	 61.50	+1	1861947..1862681	-	244	189024983	-	BAbS19_I17950	-	tRNA (guanine-N1-)-methyltransferase
1716	 58.07	0	1862678..1863247	-	189	189024984	-	BAbS19_I17960	-	RimM protein
1717	 62.76	+1	1863471..1864418	+	315	189024985	-	BAbS19_I17970	-	Phage integrase
1718	 56.49	0	1864472..1865473	+	333	189024986	-	BAbS19_I17980	-	hypothetical protein
1719	 58.40	0	1865677..1867080	-	467	189024987	-	BAbS19_I17990	-	dihydrolipoamide dehydrogenase
1720	 53.96	-1	1867249..1867791	-	180	189024988	-	BAbS19_I18000	-	hypothetical protein
1721	 55.56	0	1867862..1868500	-	212	189024989	-	BAbS19_I18010	-	Lysine exporter protein (LYSE/YGGA)
1722	 59.66	0	1868542..1868955	-	137	189024990	-	BAbS19_I18020	-	hypothetical protein
1723	 61.45	+1	1868965..1870191	-	408	189024991	-	BAbS19_I18030	-	dihydrolipoamide acetyltransferase
1724	 59.34	0	1870253..1873267	-	1004	189024992	-	BAbS19_I18040	-	Dehydrogenase
1725	 58.77	0	1873422..1873535	+	37	189024993	-	BAbS19_I18050	-	hypothetical protein
1726	 60.58	0	1873545..1874447	-	300	189024994	-	BAbS19_I18060	-	Succinyl-CoA ligase
1727	 57.64	0	1874451..1875647	-	398	189024995	-	BAbS19_I18070	-	succinyl-CoA synthetase subunit beta
1728	 61.37	+1	1875754..1876716	-	320	189024996	-	BAbS19_I18080	-	Lactate/malate dehydrogenase
1729	 57.82	0	1877184..1878347	-	387	189024997	-	BAbS19_I18090	-	ATP/GTP-binding site motif A (P-loop)
1730	 63.48	+1	1878467..1879000	-	177	189024998	-	BAbS19_I18100	-	lipoprotein Omp19
1731	 50.98	-1	1879130..1879282	-	50	189024999	-	BAbS19_I18110	-	hypothetical protein
1732	 63.27	+1	1879364..1880275	+	303	189025000	-	BAbS19_I18120	-	Diaminopimelate epimerase
1733	 60.12	0	1880275..1881558	+	427	189025001	-	BAbS19_I18130	-	elongator protein 3
1734	 60.87	0	1881580..1882977	+	465	189025002	-	BAbS19_I18140	-	cell division protein FtsY
1735	 56.26	0	1882977..1883639	+	220	189025003	-	BAbS19_I18150	-	ATP/GTP-binding site motif A (P-loop)
1736	 58.24	0	1883663..1884445	+	260	189025004	-	BAbS19_I18160	-	Beta-lactamase-like protein
1737	 56.14	0	1884758..1884985	+	75	189025005	-	BAbS19_I18170	-	hypothetical protein
1738	 56.21	0	1885050..1885355	-	101	189025006	-	BAbS19_I18180	-	hypothetical protein
1739	 59.71	0	1885468..1885884	-	138	189025007	-	BAbS19_I18190	-	NUDIX hydrolase
1740	 60.15	0	1885881..1886540	-	219	189025008	-	BAbS19_I18200	-	GCN5-related N-acetyltransferase
1741	 60.95	0	1886730..1887971	-	413	189025009	-	BAbS19_I18210	-	Arginine biosynthesis protein ArgJ
1742	 52.78	-1	1888205..1888348	-	47	189025010	-	BAbS19_I18220	-	hypothetical protein
57.60	MEAN

3.62	STD DEV
