IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

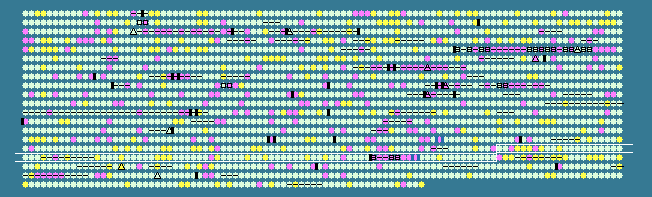

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1580	 55.38	0	1711651..1712226	-	191	189024848	-	BAbS19_I16600	-	Transcription factor CarD
1581	 55.75	0	1712740..1713078	-	112	189024849	-	BAbS19_I16610	-	7Fe ferredoxin
1582	 50.94	-1	1713211..1713369	-	52	189024850	-	BAbS19_I16620	-	hypothetical protein
1583	 61.94	+1	1713441..1713842	-	133	189024851	-	BAbS19_I16630	-	RNA-binding S4
1584	 61.58	+1	1713878..1716964	-	1028	189024852	-	BAbS19_I16640	-	ATP-dependent helicase
1585	 62.03	+1	1717637..1718821	-	394	189024854	-	BAbS19_I16650	-	Thiolase
1586	 48.48	-2	1718802..1718966	+	54	189024853	-	BAbS19_I16660	-	hypothetical protein
1587	 62.04	+1	1718997..1719428	+	143	189024855	-	BAbS19_I16670	-	Domain of unknown function DUF336
1588	 54.44	0	1719560..1719739	-	59	189024856	-	BAbS19_I16680	-	Ribosomal L32p protein
1589	 56.39	0	1719900..1720697	-	265	189024857	-	BAbS19_I16690	-	Glycosyl transferase, family 51
1590	 63.44	+1	1720869..1721735	+	288	189024858	-	BAbS19_I16700	-	Polyprenyl synthetase
1591	 60.17	0	1721743..1723005	-	420	189024859	-	BAbS19_I16710	-	IspG protein
1592	 57.20	0	1723173..1723964	+	263	189024860	-	BAbS19_I16720	-	hypothetical D-beta-hydroxybutyrate dehydrogenase
1593	 58.76	0	1723982..1725106	-	374	189024861	-	BAbS19_I16730	-	membrane protein MosC
1594	 58.79	0	1725235..1728711	-	1158	189024862	-	BAbS19_I16740	-	Pyc, pyruvate carboxylase
1595	 56.36	0	1728977..1730092	-	371	189024863	-	BAbS19_I16750	-	Leu/Ile/Val-binding protein family
1596	 55.11	0	1730713..1731828	-	371	189024864	-	BAbS19_I16760	-	Leu/Ile/Val-binding protein family
1597	 54.20	0	1731980..1732324	-	114	189024865	-	BAbS19_I16770	-	hypothetical protein
1598	 57.43	0	1732334..1733080	-	248	189024866	-	BAbS19_I16780	-	ATP/GTP-binding site motif A (P-loop
1599	 58.30	0	1733070..1734419	-	449	189024867	-	BAbS19_I16790	-	High-affinity branched-chain amino acid transport atp-binding protein BRAF
1600	 57.97	0	1734419..1735798	-	459	189024868	-	BAbS19_I16800	-	Bacterial inner-membrane translocator
1601	 57.25	0	1735801..1736724	-	307	189024869	-	BAbS19_I16810	-	High-affinity branched-chain amino acid transport system permease protein LIVH
1602	 58.98	0	1737003..1738004	-	333	189024870	-	BAbS19_I16820	-	proline racemase, putative
1603	 60.41	0	1738010..1739272	-	420	189024871	-	BAbS19_I16830	-	TrkA potassium uptake protein
1604	 63.22	+1	1739552..1740247	+	231	189024872	-	BAbS19_I16840	-	Bacterial regulatory protein, GntR family
1605	 57.31	0	1740320..1740757	-	145	189024873	-	BAbS19_I16850	-	Bacterial regulatory protein, MarR family
1606	 49.02	-2	1740918..1741019	-	33	189024874	-	BAbS19_I16860	-	hypothetical protein
1607	 57.84	0	1741100..1741507	-	135	189024875	-	BAbS19_I16870	-	H+-transporting two-sector ATPase, delta/epsilon subunit
1608	 61.62	+1	1741632..1743197	-	521	189024876	-	BAbS19_I16880	-	ATP synthase subunit B
1609	 56.66	0	1743325..1744203	-	292	189024877	-	BAbS19_I16890	-	H+-transporting two-sector ATPase, gamma subunit
1610	 59.61	0	1744225..1745754	-	509	189024878	-	BAbS19_I16900	-	ATP synthase subunit A
1611	 58.29	0	1745754..1746314	-	186	189024879	-	BAbS19_I16910	-	H+-transporting two-sector ATPase, delta (OSCP) subunit
1612	 58.94	0	1746596..1747009	-	137	189024880	-	BAbS19_I16920	-	hypothetical protein
1613	 62.72	+1	1747076..1749277	-	733	189024881	-	BAbS19_I16930	-	DEAD/DEAH box helicase
1614	 56.57	0	1749420..1750073	+	217	189024882	-	BAbS19_I16940	-	Transaldolase C
1615	 59.11	0	1750217..1750798	-	193	189024883	-	BAbS19_I16950	-	hypothetical protein
1616	 59.15	0	1750785..1753418	-	877	189024884	-	BAbS19_I16960	-	Aminoacyl-tRNA synthetase, class I
1617	 61.38	+1	1753541..1754221	+	226	189024885	-	BAbS19_I16970	-	hypothetical protein
1618	 56.87	0	1754234..1754764	-	176	189024886	-	BAbS19_I16980	-	fusaric acid resistance protein FusB / fusaric acid resistance protein FusC
1619	 54.17	0	1754835..1755122	-	95	189024887	-	BAbS19_I16990	-	usg protein, putative
1620	 59.25	0	1755463..1757418	+	651	189024888	-	BAbS19_I17000	-	AMP-dependent synthetase and ligase
1621	 60.73	0	1757574..1757792	-	72	189024889	-	BAbS19_I17010	-	hypothetical protein
1622	 60.33	0	1757924..1758901	+	325	189024890	-	BAbS19_I17020	-	heat shock protein HtpX
1623	 62.80	+1	1758917..1760314	+	465	189024891	-	BAbS19_I17030	-	Sun
1624	 61.68	+1	1760435..1762177	+	580	189024892	-	BAbS19_I17040	-	Hypothetical Cytosolic Protein
1625	 61.47	+1	1762284..1763900	+	538	189024893	-	BAbS19_I17050	-	AICARFT/IMPCHase bienzyme
1626	 55.28	0	1763950..1764072	-	40	189024894	-	BAbS19_I17060	-	Transporter
1627	 58.35	0	1764166..1765332	-	388	189024895	-	BAbS19_I17070	-	Transporter
1628	 59.71	0	1765537..1769979	-	1480	189024896	-	BAbS19_I17080	-	ATP/GTP-binding site motif A (P-loop)
1629	 58.10	0	1770604..1771245	-	213	189024897	-	BAbS19_I17090	-	hypothetical protein
1630	 58.90	0	1771258..1772094	-	278	189024898	-	BAbS19_I17100	-	Protein of unknown function DUF477
1631	 55.93	0	1772106..1772729	-	207	189024899	-	BAbS19_I17110	-	LemA family
1632	 50.35	-2	1772726..1772866	-	46	189024900	-	BAbS19_I17120	-	hypothetical protein
1633	 62.22	+1	1772999..1773403	-	134	189024901	-	BAbS19_I17130	-	Antifreeze protein, type I
1634	 58.41	0	1773470..1773784	-	104	189024902	-	BAbS19_I17140	-	Chorismate mutase
1635	 60.18	0	1773790..1775361	-	523	189024903	-	BAbS19_I17150	-	Ffh, signal recognition particle protein
1636	 59.90	0	1775796..1776623	+	275	189024904	-	BAbS19_I17160	-	lytic murein transglycosylase, putative
1637	 55.30	0	1776687..1777328	-	213	189024905	-	BAbS19_I17170	-	Carbonic anhydrase
1638	 61.87	+1	1777502..1778398	-	298	189024906	-	BAbS19_I17180	-	Pyridoxal kinase
1639	 60.31	0	1778400..1778792	-	130	189024907	-	BAbS19_I17190	-	hypothetical protein
1640	 60.32	0	1779060..1780556	-	498	189024908	-	BAbS19_I17200	-	ATP/GTP-binding site motif A (P-loop)
1641	 61.92	+1	1780663..1781589	+	308	189024909	-	BAbS19_I17210	-	Transcriptional regulatory protein, LYSR family
1642	 60.16	0	1781905..1782549	-	214	189024910	-	BAbS19_I17220	-	hypothetical protein
1643	 58.82	0	1782617..1782871	-	84	189024911	-	BAbS19_I17230	-	Transglycosylase-associated protein
1644	 60.15	0	1782987..1783523	-	178	189024912	-	BAbS19_I17240	-	NUDIX hydrolase
1645	 58.92	0	1783741..1785069	-	442	189024913	-	BAbS19_I17250	-	carboxyl-terminal protease
1646	 59.48	0	1785059..1786408	-	449	189024914	-	BAbS19_I17260	-	Peptidase M23/M37
1647	 57.11	0	1786521..1787420	-	299	189024915	-	BAbS19_I17270	-	hypothetical protein
1648	 62.75	+1	1787538..1788047	-	169	189024916	-	BAbS19_I17280	-	Protein of unknown function DUF163
1649	 56.99	0	1788066..1788437	-	123	189024917	-	BAbS19_I17290	-	iojap-related protein
1650	 59.11	0	1788600..1789274	-	224	189024918	-	BAbS19_I17300	-	nicotinic acid mononucleotide adenyltransferase
1651	 61.14	0	1789274..1790557	-	427	189024919	-	BAbS19_I17310	-	gamma-glutamyl phosphate reductase
1652	 60.16	0	1790567..1791703	-	378	189024920	-	BAbS19_I17320	-	gamma-glutamyl kinase
1653	 59.36	0	1791731..1792756	-	341	189024921	-	BAbS19_I17330	-	GTP-binding protein, GTP1/OBG family
1654	 51.55	-1	1793012..1793785	-	257	189024922	-	BAbS19_I17340	-	hypothetical protein
1655	 57.17	0	1794127..1794684	-	185	189024923	-	BAbS19_I17350	-	GCN5-related N-acetyltransferase
1656	 57.60	0	1794738..1795388	-	216	189024924	-	BAbS19_I17360	-	GCN5-related N-acetyltransferase
1657	 57.78	0	1795509..1795778	-	89	189024925	-	BAbS19_I17370	-	Regulator of chromosome condensation, RCC1
1658	 61.07	0	1795804..1796232	-	142	189024926	-	BAbS19_I17380	-	Ribosomal protein L21
1659	 49.77	-2	1796753..1797628	+	291	189024927	-	BAbS19_I17390	-	Transposase
1660	 52.74	-1	1797845..1799797	+	650	189024928	-	BAbS19_I17400	-	transcriptional regulator, Cro/CI family
1661	 51.85	-1	1799794..1800468	+	224	189024929	-	BAbS19_I17410	-	AzlC protein
1662	 47.75	-2	1800883..1800993	+	36	189024930	-	BAbS19_I17420	-	Transposase
1663	 48.03	-2	1801026..1801712	-	228	189024931	-	BAbS19_I17430	-	transposase, putative
1664	 50.35	-2	1801823..1803262	-	479	189024932	-	BAbS19_I17440	-	hypothetical protein
1665	 50.22	-2	1803438..1804112	-	224	189024933	-	BAbS19_I17450	-	hypothetical protein
1666	 45.10	-2	1804984..1805136	+	50	189024934	-	BAbS19_I17460	-	hypothetical protein
1667	 59.00	0	1811248..1813203	+	651	189024935	-	BAbS19_I17470	-	Peptidase M23/M37
1668	 58.86	0	1813271..1814704	-	477	189024936	-	BAbS19_I17480	-	ErfK/YbiS/YcfS/YnhG
1669	 58.78	0	1815171..1817795	-	874	189024937	-	BAbS19_I17490	-	ClpB, ATP-dependent Clp protease, ATP-binding subunit ClpB
1670	 62.85	+1	1817994..1818779	-	261	189024938	-	BAbS19_I17500	-	hypothetical protein
1671	 58.11	0	1819197..1820084	-	295	189024939	-	BAbS19_I17510	-	Methyltransferase
1672	 60.09	0	1820081..1821160	-	359	189024940	-	BAbS19_I17520	-	Class I peptide chain release factor domain protein
1673	 60.37	0	1821357..1823627	-	756	189024941	-	BAbS19_I17530	-	PEP-utilizing enzyme
1674	 59.28	0	1823955..1825226	-	423	189024942	-	BAbS19_I17540	-	aspartate kinase
1675	 59.97	0	1825444..1826190	+	248	189024943	-	BAbS19_I17550	-	SAM (and some other nucleotide) binding motif
1676	 59.18	0	1826140..1827087	-	315	189024944	-	BAbS19_I17560	-	Transporter, DME family
1677	 55.87	0	1827115..1827540	-	141	189024945	-	BAbS19_I17570	-	hypothetical protein
1678	 59.77	0	1827546..1828400	-	284	189024946	-	BAbS19_I17580	-	nitrilase/cyanide hydratase/apolipoprotein N-acyltransferase
1679	 56.55	0	1828411..1828677	-	88	189024948	-	BAbS19_I17590	-	glutaredoxin 3
57.60	MEAN

3.62	STD DEV
