IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

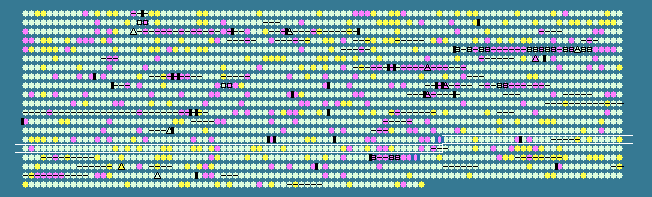

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1471	 58.88	0	1606974..1607795	-	273	189024739	-	BAbS19_I15490	-	Bacterial regulatory protein, IclR family
1472	 58.82	0	1607913..1609364	+	483	189024740	-	BAbS19_I15500	-	Aldehyde dehydrogenase
1473	 56.87	0	1609388..1610071	+	227	189024741	-	BAbS19_I15510	-	hypothetical protein
1474	 57.80	0	1610184..1610702	+	172	189024742	-	BAbS19_I15520	-	Basic helix-loop-helix dimerization domain bHLH
1475	 56.54	0	1610719..1611291	-	190	189024743	-	BAbS19_I15530	-	HNH endonuclease
1476	 63.66	+1	1611565..1612263	-	232	189024744	-	BAbS19_I15540	-	HhH-GPD
1477	 58.56	0	1612285..1613160	+	291	189024745	-	BAbS19_I15550	-	Glutamyl-tRNA synthetase, class Ic
1478	 58.34	0	1613303..1615489	+	728	189024746	-	BAbS19_I15560	-	Malate synthase
1479	 55.83	0	1615680..1616288	+	202	189024747	-	BAbS19_I15570	-	GCN5-related N-acetyltransferase
1480	 58.44	0	1616347..1617258	-	303	189024748	-	BAbS19_I15580	-	Sigma-70 factor family
1481	 59.70	0	1617689..1618693	-	334	189024749	-	BAbS19_I15590	-	ribosomal large subunit pseudouridine synthase, RluD subfamily
1482	 58.28	0	1618749..1619225	+	158	189024750	-	BAbS19_I15600	-	hypothetical protein
1483	 51.73	-1	1619481..1620029	+	182	189024751	-	BAbS19_I15610	-	Ferric uptake regulation protein
1484	 56.65	0	1620265..1621272	-	335	189024752	-	BAbS19_I15620	-	Sensory transduction histidine kinase
1485	 48.48	-2	1621468..1621632	-	54	189024753	-	BAbS19_I15630	-	hypothetical protein
1486	 56.23	0	1621782..1622576	-	264	189024754	-	BAbS19_I15640	-	Response regulator receiver
1487	 60.56	0	1623023..1623595	+	190	189024755	-	BAbS19_I15650	-	Sigma factor, ECF subfamily
1488	 56.96	0	1623796..1625238	+	480	189024756	-	BAbS19_I15660	-	sensor histidine kinase
1489	 57.87	0	1625299..1625730	-	143	189024757	-	BAbS19_I15670	-	hypothetical protein
1490	 57.63	0	1625739..1626092	-	117	189024758	-	BAbS19_I15680	-	DNA gyrase, subunit B
1491	 57.30	0	1626257..1627099	-	280	189024759	-	BAbS19_I15690	-	hypothetical protein
1492	 57.86	0	1627272..1627430	-	52	189024760	-	BAbS19_I15700	-	hypothetical protein
1493	 63.64	+1	1627880..1628803	+	307	189024761	-	BAbS19_I15710	-	MotA/TolQ/ExbB proton channel
1494	 60.20	0	1628809..1629303	+	164	189024762	-	BAbS19_I15720	-	Biopolymer transport protein ExbD/TolR
1495	 61.74	+1	1629300..1630151	+	283	189024763	-	BAbS19_I15730	-	TonB-dependent receptor
1496	 54.88	0	1630194..1630838	-	214	189024764	-	BAbS19_I15740	-	hypothetical protein
1497	 58.93	0	1630984..1631784	-	266	189024765	-	BAbS19_I15750	-	Protein of unknown function DUF214
1498	 59.92	0	1631793..1632770	-	325	189024766	-	BAbS19_I15760	-	ATP/GTP-binding site motif A (P-loop)
1499	 58.92	0	1632938..1634164	-	408	189024767	-	BAbS19_I15770	-	Secretion protein HlyD
1500	 61.18	0	1634399..1634872	-	157	189024768	-	BAbS19_I15780	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1501	 56.48	0	1635095..1635565	-	156	189024769	-	BAbS19_I15790	-	Bacterial regulatory protein, AsnC family
1502	 53.24	-1	1635711..1635926	+	71	189024770	-	BAbS19_I15800	-	hypothetical protein
1503	 60.66	0	1636014..1636829	+	271	189024771	-	BAbS19_I15810	-	Glutamine amidotransferase, class-II
1504	 59.35	0	1636856..1637839	-	327	189024772	-	BAbS19_I15820	-	hypothetical protein
1505	 59.87	0	1638034..1639386	+	450	189024773	-	BAbS19_I15830	-	Thromboxane receptor
1506	 60.52	0	1639596..1640993	-	465	189024774	-	BAbS19_I15840	-	Basic-leucine zipper (bZIP) transcription factor
1507	 54.63	0	1641191..1641298	-	35	189024775	-	BAbS19_I15850	-	hypothetical protein
1508	 59.25	0	1641306..1642868	-	520	189024776	-	BAbS19_I15860	-	adenylosuccinate synthetase
1509	 56.11	0	1642913..1643452	-	179	189024777	-	BAbS19_I15870	-	GCN5-related N-acetyltransferase
1510	 57.37	0	1643427..1645028	-	533	189024778	-	BAbS19_I15880	-	SerA-1, D-3-phosphoglycerate dehydrogenase
1511	 58.67	0	1645171..1646346	-	391	189024779	-	BAbS19_I15890	-	Phosphoserine aminotransferase
1512	 59.14	0	1646497..1647453	-	318	189024780	-	BAbS19_I15900	-	Bile acid:sodium symporter
1513	 56.00	0	1647634..1648458	-	274	189024781	-	BAbS19_I15910	-	heat resistant agglutinin 1 precursor
1514	 58.12	0	1648643..1650022	-	459	189024782	-	BAbS19_I15920	-	Phosphoglucosamine mutase
1515	 58.24	0	1650303..1652237	-	644	189024783	-	BAbS19_I15930	-	FtsH, cell division protein FtsH
1516	 61.10	0	1652373..1653719	-	448	189024784	-	BAbS19_I15940	-	hypothetical protein
1517	 60.00	0	1653735..1655189	-	484	189024785	-	BAbS19_I15950	-	TPR repeat-containing protein
1518	 62.52	+1	1655598..1656104	-	168	189024786	-	BAbS19_I15960	-	Bacterial outer membrane protein
1519	 59.08	0	1656392..1657723	-	443	189024787	-	BAbS19_I15970	-	TolB, N-terminal
1520	 61.09	0	1657779..1658675	-	298	189024788	-	BAbS19_I15980	-	Proline-rich extensin
1521	 54.97	0	1658857..1659309	-	150	189024789	-	BAbS19_I15990	-	Biopolymer transport protein ExbD/TolR
1522	 59.07	0	1659356..1660066	-	236	189024790	-	BAbS19_I16000	-	MotA/TolQ/ExbB proton channel
1523	 56.44	0	1660441..1660890	-	149	189024791	-	BAbS19_I16010	-	hypothetical protein
1524	 61.58	+1	1660887..1661927	-	346	189024792	-	BAbS19_I16020	-	Holliday junction DNA helicase RuvB
1525	 61.33	+1	1661968..1662585	-	205	189024793	-	BAbS19_I16030	-	Bacterial DNA recombination protein, RuvA
1526	 59.77	0	1662590..1663111	-	173	189024794	-	BAbS19_I16040	-	Crossover junction endodeoxyribonuclease RuvC
1527	 59.31	0	1663213..1663905	-	230	189024795	-	BAbS19_I16050	-	hypothetical protein
1528	 58.35	0	1664206..1665408	-	400	189024796	-	BAbS19_I16060	-	OPGC
1529	 61.71	+1	1665632..1666297	+	221	189024797	-	BAbS19_I16070	-	thiamine-phosphate pyrophosphorylase, putative
1530	 62.01	+1	1666334..1667386	+	350	189024798	-	BAbS19_I16080	-	Sel1-like repeat
1531	 56.51	0	1667651..1668211	+	186	189024799	-	BAbS19_I16090	-	Elongation factor P (EF-P)
1532	 61.74	+1	1668397..1669188	+	263	189024800	-	BAbS19_I16100	-	Inositol phosphatase/fructose-1,6-bisphosphatase
1533	 42.34	-2	1669193..1669303	+	36	189024801	-	BAbS19_I16110	-	hypothetical protein
1534	 60.86	0	1669443..1670492	+	349	189024802	-	BAbS19_I16120	-	hypothetical protein
1535	 59.59	0	1670499..1671530	+	343	189024803	-	BAbS19_I16130	-	OmpA/MotB domain protein
1536	 59.48	0	1671564..1673609	-	681	189024804	-	BAbS19_I16140	-	Probable transport atp-binding protein MSBA
1537	 59.01	0	1673679..1673900	+	73	189024805	-	BAbS19_I16150	-	Ribosomal protein L31
1538	 57.30	0	1674128..1674874	-	248	189024806	-	BAbS19_I16160	-	Protein of unknown function DUF28
1539	 64.07	+1	1675095..1675787	+	230	189024807	-	BAbS19_I16170	-	Bacterial regulatory protein, GntR family
1540	 62.67	+1	1675949..1676524	+	191	189024808	-	BAbS19_I16180	-	BioY protein
1541	 59.21	0	1676535..1676963	+	142	189024809	-	BAbS19_I16190	-	2Fe-2S ferredoxin, iron-sulfur binding protein
1542	 56.32	0	1676976..1677719	-	247	189024810	-	BAbS19_I16200	-	RNA-binding region RNP-1 (RNA recognition motif)
1543	 58.79	0	1677930..1678754	-	274	189024811	-	BAbS19_I16210	-	Metallo-phosphoesterase
1544	 62.14	+1	1678863..1679459	-	198	189024812	-	BAbS19_I16220	-	5-formyltetrahydrofolate cyclo-ligase
1545	 59.02	0	1679847..1680212	-	121	189024813	-	BAbS19_I16230	-	Protein of unknown function DUF710
1546	 57.18	0	1680222..1680653	-	143	189024814	-	BAbS19_I16240	-	hypothetical protein
1547	 60.14	0	1680911..1682902	+	663	189024815	-	BAbS19_I16250	-	transketolase
1548	 58.53	0	1683043..1684050	+	335	189024816	-	BAbS19_I16260	-	glyceraldehyde-3-phosphate dehydrogenase
1549	 60.29	0	1684118..1685308	+	396	189024817	-	BAbS19_I16270	-	phosphoglycerate kinase
1550	 56.97	0	1685599..1685763	-	54	189024818	-	BAbS19_I16280	-	hypothetical protein
1551	 60.54	0	1686037..1687947	+	636	189024819	-	BAbS19_I16290	-	AMP-dependent synthetase and ligase
1552	 58.25	0	1687877..1688185	+	102	189024820	-	BAbS19_I16300	-	Glucose/ribitol dehydrogenase
1553	 54.30	0	1688331..1688516	+	61	189024821	-	BAbS19_I16310	-	hypothetical protein
1554	 61.25	+1	1688523..1689224	+	233	189024822	-	BAbS19_I16320	-	Bacterial regulatory protein, DeoR family
1555	 39.81	-2	1689477..1689584	-	35	189024823	-	BAbS19_I16330	-	hypothetical protein
1556	 61.03	0	1689627..1690034	+	135	189024824	-	BAbS19_I16340	-	Phenylacetic acid degradation-related protein
1557	 59.13	0	1690112..1690801	-	229	189024825	-	BAbS19_I16350	-	hypothetical protein
1558	 61.59	+1	1690929..1691933	-	334	189024826	-	BAbS19_I16360	-	alcohol dehydrogenase, zinc-containing
1559	 56.77	0	1692126..1692317	+	63	189024827	-	BAbS19_I16370	-	hypothetical protein
1560	 48.33	-2	1693795..1693974	-	59	189024828	-	BAbS19_I16400	-	Protein of unknown function DUF465
1561	 49.51	-2	1694368..1694571	+	67	189024829	-	BAbS19_I16410	-	Protein of unknown function DUF465
1562	 62.78	+1	1694669..1695157	+	162	189024830	-	BAbS19_I16420	-	1-(5-Phosphoribosyl)-5-amino-4-imidazole-carboxyl ate (AIR) carboxylase
1563	 60.06	0	1695174..1696262	+	362	189024831	-	BAbS19_I16430	-	phosphoribosylaminoimidazole carboxylase
1564	 57.94	0	1696498..1696623	+	41	189024832	-	BAbS19_I16440	-	Ribosomal protein L36
1565	 57.67	0	1696673..1697350	+	225	189024833	-	BAbS19_I16450	-	TPR repeat-containing protein
1566	 59.22	0	1697602..1699038	-	478	189024834	-	BAbS19_I16460	-	ATP/GTP-binding site motif A (P-loop)
1567	 53.46	-1	1699035..1699496	-	153	189024835	-	BAbS19_I16470	-	hypothetical protein
1568	 59.22	0	1699737..1700555	+	272	189024836	-	BAbS19_I16480	-	N-formylglutamate amidohydrolase
1569	 50.19	-2	1700728..1700988	+	86	189024837	-	BAbS19_I16490	-	Hypothetical Cytosolic Protein
1570	 59.74	0	1701080..1702897	-	605	189024838	-	BAbS19_I16500	-	ABC transporter, ATP-binding protein
57.60	MEAN

3.62	STD DEV
