IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

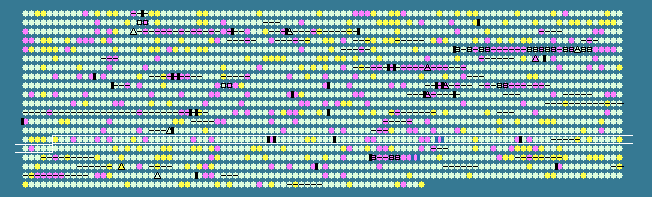

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1406	 63.12	+1	1527953..1528459	-	168	189024674	-	BAbS19_I14750	-	GCN5-related N-acetyltransferase
1407	 56.81	0	1528763..1529746	+	327	189024675	-	BAbS19_I14760	-	Glutathione S-transferase, C-terminal
1408	 56.29	0	1529894..1530577	+	227	189024676	-	BAbS19_I14770	-	OmpW family
1409	 53.51	-1	1530611..1531066	-	151	189024677	-	BAbS19_I14780	-	NUDIX hydrolase
1410	 59.76	0	1531166..1532077	+	303	189024678	-	BAbS19_I14790	-	putative phosphohydrolase, Icc family
1411	 57.41	0	1532278..1534005	-	575	189024679	-	BAbS19_I14800	-	HMG-CoA lyase-like protein
1412	 58.53	0	1534310..1535218	-	302	189024680	-	BAbS19_I14810	-	cation efflux family protein
1413	 46.10	-2	1535228..1535509	+	93	189024681	-	BAbS19_I14820	-	hypothetical protein
1414	 58.33	0	1535688..1537883	-	731	189024683	-	BAbS19_I14830	-	Glutamine amidotransferase class-I
1415	 52.91	-1	1537882..1538070	+	62	189024682	-	BAbS19_I14840	-	hypothetical protein
1416	 55.19	0	1538562..1539023	+	153	189024684	-	BAbS19_I14850	-	Bacterial regulatory protein, AsnC family
1417	 59.11	0	1539350..1539574	+	74	189024685	-	BAbS19_I14860	-	Bacterial regulatory protein, MarR family
1418	 61.02	0	1539669..1540961	+	430	189024686	-	BAbS19_I14870	-	Major facilitator superfamily (MFS)
1419	 62.94	+1	1540956..1541921	-	321	189024687	-	BAbS19_I14880	-	methyltransferase
1420	 57.98	0	1541927..1543123	-	398	189024688	-	BAbS19_I14890	-	hypothetical protein
1421	 52.08	-1	1543120..1543263	-	47	189024689	-	BAbS19_I14900	-	hypothetical protein
1422	 56.04	0	1543558..1544526	+	322	189024690	-	BAbS19_I14910	-	Substrate-binding region of ABC-type glycine betaine transport system
1423	 56.51	0	1544615..1545451	+	278	189024691	-	BAbS19_I14920	-	Binding-protein-dependent transport systems inner membrane component
1424	 58.83	0	1545621..1546667	+	348	189024692	-	BAbS19_I14930	-	ATP/GTP-binding site motif A (P-loop)
1425	 56.89	0	1546941..1547789	-	282	189024693	-	BAbS19_I14940	-	ATP/GTP-binding site motif A (P-loop)
1426	 56.42	0	1547786..1548634	-	282	189024694	-	BAbS19_I14950	-	ATP/GTP-binding site motif A (P-loop)
1427	 58.42	0	1548640..1549548	-	302	189024695	-	BAbS19_I14960	-	Binding-protein-dependent transport systems inner membrane component
1428	 55.56	0	1549556..1550563	-	335	189024696	-	BAbS19_I14970	-	Binding-protein-dependent transport systems inner membrane component
1429	 47.70	-2	1553363..1553710	+	115	189024697	-	BAbS19_I15010	-	Bacterial regulatory protein LysR
1430	 55.46	0	1553884..1554570	+	228	189024698	-	BAbS19_I15020	-	tRNA/rRNA methyltransferase (SpoU)
1431	 59.73	0	1554793..1555989	-	398	189024699	-	BAbS19_I15030	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1432	 47.83	-2	1556027..1556164	-	45	189024700	-	BAbS19_I15040	-	hypothetical protein
1433	 57.97	0	1556294..1556569	+	91	189024701	-	BAbS19_I15050	-	hypothetical protein
1434	 56.12	0	1556772..1557065	+	97	189024702	-	BAbS19_I15060	-	hypothetical protein
1435	 55.51	0	1557113..1557802	-	229	189024703	-	BAbS19_I15070	-	hypothetical protein
1436	 55.95	0	1558278..1558874	-	198	189024704	-	BAbS19_I15080	-	hypothetical protein
1437	 58.10	0	1559286..1559915	+	209	189024705	-	BAbS19_I15090	-	hypothetical protein
1438	 54.94	0	1560028..1560726	-	232	189024706	-	BAbS19_I15100	-	Transcriptional regulatory protein
1439	 56.74	0	1561257..1561649	+	130	189024707	-	BAbS19_I15110	-	hypothetical protein
1440	 56.62	0	1561733..1562857	-	374	189024708	-	BAbS19_I15120	-	DegT/DnrJ/EryC1/StrS aminotransferase
1441	 56.64	0	1563017..1563973	-	318	189024709	-	BAbS19_I15130	-	Oxidoreductase, N-terminal
1442	 50.45	-1	1564805..1565587	-	260	189024710	-	BAbS19_I15140	-	Glycosyl transferase, family 25
1443	 60.59	0	1566332..1569439	+	1035	189024711	-	BAbS19_I15150	-	sensory box histidine kinase
1444	 59.96	0	1570180..1572117	+	645	189024712	-	BAbS19_I15160	-	AsmA
1445	 58.88	0	1572125..1572946	-	273	189024713	-	BAbS19_I15170	-	Binding-protein-dependent transport systems inner membrane component
1446	 57.24	0	1573874..1575019	-	381	189024714	-	BAbS19_I15200	-	Putrescine transport atp-binding protein POTG
1447	 54.80	0	1575261..1576406	-	381	189024715	-	BAbS19_I15210	-	hypothetical spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1448	 62.41	+1	1576586..1577854	-	422	189024716	-	BAbS19_I15220	-	transcriptional regulator, Cro/CI family
1449	 61.36	+1	1577867..1577998	-	43	189024717	-	BAbS19_I15230	-	transcriptional regulator, Cro/CI family
1450	 60.54	0	1578247..1579536	+	429	189024718	-	BAbS19_I15240	-	Isocitrate lyase and phosphorylmutase
1451	 56.12	0	1579571..1579807	+	78	189024719	-	BAbS19_I15250	-	hypothetical protein
1452	 55.56	0	1579807..1579932	+	41	189024720	-	BAbS19_I15260	-	hypothetical protein
1453	 59.51	0	1580520..1581287	+	255	189024721	-	BAbS19_I15270	-	Short-chain dehydrogenase/reductase SDR
1454	 57.11	0	1581353..1582147	+	264	189024722	-	BAbS19_I15280	-	Short-chain dehydrogenase/reductase SDR
1455	 57.72	0	1583930..1584544	+	204	189024723	-	BAbS19_I15310	-	Multiple antibiotic resistance protein MARC
1456	 54.59	0	1584847..1585608	+	253	189024724	-	BAbS19_I15320	-	OmpA-like transmembrane domain protein
1457	 54.16	0	1585745..1587175	-	476	189024725	-	BAbS19_I15330	-	Patatin
1458	 47.06	-2	1587596..1587697	-	33	189024726	-	BAbS19_I15340	-	hypothetical protein
1459	 49.65	-2	1587847..1588128	+	93	189024727	-	BAbS19_I15350	-	hypothetical protein
1460	 56.33	0	1588405..1589052	-	215	189024728	-	BAbS19_I15360	-	dihydroxyacetone kinase family
1461	 57.48	0	1591360..1592001	-	213	189024729	-	BAbS19_I15390	-	Dihydroxyacetone kinase
1462	 57.10	0	1592013..1593005	-	330	189024730	-	BAbS19_I15400	-	Dihydroxyacetone kinase
1463	 55.68	0	1593038..1593811	-	257	189024731	-	BAbS19_I15410	-	Short-chain dehydrogenase/reductase SDR
1464	 55.25	0	1593900..1594889	-	329	189024732	-	BAbS19_I15420	-	Periplasmic binding protein/LacI transcriptional regulator
1465	 57.31	0	1595065..1596069	-	334	189024733	-	BAbS19_I15430	-	Bacterial inner-membrane translocator
1466	 55.85	0	1596165..1597643	-	492	189024734	-	BAbS19_I15440	-	RbsA-2, ribose ABC transporter, ATP-binding protein
1467	 53.46	-1	1597939..1598256	+	105	189024735	-	BAbS19_I15450	-	hypothetical protein
1468	 52.71	-1	1598386..1598514	-	42	189024736	-	BAbS19_I15460	-	hypothetical protein
1469	 56.52	0	1598658..1600274	+	538	189024737	-	BAbS19_I15470	-	Glucose-methanol-choline oxidoreductase
1470	 45.10	-2	1600923..1601075	+	50	189024738	-	BAbS19_I15480	-	hypothetical protein
1471	 58.88	0	1606974..1607795	-	273	189024739	-	BAbS19_I15490	-	Bacterial regulatory protein, IclR family
1472	 58.82	0	1607913..1609364	+	483	189024740	-	BAbS19_I15500	-	Aldehyde dehydrogenase
1473	 56.87	0	1609388..1610071	+	227	189024741	-	BAbS19_I15510	-	hypothetical protein
1474	 57.80	0	1610184..1610702	+	172	189024742	-	BAbS19_I15520	-	Basic helix-loop-helix dimerization domain bHLH
1475	 56.54	0	1610719..1611291	-	190	189024743	-	BAbS19_I15530	-	HNH endonuclease
1476	 63.66	+1	1611565..1612263	-	232	189024744	-	BAbS19_I15540	-	HhH-GPD
1477	 58.56	0	1612285..1613160	+	291	189024745	-	BAbS19_I15550	-	Glutamyl-tRNA synthetase, class Ic
1478	 58.34	0	1613303..1615489	+	728	189024746	-	BAbS19_I15560	-	Malate synthase
1479	 55.83	0	1615680..1616288	+	202	189024747	-	BAbS19_I15570	-	GCN5-related N-acetyltransferase
1480	 58.44	0	1616347..1617258	-	303	189024748	-	BAbS19_I15580	-	Sigma-70 factor family
1481	 59.70	0	1617689..1618693	-	334	189024749	-	BAbS19_I15590	-	ribosomal large subunit pseudouridine synthase, RluD subfamily
1482	 58.28	0	1618749..1619225	+	158	189024750	-	BAbS19_I15600	-	hypothetical protein
1483	 51.73	-1	1619481..1620029	+	182	189024751	-	BAbS19_I15610	-	Ferric uptake regulation protein
1484	 56.65	0	1620265..1621272	-	335	189024752	-	BAbS19_I15620	-	Sensory transduction histidine kinase
1485	 48.48	-2	1621468..1621632	-	54	189024753	-	BAbS19_I15630	-	hypothetical protein
1486	 56.23	0	1621782..1622576	-	264	189024754	-	BAbS19_I15640	-	Response regulator receiver
1487	 60.56	0	1623023..1623595	+	190	189024755	-	BAbS19_I15650	-	Sigma factor, ECF subfamily
1488	 56.96	0	1623796..1625238	+	480	189024756	-	BAbS19_I15660	-	sensor histidine kinase
1489	 57.87	0	1625299..1625730	-	143	189024757	-	BAbS19_I15670	-	hypothetical protein
1490	 57.63	0	1625739..1626092	-	117	189024758	-	BAbS19_I15680	-	DNA gyrase, subunit B
1491	 57.30	0	1626257..1627099	-	280	189024759	-	BAbS19_I15690	-	hypothetical protein
1492	 57.86	0	1627272..1627430	-	52	189024760	-	BAbS19_I15700	-	hypothetical protein
1493	 63.64	+1	1627880..1628803	+	307	189024761	-	BAbS19_I15710	-	MotA/TolQ/ExbB proton channel
1494	 60.20	0	1628809..1629303	+	164	189024762	-	BAbS19_I15720	-	Biopolymer transport protein ExbD/TolR
1495	 61.74	+1	1629300..1630151	+	283	189024763	-	BAbS19_I15730	-	TonB-dependent receptor
1496	 54.88	0	1630194..1630838	-	214	189024764	-	BAbS19_I15740	-	hypothetical protein
1497	 58.93	0	1630984..1631784	-	266	189024765	-	BAbS19_I15750	-	Protein of unknown function DUF214
1498	 59.92	0	1631793..1632770	-	325	189024766	-	BAbS19_I15760	-	ATP/GTP-binding site motif A (P-loop)
1499	 58.92	0	1632938..1634164	-	408	189024767	-	BAbS19_I15770	-	Secretion protein HlyD
1500	 61.18	0	1634399..1634872	-	157	189024768	-	BAbS19_I15780	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1501	 56.48	0	1635095..1635565	-	156	189024769	-	BAbS19_I15790	-	Bacterial regulatory protein, AsnC family
1502	 53.24	-1	1635711..1635926	+	71	189024770	-	BAbS19_I15800	-	hypothetical protein
1503	 60.66	0	1636014..1636829	+	271	189024771	-	BAbS19_I15810	-	Glutamine amidotransferase, class-II
1504	 59.35	0	1636856..1637839	-	327	189024772	-	BAbS19_I15820	-	hypothetical protein
1505	 59.87	0	1638034..1639386	+	450	189024773	-	BAbS19_I15830	-	Thromboxane receptor
57.60	MEAN

3.62	STD DEV
