IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

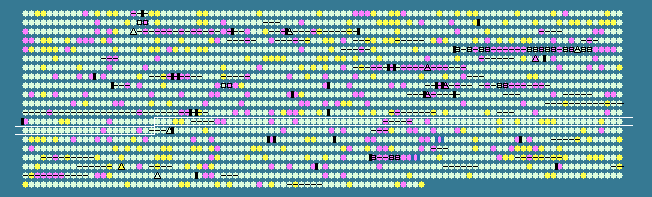

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1223	 57.92	0	1337903..1338817	+	304	189024491	-	BAbS19_I12900	-	Urease accessory protein UreD
1224	 60.19	0	1338827..1339876	+	349	189024492	-	BAbS19_I12910	-	Urea transporter
1225	 57.44	0	1339903..1340661	+	252	189024493	-	BAbS19_I12920	-	ATP-dependent DNA ligase
1226	 61.64	+1	1340681..1341316	+	211	189024494	-	BAbS19_I12930	-	Cobalamin (vitamin B12) biosynthesis CbiM protein
1227	 62.52	+1	1341313..1341939	+	208	189024495	-	BAbS19_I12940	-	hypothetical protein
1228	 60.13	0	1341936..1342700	+	254	189024496	-	BAbS19_I12950	-	Cobalt transport protein
1229	 57.22	0	1342697..1343416	+	239	189024497	-	BAbS19_I12960	-	ABC transporter
1230	 57.81	0	1343437..1344249	-	270	189024498	-	BAbS19_I12970	-	CrcB family protein
1231	 56.41	0	1344262..1344651	-	129	189024499	-	BAbS19_I12980	-	Camphor resistance CrcB protein
1232	 56.34	0	1344920..1345945	+	341	189024500	-	BAbS19_I12990	-	hypothetical protein
1233	 51.95	-1	1346078..1346512	-	144	189024501	-	BAbS19_I13000	-	hypothetical protein
1234	 47.83	-2	1346514..1346651	+	45	189024502	-	BAbS19_I13010	-	hypothetical protein
1235	 57.82	0	1346664..1347590	-	308	189024503	-	BAbS19_I13020	-	phenazine biosynthesis protein, PhzF family
1236	 58.88	0	1347695..1348426	-	243	189024504	-	BAbS19_I13030	-	NUDIX hydrolase
1237	 55.68	0	1348446..1349555	-	369	189024505	-	BAbS19_I13040	-	Endonuclease/exonuclease/phosphatase family
1238	 57.35	0	1349740..1350147	+	135	189024506	-	BAbS19_I13050	-	hypothetical protein
1239	 57.26	0	1350194..1351426	-	410	189024507	-	BAbS19_I13060	-	Aminotransferase, class I and II
1240	 58.24	0	1351862..1352881	-	339	189024508	-	BAbS19_I13070	-	Acetohydroxy acid isomeroreductase
1241	 59.97	0	1352937..1353578	-	213	189024509	-	BAbS19_I13080	-	Bacterial regulatory protein TetR, HTH motif
1242	 46.81	-2	1353636..1353776	+	46	189024510	-	BAbS19_I13090	-	hypothetical protein
1243	 58.28	0	1353787..1355742	-	651	189024511	-	BAbS19_I13100	-	K+ potassium transporter
1244	 57.23	0	1355885..1356043	-	52	189024512	-	BAbS19_I13110	-	hypothetical protein
1245	 59.65	0	1356112..1356852	-	246	189024513	-	BAbS19_I13120	-	Pyridoxal phosphate biosynthetic protein PdxJ
1246	 53.13	-1	1357152..1357550	+	132	189024514	-	BAbS19_I13130	-	hypothetical protein
1247	 57.84	0	1357551..1358717	-	388	189024515	-	BAbS19_I13140	-	ATP/GTP-binding site motif A (P-loop)
1248	 58.46	0	1358856..1359428	-	190	189024516	-	BAbS19_I13150	-	Acetolactate synthase, small subunit
1249	 58.50	0	1359447..1361270	-	607	189024517	-	BAbS19_I13160	-	acetolactate synthase III large subunit
1250	 59.59	0	1361518..1362450	-	310	189024518	-	BAbS19_I13170	-	tRNA isopentenyltransferase
1251	 60.56	0	1362468..1363367	+	299	189024519	-	BAbS19_I13180	-	Phosphoserine phosphatase SerB
1252	 59.22	0	1363408..1364589	-	393	189024520	-	BAbS19_I13190	-	hypothetical protein BruAb1_1388
1253	 58.67	0	1364719..1366293	-	524	189024521	-	BAbS19_I13200	-	serine protease Do, hypothetical
1254	 60.22	0	1366517..1366702	-	61	189024522	-	BAbS19_I13210	-	hypothetical protein
1255	 60.13	0	1366722..1367624	-	300	189024523	-	BAbS19_I13220	-	Band 7 protein
1256	 58.94	0	1367624..1368826	-	400	189024524	-	BAbS19_I13230	-	Band 7 protein
1257	 57.80	0	1368903..1369421	-	172	189024525	-	BAbS19_I13240	-	Dihydrofolate reductase
1258	 55.47	0	1369424..1370218	-	264	189024526	-	BAbS19_I13250	-	Thymidylate synthase
1259	 57.69	0	1370319..1370630	-	103	189024527	-	BAbS19_I13260	-	hypothetical protein
1260	 60.06	0	1371144..1372415	-	423	189024528	-	BAbS19_I13270	-	Drug resistance transporter Bcr/CflA subfamily
1261	 51.70	-1	1372432..1372578	-	48	189024529	-	BAbS19_I13280	-	hypothetical protein
1262	 56.62	0	1372809..1373435	+	208	189024530	-	BAbS19_I13290	-	Bacterial regulatory protein TetR, HTH motif
1263	 54.21	0	1373516..1374085	+	189	189024531	-	BAbS19_I13300	-	hypothetical protein
1264	 54.24	0	1374198..1374374	+	58	189024532	-	BAbS19_I13310	-	hypothetical protein
1265	 52.24	-1	1374466..1374666	+	66	189024533	-	BAbS19_I13320	-	hypothetical protein
1266	 58.72	0	1374663..1374989	+	108	189024534	-	BAbS19_I13330	-	hypothetical protein
1267	 60.12	0	1374943..1378686	-	1247	189024535	-	BAbS19_I13340	-	Alpha-isopropylmalate/homocitrate synthase
1268	 48.23	-2	1378741..1378881	-	46	189024536	-	BAbS19_I13350	-	hypothetical protein
1269	 59.70	0	1378878..1380284	-	468	189024537	-	BAbS19_I13360	-	FAD linked oxidase, C-terminal
1270	 60.78	0	1380309..1380818	-	169	189024538	-	BAbS19_I13370	-	hypothetical protein
1271	 60.35	0	1380938..1382014	+	358	189024539	-	BAbS19_I13380	-	serine/threonine protein kinase
1272	 59.37	0	1382073..1384649	+	858	189024540	-	BAbS19_I13390	-	UvrD/REP helicase
1273	 54.22	0	1384723..1385220	-	165	189024541	-	BAbS19_I13400	-	hypothetical protein
1274	 58.77	0	1385285..1385917	-	210	189024542	-	BAbS19_I13410	-	Bacterial transferase hexapeptide repeat
1275	 55.61	0	1386083..1386670	+	195	189024543	-	BAbS19_I13420	-	Electron transport protein SCO1/SenC
1276	 58.28	0	1386708..1387565	+	285	189024544	-	BAbS19_I13430	-	SAM (and some other nucleotide) binding motif
1277	 59.44	0	1387614..1389440	+	608	189024545	-	BAbS19_I13440	-	Metallopeptidase family M24
1278	 56.88	0	1389441..1390145	-	234	189024546	-	BAbS19_I13450	-	hypothetical protein
1279	 59.95	0	1390145..1392304	-	719	189024547	-	BAbS19_I13460	-	DNA ligase
1280	 62.26	+1	1392490..1394169	-	559	189024548	-	BAbS19_I13470	-	ATP/GTP-binding site motif A (P-loop)
1281	 56.48	0	1394182..1395045	-	287	189024549	-	BAbS19_I13480	-	TPR repeat-containing protein
1282	 56.33	0	1395452..1396312	-	286	189024550	-	BAbS19_I13490	-	UDP-3-0-acyl N-acetylglucosamine deacetylase
1283	 63.90	+1	1396852..1398552	-	566	189024551	-	BAbS19_I13500	-	Cell division protein FtsZ
1284	 60.62	0	1398649..1399971	-	440	189024552	-	BAbS19_I13510	-	Heat shock protein Hsp70
1285	 58.44	0	1399968..1400903	-	311	189024553	-	BAbS19_I13520	-	Cell division protein FTSQ
1286	 55.45	0	1400891..1401817	-	308	189024554	-	BAbS19_I13530	-	D-alanine--D-alanine ligase/VANA/B/C
1287	 61.09	0	1402060..1403028	-	322	189024555	-	BAbS19_I13540	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1288	 61.09	0	1403028..1404443	-	471	189024556	-	BAbS19_I13550	-	UDP-N-acetylmuramate--L-alanine ligase
1289	 61.84	+1	1404440..1405579	-	379	189024557	-	BAbS19_I13560	-	N-acetylglucosaminyl transferase
1290	 59.15	0	1405806..1406963	-	385	189024558	-	BAbS19_I13570	-	Cell cycle protein
1291	 60.54	0	1406963..1408366	-	467	189024559	-	BAbS19_I13580	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1292	 57.25	0	1408379..1409461	-	360	189024560	-	BAbS19_I13590	-	Glycosyl transferase, family 4
1293	 58.99	0	1409488..1410933	-	481	189024561	-	BAbS19_I13600	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1294	 59.92	0	1410930..1412396	-	488	189024562	-	BAbS19_I13610	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1295	 59.38	0	1412457..1414280	-	607	189024563	-	BAbS19_I13620	-	penicillin-binding protein
1296	 56.52	0	1414271..1414684	-	137	189024564	-	BAbS19_I13630	-	hypothetical protein
1297	 61.38	+1	1414689..1415729	-	346	189024565	-	BAbS19_I13640	-	Bacterial methyltransferase
1298	 58.72	0	1416156..1417526	+	456	189024566	-	BAbS19_I13650	-	Natural resistance-associated macrophage protein
1299	 55.19	0	1418228..1418872	-	214	189024567	-	BAbS19_I13660	-	SLT domain protein
1300	 55.39	0	1419213..1420019	-	268	189024568	-	BAbS19_I13670	-	Putative peptidoglycan binding domain 1
1301	 54.29	0	1420016..1420726	-	236	189024569	-	BAbS19_I13680	-	Heat shock protein DnaJ, N-terminal
1302	 59.01	0	1420846..1421250	-	134	189024570	-	BAbS19_I13690	-	Antifreeze protein, type I
1303	 59.47	0	1421554..1422387	+	277	189024571	-	BAbS19_I13700	-	Glycoside hydrolase, family 25
1304	 58.56	0	1422508..1423740	+	410	189024572	-	BAbS19_I13710	-	Putative peptidoglycan binding domain 1
1305	 58.87	0	1423802..1424737	+	311	189024573	-	BAbS19_I13720	-	Auxin Efflux Carrier
1306	 57.68	0	1425172..1426083	-	303	189024574	-	BAbS19_I13730	-	Methylenetetrahydrofolate reductase
1307	 60.14	0	1426129..1427154	-	341	189024575	-	BAbS19_I13740	-	transcriptional regulator, ArsR family
1308	 55.40	0	1427181..1427597	+	138	189024576	-	BAbS19_I13750	-	hypothetical protein
1309	 56.82	0	1427652..1428992	-	446	189024577	-	BAbS19_I13760	-	Alpha-ketoglutarate permease
1310	 55.79	0	1429413..1429982	-	189	189024578	-	BAbS19_I13770	-	Trans-aconitate methyltransferase
1311	 56.12	0	1430252..1431901	-	549	189024579	-	BAbS19_I13780	-	ATP/GTP-binding site motif A (P-loop)
1312	 58.33	0	1431981..1432100	-	39	189024580	-	BAbS19_I13790	-	hypothetical protein
1313	 57.14	0	1432397..1433341	+	314	189024581	-	BAbS19_I13800	-	Esterase/lipase/thioesterase
1314	 52.85	-1	1433430..1434044	+	204	189024582	-	BAbS19_I13810	-	hypothetical protein
1315	 57.13	0	1435179..1436426	+	415	189024583	-	BAbS19_I13840	-	Rieske 2Fe-2S family protein
1316	 59.25	0	1436460..1437578	+	372	189024584	-	BAbS19_I13850	-	NADH oxidoreductase, putative
1317	 55.86	0	1437581..1437802	-	73	189024585	-	BAbS19_I13860	-	PhnA protein
1318	 56.19	0	1437940..1438569	+	209	189024586	-	BAbS19_I13870	-	Isochorismatase hydrolase family
1319	 54.61	0	1438566..1439627	-	353	189024587	-	BAbS19_I13880	-	Protein of unknown function DUF475
1320	 53.93	-1	1439974..1440240	+	88	189024588	-	BAbS19_I13890	-	hypothetical protein
1321	 54.35	0	1440438..1441541	-	367	189024589	-	BAbS19_I13900	-	choloylglycine hydrolase family protein
1322	 54.35	0	1441817..1442620	+	267	189024590	-	BAbS19_I13910	-	hypothetical protein
57.60	MEAN

3.62	STD DEV
