IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

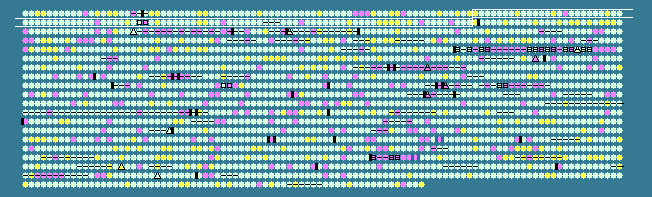

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
76	 61.73	+1	90691..93240	+	849	189023344	-	BAbS19_I00780	-	Protein of unknown function DUF214
77	 57.86	0	93474..94211	+	245	189023345	-	BAbS19_I00790	-	hypothetical protein
78	 54.73	0	94884..95285	-	133	189023346	-	BAbS19_I00820	-	hypothetical protein
79	 56.99	0	95835..96671	-	278	189023347	-	BAbS19_I00830	-	hypothetical protein
80	 56.74	0	96722..96862	-	46	189023348	-	BAbS19_I00840	-	hypothetical protein
81	 60.27	0	96846..99533	-	895	189023349	-	BAbS19_I00850	-	Aconitate hydratase
82	 58.33	0	99877..100524	+	215	189023350	-	BAbS19_I00860	-	Heme exporter protein CcmA
83	 62.31	+1	100524..101189	+	221	189023351	-	BAbS19_I00870	-	SecY protein
84	 58.30	0	101244..102032	+	262	189023352	-	BAbS19_I00880	-	Cytochrome c assembly protein
85	 56.90	0	102029..102202	+	57	189023353	-	BAbS19_I00890	-	Heme exporter protein D (CcmD)
86	 59.31	0	102199..102810	+	203	189023354	-	BAbS19_I00900	-	Thiol:disulfide interchange protein CYCY precursor
87	 61.00	0	103059..104894	-	611	189023355	-	BAbS19_I00910	-	Dihydroxy-acid and 6-phosphogluconate dehydratase
88	 54.35	0	105075..105212	+	45	189023356	-	BAbS19_I00920	-	hypothetical protein
89	 61.57	+1	105293..105724	-	143	189023357	-	BAbS19_I00930	-	hypothetical protein
90	 59.73	0	105751..106125	-	124	189023358	-	BAbS19_I00940	-	Response regulator receiver
91	 49.37	-2	106303..106539	-	78	189023359	-	BAbS19_I00950	-	transcriptional regulator, putative
92	 56.79	0	107192..107596	+	134	189023360	-	BAbS19_I00960	-	hypothetical protein
93	 55.76	0	107682..108167	-	161	189023361	-	BAbS19_I00970	-	Formate/nitrite transporter
94	 54.42	0	108485..109276	+	263	189023362	-	BAbS19_I00980	-	hypothetical protein
95	 57.73	0	109554..110582	+	342	189023363	-	BAbS19_I00990	-	sulfate ABC transporter, sulfate-binding protein
96	 59.40	0	110677..111543	+	288	189023364	-	BAbS19_I01000	-	Binding-protein-dependent transport systems inner membrane component
97	 59.05	0	111533..112399	+	288	189023365	-	BAbS19_I01010	-	CysW-1, sulfate ABC transporter, permease protein
98	 61.56	+1	112362..113576	+	404	189023366	-	BAbS19_I01020	-	Sulfate transport atp-binding protein CYSA
99	 60.48	0	113962..122565	+	2867	189023367	-	BAbS19_I01030	-	cyclic beta 1-2 glucan synthetase
100	 58.39	0	122655..123959	+	434	189023368	-	BAbS19_I01040	-	Nicotinate phosphoribosyltransferase
101	 60.77	0	124001..124831	-	276	189023369	-	BAbS19_I01050	-	Phenazine biosynthesis PhzC/PhzF protein
102	 55.77	0	124941..125729	-	262	189023370	-	BAbS19_I01060	-	SAM methyltransferase
103	 59.33	0	125752..126678	-	308	189023371	-	BAbS19_I01070	-	Carbohydrate kinase, PfkB
104	 59.60	0	126769..127575	-	268	189023372	-	BAbS19_I01080	-	Short-chain dehydrogenase/reductase SDR
105	 60.12	0	127696..129987	-	763	189023373	-	BAbS19_I01090	-	penicillin-binding protein, 1A family
106	 56.13	0	130193..130885	-	230	189023374	-	BAbS19_I01100	-	outer membrane protein, putative
107	 56.19	0	131152..131838	-	228	189023375	-	BAbS19_I01110	-	outer membrane protein, putative
108	 56.31	0	132070..132687	-	205	189023376	-	BAbS19_I01120	-	3'-5' exonuclease
109	 59.46	0	132726..134141	-	471	189023377	-	BAbS19_I01130	-	Peptidase M20/M25/M40
110	 59.35	0	134702..137638	+	978	189023378	-	BAbS19_I01140	-	DNA polymerase I
111	 60.29	0	137780..139660	+	626	189023379	-	BAbS19_I01150	-	ATP-dependent RNA helicase, DEAD/DEAH box family
112	 59.83	0	139756..142197	-	813	189023380	-	BAbS19_I01160	-	DNA gyrase subunit B
113	 47.41	-2	142248..142382	-	44	189023381	-	BAbS19_I01170	-	hypothetical protein
114	 57.95	0	142516..143352	-	278	189023382	-	BAbS19_I01180	-	S-formylglutathione hydrolase
115	 56.62	0	144015..144482	-	155	189023383	-	BAbS19_I01210	-	GCN5-related N-acetyltransferase
116	 60.92	0	144482..145594	-	370	189023384	-	BAbS19_I01220	-	glutathione-dependent formaldehyde dehydrogenase
117	 59.39	0	145628..145888	-	86	189023385	-	BAbS19_I01230	-	Protein of unknown function DUF156
118	 64.94	+2	146040..147896	+	618	189023386	-	BAbS19_I01240	-	ATP-dependent helicase HRPB
119	 60.94	0	148589..149881	+	430	189023387	-	BAbS19_I01250	-	sensor histidine kinase
120	 58.27	0	149951..150319	+	122	189023388	-	BAbS19_I01260	-	Transposase
121	 49.08	-2	150436..150708	+	90	189023389	-	BAbS19_I01270	-	Transposase, IS4
122	 60.46	0	151308..151871	+	187	189023390	-	BAbS19_I01280	-	Response regulator receiver
123	 63.43	+1	151877..152371	-	164	189023391	-	BAbS19_I01290	-	hypothetical protein
124	 57.33	0	152641..153261	+	206	189023392	-	BAbS19_I01300	-	ErfK/YbiS/YcfS/YnhG
125	 59.69	0	153351..153923	-	190	189023393	-	BAbS19_I01310	-	Nitrogen-fixing NifU, C-terminal
126	 60.93	0	154032..154571	-	179	189023394	-	BAbS19_I01320	-	Hypothetical Cytosolic Protein
127	 59.83	0	154578..155645	-	355	189023395	-	BAbS19_I01330	-	tryptophanyl-tRNA synthetase
128	 60.10	0	155742..157325	-	527	189023396	-	BAbS19_I01340	-	Virulence factor MVIN-like protein
129	 58.54	0	157345..160149	-	934	189023397	-	BAbS19_I01350	-	PII uridylyl-transferase
130	 61.52	+1	160292..161185	-	297	189023398	-	BAbS19_I01360	-	NADP-dependent malic enzyme
131	 61.46	+1	161185..162585	-	466	189023399	-	BAbS19_I01370	-	NADP-dependent malic enzyme
132	 60.37	0	162742..165474	+	910	189023400	-	BAbS19_I01380	-	DNA mismatch repair protein
133	 58.50	0	165780..166673	-	297	189023401	-	BAbS19_I01390	-	hypothetical protein
134	 52.80	-1	166948..167430	-	160	189023402	-	BAbS19_I01400	-	Signal peptidase II, family A8
135	 59.96	0	167432..168325	-	297	189023403	-	BAbS19_I01410	-	tRNA/rRNA methyltransferase (SpoU)
136	 58.95	0	169579..169902	-	107	189023404	-	BAbS19_I01440	-	hypothetical protein
137	 56.84	0	169912..170196	-	94	189023405	-	BAbS19_I01450	-	Histone-like bacterial DNA-binding protein
138	 60.16	0	170243..171226	-	327	189023406	-	BAbS19_I01460	-	Clp protease
139	 56.02	0	171688..172410	+	240	189023407	-	BAbS19_I01470	-	hypothetical protein
140	 60.27	0	172692..173348	+	218	189023408	-	BAbS19_I01480	-	OstA-like protein
141	 60.16	0	173456..174193	+	245	189023409	-	BAbS19_I01490	-	ATP/GTP-binding site motif A (P-loop)
142	 57.75	0	174489..175991	+	500	189023410	-	BAbS19_I01500	-	Sigma-54 factor family
143	 58.75	0	176741..177334	+	197	189023411	-	BAbS19_I01510	-	Sigma 54 modulation protein/ribosomal protein S30EA
144	 58.49	0	177437..177901	+	154	189023412	-	BAbS19_I01520	-	nitrogen regulatory IIA protein
145	 58.54	0	177982..178227	-	81	189023413	-	BAbS19_I01530	-	hypothetical protein
146	 56.26	0	178333..178755	-	140	189023414	-	BAbS19_I01540	-	Heat shock protein Hsp20
147	 50.70	-1	178846..179058	-	70	189023415	-	BAbS19_I01550	-	hypothetical protein
148	 58.63	0	179027..179524	-	165	189023416	-	BAbS19_I01560	-	hypothetical protein
149	 60.51	0	179629..180375	+	248	189023417	-	BAbS19_I01570	-	Nth, endonuclease III
150	 58.40	0	180416..181129	-	237	189023418	-	BAbS19_I01580	-	Sodium:dicarboxylate symporter, DUF540
151	 59.92	0	181389..182381	+	330	189023419	-	BAbS19_I01590	-	Carbohydrate kinase, PfkB
152	 59.82	0	182400..183056	-	218	189023420	-	BAbS19_I01600	-	hypothetical protein
153	 59.18	0	183189..183869	-	226	189023421	-	BAbS19_I01610	-	GrpE protein
154	 59.76	0	183975..185045	-	356	189023422	-	BAbS19_I01620	-	Negative regulator of class I heat shock protein
155	 62.76	+1	185267..185983	+	238	189023423	-	BAbS19_I01630	-	Ribonuclease PH
156	 58.62	0	186157..186330	+	57	189023424	-	BAbS19_I01640	-	Lactoylglutathione lyase, putative
157	 57.21	0	186339..186560	+	73	189023425	-	BAbS19_I01650	-	Lactoylglutathione lyase, putative
158	 59.58	0	186563..187225	+	220	189023426	-	BAbS19_I01660	-	Ham1-like protein
159	 60.41	0	187222..188436	+	404	189023427	-	BAbS19_I01670	-	coproporphyrinogen III oxidase
160	 62.28	+1	188448..189359	+	303	189023428	-	BAbS19_I01680	-	tetrapyrrole methylase family protein
161	 61.42	+1	189356..189736	+	126	189023429	-	BAbS19_I01690	-	hypothetical protein
162	 64.15	+1	189962..191389	+	475	189023430	-	BAbS19_I01700	-	CysG, siroheme synthase
163	 62.71	+1	191407..191709	+	100	189023431	-	BAbS19_I01710	-	hypothetical protein
164	 57.51	0	191730..193400	+	556	189023432	-	BAbS19_I01720	-	sulfite reductase (NADPH) hemoprotein beta-component
165	 63.37	+1	193390..194148	+	252	189023433	-	BAbS19_I01730	-	Phosphoadenosine phosphosulfate reductase CysH-type
166	 59.24	0	194201..194725	+	174	189023434	-	BAbS19_I01740	-	hypothetical protein
167	 53.40	-1	194793..195086	+	97	189023435	-	BAbS19_I01750	-	hypothetical protein
168	 59.41	0	195087..195665	-	192	189023436	-	BAbS19_I01760	-	Methylated-DNA-[protein]-cysteine S-methyltransferase
169	 56.91	0	195923..196168	+	81	189023437	-	BAbS19_I01770	-	hypothetical protein
170	 57.85	0	196221..196787	-	188	189023438	-	BAbS19_I01780	-	hypothetical protein
171	 59.24	0	196924..200709	+	1261	189023439	-	BAbS19_I01790	-	MetH, 5-methyltetrahydrofolate--homocysteine methyltransferase
172	 51.32	-1	201021..201737	+	238	189023440	-	BAbS19_I01800	-	Transcriptional activator, LUXR family
173	 59.52	0	201852..203222	+	456	189023441	-	BAbS19_I01810	-	Aminotransferase class-III
174	 55.70	0	203607..204527	+	306	189023442	-	BAbS19_I01820	-	sulfate adenylyltransferase subunit 2
175	 58.14	0	204527..206461	+	644	189023443	-	BAbS19_I01830	-	binfunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
57.60	MEAN

3.62	STD DEV
