IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

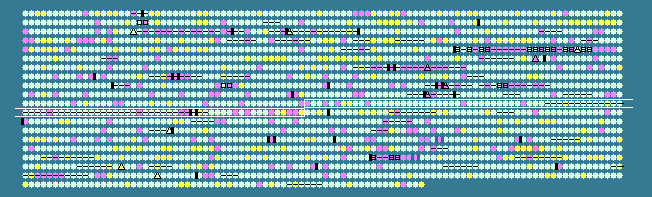

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1048	 53.86	-1	1158819..1159661	-	280	189024316	-	BAbS19_I11030	-	ATP/GTP-binding site motif A (P-loop)
1049	 58.06	0	1159805..1160269	+	154	189024317	-	BAbS19_I11040	-	Endoribonuclease L-PSP
1050	 54.88	0	1161065..1162252	+	395	189024318	-	BAbS19_I11070	-	Protein of unknown function DUF482
1051	 53.43	-1	1162324..1162746	+	140	189024319	-	BAbS19_I11080	-	Histidine triad (HIT) protein
1052	 57.62	0	1162853..1165327	-	824	189024320	-	BAbS19_I11090	-	ATP-dependent CLP protease ATP-binding subunit CLPA
1053	 52.42	-1	1165334..1165684	-	116	189024321	-	BAbS19_I11100	-	Protein of unknown function DUF174
1054	 61.54	+1	1166203..1167588	+	461	189024322	-	BAbS19_I11110	-	D-alanyl-D-alanine carboxypeptidase 1, S11 family
1055	 61.22	+1	1167668..1167961	+	97	189024323	-	BAbS19_I11120	-	hypothetical protein
1056	 58.68	0	1168075..1168512	-	145	189024324	-	BAbS19_I11130	-	hypothetical protein
1057	 59.77	0	1168601..1169920	-	439	189024325	-	BAbS19_I11140	-	L-serine dehydratase, iron-sulfur-dependent, single chain form
1058	 50.79	-1	1170203..1170328	-	41	189024326	-	BAbS19_I11150	-	hypothetical protein
1059	 55.97	0	1170527..1171321	-	264	189024327	-	BAbS19_I11160	-	Protein of unknown function DUF218
1060	 58.02	0	1171496..1172467	+	323	189024328	-	BAbS19_I11170	-	hypothetical protein
1061	 56.07	0	1172478..1172864	-	128	189024329	-	BAbS19_I11180	-	Bacterial regulatory protein, MerR family
1062	 54.64	0	1173102..1173467	+	121	189024330	-	BAbS19_I11190	-	hypothetical protein
1063	 57.76	0	1173482..1173874	+	130	189024331	-	BAbS19_I11200	-	hypothetical protein
1064	 55.56	0	1173899..1174213	+	104	189024332	-	BAbS19_I11210	-	hypothetical protein
1065	 57.69	0	1174658..1175125	+	155	189024333	-	BAbS19_I11220	-	GTP cyclohydrolase I
1066	 59.32	0	1175256..1175432	+	58	189024334	-	BAbS19_I11230	-	hypothetical protein
1067	 54.14	0	1175464..1176006	+	180	189024335	-	BAbS19_I11240	-	hypothetical protein
1068	 58.17	0	1176009..1177421	-	470	189024336	-	BAbS19_I11250	-	Helix-turn-helix motif
1069	 58.71	0	1177572..1179104	+	510	189024337	-	BAbS19_I11260	-	Carboxyl transferase family
1070	 59.63	0	1179189..1181192	+	667	189024338	-	BAbS19_I11270	-	Propionyl-COA carboxylase alpha chain
1071	 58.91	0	1181253..1183391	+	712	189024339	-	BAbS19_I11280	-	methylmalonyl-CoA mutase
1072	 55.92	0	1183498..1183860	-	120	189024340	-	BAbS19_I11290	-	hypothetical protein
1073	 57.15	0	1184047..1186095	-	682	189024341	-	BAbS19_I11300	-	hypothetical protein
1074	 51.70	-1	1186136..1186282	-	48	189024342	-	BAbS19_I11310	-	hypothetical protein
1075	 57.88	0	1186332..1187321	-	329	189024343	-	BAbS19_I11320	-	Tetracycline resistance protein TetB
1076	 57.55	0	1187467..1188300	-	277	189024344	-	BAbS19_I11330	-	Asp/Glu racemase
1077	 57.52	0	1188297..1189127	-	276	189024345	-	BAbS19_I11340	-	tRNA/rRNA methyltransferase (SpoU)
1078	 58.29	0	1189307..1189891	+	194	189024346	-	BAbS19_I11350	-	Intracellular protease PfpI
1079	 57.91	0	1189980..1190390	+	136	189024347	-	BAbS19_I11360	-	hypothetical protein
1080	 57.20	0	1190518..1191732	+	404	189024348	-	BAbS19_I11370	-	Isocitrate/isopropylmalate dehydrogenase
1081	 58.09	0	1191954..1193399	+	481	189024349	-	BAbS19_I11380	-	Alkaline phosphatase
1082	 58.77	0	1193551..1196208	-	885	189024350	-	BAbS19_I11390	-	Alanyl-tRNA synthetase, class Iic
1083	 57.00	0	1196601..1197686	-	361	189024351	-	BAbS19_I11400	-	RecA bacterial DNA recombination protein
1084	 49.21	-2	1197856..1197981	-	41	189024352	-	BAbS19_I11410	-	hypothetical protein
1085	 59.13	0	1198017..1198679	-	220	189024353	-	BAbS19_I11420	-	Bacterial outer membrane protein
1086	 55.90	0	1198766..1199350	-	194	189024354	-	BAbS19_I11430	-	transcriptional regulatory protein
1087	 59.89	0	1199474..1200787	-	437	189024355	-	BAbS19_I11440	-	ATPase, AAA family
1088	 59.16	0	1200934..1202358	-	474	189024356	-	BAbS19_I11450	-	Serine protease, V8 family
1089	 58.04	0	1202638..1203066	-	142	189024357	-	BAbS19_I11460	-	Ribosomal protein L17
1090	 57.10	0	1203228..1204241	-	337	189024358	-	BAbS19_I11470	-	RNA polymerase, alpha chain, bacterial and organelle
1091	 62.05	+1	1204357..1204746	-	129	189024359	-	BAbS19_I11480	-	Ribosomal protein S11
1092	 56.91	0	1204874..1205242	-	122	189024360	-	BAbS19_I11490	-	Ribosomal protein S13
1093	 58.80	0	1205551..1206135	-	194	189024361	-	BAbS19_I11500	-	Adenylate kinase, subfamily
1094	 55.11	0	1206132..1207472	-	446	189024362	-	BAbS19_I11510	-	C-5 cytosine-specific DNA methylase
1095	 59.45	0	1207633..1208103	-	156	189024363	-	BAbS19_I11520	-	Ribosomal protein L15
1096	 58.59	0	1208124..1208321	-	65	189024364	-	BAbS19_I11530	-	Ribosomal protein L30
1097	 60.43	0	1208439..1208999	-	186	189024365	-	BAbS19_I11540	-	30S ribosomal protein S5
1098	 61.98	+1	1209041..1209403	-	120	189024366	-	BAbS19_I11550	-	Ribosomal protein L18
1099	 57.49	0	1209416..1209949	-	177	189024367	-	BAbS19_I11560	-	Ribosomal protein L6
1100	 57.89	0	1209988..1210386	-	132	189024368	-	BAbS19_I11570	-	Ribosomal protein S8
1101	 57.84	0	1210397..1210702	-	101	189024369	-	BAbS19_I11580	-	30S ribosomal protein S14
1102	 54.66	0	1210730..1211287	-	185	189024370	-	BAbS19_I11590	-	50S ribosomal protein L5
1103	 57.05	0	1211280..1211591	-	103	189024371	-	BAbS19_I11600	-	Ribosomal protein L24
1104	 54.74	0	1211604..1211972	-	122	189024372	-	BAbS19_I11610	-	Ribosomal protein L14b/L23e
1105	 53.50	-1	1212041..1212283	-	80	189024373	-	BAbS19_I11620	-	Ribosomal protein S17
1106	 58.21	0	1212296..1212496	-	66	189024374	-	BAbS19_I11630	-	Ribosomal protein L29
1107	 58.21	0	1212509..1212922	-	137	189024375	-	BAbS19_I11640	-	Ribosomal protein L16
1108	 57.38	0	1212961..1213671	-	236	189024376	-	BAbS19_I11650	-	Ribosomal protein S3
1109	 58.72	0	1213671..1214060	-	129	189024377	-	BAbS19_I11660	-	50S ribosomal protein L22
1110	 54.48	0	1214063..1214341	-	92	189024378	-	BAbS19_I11670	-	Ribosomal protein S19/S15
1111	 59.83	0	1214357..1215190	-	277	189024379	-	BAbS19_I11680	-	Ribosomal protein L2
1112	 57.14	0	1215212..1215505	-	97	189024380	-	BAbS19_I11690	-	Ribosomal L23 protein
1113	 60.55	0	1215502..1216122	-	206	189024381	-	BAbS19_I11700	-	Ribosomal protein L4/L1e
1114	 58.54	0	1216122..1216835	-	237	189024382	-	BAbS19_I11710	-	Ribosomal protein L3
1115	 57.28	0	1216865..1217173	-	102	189024383	-	BAbS19_I11720	-	Ribosomal protein S10
1116	 58.84	0	1217234..1218409	-	391	189024384	-	BAbS19_I11730	-	elongation factor Tu
1117	 56.98	0	1218473..1220557	-	694	189024385	-	BAbS19_I11740	-	elongation factor EF-2
1118	 57.32	0	1220588..1221058	-	156	189024386	-	BAbS19_I11750	-	Ribosomal protein S7
1119	 57.26	0	1221125..1221496	-	123	189024387	-	BAbS19_I11760	-	Ribosomal protein S12
1120	 54.01	0	1221976..1222299	+	107	189024388	-	BAbS19_I11770	-	hypothetical protein
1121	 57.93	0	1222406..1226608	-	1400	189024389	-	BAbS19_I11780	-	RNA polymerase, alpha subunit
1122	 57.72	0	1226757..1230890	-	1377	189024390	-	BAbS19_I11790	-	DNA-directed RNA polymerase beta subunit
1123	 59.20	0	1231098..1231472	-	124	189024391	-	BAbS19_I11800	-	Ribosomal protein L7/L12
1124	 58.57	0	1231524..1232042	-	172	189024392	-	BAbS19_I11810	-	50S ribosomal protein L10
1125	 56.98	0	1232433..1233134	-	233	189024393	-	BAbS19_I11820	-	Ribosomal protein L1
1126	 58.04	0	1233139..1233567	-	142	189024394	-	BAbS19_I11830	-	Ribosomal protein L11
1127	 52.27	-1	1233770..1234297	-	175	189024395	-	BAbS19_I11840	-	Bacterial transcription antitermination protein NusG
1128	 53.73	-1	1234321..1234521	-	66	189024396	-	BAbS19_I11850	-	Protein secE/sec61-gamma protein
1129	 58.93	0	1235195..1236370	-	391	189024397	-	BAbS19_I11860	-	elongation factor Tu
1130	 61.09	0	1237001..1237861	+	286	189024398	-	BAbS19_I11870	-	RNA methyltransferase, TrmH family, group 3
1131	 54.63	0	1237922..1238353	-	143	189024399	-	BAbS19_I11880	-	CBS domain protein
1132	 57.61	0	1238524..1239252	-	242	189024400	-	BAbS19_I11890	-	Rhomboid-like protein
1133	 58.57	0	1239644..1240285	+	213	189024401	-	BAbS19_I11900	-	hypothetical protein
1134	 59.41	0	1240529..1241134	+	201	189024402	-	BAbS19_I11910	-	hypothetical protein
1135	 57.58	0	1241213..1241740	-	175	189024403	-	BAbS19_I11920	-	Bacterial transferase hexapeptide repeat
1136	 48.31	-2	1242011..1242217	-	68	189024404	-	BAbS19_I11930	-	hypothetical protein
1137	 57.94	0	1242513..1243337	-	274	189024405	-	BAbS19_I11940	-	CysE, serine acetyltransferase
1138	 50.41	-1	1243353..1243475	+	40	189024406	-	BAbS19_I11950	-	hypothetical protein
1139	 58.24	0	1243512..1244282	-	256	189024407	-	BAbS19_I11960	-	hydrolase, alpha/beta hydrolase fold family
1140	 54.37	0	1244316..1244795	-	159	189024408	-	BAbS19_I11970	-	Protein of unknown function DUF192
1141	 59.79	0	1245169..1245750	-	193	189024409	-	BAbS19_I11980	-	Cold-shock DNA-binding domain protein
1142	 44.20	-2	1245874..1246011	-	45	189024410	-	BAbS19_I11990	-	hypothetical protein
1143	 58.50	0	1246113..1246553	+	146	189024411	-	BAbS19_I12000	-	Glyoxalase/Bleomycin resistance protein/dioxygenase domain protein
1144	 61.57	+1	1247793..1249577	-	594	189024412	-	BAbS19_I12030	-	Phosphoesterase, RecJ-like protein
1145	 53.58	-1	1249627..1250688	-	353	189024413	-	BAbS19_I12040	-	D-alanine--D-alanine ligase/VANA/B/C
1146	 45.39	-2	1250717..1250857	+	46	189024414	-	BAbS19_I12050	-	hypothetical protein
1147	 61.09	0	1250991..1251977	-	328	189024415	-	BAbS19_I12060	-	GlpX protein
57.60	MEAN

3.62	STD DEV
