IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

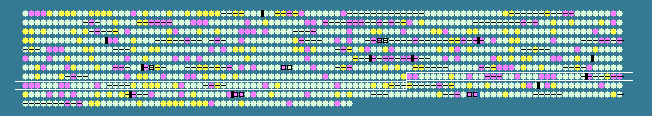

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
765	 52.47	-1	832773..833399	-	208	62317726	-	BruAb2_0825	-	disulfide bond formation protein DsbB
766	 47.13	-2	833428..833601	-	57	62317727	-	BruAb2_0826	-	hypothetical protein
767	 57.00	0	833732..835231	-	499	62317728	katA	BruAb2_0827	-	KatA, catalase
768	 55.56	0	835401..836354	+	317	62317729	oxyR	BruAb2_0828	-	transcriptional regulator OxyR
769	 58.89	0	836423..837541	+	372	62317730	-	BruAb2_0829	-	cytochrome c family protein
770	 59.91	0	837701..839194	-	497	62317731	guaB	BruAb2_0830	-	inositol-5-monophosphate dehydrogenase
771	 60.25	0	839389..840744	+	451	62317732	-	BruAb2_0831	-	voltage gated chloride channel family protein
772	 61.61	+1	840866..841873	+	335	62317733	-	BruAb2_0832	-	hypothetical protein
773	 59.14	0	841993..843426	+	477	62317734	-	BruAb2_0833	-	phosphoglucomutase
774	 58.55	0	843423..844838	+	471	62317735	-	BruAb2_0834	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
775	 52.93	-1	844959..845846	-	295	62317736	-	BruAb2_0835	-	LysR family transcriptional regulator
776	 54.31	0	846075..846341	+	88	62317737	-	BruAb2_0836	-	hypothetical protein
777	 56.62	0	846636..848228	+	530	62317738	-	BruAb2_0837	-	EAL domain-containing protein
778	 46.43	-2	848305..848556	-	83	62317739	-	BruAb2_0838	-	hypothetical protein
779	 41.41	-2	848808..848906	-	32	62317740	-	BruAb2_0839	-	hypothetical protein
780	 49.28	-1	849068..849412	-	114	62317741	hdeA	BruAb2_0840	-	acid-resistance protein
781	 56.50	0	849560..850513	-	317	62317742	-	BruAb2_0841	-	glutaminase
782	 55.71	0	850549..852081	-	510	62317743	-	BruAb2_0842	-	glutamate/gamma-aminobutyrate antiporter
783	 46.55	-2	853997..854170	+	57	62317744	-	BruAb2_0844	-	hypothetical protein
784	 57.49	0	854245..854778	+	177	62317745	-	BruAb2_0845	-	hypothetical protein
785	 59.63	0	854964..856199	+	411	62317746	-	BruAb2_0846	-	HlyD family secretion protein
786	 55.29	0	859426..859926	+	166	62317747	-	BruAb2_0848	-	hypothetical protein
787	 50.00	-1	860068..860595	-	175	62317748	-	BruAb2_0849	-	hypothetical protein
788	 46.30	-2	860832..861047	-	71	62317749	-	BruAb2_0850	-	hypothetical protein
789	 37.22	-2	861053..861232	-	59	62317750	-	BruAb2_0851	-	hypothetical protein
790	 57.79	0	861544..862320	-	258	62317751	-	BruAb2_0852	-	spermidine/putrescine ABC transporter, permease protein
791	 59.56	0	862323..863561	-	412	62317752	-	BruAb2_0853	-	spermidine/putrescine ABC transporter, permease protein
792	 57.68	0	863495..864562	-	355	62317753	-	BruAb2_0854	-	spermidine/putrescine ABC transporter ATP-binding protein
793	 56.73	0	864636..865682	-	348	62317754	-	BruAb2_0855	-	spermidine/putrescine ABC transporter periplasmic spermidine/putrescine-binding protein
794	 57.76	0	866058..866450	+	130	62317755	-	BruAb2_0856	-	hypothetical protein
795	 53.57	0	866779..866946	-	55	62317756	-	BruAb2_0857	-	hypothetical protein
796	 57.14	0	866990..867262	-	90	62317757	minE	BruAb2_0858	-	cell division topological specificity factor MinE
797	 60.42	0	867259..868074	-	271	62317758	minD	BruAb2_0859	-	MinD, septum site-determining protein
798	 61.94	+1	868102..868863	-	253	62317759	minC	BruAb2_0860	-	septum formation inhibitor
799	 45.45	-2	868993..869124	-	43	62317760	-	BruAb2_0861	-	hypothetical protein
800	 40.86	-2	869109..869201	-	30	62317761	-	BruAb2_0862	-	hypothetical protein
801	 42.22	-2	869335..869559	+	74	62317762	-	BruAb2_0863	-	hypothetical protein
802	 51.52	-1	869729..870718	-	329	62317763	nrdF	BruAb2_0864	-	ribonucleotide-diphosphate reductase subunit beta
803	 53.45	0	870733..872874	-	713	62317764	nrdE	BruAb2_0865	-	ribonucleotide-diphosphate reductase subunit alpha
804	 56.86	0	872925..873332	-	135	62317765	nrdI	BruAb2_0866	-	ribonucleotide reductase stimulatory protein
805	 56.76	0	873346..873567	-	73	62317766	nrdH	BruAb2_0867	-	NrdH, glutaredoxin-like protein NrdH
806	 59.94	0	873761..874087	+	108	62317767	-	BruAb2_0868	-	hypothetical protein
807	 42.74	-2	874141..874257	-	38	62317768	-	BruAb2_0869	-	hypothetical protein
808	 51.28	-1	876152..876463	-	103	62317769	-	BruAb2_0871	-	hypothetical protein
809	 60.08	0	876886..877932	-	348	62317770	-	BruAb2_0872	-	Gfo/Idh/MocA family oxidoreductase
810	 59.01	0	877941..878750	-	269	62317771	-	BruAb2_0873	-	hypothetical protein
811	 59.28	0	878789..879790	-	333	62317772	-	BruAb2_0874	-	sugar ABC transporter, ATP-binding protein
812	 57.90	0	881681..882946	-	421	62317773	-	BruAb2_0877	-	sugar ABC transporter, periplasmic sugar-binding protein
813	 47.86	-2	883173..883289	+	38	62317774	-	BruAb2_0878	-	hypothetical protein
814	 60.08	0	883297..884313	+	338	62317775	-	BruAb2_0879	-	sugar-binding protein
815	 55.41	0	884368..885078	-	236	62317776	ftrB	BruAb2_0880	-	transcriptional activator FtrB
816	 59.68	0	885368..888172	+	934	62317777	-	BruAb2_0881	-	nitrite extrusion protein
817	 60.59	0	888087..891821	+	1244	62317778	narG	BruAb2_0882	-	NarG, respiratory nitrate reductase, alpha subunit
818	 59.52	0	891848..893386	+	512	62317779	narH	BruAb2_0883	-	NarH, respiratory nitrate reductase, beta subunit
819	 61.02	0	893386..894093	+	235	62317780	narJ	BruAb2_0884	-	NarJ, respiratory nitrate reductase, delta subunit
820	 60.61	0	894104..894829	+	241	62317781	narI	BruAb2_0885	-	NarI, respiratory nitrate reductase, gamma subunit
821	 64.00	+1	894835..895770	+	311	62317782	-	BruAb2_0886	-	peptidyl-prolyl cis-trans isomerase
822	 63.50	+1	895767..896303	+	178	62317783	-	BruAb2_0887	-	hypothetical protein
823	 62.27	+1	896313..896903	-	196	62317784	-	BruAb2_0888	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
824	 60.00	0	898528..899052	+	174	62317785	-	BruAb2_0890	-	hypothetical protein
825	 60.63	0	899043..900020	+	325	62317786	-	BruAb2_0891	-	U32 family peptidase
826	 61.20	0	900023..900955	+	310	62317787	-	BruAb2_0892	-	protease
827	 51.82	-1	901053..901355	-	100	62317788	-	BruAb2_0893	-	hypothetical protein
828	 58.87	0	901382..902227	+	281	62317789	-	BruAb2_0894	-	ABC transporter, ATP binding protein
829	 59.72	0	902224..903015	+	263	62317790	-	BruAb2_0895	-	ABC transporter, permease protein
830	 59.17	0	903041..904081	+	346	62317791	-	BruAb2_0896	-	ABC transporter periplasmic-binding protein
831	 59.74	0	904155..905396	-	413	62317792	-	BruAb2_0897	-	hypothetical protein
832	 51.25	-1	905447..905887	-	146	62317793	-	BruAb2_0898	-	pseudoazurin
833	 61.09	0	906025..906723	-	232	62317794	nnrR	BruAb2_0899	-	NnrR, transcriptional regulator
834	 59.84	0	906838..907818	-	326	62317795	nosX	BruAb2_0900	-	NosX
835	 60.19	0	907830..908369	-	179	62317796	-	BruAb2_0901	-	protein disulfide isomerase NosL
836	 58.48	0	908366..909196	-	276	62317797	nosY	BruAb2_0902	-	NosY, nitrous-oxide reductase, nosY component
837	 59.41	0	909193..910143	-	316	62317798	nosF	BruAb2_0903	-	copper ABC transporter, ATP-binding protein
838	 58.64	0	910181..911575	-	464	62317799	nosD	BruAb2_0904	-	NosD, copper ABC transporter, periplasmic copper-binding protein
839	 56.09	0	911581..913500	-	639	62317800	nosZ	BruAb2_0905	-	nitrous-oxide reductase
840	 58.59	0	913521..915884	-	787	62317801	-	BruAb2_0906	-	transcriptional regulator NosR
841	 53.12	0	915897..916088	-	63	62317802	-	BruAb2_0907	-	hypothetical protein
842	 57.91	0	916435..918285	+	616	62317803	-	BruAb2_0908	-	ABC transporter ATP-binding protein
843	 62.47	+1	918433..918909	+	158	62317804	-	BruAb2_0909	-	hypothetical protein
844	 59.91	0	918906..919571	+	221	62317805	-	BruAb2_0910	-	hypothetical protein
845	 59.56	0	919703..921307	-	534	62317806	-	BruAb2_0911	-	ribitol kinase
846	 57.75	0	921320..922048	-	242	62317807	-	BruAb2_0912	-	ribitol dehydrogenase
847	 59.32	0	922337..923575	-	412	62317808	-	BruAb2_0913	-	sugar ABC transporter permease
848	 56.51	0	924720..925772	-	350	62317809	-	BruAb2_0915	-	sugar ABC transporter periplasmic sugar-binding protein
849	 56.72	0	926173..927228	-	351	62317810	-	BruAb2_0916	-	LacI family sugar-binding transcriptional regulator
850	 57.61	0	927311..928006	-	231	62317811	-	BruAb2_0917	-	Crp/FNR family transcriptional regulator
851	 57.55	0	928107..929027	-	306	62317812	-	BruAb2_0918	-	hypothetical protein
852	 58.71	0	929160..930290	-	376	62317813	-	BruAb2_0919	-	copper-containing nitrite reductase
853	 46.67	-2	930421..930570	-	49	62317814	-	BruAb2_0920	-	hypothetical protein
854	 59.29	0	930646..931269	-	207	62317815	-	BruAb2_0921	-	hypothetical protein
855	 56.41	0	931295..931879	-	194	62317816	-	BruAb2_0922	-	hypothetical protein
856	 56.21	0	931876..933051	-	391	62317817	-	BruAb2_0923	-	hypothetical protein
857	 57.19	0	933175..933501	-	108	62317818	-	BruAb2_0924	-	hypothetical protein
858	 57.95	0	933508..934035	-	175	62317819	-	BruAb2_0925	-	hypothetical protein
859	 60.96	0	934032..935399	-	455	62317820	-	BruAb2_0926	-	hypothetical protein
860	 58.71	0	935435..935635	-	66	62317821	-	BruAb2_0927	-	hypothetical protein
861	 63.35	+1	935900..937801	-	633	62317822	norD	BruAb2_0928	-	NorD protein
862	 61.01	0	937813..938625	-	270	62317823	-	BruAb2_0929	-	CbbQ/NirQ/NorQ/GpvN family protein
863	 57.56	0	938716..940065	-	449	62317824	norB	BruAb2_0930	-	NorB, nitric-oxide reductase, large subunit
864	 59.82	0	940091..940543	-	150	62317825	norC	BruAb2_0931	-	NorC, nitric-oxide reductase, small subunit
57.17	MEAN

4.21	STD DEV
