IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

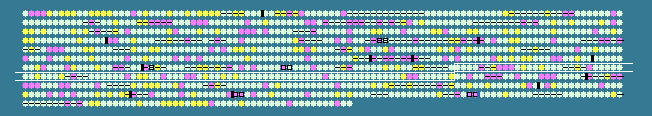

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
673	 59.42	0	730826..732454	-	542	62317634	-	BruAb2_0720	-	putative monovalent cation/H+ antiporter subunit D
674	 59.59	0	732457..732795	-	112	62317635	-	BruAb2_0721	-	putative monovalent cation/H+ antiporter subunit C
675	 57.49	0	732795..735713	-	972	62317636	-	BruAb2_0722	-	putative monovalent cation/H+ antiporter subunit A
676	 58.54	0	736154..737482	-	442	62317637	-	BruAb2_0723	-	hypothetical protein
677	 41.67	-2	737620..737739	-	39	62317638	-	BruAb2_0724	-	hypothetical protein
678	 56.00	0	737806..738405	+	199	62317639	-	BruAb2_0725	-	hypothetical protein
679	 60.69	0	738457..738975	-	172	62317640	mogA	BruAb2_0726	-	molybdenum cofactor biosynthesis protein
680	 48.25	-2	739028..739141	+	37	62317641	-	BruAb2_0727	-	hypothetical protein
681	 48.94	-1	739238..739519	+	93	62317642	-	BruAb2_0728	-	hypothetical protein
682	 50.00	-1	739497..739658	-	53	62317643	-	BruAb2_0729	-	hypothetical protein
683	 59.65	0	739876..740916	+	346	62317644	bioB	BruAb2_0730	-	BioB, biotin synthase
684	 61.04	0	740913..742049	+	378	62317645	bioF	BruAb2_0731	-	8-amino-7-oxononanoate synthase
685	 59.00	0	742046..742684	+	212	62317646	bioD	BruAb2_0732	-	dithiobiotin synthetase
686	 60.08	0	742681..743955	+	424	62317647	bioA	BruAb2_0733	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
687	 61.37	0	743952..744932	+	326	62317648	-	BruAb2_0734	-	3-oxoacyl-(acyl carrier protein) synthase II
688	 56.79	0	745776..746696	+	306	62317649	metA	BruAb2_0737	-	homoserine O-succinyltransferase
689	 55.72	0	747690..749123	+	477	62317650	-	BruAb2_0740	-	amino acid carrier family protein
690	 56.73	0	749170..749340	+	56	62317651	-	BruAb2_0741	-	hypothetical protein
691	 57.05	0	749404..750183	-	259	62317652	-	BruAb2_0742	-	glyoxalase
692	 59.33	0	750465..750914	+	149	62317653	-	BruAb2_0743	-	MarR family transcriptional regulator
693	 61.02	0	750997..752271	+	424	62317654	-	BruAb2_0744	-	pyridine nucleotide-disulphide oxidoreductase family protein
694	 55.27	0	752394..752744	-	116	62317655	-	BruAb2_0745	-	hypothetical protein
695	 51.60	-1	752939..753157	-	72	62317656	-	BruAb2_0746	-	hypothetical protein
696	 56.56	0	753169..753534	-	121	62317657	-	BruAb2_0747	-	hypothetical protein
697	 58.02	0	753858..754574	+	238	62317658	-	BruAb2_0748	-	transcriptional regulatory protein OmpR
698	 56.98	0	754571..755995	+	474	62317659	-	BruAb2_0749	-	osmolarity sensor protein EnvZ
699	 56.76	0	756067..757116	-	349	62317660	-	BruAb2_0750	-	HlyD family secretion protein
700	 57.11	0	757141..758772	-	543	62317661	-	BruAb2_0751	-	transporter
701	 55.62	0	758779..759267	-	162	62317662	-	BruAb2_0752	-	MarR family transcriptional regulator
702	 58.46	0	759614..760636	+	340	62317663	-	BruAb2_0753	-	ABC transporter, periplasmic substrate-binding protein
703	 60.68	0	760682..761449	+	255	62317664	-	BruAb2_0754	-	ABC transporter, ATP-binding protein
704	 60.44	0	761442..762260	+	272	62317665	-	BruAb2_0755	-	taurine ABC transporter permease
705	 59.40	0	762267..762665	-	132	62317666	-	BruAb2_0756	-	hypothetical protein
706	 57.23	0	762703..763836	-	377	62317667	-	BruAb2_0757	-	ABC transporter, permease protein
707	 60.85	0	764771..765715	-	314	62317668	-	BruAb2_0759	-	HlyD family secretion protein
708	 59.31	0	765720..766439	-	239	62317669	-	BruAb2_0760	-	TetR family transcriptional regulator
709	 52.31	-1	766742..766936	-	64	62317670	-	BruAb2_0761	-	hypothetical protein
710	 54.96	0	767024..768082	-	352	62317671	-	BruAb2_0762	-	hypothetical protein
711	 55.08	0	768328..769035	+	235	62317672	-	BruAb2_0763	-	GntR family transcriptional regulator
712	 59.13	0	769058..769495	-	145	62317673	-	BruAb2_0764	-	hypothetical protein
713	 59.80	0	769492..769899	-	135	62317674	-	BruAb2_0765	-	hypothetical protein
714	 54.94	0	769899..770222	-	107	62317675	-	BruAb2_0766	-	ArsR family transcriptional regulator
715	 56.58	0	770535..771476	+	313	62317676	-	BruAb2_0767	-	hypothetical protein
716	 57.78	0	772222..772716	+	164	62317677	def	BruAb2_0768	-	peptide deformylase
717	 57.14	0	772769..774007	-	412	62317678	serA-2	BruAb2_0769	-	D-3-phosphoglycerate dehydrogenase
718	 49.44	-1	774004..774183	-	59	62317679	-	BruAb2_0770	-	hypothetical protein
719	 60.47	0	774231..775214	-	327	62317680	-	BruAb2_0771	-	AraC family transcriptional regulator
720	 62.00	+1	777866..779065	+	399	62317681	phbA-2	BruAb2_0774	-	PhbA-2, acetyl-CoA acetyltransferase
721	 61.44	+1	779056..780183	+	375	62317682	-	BruAb2_0775	-	acyl-CoA dehydrogenase
722	 56.01	0	780184..780624	-	146	62317683	-	BruAb2_0776	-	methionine sulfoxide reductase B
723	 58.78	0	780709..781596	-	295	62317684	-	BruAb2_0777	-	LysR family transcriptional regulator
724	 52.27	-1	786019..786150	-	43	62317685	-	BruAb2_0781	-	hypothetical protein
725	 56.57	0	787198..788445	-	415	62317686	-	BruAb2_0784	-	exopolysaccharide biosynthesis protein Bme11
726	 59.00	0	788455..790644	-	729	62317687	-	BruAb2_0785	-	exopolysaccharide biosynthesis protein Bme12
727	 54.04	0	790681..791448	-	255	62317688	-	BruAb2_0786	-	LuxR family transcriptional regulator
728	 49.41	-1	791811..792569	+	252	62317689	-	BruAb2_0787	-	Crp/FNR family transcriptional regulator
729	 51.81	-1	792570..792845	-	91	62317690	-	BruAb2_0788	-	hypothetical protein
730	 56.64	0	792946..794112	-	388	62317691	-	BruAb2_0789	-	Bme15
731	 61.66	+1	794136..795713	-	525	62317692	-	BruAb2_0790	-	ROK family protein
732	 57.34	0	795873..796601	+	242	62317693	-	BruAb2_0791	-	GntR family transcriptional regulator
733	 57.07	0	796598..798181	+	527	62317694	-	BruAb2_0792	-	peptide ABC transporter, periplasmic peptide-binding protein
734	 61.28	0	799241..800113	+	290	62317695	-	BruAb2_0794	-	peptide ABC transporter, permease protein
735	 59.69	0	800133..801050	+	305	62317696	-	BruAb2_0795	-	dihydrodipicolinate synthase family protein
736	 61.55	+1	801061..802077	+	338	62317697	-	BruAb2_0796	-	peptide ABC transporter, ATP-binding protein
737	 60.06	0	802074..803027	+	317	62317698	-	BruAb2_0797	-	peptide ABC transporter, ATP-binding protein
738	 58.48	0	803100..804089	-	329	62317699	-	BruAb2_0798	-	Gfo/Idh/MocA family oxidoreductase
739	 57.43	0	804077..805072	-	331	62317700	-	BruAb2_0799	-	oxidoreductase
740	 56.29	0	805277..806404	-	375	62317701	-	BruAb2_0800	-	alcohol dehydrogenase, zinc-containing
741	 55.76	0	806467..807630	-	387	62317702	-	BruAb2_0801	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
742	 59.05	0	807722..809152	-	476	62317703	-	BruAb2_0802	-	aldehyde dehydrogenase family protein
743	 59.02	0	809177..810811	-	544	62317704	-	BruAb2_0803	-	GMC family oxidoreductase
744	 59.71	0	810816..811634	-	272	62317705	-	BruAb2_0804	-	shikimate dehydrogenase family protein
745	 59.02	0	811639..812436	-	265	62317706	fabG	BruAb2_0805	-	3-ketoacyl-(acyl-carrier-protein) reductase
746	 56.74	0	812439..813143	-	234	62317707	-	BruAb2_0806	-	branched-chain amino acid ABC transporter, ATP-binding protein
747	 58.74	0	813130..814959	-	609	62317708	-	BruAb2_0807	-	branched-chain amino acid ABC transporter, ATP-binding protein
748	 54.85	0	814956..815852	-	298	62317709	-	BruAb2_0808	-	branched-chain amino acid ABC transporter, permease protein
749	 56.85	0	815901..817112	-	403	62317710	-	BruAb2_0809	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
750	 59.62	0	817196..818203	-	335	62317711	-	BruAb2_0810	-	alcohol dehydrogenase, zinc-containing
751	 50.64	-1	818196..818351	-	51	62317712	-	BruAb2_0811	-	hypothetical protein
752	 54.72	0	818475..819152	+	225	62317713	-	BruAb2_0812	-	GntR family transcriptional regulator
753	 57.99	0	819223..820386	-	387	62317714	-	BruAb2_0813	-	heme-thiolate monooxygenase
754	 54.32	0	820429..820590	-	53	62317715	-	BruAb2_0814	-	hypothetical protein
755	 56.88	0	820829..822034	+	401	62317716	-	BruAb2_0815	-	acetate kinase
756	 57.34	0	822055..824433	+	792	62317717	xfp	BruAb2_0816	-	putative phosphoketolase
757	 59.97	0	824691..826064	-	457	62317718	-	BruAb2_0817	-	hypothetical protein
758	 56.39	0	826085..826921	-	278	62317719	-	BruAb2_0818	-	FTR1 family iron permease
759	 56.64	0	826928..827326	-	132	62317720	-	BruAb2_0819	-	hypothetical protein
760	 55.56	0	827330..827878	-	182	62317721	-	BruAb2_0820	-	membrane antigen
761	 58.61	0	828261..829823	-	520	62317722	guaA	BruAb2_0821	-	bifunctional GMP synthase/glutamine amidotransferase protein
762	 58.61	0	829932..830564	-	210	62317723	-	BruAb2_0822	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
763	 60.31	0	830561..831016	-	151	62317724	-	BruAb2_0823	-	hypothetical protein
764	 62.02	+1	831307..832596	-	429	62317725	-	BruAb2_0824	-	Sun family protein
765	 52.47	-1	832773..833399	-	208	62317726	-	BruAb2_0825	-	disulfide bond formation protein DsbB
766	 47.13	-2	833428..833601	-	57	62317727	-	BruAb2_0826	-	hypothetical protein
767	 57.00	0	833732..835231	-	499	62317728	katA	BruAb2_0827	-	KatA, catalase
768	 55.56	0	835401..836354	+	317	62317729	oxyR	BruAb2_0828	-	transcriptional regulator OxyR
769	 58.89	0	836423..837541	+	372	62317730	-	BruAb2_0829	-	cytochrome c family protein
770	 59.91	0	837701..839194	-	497	62317731	guaB	BruAb2_0830	-	inositol-5-monophosphate dehydrogenase
771	 60.25	0	839389..840744	+	451	62317732	-	BruAb2_0831	-	voltage gated chloride channel family protein
772	 61.61	+1	840866..841873	+	335	62317733	-	BruAb2_0832	-	hypothetical protein
57.17	MEAN

4.21	STD DEV
