IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

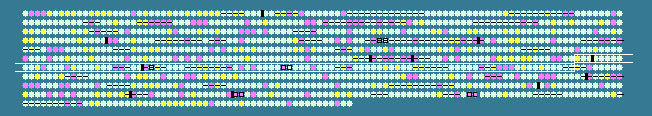

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
593	 61.32	0	641100..641903	-	267	62317554	lipB	BruAb2_0635	-	lipoyltransferase
594	 55.12	0	642031..643407	-	458	62317555	-	BruAb2_0636	-	sensory box protein
595	 59.68	0	643740..644240	+	166	62317556	-	BruAb2_0637	-	hypothetical protein
596	 59.02	0	644744..646156	-	470	62317557	-	BruAb2_0638	-	hypothetical protein
597	 58.00	0	646153..648771	-	872	62317558	-	BruAb2_0639	-	hypothetical protein
598	 59.06	0	648944..649705	+	253	62317559	ccdA	BruAb2_0640	-	CcdA, cytochrome c-type biogenesis protein CdcA
599	 58.97	0	649787..651151	+	454	62317560	glmU	BruAb2_0641	-	GlmU, UDP-N-acetylglucosamine pyrophosphorylase
600	 58.55	0	651255..653078	+	607	62317561	glmS	BruAb2_0642	-	D-fructose-6-phosphate amidotransferase
601	 60.21	0	653233..655353	-	706	62317562	recG	BruAb2_0643	-	RecG, ATP-dependent DNA helicase
602	 54.17	0	655492..655779	+	95	62317563	-	BruAb2_0644	-	hypothetical protein
603	 60.72	0	655790..659302	+	1170	62317564	mfd	BruAb2_0645	-	Mfd, transcription-repair coupling factor
604	 50.00	-1	659374..659793	+	139	62317565	-	BruAb2_0646	-	fosfomycin resistance family protein
605	 58.52	0	659969..660643	-	224	62317566	-	BruAb2_0647	-	hypothetical protein
606	 57.14	0	660822..662669	-	615	62317567	-	BruAb2_0648	-	peptide ABC transporter, periplasmic peptide-binding protein
607	 57.77	0	663014..663631	+	205	62317568	-	BruAb2_0649	-	hypothetical protein
608	 53.69	0	663764..664102	-	112	62317569	-	BruAb2_0650	-	hypothetical protein
609	 61.88	+1	664175..665533	-	452	62317570	ubiH	BruAb2_0651	-	2-octaprenyl-6-methoxyphenyl hydroxylase
610	 55.81	0	665749..666549	+	266	62317571	pcs	BruAb2_0652	-	Pcs, phosphatidylcholine synthase
611	 59.95	0	667626..669188	+	520	62317572	-	BruAb2_0654	-	ABC transporter, ATP-binding protein
612	 57.53	0	669188..670270	+	360	62317573	-	BruAb2_0655	-	ABC transporter, permease protein
613	 61.15	0	670275..671180	+	301	62317574	-	BruAb2_0656	-	ABC transporter, permease protein
614	 55.94	0	671278..672330	+	350	62317575	-	BruAb2_0657	-	bmp family protein
615	 57.61	0	672470..673783	-	437	62317576	-	BruAb2_0658	-	hypothetical protein
616	 53.29	0	673947..674432	-	161	62317577	bfr	BruAb2_0659	-	Bfr, bacterioferritin
617	 45.51	-2	674398..674709	-	103	62317578	-	BruAb2_0660	-	hypothetical protein
618	 54.29	0	675165..675479	-	104	62317579	-	BruAb2_0661	-	hypothetical protein
619	 54.55	0	675596..676057	-	153	62317580	rirA	BruAb2_0662	-	iron-responsive transcriptional regulator
620	 56.43	0	676303..676761	-	152	62317581	-	BruAb2_0663	-	hypothetical protein
621	 41.56	-2	677234..677707	-	157	62317582	-	BruAb2_0664	-	hypothetical protein
622	 60.11	0	678405..678770	+	121	62317583	-	BruAb2_0665	-	transposase orfA ISBm1, interruption-N
623	 60.90	0	678851..679318	+	155	62317584	-	BruAb2_0666	-	hypothetical protein
624	 56.33	0	679282..679668	+	128	62317585	-	BruAb2_0667	-	IS66 family element, orf2
625	 57.44	0	679718..681289	+	523	62317586	-	BruAb2_0668	-	IS66 family element, orf3
626	 58.42	0	681286..681891	+	201	62317587	-	BruAb2_0669	-	IS66 family element, orf4
627	 58.25	0	682834..684057	+	407	62317588	-	BruAb2_0672	-	AraC family transcriptional regulator
628	 60.36	0	684440..685057	-	205	62317589	-	BruAb2_0674	-	hypothetical protein
629	 57.78	0	685054..685998	-	314	62317590	-	BruAb2_0675	-	endoglucanase family protein
630	 61.36	0	686048..686593	-	181	62317591	-	BruAb2_0676	-	hypothetical protein
631	 62.67	+1	686583..688007	-	474	62317592	ugd	BruAb2_0677	-	Ugd, UDP-glucose 6-dehydrogenase
632	 58.48	0	688022..689866	-	614	62317593	-	BruAb2_0678	-	glycosyl transferase, group 2 family protein
633	 61.80	+1	689863..690849	-	328	62317594	galE-2	BruAb2_0679	-	GalE-2, UDP-glucose 4-epimerase
634	 56.11	0	690849..691862	-	337	62317595	-	BruAb2_0680	-	NAD-dependent epimerase/dehydratase family protein
635	 53.33	0	692179..692403	+	74	62317596	-	BruAb2_0681	-	hypothetical protein
636	 59.20	0	692656..693003	+	115	62317597	-	BruAb2_0682	-	hypothetical protein
637	 47.37	-2	693166..693336	+	56	62317598	-	BruAb2_0683	-	hypothetical protein
638	 54.56	0	693430..695007	+	525	62317599	-	BruAb2_0684	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
639	 53.30	0	695117..696694	+	525	62317600	-	BruAb2_0685	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
640	 58.23	0	696909..697832	+	307	62317601	-	BruAb2_0686	-	oligopeptide ABC transporter, permease protein
641	 58.20	0	697825..698958	+	377	62317602	-	BruAb2_0687	-	oligopeptide ABC transporter, permease protein
642	 58.47	0	698960..700570	+	536	62317603	-	BruAb2_0688	-	ABC transporter, ATP-binding protein
643	 57.43	0	700652..701290	+	212	62317604	alkB	BruAb2_0689	-	AlkB, alkylated DNA repair protein
644	 53.25	0	701304..701780	-	158	62317605	-	BruAb2_0690	-	IS711, transposase orfB
645	 58.01	0	701728..702039	-	103	62317606	-	BruAb2_0691	-	transposase orfA
646	 59.19	0	702293..703603	-	436	62317607	-	BruAb2_0692	-	major facilitator family transporter
647	 58.85	0	703850..704872	+	340	62317608	-	BruAb2_0693	-	D-aminopeptidase
648	 59.96	0	705167..707626	+	819	62317609	-	BruAb2_0694	-	cell division protein FtsK
649	 50.20	-1	707807..708061	-	84	62317610	-	BruAb2_0695	-	hypothetical protein
650	 58.48	0	708385..709080	+	231	62317611	-	BruAb2_0696	-	SurF1 family protein
651	 60.10	0	709069..710454	-	461	62317612	lpdA-3	BruAb2_0697	-	dihydrolipoamide dehydrogenase
652	 60.19	0	710468..711763	-	431	62317613	-	BruAb2_0698	-	branched-chain alpha-keto acid dehydrogenase subunit E2
653	 59.76	0	711764..712777	-	337	62317614	-	BruAb2_0699	-	2-oxoisovalerate dehydrogenase E1 component, beta subunit
654	 61.20	0	712881..714068	-	395	62317615	-	BruAb2_0700	-	2-oxoisovalerate dehydrogenase E1 component, alpha subunit
655	 45.24	-2	714365..714616	-	83	62317616	-	BruAb2_0701	-	hypothetical protein
656	 57.78	0	714669..715670	-	333	62317617	-	BruAb2_0702	-	sugar ABC transporter, ATP-binding protein
657	 57.33	0	715700..716770	-	356	62317618	-	BruAb2_0703	-	Gfo/Idh/MocA family oxidoreductase
658	 54.76	0	716767..717606	-	279	62317619	-	BruAb2_0704	-	sugar ABC transporter, permease protein
659	 55.66	0	717619..718563	-	314	62317620	-	BruAb2_0705	-	sugar ABC transporter, permease protein
660	 58.73	0	720192..720380	-	62	62317621	-	BruAb2_0707	-	hypothetical protein
661	 60.81	0	720544..721431	+	295	62317622	-	BruAb2_0708	-	hypothetical protein
662	 60.59	0	721428..722201	+	257	62317623	-	BruAb2_0709	-	GntR family transcriptional regulator
663	 60.90	0	722252..722407	-	51	62317624	ybgT	BruAb2_0710	-	YbgT
664	 58.70	0	722424..723578	-	384	62317625	cydB	BruAb2_0711	-	CydB, cytochrome d ubiquinol oxidase, subunit II
665	 55.70	0	723584..725161	-	525	62317626	cydA	BruAb2_0712	-	CydA, cytochrome d ubiquinol oxidase, subunit I
666	 62.33	+1	725304..726986	-	560	62317627	-	BruAb2_0713	-	ABC transporter, ATP-binding/permease protein
667	 61.31	0	726983..728719	-	578	62317628	cydD	BruAb2_0714	-	CydD, ABC transporter ATP-binding protein
668	 58.46	0	728716..729300	-	194	62317629	-	BruAb2_0715	-	hypothetical protein
669	 57.66	0	729328..729660	-	110	62317630	-	BruAb2_0716	-	hypothetical protein
670	 56.47	0	729677..730039	-	120	62317631	-	BruAb2_0717	-	putative monovalent cation/H+ antiporter subunit G
671	 60.64	0	730036..730317	-	93	62317632	phaF	BruAb2_0718	-	putative monovalent cation/H+ antiporter subunit F
672	 56.40	0	730314..730829	-	171	62317633	-	BruAb2_0719	-	putative monovalent cation/H+ antiporter subunit E
673	 59.42	0	730826..732454	-	542	62317634	-	BruAb2_0720	-	putative monovalent cation/H+ antiporter subunit D
674	 59.59	0	732457..732795	-	112	62317635	-	BruAb2_0721	-	putative monovalent cation/H+ antiporter subunit C
675	 57.49	0	732795..735713	-	972	62317636	-	BruAb2_0722	-	putative monovalent cation/H+ antiporter subunit A
676	 58.54	0	736154..737482	-	442	62317637	-	BruAb2_0723	-	hypothetical protein
677	 41.67	-2	737620..737739	-	39	62317638	-	BruAb2_0724	-	hypothetical protein
678	 56.00	0	737806..738405	+	199	62317639	-	BruAb2_0725	-	hypothetical protein
679	 60.69	0	738457..738975	-	172	62317640	mogA	BruAb2_0726	-	molybdenum cofactor biosynthesis protein
680	 48.25	-2	739028..739141	+	37	62317641	-	BruAb2_0727	-	hypothetical protein
681	 48.94	-1	739238..739519	+	93	62317642	-	BruAb2_0728	-	hypothetical protein
682	 50.00	-1	739497..739658	-	53	62317643	-	BruAb2_0729	-	hypothetical protein
683	 59.65	0	739876..740916	+	346	62317644	bioB	BruAb2_0730	-	BioB, biotin synthase
684	 61.04	0	740913..742049	+	378	62317645	bioF	BruAb2_0731	-	8-amino-7-oxononanoate synthase
685	 59.00	0	742046..742684	+	212	62317646	bioD	BruAb2_0732	-	dithiobiotin synthetase
686	 60.08	0	742681..743955	+	424	62317647	bioA	BruAb2_0733	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
687	 61.37	0	743952..744932	+	326	62317648	-	BruAb2_0734	-	3-oxoacyl-(acyl carrier protein) synthase II
688	 56.79	0	745776..746696	+	306	62317649	metA	BruAb2_0737	-	homoserine O-succinyltransferase
689	 55.72	0	747690..749123	+	477	62317650	-	BruAb2_0740	-	amino acid carrier family protein
690	 56.73	0	749170..749340	+	56	62317651	-	BruAb2_0741	-	hypothetical protein
691	 57.05	0	749404..750183	-	259	62317652	-	BruAb2_0742	-	glyoxalase
692	 59.33	0	750465..750914	+	149	62317653	-	BruAb2_0743	-	MarR family transcriptional regulator
57.17	MEAN

4.21	STD DEV
