IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

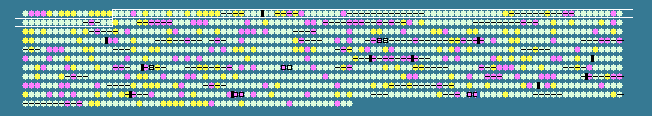

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
16	 58.79	0	14891..16300	+	469	62316977	-	BruAb2_0017	-	enterobactin synthetase subunit F
17	 57.92	0	16348..17136	-	262	62316978	-	BruAb2_0018	-	oxidoreductase, molybdopterin-binding
18	 55.93	0	17133..17942	-	269	62316979	-	BruAb2_0019	-	HupC/HyaC/HydC family protein
19	 51.48	-1	18003..18272	-	89	62316980	-	BruAb2_0020	-	hypothetical protein
20	 60.00	0	18457..18981	+	174	62316981	-	BruAb2_0021	-	ECF subfamily RNA polymerase sigma factor
21	 63.84	+1	18971..19606	+	211	62316982	-	BruAb2_0022	-	hypothetical protein
22	 58.70	0	19652..20392	-	246	62316983	-	BruAb2_0023	-	GntR family transcriptional regulator
23	 55.58	0	20510..21925	+	471	62316984	-	BruAb2_0024	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
24	 57.58	0	21967..22956	+	329	62316985	-	BruAb2_0025	-	branched-chain amino acid ABC transporter, permease protein
25	 61.26	0	22960..24180	+	406	62316986	-	BruAb2_0026	-	branched-chain amino acid ABC transporter, permease protein
26	 58.83	0	24180..24932	+	250	62316987	-	BruAb2_0027	-	branched-chain amino acid ABC transporter, ATP-binding protein
27	 58.58	0	24932..25648	+	238	62316988	-	BruAb2_0028	-	branched-chain amino acid ABC transporter, ATP-binding protein
28	 61.28	0	25700..26182	+	160	62316989	-	BruAb2_0029	-	glyoxalase family protein
29	 59.08	0	26186..26923	+	245	62316990	-	BruAb2_0030	-	3-oxoacyl-ACP reductase
30	 63.35	+1	26941..27693	+	250	62316991	-	BruAb2_0031	-	short chain dehydrogenase/reductase family oxidoreductase
31	 62.37	+1	27803..29992	+	729	62316992	-	BruAb2_0032	-	acetoin dehydrogenase subunit alpha/beta
32	 61.93	+1	30011..31276	+	421	62316993	-	BruAb2_0033	-	branched-chain alpha-keto acid dehydrogenase subunit E2
33	 61.70	+1	31377..32162	+	261	62316994	-	BruAb2_0034	-	shikimate dehydrogenase family protein
34	 59.57	0	32646..32927	-	93	62316995	-	BruAb2_0036	-	hypothetical protein
35	 59.31	0	33041..35758	+	905	62316996	-	BruAb2_0037	-	magnesium ion-transporting ATPase E1-E2 family protein
36	 66.02	+2	35886..36194	+	102	62316997	-	BruAb2_0038	-	hypothetical protein
37	 61.27	0	36325..36528	+	67	62316998	-	BruAb2_0039	-	hypothetical protein
38	 59.27	0	36530..37246	+	238	62316999	-	BruAb2_0040	-	MgtC family protein
39	 57.89	0	37321..38391	+	356	62317000	-	BruAb2_0041	-	sensor histidine kinase
40	 55.24	0	38388..39026	+	212	62317001	-	BruAb2_0042	-	LuxR family DNA-binding response regulator
41	 54.27	0	39412..39774	-	120	62317002	-	BruAb2_0043	-	response regulator
42	 58.36	0	40093..40983	+	296	62317003	-	BruAb2_0044	-	formiminoglutamase
43	 61.13	0	41145..41921	+	258	62317004	-	BruAb2_0045	-	inositol monophosphatase family protein
44	 61.14	0	41972..42967	-	331	62317005	-	BruAb2_0046	-	lysophospholipase L2
45	 48.61	-2	43007..43222	-	71	62317006	-	BruAb2_0047	-	hypothetical protein
46	 62.22	+1	43317..43451	-	44	62317007	-	BruAb2_0048	-	hypothetical protein
47	 53.43	0	43554..43976	+	140	62317008	-	BruAb2_0049	-	hypothetical protein
48	 56.14	0	43973..44200	+	75	62317009	-	BruAb2_0050	-	hypothetical protein
49	 56.05	0	44279..44749	+	156	62317010	ibpA	BruAb2_0051	-	IbpA, 16 kDa heat shock protein A
50	 59.90	0	44887..45936	-	349	62317011	-	BruAb2_0052	-	threonine aldolase
51	 55.79	0	46205..46489	-	94	62317012	-	BruAb2_0053	-	hypothetical protein
52	 60.33	0	46579..51330	+	1583	62317013	gltB	BruAb2_0054	-	GltB, glutamate synthase, large subunit
53	 60.48	0	51412..52866	+	484	62317014	gltD	BruAb2_0055	-	glutamate synthase subunit beta
54	 53.21	0	52911..54314	-	467	62317015	-	BruAb2_0056	-	amino acid permease family protein
55	 58.77	0	54532..55683	-	383	62317016	-	BruAb2_0057	-	hypothetical protein
56	 57.42	0	55934..56452	-	172	62317017	-	BruAb2_0058	-	lipoprotein
57	 58.40	0	56598..57686	-	362	62317018	-	BruAb2_0059	-	type IV secretion system protein VirB11
58	 58.53	0	57667..58833	-	388	62317019	-	BruAb2_0060	-	type IV secretion system protein VirB10
59	 57.59	0	58830..59699	-	289	62317020	-	BruAb2_0061	-	type IV secretion system protein VirB9
60	 55.69	0	59696..60415	-	239	62317021	-	BruAb2_0062	-	type IV secretion system protein VirB8
61	 58.05	0	60418..60591	-	57	62317022	-	BruAb2_0063	-	type IV secretion system protein VirB7
62	 55.56	0	60755..61798	-	347	62317023	-	BruAb2_0064	-	type IV secretion system protein VirB6
63	 56.07	0	61982..62698	-	238	62317024	-	BruAb2_0065	-	type IV secretion system protein VirB5
64	 55.57	0	62703..65198	-	831	62317025	-	BruAb2_0066	-	type IV secretion system protein VirB4
65	 55.27	0	65198..65548	-	116	62317026	-	BruAb2_0067	-	type IV secretion system protein VirB3
66	 56.29	0	65562..65879	-	105	62317027	-	BruAb2_0068	-	type IV secretion system protein VirB2
67	 56.49	0	66315..67031	-	238	62317028	-	BruAb2_0069	-	type IV secretion system protein VirB1
68	 59.32	0	67535..68773	-	412	62317029	-	BruAb2_0070	-	transglycosylase
69	 56.94	0	69173..70066	+	297	62317030	galU	BruAb2_0071	-	GalU, UTP--glucose-1-phosphate uridylyltransferase
70	 60.23	0	70119..71657	-	512	62317031	-	BruAb2_0072	-	hypothetical protein
71	 59.68	0	71798..72799	+	333	62317032	-	BruAb2_0073	-	sugar isomerase, KpsF/GutQ
72	 57.48	0	72906..73373	-	155	62317033	-	BruAb2_0074	-	hypothetical protein
73	 58.97	0	73394..74380	-	328	62317034	-	BruAb2_0075	-	SPFH domain-containing protein/band 7 family protein
74	 58.07	0	74513..75571	-	352	62317035	hemH	BruAb2_0076	-	ferrochelatase
75	 60.37	0	75709..76089	-	126	62317036	omp10	BruAb2_0077	-	lipoprotein Omp10
76	 58.23	0	76231..77676	-	481	62317037	-	BruAb2_0078	-	homospermidine synthase
77	 59.47	0	77788..78468	-	226	62317038	-	BruAb2_0079	-	hypothetical protein
78	 59.23	0	78402..79571	-	389	62317039	-	BruAb2_0080	-	para-aminobenzoate synthase component I
79	 56.90	0	79581..81443	-	620	62317040	pepF	BruAb2_0081	-	PepF, oligoendopeptidase F
80	 59.56	0	81791..83281	+	496	62317041	-	BruAb2_0082	-	sigma-54 dependent DNA-binding response regulator
81	 64.05	+1	83622..85535	+	637	62317042	-	BruAb2_0083	-	hypothetical protein
82	 61.50	+1	85601..86239	-	212	62317043	-	BruAb2_0084	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
83	 60.38	0	86398..86922	-	174	62317044	-	BruAb2_0085	-	hypothetical protein
84	 57.41	0	87140..88057	+	305	62317045	-	BruAb2_0086	-	rhodanese family protein
85	 55.07	0	88092..88298	+	68	62317046	-	BruAb2_0087	-	hypothetical protein
86	 56.48	0	88338..89093	+	251	62317047	modA	BruAb2_0088	-	ModeA, molybdenum ABC transporter, periplasmic molybdenum-binding protein
87	 59.97	0	89104..89790	+	228	62317048	modB	BruAb2_0089	-	molybdate ABC transporter permease protein
88	 61.48	+1	89787..90866	+	359	62317049	modC	BruAb2_0090	-	ModC, molybdenum ABC transporter, ATP-binding protein
89	 56.05	0	90936..91613	+	225	62317050	-	BruAb2_0091	-	acetyltransferase
90	 55.24	0	91600..91809	+	69	62317051	-	BruAb2_0092	-	hypothetical protein
91	 46.15	-2	91901..92056	+	51	62317052	-	BruAb2_0093	-	hypothetical protein
92	 33.73	-2	92106..92609	-	167	62317053	-	BruAb2_0094	-	hypothetical protein
93	 59.51	0	92751..93854	-	367	62317054	-	BruAb2_0095	-	hypothetical protein
94	 54.33	0	93854..94558	-	234	62317055	-	BruAb2_0096	-	hypothetical protein
95	 59.73	0	94598..95491	-	297	62317056	-	BruAb2_0097	-	LysR family transcriptional regulator
96	 60.53	0	95495..96700	-	401	62317057	-	BruAb2_0098	-	amidase
97	 60.23	0	97285..98418	+	377	62317058	-	BruAb2_0099	-	ornithine/DAP/arginine decarboxylase family decarboxylase 2
98	 59.74	0	98494..100212	-	572	62317059	-	BruAb2_0100	-	polysaccharide accessory transport protein
99	 38.41	-2	100229..100366	-	45	62317060	-	BruAb2_0101	-	hypothetical protein
100	 55.21	0	100338..101201	-	287	62317061	-	BruAb2_0102	-	hypothetical protein
101	 56.42	0	101959..103149	-	396	62317062	-	BruAb2_0104	-	hypothetical protein
102	 54.08	0	103285..104277	+	330	62317063	-	BruAb2_0105	-	glycosyl transferase, group 2 family protein
103	 56.33	0	104285..105571	+	428	62317064	-	BruAb2_0106	-	exopolysaccharide production protein
104	 56.82	0	105585..106721	+	378	62317065	-	BruAb2_0107	-	Gfo/Idh/MocA family oxidoreductase
105	 58.10	0	106718..107767	-	349	62317066	-	BruAb2_0108	-	Gfo/Idh/MocA family oxidoreductase
106	 60.00	0	108084..109493	+	469	62317067	gnd	BruAb2_0109	-	6-phosphogluconate dehydrogenase
107	 59.04	0	109589..110650	-	353	62317068	-	BruAb2_0110	-	spermidine/putrescine ABC transporter, ATP-binding protein
108	 55.31	0	110656..111474	-	272	62317069	-	BruAb2_0111	-	spermidine/putrescine ABC transporter permease
109	 57.05	0	111471..112364	-	297	62317070	-	BruAb2_0112	-	spermidine/putrescine ABC transporter permease
110	 59.06	0	112573..113676	-	367	62317071	-	BruAb2_0113	-	ABC transporter, periplasmic substrate-binding protein
111	 57.80	0	116766..117509	+	247	62317072	-	BruAb2_0116	-	TetR family transcriptional regulator
112	 53.33	0	117783..118562	+	259	62317073	-	BruAb2_0117	-	LuxR family transcriptional regulator
113	 54.41	0	118528..119049	-	173	62317074	-	BruAb2_0118	-	hypothetical protein
114	 60.04	0	119169..120239	-	356	62317075	flhB	BruAb2_0119	-	flagellar biosynthesis protein FlhB
115	 57.94	0	121245..121565	-	106	62317076	-	BruAb2_0121	-	flagellar motor switch protein FliN
57.17	MEAN

4.21	STD DEV
