IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

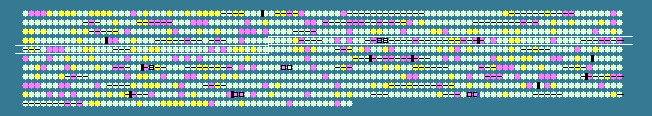

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
342	 57.52	0	362606..363370	-	254	62317303	-	BruAb2_0364	-	DeoR family transcriptional regulator
343	 59.83	0	363458..364408	-	316	62317304	eryD	BruAb2_0365	-	erythritol transcriptional regulator
344	 58.84	0	364436..365368	-	310	62317305	eryC	BruAb2_0366	-	EryC, D-erythrulose-1-phosphate dehydrogenase
345	 60.44	0	365376..366884	-	502	62317306	eryB	BruAb2_0367	-	glycerol-3-phosphate dehydrogenase
346	 62.70	+1	366897..368459	-	520	62317307	eryA	BruAb2_0368	-	EryA, erythritol kinase
347	 50.33	-1	368443..368595	-	50	62317308	-	BruAb2_0369	-	hypothetical protein
348	 58.45	0	369193..369849	+	218	62317309	-	BruAb2_0370	-	hypothetical protein
349	 59.03	0	369846..371390	+	514	62317310	rbsA-3	BruAb2_0371	-	RbsA-3, ribose ABC transporter, ATP-binding protein
350	 59.85	0	371414..372454	+	346	62317311	rbsC-3	BruAb2_0372	-	ribose ABC transporter, permease protein
351	 57.28	0	372621..373568	+	315	62317312	rbsB-2	BruAb2_0373	-	RbsB-2, ribose ABC transporter, periplasmic D-ribose-binding protein
352	 58.66	0	373749..374597	+	282	62317313	-	BruAb2_0374	-	DeoR family transcriptional regulator
353	 36.46	-2	374889..374984	-	31	62317314	-	BruAb2_0375	-	hypothetical protein
354	 58.50	0	376661..377995	+	444	62317315	-	BruAb2_0377	-	oxidoreductase, FAD-binding
355	 53.33	0	378027..378446	+	139	62317316	-	BruAb2_0378	-	hypothetical protein
356	 55.69	0	378495..379505	+	336	62317317	-	BruAb2_0379	-	epimerase/dehydratase family protein
357	 57.66	0	379516..380970	+	484	62317318	-	BruAb2_0380	-	aminotransferase, class III
358	 53.91	0	382929..383375	-	148	62317319	-	BruAb2_0382	-	hypothetical protein
359	 42.96	-2	383637..383771	+	44	62317320	-	BruAb2_0383	-	hypothetical protein
360	 53.56	0	383785..384219	-	144	62317321	-	BruAb2_0384	-	IS711, transposase orfB
361	 58.33	0	384209..384520	-	103	62317322	-	BruAb2_0385	-	IS711 orfA transposase
362	 54.85	0	385055..386950	-	631	62317323	-	BruAb2_0386	-	hypothetical protein
363	 57.63	0	386937..387866	-	309	62317324	-	BruAb2_0387	-	hypothetical protein
364	 57.76	0	387874..388614	-	246	62317325	-	BruAb2_0388	-	hypothetical protein
365	 59.36	0	388611..391580	-	989	62317326	hsdR	BruAb2_0389	-	HsdR, type I restriction-modification enzyme, R subunit
366	 52.61	-1	391577..392800	-	407	62317327	hsdS	BruAb2_0390	-	HsdS, type I restriction-modification system, S subunit
367	 55.66	0	392790..394316	-	508	62317328	hsdM	BruAb2_0391	-	HsdM, type I restriction-modification system, M subunit
368	 59.40	0	394324..394956	-	210	62317329	-	BruAb2_0392	-	hypothetical protein
369	 58.87	0	395117..395257	+	46	62317330	-	BruAb2_0393	-	hypothetical protein
370	 54.17	0	395481..395768	+	95	62317331	-	BruAb2_0394	-	hypothetical protein
371	 58.33	0	396051..396206	-	51	62317332	-	BruAb2_0395	-	hypothetical protein
372	 62.34	+1	396275..396505	+	76	62317333	-	BruAb2_0396	-	hypothetical protein
373	 60.68	0	396769..396885	-	38	62317334	-	BruAb2_0397	-	hypothetical protein
374	 52.50	-1	397024..397524	+	166	62317335	-	BruAb2_0398	-	hypothetical protein
375	 56.15	0	397531..398253	-	240	62317336	-	BruAb2_0399	-	hypothetical protein
376	 52.15	-1	398231..398788	-	185	62317337	-	BruAb2_0400	-	hypothetical protein
377	 47.83	-2	399112..399249	-	45	62317338	-	BruAb2_0401	-	hypothetical protein
378	 58.00	0	399308..400276	-	322	62317339	-	BruAb2_0402	-	2-nitropropane dioxygenase family protein
379	 48.15	-2	400423..400584	+	53	62317340	-	BruAb2_0403	-	hypothetical protein
380	 56.99	0	400782..401804	+	340	62317341	-	BruAb2_0404	-	hypothetical protein
381	 54.42	0	401900..402046	+	48	62317342	-	BruAb2_0405	-	hypothetical protein
382	 60.99	0	402056..404611	+	851	62317343	-	BruAb2_0406	-	DEAD-box ATP dependent DNA helicase
383	 62.06	+1	404608..405324	+	238	62317344	-	BruAb2_0407	-	hypothetical protein
384	 56.57	0	405422..406213	-	263	62317345	-	BruAb2_0408	-	hypothetical protein
385	 57.62	0	406248..407198	-	316	62317346	-	BruAb2_0409	-	hypothetical protein
386	 60.32	0	407492..410233	-	913	62317347	-	BruAb2_0410	-	peptidoglycan-binding protein
387	 55.07	0	410232..410369	+	45	62317348	-	BruAb2_0411	-	hypothetical protein
388	 59.09	0	410663..411058	+	131	62317349	-	BruAb2_0412	-	MerR family transcriptional regulator
389	 52.50	-1	411113..411472	-	119	62317350	-	BruAb2_0413	-	hypothetical protein
390	 56.28	0	411488..411901	-	137	62317351	-	BruAb2_0414	-	CrcB family protein
391	 55.72	0	411898..412299	-	133	62317352	-	BruAb2_0415	-	CrcB family protein
392	 55.72	0	417030..418235	-	401	62317353	uxuA	BruAb2_0418	-	mannonate dehydratase
393	 55.94	0	418296..419069	-	257	62317354	-	BruAb2_0419	-	GntR family transcriptional regulator
394	 55.27	0	420803..422302	+	499	62317355	-	BruAb2_0421	-	D-mannonate oxidoreductase
395	 55.25	0	422462..423643	+	393	62317356	-	BruAb2_0422	-	ABC transporter, periplasmic substrate-binding protein
396	 54.33	0	423688..424773	+	361	62317357	-	BruAb2_0423	-	ABC transporter, ATP-binding protein
397	 53.56	0	424782..425681	+	299	62317358	-	BruAb2_0424	-	ABC transporter, membrane spanning protein
398	 53.14	0	425682..426524	+	280	62317359	-	BruAb2_0425	-	ABC transporter, permease protein
399	 55.92	0	426602..428146	+	514	62317360	-	BruAb2_0426	-	UxaA family hydrolase
400	 53.38	0	428157..428555	-	132	62317361	-	BruAb2_0427	-	nickel responsive regulator
401	 59.26	0	430405..431349	+	314	62317362	nikB	BruAb2_0429	-	nickel transporter permease NikB
402	 60.82	0	431346..432218	+	290	62317363	nikC	BruAb2_0430	-	nickel transporter permease NikC
403	 59.06	0	432215..433003	+	262	62317364	nikD	BruAb2_0431	-	nickel transporter ATP-binding protein
404	 57.43	0	433000..433800	+	266	62317365	nikE	BruAb2_0432	-	nickel transporter ATP-binding protein
405	 51.24	-1	433933..435099	-	388	62317366	-	BruAb2_0433	-	acyl-CoA dehydrogenase family protein
406	 48.75	-1	436583..436861	+	92	62317367	-	BruAb2_0435	-	hypothetical protein
407	 49.51	-1	436858..437061	+	67	62317368	-	BruAb2_0436	-	hypothetical protein
408	 58.31	0	437036..438829	+	597	62317369	-	BruAb2_0437	-	acyl-CoA dehydrogenase family protein
409	 60.55	0	438894..440102	+	402	62317370	-	BruAb2_0438	-	acetyl-CoA acetyltransferase
410	 57.78	0	440118..442334	+	738	62317371	fadB	BruAb2_0439	-	FadB, fatty oxidation complex, alpha subunit
411	 61.64	+1	442572..443228	+	218	62317372	-	BruAb2_0440	-	S24 family peptidase
412	 62.60	+1	443229..444188	+	319	62317373	-	BruAb2_0441	-	hypothetical protein
413	 56.94	0	444276..445931	-	551	62317374	lysK	BruAb2_0442	-	lysyl-tRNA synthetase
414	 56.69	0	446126..446536	+	136	62317375	-	BruAb2_0443	-	hypothetical protein
415	 55.61	0	446598..447257	-	219	62317376	-	BruAb2_0444	-	carbonic anhydrase
416	 56.52	0	447406..447750	-	114	62317377	-	BruAb2_0445	-	hypothetical protein
417	 57.25	0	448105..449718	+	537	62317378	-	BruAb2_0446	-	peptide peptide ABC transporter, periplasmic peptide-binding protein
418	 59.56	0	449736..450734	+	332	62317379	-	BruAb2_0447	-	peptide ABC transporter, permease protein
419	 61.61	+1	450731..451561	+	276	62317380	-	BruAb2_0448	-	peptide ABC transporter, permease protein
420	 60.17	0	453148..453963	-	271	62317381	proC	BruAb2_0450	-	pyrroline-5-carboxylate reductase
421	 59.11	0	454284..455183	+	299	62317382	folD	BruAb2_0451	-	FolD bifunctional protein
422	 61.29	0	455275..457098	-	607	62317383	-	BruAb2_0452	-	phosphogluconate dehydratase
423	 61.09	0	457134..457832	-	232	62317384	-	BruAb2_0453	-	6-phosphogluconolactonase
424	 60.50	0	457961..459436	-	491	62317385	zwf	BruAb2_0454	-	glucose-6-phosphate 1-dehydrogenase
425	 59.47	0	459707..460456	+	249	62317386	-	BruAb2_0455	-	3-ketoacyl-(acyl-carrier-protein) reductase
426	 59.90	0	460545..462008	-	487	62317387	-	BruAb2_0456	-	multi-drug resistance efflux protein
427	 59.33	0	462031..462330	-	99	62317388	-	BruAb2_0457	-	hypothetical protein
428	 59.38	0	462327..463067	-	246	62317389	-	BruAb2_0458	-	AzlC family protein
429	 54.62	0	463443..463907	+	154	62317390	-	BruAb2_0459	-	AsnC family transcriptional regulator
430	 56.62	0	465253..465690	+	145	62317391	-	BruAb2_0461	-	MarR family transcriptional regulator
431	 59.52	0	465701..466987	-	428	62317392	-	BruAb2_0462	-	D-amino acid oxidase family protein
432	 49.04	-1	467041..467403	-	120	62317393	-	BruAb2_0463	-	hypothetical protein
433	 58.14	0	467463..468893	-	476	62317394	-	BruAb2_0464	-	glutamine synthetase family protein
434	 51.37	-1	468897..469151	-	84	62317395	-	BruAb2_0465	-	hypothetical protein
435	 58.42	0	469145..469447	-	100	62317396	-	BruAb2_0466	-	hypothetical protein
436	 61.09	0	469614..470582	+	322	62317397	-	BruAb2_0467	-	LysR family transcriptional regulator
437	 64.26	+1	470651..472186	+	511	62317398	xseA	BruAb2_0468	-	exodeoxyribonuclease VII large subunit
438	 58.73	0	472252..473625	-	457	62317399	-	BruAb2_0469	-	glutamate--cysteine ligase
439	 61.59	+1	473725..474453	-	242	62317400	-	BruAb2_0470	-	hypothetical protein
440	 56.50	0	474721..475143	+	140	62317401	-	BruAb2_0471	-	MarR family transcriptional regulator
441	 58.86	0	475211..477298	+	695	62317402	-	BruAb2_0472	-	hypothetical protein
57.17	MEAN

4.21	STD DEV
