IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

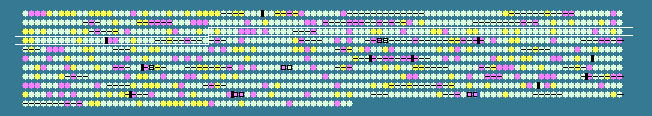

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
232	 57.07	0	243569..244339	-	256	62317193	-	BruAb2_0248	-	creatinine amidohydrolase
233	 61.08	0	245156..246175	+	339	62317194	-	BruAb2_0250	-	transcriptional regulator
234	 59.18	0	246261..247235	+	324	62317195	-	BruAb2_0251	-	glycerate dehydrogenase
235	 59.69	0	247337..248110	-	257	62317196	-	BruAb2_0252	-	glutamine amidotransferase, class I
236	 60.27	0	248345..249094	+	249	62317197	-	BruAb2_0253	-	2-deoxy-d-gluconate 3-dehydrogenase
237	 50.35	-1	249075..249215	+	46	62317198	-	BruAb2_0254	-	hypothetical protein
238	 52.30	-1	252009..253226	+	405	62317199	-	BruAb2_0256	-	hypothetical protein
239	 51.35	-1	253280..253390	+	36	62317200	-	BruAb2_0257	-	hypothetical protein
240	 56.22	0	253498..254244	+	248	62317201	-	BruAb2_0258	-	hypothetical protein
241	 51.56	-1	254448..254672	+	74	62317202	-	BruAb2_0259	-	hypothetical protein
242	 60.33	0	254896..256173	+	425	62317203	pntA	BruAb2_0260	-	PntA, NAD(P) transhydrogenase, alpha subunit
243	 57.86	0	256173..256592	+	139	62317204	pntAB	BruAb2_0261	-	PntAB, NAD(P) transhydrogenase, alpha2 subunit
244	 59.31	0	256605..258005	+	466	62317205	pntB	BruAb2_0262	-	PntB, NAD(P) transhydrogenase, beta subunit
245	 60.21	0	258107..259423	-	438	62317206	-	BruAb2_0263	-	oxidoreductase
246	 59.38	0	259619..260290	+	223	62317207	-	BruAb2_0264	-	HAD superfamily hydrolase
247	 57.86	0	260365..260841	+	158	62317208	-	BruAb2_0265	-	nodulation protein N
248	 59.65	0	262464..262691	+	75	62317209	rpsU	BruAb2_0267	-	30S ribosomal protein S21
249	 46.30	-2	262965..263126	-	53	62317210	-	BruAb2_0268	-	hypothetical protein
250	 56.42	0	263220..264107	+	295	62317211	-	BruAb2_0269	-	TPR domain-containing protein
251	 58.58	0	264199..264606	+	135	62317212	-	BruAb2_0270	-	glyoxalase family protein
252	 59.91	0	264619..265284	-	221	62317213	-	BruAb2_0271	-	ABC transporter, permease protein
253	 59.30	0	265265..266323	-	352	62317214	-	BruAb2_0272	-	ABC transporter, ATP-binding protein
254	 56.99	0	266788..267624	-	278	62317215	-	BruAb2_0273	-	YaeC family lipoprotein
255	 46.53	-2	267718..267861	-	47	62317216	-	BruAb2_0274	-	hypothetical protein
256	 59.54	0	267858..269456	-	532	62317217	-	BruAb2_0275	-	GMC family oxidoreductase
257	 57.52	0	269520..270503	-	327	62317218	-	BruAb2_0276	-	branched-chain amino acid ABC transporter, permease protein
258	 59.35	0	270505..271392	-	295	62317219	-	BruAb2_0277	-	branched-chain amino acid ABC transporter, permease protein
259	 60.74	0	271397..272122	-	241	62317220	-	BruAb2_0278	-	branched-chain amino acid ABC transporter ATP-binding protein
260	 61.27	0	272115..272930	-	271	62317221	-	BruAb2_0279	-	branched-chain amino acid ABC transporter, ATP-binding protein
261	 58.46	0	272943..274148	-	401	62317222	-	BruAb2_0280	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
262	 58.36	0	274413..275327	+	304	62317223	-	BruAb2_0281	-	LysR family transcriptional regulator
263	 59.86	0	275543..275983	-	146	62317224	-	BruAb2_0282	-	AsnC family transcriptional regulator
264	 52.78	-1	275997..276140	+	47	62317225	-	BruAb2_0283	-	hypothetical protein
265	 59.99	0	276234..279305	+	1023	62317226	-	BruAb2_0284	-	hypothetical protein
266	 58.53	0	279409..280428	+	339	62317227	-	BruAb2_0285	-	amino acid ABC transporter, periplasmic amino acid-binding protein
267	 60.05	0	280459..282015	-	518	62317228	-	BruAb2_0286	-	D-aminopeptidase
268	 54.76	0	282040..282207	-	55	62317229	-	BruAb2_0287	-	hypothetical protein
269	 61.45	+1	282431..284116	+	561	62317230	-	BruAb2_0288	-	acetolactate synthase 2 catalytic subunit
270	 61.98	+1	284129..284854	-	241	62317231	-	BruAb2_0289	-	GntR family transcriptional regulator
271	 52.04	-1	284879..285172	-	97	62317232	-	BruAb2_0290	-	hypothetical protein
272	 58.61	0	285442..286434	+	330	62317233	-	BruAb2_0291	-	hypothetical protein
273	 60.04	0	286443..287378	+	311	62317234	-	BruAb2_0292	-	D-galactose 1-dehydrogenase
274	 58.53	0	287475..289280	+	601	62317235	-	BruAb2_0293	-	dihydroxy-acid dehydratase
275	 62.04	+1	289295..290224	+	309	62317236	dgoK	BruAb2_0294	-	DgoK, 2-dehydro-3-deoxygalactonokinase
276	 60.82	0	290221..290853	+	210	62317237	-	BruAb2_0295	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
277	 56.04	0	292208..293797	+	529	62317238	-	BruAb2_0297	-	sugar ABC transporter, ATP-binding protein
278	 57.18	0	293797..294987	+	396	62317239	-	BruAb2_0298	-	sugar ABC transporter, permease protein
279	 57.48	0	295138..296019	-	293	62317240	-	BruAb2_0299	-	D-amino acid aminotransferase
280	 58.01	0	296107..296730	-	207	62317241	-	BruAb2_0300	-	hypothetical protein
281	 61.05	0	296737..298410	-	557	62317242	hutU	BruAb2_0301	-	urocanate hydratase
282	 58.55	0	298421..299221	-	266	62317243	hutG	BruAb2_0302	-	HutG, formiminoglutamase
283	 61.59	+1	299223..300758	-	511	62317244	hutH	BruAb2_0303	-	histidine ammonia-lyase
284	 59.85	0	300783..302000	-	405	62317245	hutI	BruAb2_0304	-	imidazolonepropionase
285	 59.05	0	302131..303495	+	454	62317246	-	BruAb2_0305	-	N-formimino-L-glutamate deiminase
286	 59.54	0	303507..304250	+	247	62317247	hutC	BruAb2_0306	-	HutC, histidine utilization repressor
287	 59.89	0	304321..305649	-	442	62317248	-	BruAb2_0307	-	beta alanine--pyruvate transaminase
288	 59.74	0	305795..306343	+	182	62317249	-	BruAb2_0308	-	transcriptional regulator
289	 61.15	0	306386..307636	-	416	62317250	dadA	BruAb2_0309	-	D-amino acid dehydrogenase small subunit
290	 58.50	0	307652..308851	-	399	62317251	alr	BruAb2_0310	-	Alr, alanine racemase
291	 59.40	0	309092..309559	+	155	62317252	-	BruAb2_0311	-	alanine catabolic operon transcriptional regulator
292	 56.37	0	309707..310561	-	284	62317253	-	BruAb2_0312	-	outer surface protein
293	 58.12	0	310840..311985	-	381	62317254	lldD	BruAb2_0313	-	LldD, L-lactate dehydrogenase
294	 60.14	0	312190..314502	+	770	62317255	-	BruAb2_0314	-	oxidoreductase
295	 60.14	0	314499..314789	+	96	62317256	-	BruAb2_0315	-	hypothetical protein
296	 43.06	-2	314805..315020	+	71	62317257	-	BruAb2_0316	-	hypothetical protein
297	 59.34	0	315075..316193	+	372	62317258	-	BruAb2_0317	-	HlyD family secretion protein
298	 58.08	0	317206..320280	+	1024	62317259	-	BruAb2_0319	-	AcrB/AcrD/AcrF multidrug efflux protein
299	 62.40	+1	320425..321150	+	241	62317260	-	BruAb2_0320	-	GntR family transcriptional regulator
300	 58.43	0	321153..322184	+	343	62317261	nagB	BruAb2_0321	-	NagB, glucosamine-fructose-6-phosphate aminotransferase
301	 62.38	+1	322181..323347	+	388	62317262	nagA	BruAb2_0322	-	NagA, N-acetylglucosamine-6-phosphate deacetylase
302	 61.45	+1	323355..324083	+	242	62317263	-	BruAb2_0323	-	hypothetical protein
303	 55.14	0	324227..325111	+	294	62317264	purU	BruAb2_0324	-	formyltetrahydrofolate deformylase
304	 60.15	0	325335..326837	-	500	62317265	-	BruAb2_0325	-	aldehyde dehydrogenase family protein
305	 59.89	0	326911..328311	-	466	62317266	-	BruAb2_0326	-	hypothetical protein
306	 56.70	0	328459..329391	+	310	62317267	-	BruAb2_0327	-	LysR family transcriptional regulator
307	 59.35	0	329491..330774	+	427	62317268	-	BruAb2_0328	-	oxidoreductase
308	 54.69	0	333380..333688	+	102	62317269	-	BruAb2_0330	-	ArsR family transcriptional regulator
309	 58.96	0	333732..334847	+	371	62317270	-	BruAb2_0331	-	oxidoreductase, FMN-binding
310	 60.96	0	334885..335322	-	145	62317271	-	BruAb2_0332	-	AsnC family transcriptional regulator
311	 59.83	0	335453..336373	+	306	62317272	rocF	BruAb2_0333	-	RocF, arginase
312	 56.82	0	336412..337488	+	358	62317273	arcB	BruAb2_0334	-	ornithine cyclodeaminase
313	 55.63	0	337501..337926	-	141	62317274	-	BruAb2_0335	-	hypothetical protein
314	 53.92	0	337998..338507	+	169	62317275	-	BruAb2_0336	-	hypothetical protein
315	 51.04	-1	338722..338913	+	63	62317276	-	BruAb2_0337	-	hypothetical protein
316	 52.12	-1	338921..339463	+	180	62317277	-	BruAb2_0338	-	hypothetical protein
317	 60.10	0	339696..340685	+	329	62317278	trx-2	BruAb2_0339	-	Trx-2, thioredoxin
318	 57.59	0	340749..341453	+	234	62317279	-	BruAb2_0340	-	ATP-dependent protease La
319	 61.54	+1	341630..341824	+	64	62317280	-	BruAb2_0341	-	hypothetical protein
320	 59.84	0	342124..343236	+	370	62317281	leuB	BruAb2_0342	-	3-isopropylmalate dehydrogenase
321	 58.31	0	343377..344429	+	350	62317282	-	BruAb2_0343	-	Ada family regulatory protein
322	 58.93	0	344487..346385	-	632	62317283	-	BruAb2_0344	-	major facilitator family transporter
323	 56.91	0	346908..347942	+	344	62317284	asd	BruAb2_0345	-	aspartate-semialdehyde dehydrogenase
324	 58.55	0	348006..348461	-	151	62317285	-	BruAb2_0346	-	MarR family transcriptional regulator
325	 62.88	+1	348667..349089	+	140	62317286	ohr	BruAb2_0347	-	Ohr, organic hydroperoxide resistance protein
326	 54.85	0	349140..349562	-	140	62317287	-	BruAb2_0348	-	hypothetical protein
327	 56.27	0	349648..350253	-	201	62317288	leuD	BruAb2_0349	-	isopropylmalate isomerase small subunit
328	 50.24	-1	350318..350524	-	68	62317289	-	BruAb2_0350	-	hypothetical protein
329	 60.50	0	350678..351553	+	291	62317290	-	BruAb2_0351	-	citrate lyase beta chain
330	 55.56	0	351571..351777	+	68	62317291	-	BruAb2_0352	-	hypothetical protein
331	 59.04	0	351777..352130	+	117	62317292	-	BruAb2_0353	-	glyoxalase family protein
57.17	MEAN

4.21	STD DEV
