IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

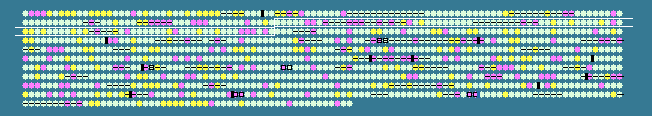

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.17 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome II, complete sequence - 1..1162204
1055 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
143	 59.83	0	143850..144332	+	160	62317104	flgA	BruAb2_0151	-	flagellar basal body P-ring biosynthesis protein FlgA
144	 58.29	0	145699..146259	+	186	62317105	-	BruAb2_0153	-	hypothetical protein
145	 60.11	0	146268..146984	+	238	62317106	flgH	BruAb2_0154	-	flagellar basal body L-ring protein
146	 60.57	0	146997..147488	+	163	62317107	-	BruAb2_0155	-	flagellar protein FliL
147	 57.89	0	147485..148225	+	246	62317108	fliP	BruAb2_0156	-	flagellar biosynthesis protein FliP
148	 50.30	-1	148320..148814	+	164	62317109	-	BruAb2_0157	-	hypothetical protein
149	 52.76	-1	148827..149243	+	138	62317110	-	BruAb2_0158	-	hypothetical protein
150	 57.40	0	149439..150323	-	294	62317111	-	BruAb2_0159	-	LysR family transcriptional regulator
151	 43.94	-2	150375..150506	+	43	62317112	-	BruAb2_0160	-	hypothetical protein
152	 58.29	0	150503..151720	+	405	62317113	-	BruAb2_0161	-	CAIB/BAIF family protein
153	 58.54	0	151788..152624	+	278	62317114	-	BruAb2_0162	-	hypothetical protein
154	 59.39	0	152618..153442	+	274	62317115	-	BruAb2_0163	-	citrate lyase subunit beta
155	 39.05	-2	153637..153741	-	34	62317116	-	BruAb2_0164	-	hypothetical protein
156	 50.78	-1	153892..154470	+	192	62317117	-	BruAb2_0165	-	cytochrome b561
157	 44.89	-2	154969..155193	+	74	62317118	-	BruAb2_0166	-	hypothetical protein
158	 58.02	0	155260..155664	+	134	62317119	-	BruAb2_0167	-	hypothetical protein
159	 59.34	0	155799..161750	+	1983	62317120	-	BruAb2_0168	-	outermembrane transporter
160	 50.51	-1	162525..162920	+	131	62317121	cycA	BruAb2_0169	-	CycA, cytochrome c2
161	 57.08	0	163144..163383	-	79	62317122	-	BruAb2_0170	-	hypothetical protein
162	 53.62	0	163813..163950	+	45	62317123	-	BruAb2_0171	-	hypothetical protein
163	 60.15	0	164028..164840	-	270	62317124	-	BruAb2_0172	-	GntR family transcriptional regulator
164	 61.35	0	164962..165882	-	306	62317125	-	BruAb2_0173	-	LysR family transcriptional regulator
165	 50.83	-1	166042..166161	-	39	62317126	-	BruAb2_0174	-	hypothetical protein
166	 59.72	0	166233..167729	+	498	62317127	glcD	BruAb2_0175	-	GlcD, glycolate oxidase, subunit GlcD
167	 62.69	+1	167745..168977	+	410	62317128	glcE	BruAb2_0176	-	glycolate oxidase, subunit GlcE
168	 59.52	0	168982..170283	+	433	62317129	glcF	BruAb2_0177	-	glycolate oxidase, iron-sulfur subunit
169	 55.31	0	170506..171333	-	275	62317130	-	BruAb2_0178	-	aldo/keto reductase family oxidoreductase
170	 60.09	0	171659..172342	-	227	62317131	-	BruAb2_0179	-	hypothetical protein
171	 55.10	0	172582..173238	+	218	62317132	tag	BruAb2_0180	-	DNA-3-methyladenine glycosidase I
172	 59.71	0	173357..173974	+	205	62317133	-	BruAb2_0181	-	amino acid transporter LysE
173	 60.50	0	174085..175593	+	502	62317134	hisS	BruAb2_0182	-	histidyl-tRNA synthetase
174	 60.33	0	175596..176732	+	378	62317135	hisZ	BruAb2_0183	-	ATP phosphoribosyltransferase regulatory subunit
175	 60.34	0	176729..177424	+	231	62317136	hisG	BruAb2_0184	-	ATP phosphoribosyltransferase catalytic subunit
176	 58.11	0	177497..178735	-	412	62317137	-	BruAb2_0185	-	glucose/galactose transporter
177	 55.97	0	179021..179422	-	133	62317138	-	BruAb2_0186	-	hypothetical protein
178	 59.70	0	179525..180916	-	463	62317139	fumC	BruAb2_0187	-	fumarate hydratase
179	 56.86	0	181066..181320	-	84	62317140	-	BruAb2_0188	-	hypothetical protein
180	 54.05	0	181650..181871	-	73	62317141	-	BruAb2_0189	-	hypothetical protein
181	 58.93	0	182073..183713	-	546	62317142	groEL	BruAb2_0190	-	chaperonin GroEL
182	 59.60	0	183804..184100	-	98	62317143	groES	BruAb2_0191	-	co-chaperonin GroES
183	 54.61	0	184220..184360	+	46	62317144	-	BruAb2_0192	-	hypothetical protein
184	 53.33	0	184413..184517	-	34	62317145	-	BruAb2_0193	-	hypothetical protein
185	 59.13	0	184581..185429	+	282	62317146	-	BruAb2_0194	-	HAD superfamily hydrolase
186	 53.51	0	185465..185578	+	37	62317147	-	BruAb2_0195	-	hypothetical protein
187	 59.60	0	185559..186506	+	315	62317148	ribF	BruAb2_0196	-	bifunctional riboflavin kinase/FMN adenylyltransferase
188	 58.27	0	186850..189768	+	972	62317149	ileS	BruAb2_0197	-	isoleucyl-tRNA synthetase
189	 62.35	+1	189960..190631	+	223	62317150	-	BruAb2_0198	-	hypothetical protein
190	 54.90	0	190976..191536	+	186	62317151	-	BruAb2_0199	-	cytochrome b561
191	 59.92	0	191590..192063	-	157	62317152	-	BruAb2_0200	-	cytidine and deoxycytidylate deaminase family protein
192	 64.32	+1	192204..193949	+	581	62317153	-	BruAb2_0201	-	RNA pseudouridylate synthase family protein
193	 59.40	0	193930..194493	+	187	62317154	-	BruAb2_0202	-	hypothetical protein
194	 57.71	0	194672..196123	+	483	62317155	-	BruAb2_0203	-	protease
195	 57.48	0	197497..198378	+	293	62317156	-	BruAb2_0205	-	hypothetical protein
196	 59.84	0	198391..200235	-	614	62317157	-	BruAb2_0206	-	lutathione-regulated potassium-efflux system protein
197	 61.90	+1	200437..201780	+	447	62317158	pmbA	BruAb2_0207	-	hypothetical protein
198	 59.88	0	201767..202576	+	269	62317159	-	BruAb2_0208	-	inositol monophosphatase family protein
199	 53.57	0	202615..202866	+	83	62317160	-	BruAb2_0209	-	hypothetical protein
200	 58.74	0	202930..203673	+	247	62317161	-	BruAb2_0210	-	hypothetical protein
201	 61.07	0	203670..205010	+	446	62317162	kdtA	BruAb2_0211	-	3-deoxy-D-manno-octulosonic-acid transferase
202	 62.18	+1	205013..206038	+	341	62317163	lpxK	BruAb2_0212	-	tetraacyldisaccharide 4'-kinase
203	 59.07	0	206052..206288	-	78	62317164	-	BruAb2_0213	-	hypothetical protein
204	 62.45	+1	206386..208257	-	623	62317165	mutL	BruAb2_0214	-	DNA mismatch repair protein
205	 58.26	0	208441..209724	-	427	62317166	mucK	BruAb2_0215	-	MucK, cis,cis-muconate transport protein
206	 58.10	0	209822..210976	-	384	62317167	-	BruAb2_0216	-	acyl-CoA dehydrogenase
207	 59.18	0	211033..211887	-	284	62317168	-	BruAb2_0217	-	IclR family transcriptional regulator
208	 59.12	0	214653..215792	+	379	62317169	-	BruAb2_0220	-	CAIB/BAIF family protein
209	 63.06	+1	215879..217153	-	424	62317170	-	BruAb2_0221	-	FMN-binding oxidoreductase
210	 56.99	0	217239..217703	+	154	62317171	-	BruAb2_0222	-	MerR family transcriptional regulator
211	 61.30	0	217801..219141	-	446	62317172	-	BruAb2_0223	-	sensor histidine kinase
212	 57.67	0	219141..219818	-	225	62317173	-	BruAb2_0224	-	two component response regulator
213	 52.12	-1	219946..220110	-	54	62317174	-	BruAb2_0225	-	hypothetical protein
214	 57.14	0	220082..220354	+	90	62317175	-	BruAb2_0226	-	hypothetical protein
215	 59.45	0	220522..220992	+	156	62317176	-	BruAb2_0227	-	hypothetical protein
216	 61.35	0	223189..224166	+	325	62317177	-	BruAb2_0229	-	ApbE family protein
217	 56.60	0	226529..227134	+	201	62317178	-	BruAb2_0232	-	glutathione S-transferase
218	 52.97	0	227317..227703	+	128	62317179	-	BruAb2_0233	-	extradiol ring-cleaving dioxygenase
219	 57.35	0	227856..228263	+	135	62317180	-	BruAb2_0234	-	hypothetical protein
220	 56.62	0	228360..230390	+	676	62317181	-	BruAb2_0235	-	TonB-dependent receptor protein
221	 55.33	0	230558..231739	+	393	62317182	-	BruAb2_0236	-	hypothetical protein
222	 55.22	0	231833..232627	-	264	62317183	-	BruAb2_0237	-	IclR family transcriptional regulator
223	 58.84	0	234004..235536	+	510	62317184	rbsA-4	BruAb2_0239	-	RbsA-4, ribose ABC transporter, ATP-binding protein
224	 57.08	0	235536..236495	+	319	62317185	rbsC-5	BruAb2_0240	-	ribose ABC transporter, permease protein
225	 61.43	+1	236492..237445	+	317	62317186	rbsC-4	BruAb2_0241	-	RbsC-4, ribose ABC transporter, permease protein
226	 53.10	0	237445..237864	+	139	62317187	-	BruAb2_0242	-	hypothetical protein
227	 58.07	0	238072..238734	-	220	62317188	-	BruAb2_0243	-	putative sulfite oxidase subunit YedZ
228	 57.19	0	238736..239695	-	319	62317189	-	BruAb2_0244	-	putative sulfite oxidase subunit YedY
229	 56.86	0	240118..240984	+	288	62317190	-	BruAb2_0245	-	hypothetical protein
230	 61.33	0	241101..242075	-	324	62317191	-	BruAb2_0246	-	WD repeat-containing protein
231	 59.04	0	242194..243333	-	379	62317192	-	BruAb2_0247	-	cobalamin synthesis protein/P47K family protein
232	 57.07	0	243569..244339	-	256	62317193	-	BruAb2_0248	-	creatinine amidohydrolase
233	 61.08	0	245156..246175	+	339	62317194	-	BruAb2_0250	-	transcriptional regulator
234	 59.18	0	246261..247235	+	324	62317195	-	BruAb2_0251	-	glycerate dehydrogenase
235	 59.69	0	247337..248110	-	257	62317196	-	BruAb2_0252	-	glutamine amidotransferase, class I
236	 60.27	0	248345..249094	+	249	62317197	-	BruAb2_0253	-	2-deoxy-d-gluconate 3-dehydrogenase
237	 50.35	-1	249075..249215	+	46	62317198	-	BruAb2_0254	-	hypothetical protein
238	 52.30	-1	252009..253226	+	405	62317199	-	BruAb2_0256	-	hypothetical protein
239	 51.35	-1	253280..253390	+	36	62317200	-	BruAb2_0257	-	hypothetical protein
240	 56.22	0	253498..254244	+	248	62317201	-	BruAb2_0258	-	hypothetical protein
241	 51.56	-1	254448..254672	+	74	62317202	-	BruAb2_0259	-	hypothetical protein
242	 60.33	0	254896..256173	+	425	62317203	pntA	BruAb2_0260	-	PntA, NAD(P) transhydrogenase, alpha subunit
57.17	MEAN

4.21	STD DEV
