IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

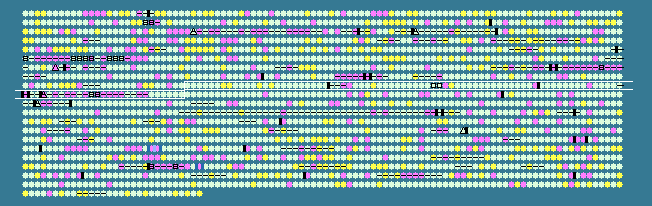

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
828	 57.49	0	866943..867650	+	235	62289819	-	BruAb1_0886	-	hypothetical protein
829	 54.74	0	867730..868056	-	108	62289820	-	BruAb1_0887	-	HesB/YadR/YfhF family protein
830	 58.56	0	868223..869431	+	402	62289821	dgt	BruAb1_0888	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
831	 56.94	0	869654..871411	+	585	62289822	argS	BruAb1_0889	-	arginyl-tRNA synthetase
832	 59.30	0	871623..874595	+	990	62289823	-	BruAb1_0890	-	hypothetical protein
833	 59.22	0	874796..875815	+	339	62289824	-	BruAb1_0891	-	glycosy hydrolase family protein
834	 60.92	0	875888..876739	+	283	62289825	-	BruAb1_0892	-	hypothetical protein
835	 60.74	0	876732..877457	+	241	62289826	-	BruAb1_0893	-	hypothetical protein
836	 56.16	0	877603..877821	+	72	62289827	tatA	BruAb1_0894	-	twin argininte translocase protein A
837	 56.05	0	877902..878513	+	203	62289828	-	BruAb1_0895	-	sec-independent translocase
838	 57.21	0	878510..879334	+	274	62289829	tatC	BruAb1_0896	-	TatC, Sec-independent protein translocase protein TatC
839	 59.35	0	879411..880694	+	427	62289830	serS	BruAb1_0897	-	seryl-tRNA synthetase
840	 60.81	0	880843..881610	+	255	62289831	surE	BruAb1_0898	-	stationary phase survival protein SurE
841	 58.45	0	881607..882275	+	222	62289832	pcm	BruAb1_0899	-	protein-L-isoaspartate O-methyltransferase
842	 60.67	0	882669..883952	+	427	62289833	-	BruAb1_0900	-	M24/M37 family peptidase
843	 54.90	0	884001..884867	-	288	62289834	-	BruAb1_0901	-	hypothetical protein
844	 54.39	0	885028..885369	+	113	62289835	-	BruAb1_0902	-	preprotein translocase, YajC subunit
845	 56.87	0	885539..887815	+	758	62289836	-	BruAb1_0903	-	SecD/SecF family protein-export membrane protein
846	 60.51	0	887818..888207	+	129	62289837	-	BruAb1_0904	-	hypothetical protein
847	 58.03	0	888213..889046	+	277	62289838	-	BruAb1_0905	-	hypothetical protein
848	 59.74	0	889098..890498	-	466	62289839	-	BruAb1_0906	-	tRNA (uracil-5-)-methyltransferase Gid
849	 59.86	0	890740..890886	-	48	62289840	-	BruAb1_0907	-	hypothetical protein
850	 56.73	0	891160..892296	+	378	62289841	-	BruAb1_0908	-	hypothetical protein
851	 56.14	0	892293..892862	+	189	62289842	-	BruAb1_0909	-	hypothetical protein
852	 56.11	0	893242..894681	+	479	62289843	tig	BruAb1_0910	-	trigger factor
853	 57.22	0	894831..896333	+	500	62289844	gatB	BruAb1_0911	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
854	 53.37	0	896333..896836	+	167	62289845	-	BruAb1_0912	-	acetyltransferase
855	 46.83	-2	897466..897591	+	41	62289846	-	BruAb1_0914	-	hypothetical protein
856	 57.96	0	897600..898070	+	156	62289847	-	BruAb1_0915	-	hypothetical protein
857	 59.19	0	898114..898728	-	204	62289848	aat	BruAb1_0916	-	leucyl/phenylalanyl-tRNA--protein transferase
858	 57.54	0	898734..900092	-	452	62289849	accC	BruAb1_0917	-	acetyl-CoA carboxylase biotin carboxylase subunit
859	 61.15	0	900142..900612	-	156	62289850	accB	BruAb1_0918	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
860	 54.64	0	900614..901087	-	157	62289851	aroQ	BruAb1_0919	-	3-dehydroquinate dehydratase
861	 56.14	0	901331..902128	-	265	62289852	-	BruAb1_0920	-	hypothetical protein
862	 58.47	0	902176..903591	-	471	62289853	-	BruAb1_0921	-	hypothetical protein
863	 59.36	0	903783..904946	+	387	62289854	-	BruAb1_0922	-	aminotransferase, class I
864	 58.83	0	905065..907833	-	922	62289855	-	BruAb1_0923	-	ribonuclease Rne/Rng domain-containing protein
865	 60.22	0	907836..908021	+	61	62289856	-	BruAb1_0924	-	hypothetical protein
866	 56.90	0	908512..909780	+	422	62289857	-	BruAb1_0925	-	N-acetylmuramoyl-L-alanine amidase
867	 58.29	0	910060..912519	+	819	62289858	-	BruAb1_0926	-	penicillin-binding protein 1A
868	 57.76	0	912823..913788	+	321	62289859	-	BruAb1_0927	-	peptide chain release factor 2
869	 58.33	0	914004..914315	+	103	62289860	-	BruAb1_0928	-	transposase
870	 53.79	0	914305..914739	+	144	62289861	-	BruAb1_0929	-	IS711, transposase orfB
871	 52.94	0	914793..914894	-	33	62289862	-	BruAb1_0930	-	hypothetical protein
872	 61.71	+1	914891..915253	-	120	62289863	-	BruAb1_0931	-	hypothetical protein
873	 57.00	0	915424..916251	-	275	62289864	-	BruAb1_0932	-	hypothetical protein
874	 56.13	0	916273..916737	-	154	62289865	bcp	BruAb1_0933	-	Bcp, bacterioferritin comigratory protein
875	 56.60	0	917024..920422	+	1132	62289866	-	BruAb1_0934	-	hypothetical protein
876	 58.37	0	920481..921734	-	417	62289867	tyrS	BruAb1_0935	-	tyrosyl-tRNA synthetase
877	 60.52	0	921850..922971	+	373	62289868	anmK	BruAb1_0936	-	anhydro-N-acetylmuramic acid kinase
878	 55.56	0	922968..923300	-	110	62289869	qacH	BruAb1_0937	-	QacH, quaternary ammonium compound-resistance protein
879	 57.48	0	923412..924086	-	224	62289870	-	BruAb1_0938	-	hypothetical protein
880	 60.14	0	924291..925469	+	392	62289871	-	BruAb1_0939	-	cysteine desulfurase
881	 55.91	0	925650..927173	+	507	62289872	-	BruAb1_0940	-	cysteine desulfurase activator complex subunit SufB
882	 55.95	0	927241..927996	+	251	62289873	-	BruAb1_0941	-	ABC transporter, ATP-binding protein
883	 59.31	0	928010..929287	+	425	62289874	-	BruAb1_0942	-	hypothetical protein
884	 55.58	0	929369..930613	+	414	62289875	-	BruAb1_0943	-	aminotransferase, class V
885	 57.62	0	930610..931029	+	139	62289876	-	BruAb1_0944	-	hypothetical protein
886	 51.65	-1	931063..932034	-	323	62289877	-	BruAb1_0945	-	glycosyl transferase, group 2 family protein
887	 54.51	0	932437..933234	+	265	62289878	ppnK	BruAb1_0946	-	inorganic polyphosphate/ATP-NAD kinase
888	 57.83	0	933562..935010	+	482	62289879	-	BruAb1_0947	-	DEAD-box ATP dependent DNA helicase
889	 57.48	0	935248..935628	-	126	62289880	-	BruAb1_0948	-	HesB/YadR/YfhF family protein
890	 54.84	0	936322..936414	+	30	62289881	-	BruAb1_0950	-	hypothetical protein
891	 59.70	0	936418..936618	+	66	62289882	-	BruAb1_0951	-	heavy metal-binding domain-containing protein
892	 56.05	0	936945..937613	+	222	62289883	-	BruAb1_0953	-	protein-L-isoaspartate O-methyltransferase
893	 59.01	0	937752..939122	+	456	62289884	-	BruAb1_0954	-	outer membrane efflux family protein
894	 58.06	0	939372..940103	+	243	62289885	-	BruAb1_0955	-	hypothetical protein
895	 49.02	-1	940198..940401	+	67	62289886	-	BruAb1_0956	-	hypothetical protein
896	 57.15	0	940394..943126	+	910	62289887	valS	BruAb1_0957	-	valyl-tRNA synthetase
897	 54.20	0	947375..948040	-	221	62289888	mobA	BruAb1_0963	-	MobA, molybdopterin-guanine dinucleotide biosynthesis protein A
898	 58.26	0	948216..949250	-	344	62289889	moaA	BruAb1_0964	-	molybdenum cofactor biosynthesis protein A
899	 55.28	0	949437..949796	+	119	62289890	-	BruAb1_0965	-	hypothetical protein
900	 58.33	0	951316..952935	-	539	62289891	fumB	BruAb1_0967	-	FumB, fumarate hydratase, class I
901	 47.62	-2	955739..955864	-	41	62289892	-	BruAb1_0969	-	hypothetical protein
902	 53.97	0	956045..956296	-	83	62289893	-	BruAb1_0970	-	hypothetical protein
903	 54.94	0	956451..956612	+	53	62289894	-	BruAb1_0971	-	hypothetical protein
904	 50.78	-1	956805..957830	-	341	62289895	-	BruAb1_0972	-	phage integrase family site specific recombinase
905	 57.12	0	958005..959051	+	348	62289896	-	BruAb1_0973	-	hypothetical protein
906	 51.52	-1	959203..959433	+	76	62289897	-	BruAb1_0974	-	hypothetical protein
907	 57.61	0	959430..959705	+	91	62289898	-	BruAb1_0975	-	hypothetical protein
908	 52.05	-1	961607..961777	-	56	62289899	-	BruAb1_0978	-	hypothetical protein
909	 49.44	-1	961795..961974	+	59	62289900	-	BruAb1_0979	-	hypothetical protein
910	 55.56	0	962125..962439	-	104	62289901	-	BruAb1_0980	-	hypothetical protein
911	 47.66	-2	962439..962759	-	106	62289902	-	BruAb1_0981	-	hypothetical protein
912	 58.33	0	963547..963858	+	103	62289903	-	BruAb1_0983	-	IS711, transposase orfA
913	 52.41	-1	963848..964282	+	144	62289904	-	BruAb1_0984	-	IS711, transposase orfB
914	 48.50	-2	965301..966836	+	511	62289905	-	BruAb1_0986	-	hypothetical protein
915	 46.63	-2	967162..968394	+	410	62289906	wboA	BruAb1_0987	-	glycosyl transferase WboA
916	 45.00	-2	968391..969950	+	519	62289907	-	BruAb1_0988	-	glycosyl transferase, group 1 family protein
917	 43.24	-2	969931..970152	-	73	62289908	-	BruAb1_0989	-	hypothetical protein
918	 59.68	0	970297..971055	+	252	62289909	-	BruAb1_0990	-	secretion activator protein
919	 53.70	0	971019..971288	-	89	62289910	-	BruAb1_0991	-	hypothetical protein
920	 46.08	-2	971776..971877	+	33	62289911	-	BruAb1_0993	-	hypothetical protein
921	 42.34	-2	971913..972023	+	36	62289912	-	BruAb1_0994	-	hypothetical protein
922	 55.46	0	972014..972361	+	115	62289913	-	BruAb1_0995	-	arsenate reductase ArsC
923	 57.82	0	972732..973997	+	421	62289914	-	BruAb1_0996	-	rare lipoprotein A family protein
924	 58.19	0	974108..975298	+	396	62289915	-	BruAb1_0997	-	D-alanyl-D-alanine carboxypeptidase
925	 57.39	0	975389..976024	+	211	62289916	tmk	BruAb1_0998	-	Tmk, thymidylate kinase
926	 59.74	0	976021..977103	+	360	62289917	-	BruAb1_0999	-	DNA polymerase III subunit delta'
927	 56.00	0	977123..977272	+	49	62289918	-	BruAb1_1000	-	hypothetical protein
57.12	MEAN

4.21	STD DEV
