IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

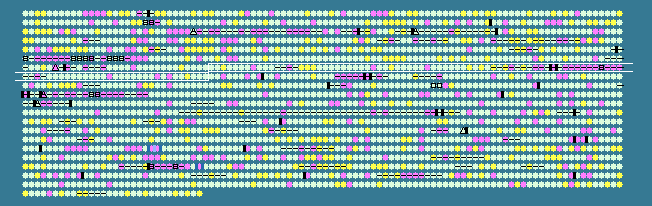

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
632	 57.59	0	674152..675087	+	311	62289623	era	BruAb1_0680	-	GTP-binding protein Era
633	 59.01	0	675114..675857	+	247	62289624	recO	BruAb1_0681	-	DNA repair protein RecO
634	 62.16	+1	675835..676344	-	169	62289625	-	BruAb1_0682	-	hypothetical protein
635	 59.74	0	676341..676961	-	206	62289626	-	BruAb1_0683	-	hypothetical protein
636	 57.75	0	676961..677824	-	287	62289627	-	BruAb1_0684	-	aminomethyltransferase
637	 59.70	0	677910..679244	+	444	62289628	pyrC-1	BruAb1_0685	-	dihydroorotase
638	 58.69	0	679293..680057	-	254	62289629	-	BruAb1_0686	-	hypothetical protein
639	 51.31	-1	680106..680372	-	88	62289630	-	BruAb1_0687	-	hypothetical protein
640	 55.73	0	680529..680912	-	127	62289631	-	BruAb1_0688	-	hypothetical protein
641	 58.33	0	680992..681435	-	147	62289632	-	BruAb1_0689	-	MutT/nudix family protein
642	 60.51	0	681521..682300	+	259	62289633	-	BruAb1_0690	-	hypothetical protein
643	 60.00	0	682355..682969	+	204	62289634	-	BruAb1_0691	-	amino acid transporter LysE
644	 57.74	0	682946..683113	-	55	62289635	-	BruAb1_0692	-	hypothetical protein
645	 48.78	-1	683239..683361	+	40	62289636	-	BruAb1_0693	-	hypothetical protein
646	 59.11	0	683480..685000	+	506	62289637	cysS	BruAb1_0694	-	cysteinyl-tRNA synthetase
647	 63.04	+1	685016..685153	+	45	62289638	-	BruAb1_0695	-	hypothetical protein
648	 64.44	+1	685153..685287	+	44	62289639	-	BruAb1_0696	-	hypothetical protein
649	 61.59	+1	685284..685421	+	45	62289640	-	BruAb1_0697	-	hypothetical protein
650	 59.36	0	685421..687034	+	537	62289641	-	BruAb1_0698	-	alpha-isopropylmalate/homocitrate synthase family transferase
651	 57.87	0	687281..688201	+	306	62289642	rarD	BruAb1_0699	-	RarD, RarD protein
652	 57.96	0	688334..690067	+	577	62289643	-	BruAb1_0700	-	M24/M37 family peptidase
653	 59.45	0	690135..690965	-	276	62289644	ksgA	BruAb1_0701	-	dimethyladenosine transferase
654	 60.47	0	690962..691993	-	343	62289645	pdxA	BruAb1_0702	-	4-hydroxythreonine-4-phosphate dehydrogenase
655	 56.74	0	692058..693014	-	318	62289646	-	BruAb1_0703	-	peptidyl-prolyl cis-trans isomerase
656	 55.53	0	693342..695720	-	792	62289647	-	BruAb1_0704	-	organic solvent tolerance protein
657	 54.27	0	695741..696829	-	362	62289648	-	BruAb1_0705	-	hypothetical protein
658	 56.00	0	696826..698034	-	402	62289649	-	BruAb1_0706	-	hypothetical protein
659	 47.06	-2	698207..698308	-	33	62289650	-	BruAb1_0707	-	hypothetical protein
660	 58.63	0	698444..699937	+	497	62289651	-	BruAb1_0708	-	leucyl aminopeptidase
661	 56.22	0	700009..700458	+	149	62289652	-	BruAb1_0709	-	DNA polymerase III subunit chi
662	 62.06	+1	700458..701021	+	187	62289653	-	BruAb1_0710	-	hypothetical protein
663	 58.70	0	701098..702981	-	627	62289654	-	BruAb1_0711	-	ABC transporter, ATP-binding protein
664	 56.92	0	703024..703536	-	170	62289655	-	BruAb1_0712	-	hypothetical protein
665	 57.92	0	703765..704187	+	140	62289656	ndk	BruAb1_0713	-	nucleoside diphosphate kinase
666	 57.11	0	704284..705099	-	271	62289657	-	BruAb1_0714	-	hypothetical protein
667	 56.50	0	705337..705828	-	163	62289658	moaE	BruAb1_0715	-	MoaE, molybdopterin converting factor, subunit 2
668	 53.10	0	705830..706087	-	85	62289659	moaD	BruAb1_0716	-	MoaD, molybdopterin converting factor, subunit 1
669	 55.21	0	706092..706676	-	194	62289660	pgsA	BruAb1_0717	-	PgsA, CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
670	 59.58	0	706795..708867	-	690	161611214	uvrC	BruAb1_0718	-	excinuclease ABC subunit C
671	 58.86	0	708867..709622	-	251	62289662	-	BruAb1_0719	-	short chain dehydrogenase
672	 57.94	0	710024..710665	+	213	62289663	-	BruAb1_0720	-	outer-membrane protein, 25 kDa
673	 57.50	0	710762..711361	-	199	62289664	-	BruAb1_0721	-	glutathione S-transferase family protein
674	 58.70	0	711416..712105	-	229	62289665	-	BruAb1_0722	-	ribonuclease T2 family protein
675	 61.57	+1	712118..712588	-	156	62289666	-	BruAb1_0723	-	hypothetical protein
676	 57.96	0	712671..713543	-	290	62289667	-	BruAb1_0724	-	hypothetical protein
677	 62.41	+1	713699..714544	+	281	62289668	-	BruAb1_0725	-	hypothetical protein
678	 59.33	0	714622..716748	+	708	62289669	-	BruAb1_0726	-	oxidoreductase
679	 63.05	+1	716975..717499	-	174	62289670	-	BruAb1_0727	-	hypothetical protein
680	 59.87	0	717675..718292	-	205	161611213	purN	BruAb1_0728	-	phosphoribosylglycinamide formyltransferase
681	 60.74	0	718289..719368	-	359	62289672	purM	BruAb1_0729	-	phosphoribosylaminoimidazole synthetase
682	 51.67	-1	719410..719589	-	59	62289673	-	BruAb1_0730	-	hypothetical protein
683	 58.97	0	721738..722607	+	289	62289674	-	BruAb1_0732	-	epimerase/dehydratase family protein
684	 62.60	+1	722604..723389	-	261	62289675	-	BruAb1_0733	-	hypothetical protein
685	 58.30	0	723462..724166	-	234	62289676	-	BruAb1_0734	-	short chain dehydrogenase/reductase family oxidoreductase
686	 50.00	-1	724328..724543	-	71	62289677	-	BruAb1_0735	-	hypothetical protein
687	 39.74	-2	724557..724712	+	51	62289678	-	BruAb1_0736	-	hypothetical protein
688	 58.18	0	724865..726538	-	557	62289679	lldP	BruAb1_0737	-	LldP, L-lactate permease
689	 53.27	0	727072..727377	+	101	62289680	-	BruAb1_0738	-	oxidoreductase
690	 56.01	0	727943..728533	+	196	62289681	-	BruAb1_0739	-	hypothetical protein
691	 53.10	0	728754..729365	-	203	62289682	-	BruAb1_0740	-	exonuclease
692	 53.37	0	729690..730208	-	172	62289683	-	BruAb1_0741	-	adenylate kinase
693	 52.15	-1	730232..731767	-	511	62289684	-	BruAb1_0742	-	acetyltransferase
694	 51.57	-1	731742..732536	-	264	62289685	-	BruAb1_0743	-	Cro/CI family transcriptional regulator
695	 43.33	-2	732561..732980	-	139	62289686	-	BruAb1_0744	-	hypothetical protein
696	 53.29	0	733360..734256	+	298	62289687	-	BruAb1_0745	-	hypothetical protein
697	 52.34	-1	734256..736370	+	704	62289688	-	BruAb1_0746	-	transposase
698	 47.64	-2	737456..739147	+	563	62289689	-	BruAb1_0748	-	hypothetical protein
699	 47.98	-2	739185..739382	-	65	62289690	-	BruAb1_0749	-	hypothetical protein
700	 46.33	-2	739623..740930	+	435	62289691	-	BruAb1_0750	-	hypothetical protein
701	 56.88	0	742846..743724	+	292	62289692	-	BruAb1_0752	-	hypothetical protein
702	 60.24	0	744782..745030	-	82	62289693	-	BruAb1_0754	-	lipoprotein
703	 51.72	-1	745133..745219	-	28	62289694	-	BruAb1_0755	-	hypothetical protein
704	 56.49	0	745275..746414	-	379	62289695	metC	BruAb1_0756	-	cystathionine beta-lyase
705	 56.51	0	746655..747422	+	255	62289696	-	BruAb1_0757	-	PAP2 family protein
706	 54.82	0	748933..749160	+	75	62289697	-	BruAb1_0759	-	hypothetical protein
707	 55.06	0	751570..752379	+	269	62289698	-	BruAb1_0762	-	amino acid ABC transporter, ATP-binding protein
708	 58.96	0	752427..753632	-	401	62289699	-	BruAb1_0763	-	salicylate hydroxylase
709	 54.51	0	753662..753916	-	84	62289700	-	BruAb1_0764	-	hypothetical protein
710	 56.98	0	754202..756442	+	746	62289701	ppk	BruAb1_0765	-	polyphosphate kinase
711	 59.00	0	756439..757977	+	512	62289702	-	BruAb1_0766	-	Ppx/GppA family phosphatase
712	 60.36	0	758131..759288	-	385	62289703	rnd	BruAb1_0767	-	RND, ribonuclease D
713	 58.39	0	759515..761302	+	595	62289704	aspS	BruAb1_0768	-	aspartyl-tRNA synthetase
714	 55.89	0	761343..762539	-	398	62289705	-	BruAb1_0769	-	hypothetical protein
715	 46.67	-2	762594..762833	+	79	62289706	-	BruAb1_0770	-	hypothetical protein
716	 58.06	0	762939..765251	+	770	62289707	parC	BruAb1_0771	-	DNA topoisomerase IV subunit A
717	 58.53	0	765430..766179	-	249	62289708	-	BruAb1_0772	-	arginyl-tRNA-protein transferase
718	 53.93	0	766300..766770	-	156	62289709	-	BruAb1_0773	-	hypothetical protein
719	 59.34	0	766917..767954	-	345	62289710	hemB	BruAb1_0774	-	delta-aminolevulinic acid dehydratase
720	 58.29	0	768122..769171	+	349	62289711	-	BruAb1_0775	-	enoyl-CoA hydratase
721	 58.39	0	769185..769619	+	144	62289712	-	BruAb1_0776	-	hypothetical protein
722	 54.83	0	769850..770449	+	199	62289713	-	BruAb1_0777	-	MarR family transcriptional regulator
723	 53.19	0	770536..770676	-	46	62289714	-	BruAb1_0778	-	hypothetical protein
724	 58.06	0	770811..772112	+	433	62289715	-	BruAb1_0779	-	peptidoglycan-binding protein
725	 53.25	0	772109..772339	+	76	62289716	-	BruAb1_0780	-	hypothetical protein
726	 58.24	0	772343..773659	+	438	62289717	glyA	BruAb1_0781	-	serine hydroxymethyltransferase
727	 58.07	0	773901..774377	+	158	62289718	-	BruAb1_0782	-	transcriptional regulator NrdR
728	 61.76	+1	774379..775500	+	373	62289719	ribD	BruAb1_0783	-	RibD, riboflavin biosynthesis protein RibD
729	 57.31	0	775500..776108	+	202	62289720	ribE	BruAb1_0784	-	riboflavin synthase subunit alpha
730	 57.81	0	776191..776664	+	157	62289721	ribH	BruAb1_0785	-	riboflavin synthase subunit beta
731	 59.11	0	776670..777185	+	171	62289722	nusB	BruAb1_0786	-	transcription antitermination protein NusB
57.12	MEAN

4.21	STD DEV
