IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

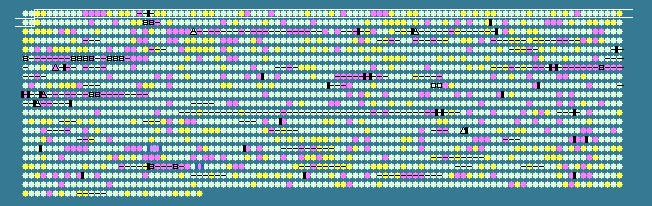

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3	 61.39	+1	3878..5032	+	384	62288994	recF	BruAb1_0003	-	recombination protein F
4	 61.43	+1	5070..5852	+	260	62288995	moeB	BruAb1_0004	-	molybdopterin biosynthesis protein MoeB
5	 57.37	0	5869..6825	-	318	62288996	-	BruAb1_0005	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
6	 58.92	0	6822..8474	-	550	62288997	-	BruAb1_0006	-	ABC transporter, ATP-binding protein
7	 57.89	0	8471..9610	-	379	62288998	-	BruAb1_0007	-	ABC transporter, permease protein
8	 55.83	0	9610..10707	-	365	62288999	-	BruAb1_0008	-	ABC transporter, permease protein
9	 57.20	0	10819..12666	-	615	62289000	-	BruAb1_0009	-	ABC transporter periplasmic substrate-binding protein
10	 56.07	0	12680..14548	-	622	62289001	-	BruAb1_0010	-	ABC transporter periplasmic substrate-binding protein
11	 53.40	0	14779..15102	-	107	62289002	-	BruAb1_0011	-	hypothetical protein
12	 48.26	-2	15148..15348	-	66	62289003	-	BruAb1_0012	-	hypothetical protein
13	 35.90	-2	15388..15738	-	116	62289004	-	BruAb1_0013	-	hypothetical protein
14	 52.74	-1	17243..17443	+	66	62289005	-	BruAb1_0015	-	hypothetical protein
15	 61.51	+1	17440..18234	-	264	62289006	-	BruAb1_0016	-	enoyl-CoA hydratase
16	 59.38	0	18231..19094	-	287	62289007	mvaB	BruAb1_0017	-	hydroxymethylglutaryl-CoA lyase
17	 62.07	+1	19087..21108	-	673	62289008	-	BruAb1_0018	-	biotin carboxylase
18	 62.00	+1	21120..22727	-	535	62289009	-	BruAb1_0019	-	carboxyl transferase family protein
19	 58.78	0	22727..23905	-	392	62289010	ivd	BruAb1_0020	-	Ivd, isovaleryl-CoA dehydrogenase
20	 53.33	0	26223..26657	-	144	62289011	-	BruAb1_0022	-	hypothetical protein
21	 54.90	0	26834..27955	-	373	62289012	-	BruAb1_0023	-	hypothetical protein
22	 55.99	0	28478..28861	-	127	62289013	-	BruAb1_0024	-	hypothetical protein
23	 61.12	0	29246..30598	+	450	62289014	aroA	BruAb1_0025	-	3-phosphoshikimate 1-carboxyvinyltransferase
24	 62.73	+1	30595..31254	+	219	62289015	cmk	BruAb1_0026	-	cytidylate kinase
25	 57.91	0	31470..33170	+	566	62289016	rpsA	BruAb1_0027	-	30S ribosomal protein S1
26	 59.74	0	33588..34598	-	336	62289017	-	BruAb1_0028	-	hypothetical protein
27	 57.33	0	34714..35613	+	299	62289018	-	BruAb1_0029	-	LysR family transcriptional regulator
28	 55.22	0	36218..37501	-	427	62289019	-	BruAb1_0031	-	transglycosylase
29	 60.73	0	37517..38122	-	201	62289020	recR	BruAb1_0032	-	recombination protein RecR
30	 59.88	0	38253..38576	-	107	62289021	-	BruAb1_0033	-	hypothetical protein
31	 61.91	+1	38601..40409	-	602	62289022	dnaX	BruAb1_0034	-	DNA polymerase III subunits gamma and tau
32	 61.48	+1	40691..41095	+	134	62289023	-	BruAb1_0035	-	hypothetical protein
33	 60.02	0	41124..42071	+	315	62289024	-	BruAb1_0036	-	MutT/nudix family protein
34	 58.80	0	42072..42935	-	287	62289025	pheA	BruAb1_0037	-	prephenate dehydratase
35	 60.58	0	43024..43779	-	251	62289026	kdsB	BruAb1_0038	-	3-deoxy-manno-octulosonate cytidylyltransferase
36	 56.81	0	44157..44765	+	202	62289027	-	BruAb1_0039	-	cytochrome c, membrane-bound
37	 61.49	+1	44810..45775	-	321	62289028	-	BruAb1_0040	-	hypothetical protein
38	 50.49	-1	45831..46139	+	102	62289029	-	BruAb1_0041	-	hypothetical protein
39	 56.02	0	46314..47327	+	337	62289030	cyoA	BruAb1_0042	-	CyoA, ubiquinol oxidase, subunit II
40	 57.94	0	49389..50018	+	209	62289031	-	BruAb1_0044	-	ubiquinol oxidase subunit III
41	 55.46	0	50018..50383	+	121	62289032	qoxD	BruAb1_0045	-	QoxD, ubiquinol oxidase subunit IV
42	 50.18	-1	50380..50658	-	92	62289033	-	BruAb1_0046	-	hypothetical protein
43	 59.17	0	51831..53750	+	639	62289034	-	BruAb1_0048	-	hypothetical protein
44	 59.79	0	53747..58486	+	1579	62289035	-	BruAb1_0049	-	hypothetical protein
45	 57.44	0	58631..59356	+	241	62289036	-	BruAb1_0050	-	lipoprotein
46	 55.56	0	59407..59622	-	71	62289037	-	BruAb1_0051	-	hypothetical protein
47	 59.72	0	59692..60195	-	167	62289038	-	BruAb1_0052	-	hypothetical protein
48	 61.35	+1	60533..60739	-	68	62289039	-	BruAb1_0053	-	hypothetical protein
49	 58.61	0	60750..61754	-	334	62289040	-	BruAb1_0054	-	hypothetical protein
50	 59.65	0	61889..62287	-	132	62289041	-	BruAb1_0055	-	hypothetical protein
51	 58.33	0	62508..62903	-	131	62289042	-	BruAb1_0056	-	glyoxalase family protein
52	 62.20	+1	63100..64263	+	387	62289043	-	BruAb1_0057	-	mrp-related protein
53	 57.84	0	64492..66123	-	543	62289044	pgm	BruAb1_0058	-	phosphoglucomutase
54	 44.62	-2	66179..66364	-	61	62289045	-	BruAb1_0059	-	hypothetical protein
55	 59.73	0	66339..67232	-	297	62289046	-	BruAb1_0060	-	LysR family transcriptional regulator
56	 54.65	0	67357..68280	+	307	62289047	-	BruAb1_0061	-	dienelactone hydrolase domain-containing protein
57	 59.36	0	68395..69051	+	218	62289048	frcK	BruAb1_0062	-	putative fructose transport system kinase
58	 58.84	0	69151..69840	+	229	62289049	-	BruAb1_0063	-	fumarylacetoacetate hydrolase family protein
59	 52.60	-1	69860..70051	+	63	62289050	-	BruAb1_0064	-	hypothetical protein
60	 46.76	-2	70113..70328	+	71	62289051	-	BruAb1_0065	-	hypothetical protein
61	 51.85	-1	70494..70682	+	62	62289052	-	BruAb1_0066	-	hypothetical protein
62	 62.38	+1	70697..71560	+	287	62289053	-	BruAb1_0067	-	transglycosylase SLT domain-containing protein
63	 57.84	0	71742..72398	+	218	62289054	-	BruAb1_0068	-	hemolysin III family channel protein
64	 60.39	0	72539..75772	-	1077	62289055	dnaE2	BruAb1_0069	-	error-prone DNA polymerase
65	 65.02	+1	75772..77229	-	485	62289056	-	BruAb1_0070	-	hypothetical protein
66	 64.00	+1	77249..78112	-	287	62289057	-	BruAb1_0071	-	hypothetical protein
67	 54.03	0	80281..82551	+	756	62289058	-	BruAb1_0072	-	outer membrane protein
68	 53.92	0	82760..83308	+	182	62289059	-	BruAb1_0073	-	hypothetical protein
69	 58.23	0	83387..84607	-	406	62289060	argG	BruAb1_0074	-	argininosuccinate synthase
70	 56.40	0	84704..85453	+	249	62289061	-	BruAb1_0075	-	amino acid efflux LysE family protein
71	 57.94	0	85457..85960	-	167	62289062	-	BruAb1_0076	-	hypothetical protein
72	 59.14	0	85994..87229	-	411	62289063	-	BruAb1_0077	-	hypothetical protein
73	 57.54	0	87489..87992	-	167	62289064	-	BruAb1_0078	-	hypothetical protein
74	 63.54	+1	88432..88815	-	127	62289065	-	BruAb1_0079	-	hypothetical protein
75	 54.76	0	88903..89196	-	97	62289066	phhB	BruAb1_0080	-	pterin-4-alpha-carbinolamine dehydratase
76	 61.25	0	89936..90526	-	196	62289067	-	BruAb1_0082	-	hypothetical protein
77	 56.06	0	90707..91432	-	241	62289068	-	BruAb1_0083	-	lipase/acylhydrolase domain-containing protein
78	 61.87	+1	91579..92307	+	242	62289069	-	BruAb1_0084	-	ABC transporter, ATP-binding protein
79	 61.73	+1	92304..94853	+	849	62289070	-	BruAb1_0085	-	ABC transporter, permease protein
80	 57.86	0	95087..95824	+	245	62289071	-	BruAb1_0086	-	hypothetical protein
81	 54.73	0	96497..96898	-	133	62289072	-	BruAb1_0088	-	hypothetical protein
82	 57.14	0	97448..98182	-	244	62289073	-	BruAb1_0089	-	hypothetical protein
83	 60.27	0	98459..101146	-	895	62289074	acnA	BruAb1_0090	-	aconitate hydratase
84	 58.33	0	101490..102137	+	215	62289075	ccmA	BruAb1_0091	-	cytochrome c biogenesis protein CcmA
85	 62.31	+1	102137..102802	+	221	62289076	ccmB	BruAb1_0092	-	CcmB, heme exporter protein
86	 58.40	0	102860..103645	+	261	62289077	ccmC	BruAb1_0093	-	CcmC, heme exporter protein
87	 56.90	0	103642..103815	+	57	62289078	-	BruAb1_0094	-	heme exporter protein D
88	 59.31	0	103812..104423	+	203	62289079	cycY	BruAb1_0095	-	thiol:disulfide interchange protein CycY
89	 61.00	0	104672..106507	-	611	62289080	ilvD	BruAb1_0096	-	dihydroxy-acid dehydratase
90	 54.35	0	106688..106825	+	45	62289081	-	BruAb1_0097	-	hypothetical protein
91	 61.66	+1	106906..107364	-	152	62289082	-	BruAb1_0098	-	hypothetical protein
92	 59.79	0	107364..107741	-	125	62289083	-	BruAb1_0099	-	response regulator
93	 49.37	-1	107916..108152	-	78	62289084	-	BruAb1_0100	-	transcriptional regulator
94	 56.79	0	108805..109209	+	134	62289085	-	BruAb1_0101	-	hypothetical protein
95	 57.02	0	109295..109999	-	234	62289086	-	BruAb1_0102	-	hypothetical protein
96	 53.97	0	110071..110889	+	272	62289087	-	BruAb1_0103	-	hypothetical protein
97	 57.73	0	111168..112196	+	342	62289088	-	BruAb1_0104	-	sulfate ABC transporter, sulfate-binding protein
98	 59.40	0	112291..113157	+	288	62289089	-	BruAb1_0105	-	sulfate ABC transporter, permease protein
99	 59.05	0	113147..114013	+	288	62289090	cysW-1	BruAb1_0106	-	CysW-1, sulfate ABC transporter, permease protein
100	 61.39	+1	114111..115190	+	359	62289091	-	BruAb1_0107	-	sulfate ABC transporter ATP-binding protein
101	 60.50	0	115576..124179	+	2867	62289092	-	BruAb1_0108	-	cyclic beta 1-2 glucan synthetase
102	 58.39	0	124269..125573	+	434	62289093	pncB	BruAb1_0109	-	nicotinate phosphoribosyltransferase
57.12	MEAN

4.21	STD DEV
