IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

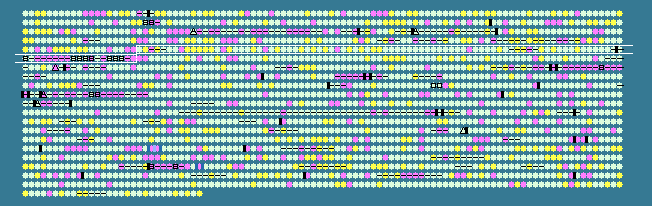

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
420	 55.87	0	448347..448559	+	70	62289411	-	BruAb1_0447	-	hypothetical protein
421	 60.78	0	448654..449316	+	220	62289412	-	BruAb1_0448	-	hypothetical protein
422	 50.00	-1	449461..449712	-	83	62289413	-	BruAb1_0449	-	hypothetical protein
423	 60.82	0	449987..451081	+	364	62289414	aroC	BruAb1_0450	-	chorismate synthase
424	 57.30	0	452485..453498	+	337	62289415	-	BruAb1_0452	-	histone deacetylase family protein
425	 56.86	0	453503..453757	+	84	62289416	xseB	BruAb1_0453	-	exodeoxyribonuclease VII small subunit
426	 57.61	0	453764..454282	-	172	62289417	-	BruAb1_0454	-	dedA family protein
427	 52.87	-1	454524..454784	-	86	62289418	-	BruAb1_0455	-	transglycosylase-associated protein
428	 63.77	+1	454947..455498	+	183	62289419	-	BruAb1_0456	-	hypothetical protein
429	 60.94	0	455702..456574	+	290	62289420	-	BruAb1_0457	-	pirin-related protein
430	 62.01	+1	456717..458648	+	643	62289421	dxs	BruAb1_0458	-	1-deoxy-D-xylulose-5-phosphate synthase
431	 61.81	+1	458654..459415	+	253	62289422	tlyA	BruAb1_0459	-	TlyA, hemolysin A
432	 63.62	+1	459412..460659	+	415	62289423	-	BruAb1_0460	-	RNA methyltransferase
433	 57.71	0	460771..461373	-	200	62289424	-	BruAb1_0461	-	hypothetical protein
434	 51.64	-1	461503..461868	+	121	62289425	-	BruAb1_0462	-	hypothetical protein
435	 61.98	+1	462055..463269	+	404	62289426	-	BruAb1_0463	-	LysM domain-containing protein
436	 58.24	0	463471..465357	+	628	62289427	-	BruAb1_0464	-	ABC transporter, ATP-binding/permease protein
437	 59.51	0	465462..466160	+	232	62289428	-	BruAb1_0465	-	phosphatidylserine decarboxylase
438	 59.26	0	466165..467001	+	278	62289429	pssA	BruAb1_0466	-	PssA, CDP-diacylglycerol--serine O-phosphatidyltransferase
439	 61.00	0	467086..467826	-	246	62289430	-	BruAb1_0467	-	short chain dehydrogenase/reductase family oxidoreductase
440	 59.26	0	467895..469352	-	485	62289431	purF	BruAb1_0468	-	amidophosphoribosyltransferase
441	 48.99	-1	469374..469571	+	65	62289432	-	BruAb1_0469	-	hypothetical protein
442	 58.38	0	469667..470245	-	192	62289433	-	BruAb1_0470	-	colicin V production protein
443	 62.46	+1	470371..471774	-	467	62289434	radA	BruAb1_0471	-	DNA repair protein RadA
444	 58.57	0	471802..473307	-	501	62289435	dnaB	BruAb1_0472	-	replicative DNA helicase
445	 55.97	0	473506..474786	-	426	62289436	cfa	BruAb1_0473	-	Cfa, cyclopropane-fatty-acyl-phospholipid synthase
446	 58.25	0	475160..475729	-	189	62289437	rplI	BruAb1_0474	-	50S ribosomal protein L9
447	 62.28	+1	475759..476715	-	318	62289438	-	BruAb1_0475	-	hypothetical protein
448	 58.63	0	476866..477114	-	82	62289439	rpsR	BruAb1_0476	-	30S ribosomal protein S18
449	 61.52	+1	477117..477563	-	148	62289440	rpsF	BruAb1_0477	-	30S ribosomal protein S6
450	 54.72	0	477588..477947	-	119	62289441	-	BruAb1_0478	-	hypothetical protein
451	 61.48	+1	477969..478913	+	314	62289442	fabD	BruAb1_0479	-	acyl-carrier-protein S-malonyltransferase
452	 59.08	0	478983..479720	+	245	62289443	fabG	BruAb1_0480	-	3-ketoacyl-(acyl-carrier-protein) reductase
453	 53.59	0	479994..480230	+	78	62289444	acpP	BruAb1_0481	-	acyl carrier protein
454	 57.95	0	480234..480497	+	87	62289445	-	BruAb1_0482	-	hypothetical protein
455	 62.07	+1	480554..481816	+	420	62289446	fabF	BruAb1_0483	-	3-oxoacyl-(acyl carrier protein) synthase II
456	 59.00	0	482041..483279	+	412	62289447	-	BruAb1_0484	-	hypothetical protein
457	 61.44	+1	483464..484363	+	299	62289448	-	BruAb1_0485	-	hypothetical protein
458	 57.77	0	484372..485034	+	220	62289449	gmk	BruAb1_0486	-	guanylate kinase
459	 61.15	0	485061..486473	-	470	62289450	-	BruAb1_0487	-	hypothetical protein
460	 64.15	+1	486614..487210	-	198	62289451	-	BruAb1_0488	-	hypothetical protein
461	 58.25	0	487674..488528	+	284	62289452	coxB	BruAb1_0489	-	CoxB, cytochrome c oxidase, subunit II
462	 59.86	0	488666..490324	+	552	62289453	coxA	BruAb1_0490	-	CoxA, cytochrome c oxidase, subunit I
463	 57.79	0	492502..493380	+	292	62289454	coxC	BruAb1_0494	-	CoxC, cytochrome c oxidase, subunit III
464	 60.13	0	493879..494628	+	249	62289455	-	BruAb1_0496	-	SurF1 family protein
465	 57.91	0	494659..495777	+	372	62289456	ispH	BruAb1_0497	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
466	 58.72	0	495783..496763	+	326	62289457	thrB	BruAb1_0498	-	homoserine kinase
467	 59.78	0	496760..497224	+	154	62289458	rnhA	BruAb1_0499	-	ribonuclease H
468	 58.85	0	497254..497739	-	161	62289459	-	BruAb1_0500	-	ahpC/TSA family protein
469	 59.55	0	497919..498719	-	266	62289460	-	BruAb1_0501	-	hypothetical protein
470	 58.87	0	498854..499456	+	200	62289461	-	BruAb1_0502	-	hypothetical protein
471	 60.14	0	499578..502472	-	964	62289462	-	BruAb1_0503	-	sensory box protein
472	 55.72	0	502469..503089	-	206	62289463	-	BruAb1_0504	-	acetyltransferase
473	 59.16	0	503260..504552	-	430	62289464	-	BruAb1_0505	-	processing protease
474	 58.76	0	504606..505997	-	463	62289465	thrC	BruAb1_0506	-	threonine synthase
475	 48.39	-2	506077..506169	-	30	62289466	-	BruAb1_0507	-	hypothetical protein
476	 55.27	0	506359..506937	+	192	62289467	-	BruAb1_0508	-	lipoprotein
477	 56.27	0	507251..508885	+	544	62289468	-	BruAb1_0509	-	EAL domain-containing protein
478	 56.99	0	509014..509199	+	61	62289469	-	BruAb1_0510	-	hypothetical protein
479	 59.97	0	509241..509927	-	228	62289470	-	BruAb1_0511	-	HAD superfamily hydrolase
480	 61.69	+1	510075..511781	-	568	62289471	-	BruAb1_0512	-	voltage gated chloride channel family protein
481	 59.96	0	512118..513251	+	377	62289472	babI	BruAb1_0513	-	BabI, modification methylase BabI
482	 57.61	0	513334..513951	-	205	62289473	-	BruAb1_0514	-	HAD superfamily hydrolase
483	 61.10	0	513948..515024	-	358	62289474	mutY	BruAb1_0515	-	MutY, A/G-specific adenine glycosylase
484	 60.98	0	515298..515825	+	175	62289475	-	BruAb1_0516	-	hypothetical protein
485	 52.87	-1	515843..516016	+	57	62289476	-	BruAb1_0517	-	hypothetical protein
486	 54.28	0	516063..516716	+	217	62289477	-	BruAb1_0518	-	twin-arginine translocation pathway signal sequence domain-containing protein
487	 63.49	+1	516795..520253	+	1152	62289478	-	BruAb1_0519	-	SMC family protein
488	 57.02	0	521262..521603	-	113	62289479	-	BruAb1_0521	-	glyoxalase family protein
489	 60.85	0	521867..524530	+	887	62289480	ppdK	BruAb1_0522	-	pyruvate phosphate dikinase
490	 57.26	0	524744..525562	+	272	62289481	-	BruAb1_0523	-	hypothetical protein
491	 57.88	0	525857..526243	-	128	62289482	-	BruAb1_0525	-	hypothetical protein
492	 59.82	0	526527..527315	+	262	62289483	-	BruAb1_0526	-	hypothetical protein
493	 61.26	0	527316..528221	-	301	62289484	-	BruAb1_0527	-	metallo-beta-lactamase family protein
494	 59.50	0	528422..529021	+	199	62289485	-	BruAb1_0528	-	BioY family protein
495	 55.88	0	529157..529666	+	169	62289486	-	BruAb1_0529	-	ureidoglycolate hydrolase
496	 58.26	0	529678..530034	+	118	62289487	-	BruAb1_0530	-	hypothetical protein
497	 57.95	0	530105..530941	+	278	62289488	-	BruAb1_0531	-	hypothetical protein
498	 56.66	0	531478..533346	+	622	62289489	-	BruAb1_0532	-	epimerase/dehydratase
499	 56.05	0	533333..534340	-	335	62289490	-	BruAb1_0533	-	glycosyl transferase, group 4 family protein
500	 58.84	0	535549..536136	+	195	62289491	-	BruAb1_0535	-	P1 ISBm3
501	 56.00	0	536121..536420	+	99	62289492	-	BruAb1_0536	-	transposase
502	 56.44	0	536932..537156	+	74	62289493	-	BruAb1_0538	-	P1 ISBm2
503	 45.13	-2	538209..538988	-	259	62289494	-	BruAb1_0540	-	formyltransferase
504	 44.56	-2	539015..539869	-	284	62289495	wbkB	BruAb1_0541	-	WbkB protein
505	 49.01	-1	539866..540624	-	252	62289496	rfbE	BruAb1_0542	-	RfbE, O-antigen export system ATP-binding protein RfbE
506	 45.98	-2	540621..541403	-	260	62289497	rfbD	BruAb1_0543	-	RfbD, O-antigen export system permease protein
507	 47.28	-2	541418..542521	-	367	62289498	-	BruAb1_0544	-	perosamine synthase
508	 47.93	-2	542529..543617	-	362	62289499	gmd	BruAb1_0545	-	Gmd, GDP-mannose 4,6-dehydratase
509	 60.37	0	544136..544564	+	142	62289500	-	BruAb1_0546	-	ISBm1, transposase orfA
510	 58.71	0	544456..544857	+	133	62289501	-	BruAb1_0547	-	ISBml, transposase orfB
511	 58.33	0	545772..546083	+	103	62289502	-	BruAb1_0549	-	IS711, transposase orfA
512	 52.05	-1	546070..546507	+	145	62289503	-	BruAb1_0550	-	IS711, transposase orfB
513	 54.58	0	546508..546747	+	79	62289504	-	BruAb1_0551	-	ISBm1 ORFC
514	 43.79	-2	546878..547996	+	372	62289505	-	BruAb1_0552	-	mannosyltransferase
515	 57.18	0	548054..548422	+	122	62289506	-	BruAb1_0553	-	IS5 family transposase OrfA
516	 59.21	0	549666..550094	+	142	62289507	-	BruAb1_0556	-	transposase orfA
517	 57.43	0	549986..550429	+	147	62289508	-	BruAb1_0557	-	transposase orfB
518	 50.81	-1	551254..552609	+	451	62289509	-	BruAb1_0560	-	phosphomannomutase
519	 51.16	-1	552680..554104	+	474	62289510	-	BruAb1_0561	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
57.12	MEAN

4.21	STD DEV
