IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

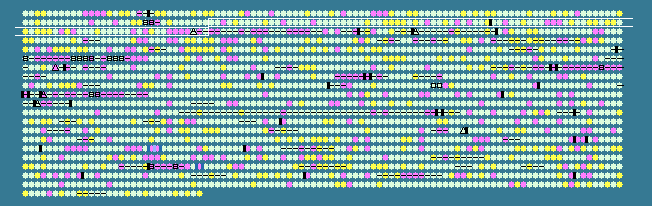

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
132	 60.37	0	164356..167088	+	910	62289123	mutS	BruAb1_0143	-	DNA mismatch repair protein
133	 59.10	0	167394..168239	-	281	62289124	-	BruAb1_0144	-	hypothetical protein
134	 52.80	-1	168562..169044	-	160	62289125	lspA	BruAb1_0145	-	LspA, lipoprotein signal peptidase
135	 59.84	0	169046..169939	-	297	62289126	-	BruAb1_0146	-	RNA methyltransferase
136	 61.26	0	169936..171081	-	381	62289127	-	BruAb1_0147	-	SAM dependent methyltransferase
137	 58.95	0	171194..171517	-	107	62289128	-	BruAb1_0148	-	hypothetical protein
138	 56.84	0	171527..171811	-	94	62289129	ihfB	BruAb1_0149	-	integration host factor subunit beta
139	 60.04	0	171858..172853	-	331	62289130	sppA	BruAb1_0150	-	SppA, signal peptide peptidase SppA
140	 55.35	0	173372..174025	+	217	62289131	-	BruAb1_0151	-	hypothetical protein
141	 60.81	0	174349..174963	+	204	62289132	-	BruAb1_0152	-	hypothetical protein
142	 59.95	0	174975..175808	+	277	62289133	-	BruAb1_0153	-	ABC transporter, ATP-binding protein
143	 57.75	0	176104..177606	+	500	62289134	rpoN	BruAb1_0154	-	RNA polymerase factor sigma-54
144	 46.72	-2	177755..178120	-	121	62289135	-	BruAb1_0155	-	hypothetical protein
145	 58.75	0	178356..178949	+	197	62289136	yfiA	BruAb1_0156	-	YfiA, ribosomal subunit interface protein
146	 58.49	0	179052..179516	+	154	62289137	ptsN	BruAb1_0157	-	PtsN, PTS system, nitrogen regulatory IIA component
147	 58.54	0	179597..179842	-	81	62289138	-	BruAb1_0158	-	hypothetical protein
148	 56.26	0	179948..180370	-	140	62289139	-	BruAb1_0159	-	HSP20 family protein
149	 49.25	-1	180461..180661	-	66	62289140	-	BruAb1_0160	-	hypothetical protein
150	 58.63	0	180642..181139	-	165	62289141	-	BruAb1_0161	-	hypothetical protein
151	 60.51	0	181244..181990	+	248	62289142	nth	BruAb1_0162	-	Nth, endonuclease III
152	 58.40	0	182031..182744	-	237	62289143	-	BruAb1_0163	-	CysZ-like protein
153	 56.61	0	182741..182929	-	62	62289144	-	BruAb1_0164	-	hypothetical protein
154	 59.92	0	183004..183996	+	330	62289145	-	BruAb1_0165	-	carbohydrate kinase
155	 59.82	0	184015..184671	-	218	62289146	-	BruAb1_0166	-	hypothetical protein
156	 59.18	0	184804..185484	-	226	62289147	grpE	BruAb1_0167	-	GrpE, heat shock protein
157	 58.93	0	185590..186714	-	374	62289148	hrcA	BruAb1_0168	-	heat-inducible transcription repressor
158	 62.76	+1	186882..187598	+	238	62289149	rph	BruAb1_0169	-	ribonuclease PH
159	 59.58	0	188178..188840	+	220	62289150	-	BruAb1_0171	-	putative deoxyribonucleotide triphosphate pyrophosphatase
160	 60.41	0	188837..190051	+	404	62289151	-	BruAb1_0172	-	coproporphyrinogen III oxidase
161	 62.28	+1	190063..190974	+	303	62289152	-	BruAb1_0173	-	tetrapyrrole methylase family protein
162	 61.42	+1	190971..191351	+	126	62289153	-	BruAb1_0174	-	hypothetical protein
163	 64.16	+1	191571..193004	+	477	62289154	cysG	BruAb1_0175	-	CysG, siroheme synthase
164	 62.71	+1	193022..193324	+	100	62289155	-	BruAb1_0176	-	hypothetical protein
165	 57.57	0	193345..195015	+	556	62289156	cysI	BruAb1_0177	-	CysI, sulfite reductase (NADPH) hemoprotein beta-component
166	 63.37	+1	195005..195763	+	252	62289157	cysH	BruAb1_0178	-	phosphoadenosine phosphosulfate reductase
167	 59.24	0	195816..196340	+	174	62289158	-	BruAb1_0179	-	hypothetical protein
168	 53.40	0	196408..196701	+	97	62289159	-	BruAb1_0180	-	hypothetical protein
169	 59.41	0	196702..197280	-	192	62289160	ogt	BruAb1_0181	-	Ogt, methylated-DNA--protein-cysteine methyltransferase
170	 56.91	0	197538..197783	+	81	62289161	-	BruAb1_0182	-	hypothetical protein
171	 61.28	0	197836..198225	-	129	62289162	-	BruAb1_0183	-	hypothetical protein
172	 59.27	0	198539..202324	+	1261	62289163	metH	BruAb1_0184	-	B12-dependent methionine synthase
173	 51.41	-1	202645..203352	+	235	62289164	-	BruAb1_0185	-	LuxR family transcriptional regulator
174	 59.52	0	203467..204837	+	456	62289165	-	BruAb1_0186	-	aminotransferase
175	 49.19	-1	204816..205061	-	81	62289166	-	BruAb1_0187	-	hypothetical protein
176	 55.70	0	205240..206142	+	300	62289167	cysD	BruAb1_0188	-	sulfate adenylyltransferase subunit 2
177	 58.14	0	206142..208076	+	644	62289168	cysNC	BruAb1_0189	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
178	 61.92	+1	208124..208924	+	266	62289169	cysQ	BruAb1_0190	-	CysQ, 3(2),5-bisphosphate nucleotidase
179	 56.56	0	209186..209947	-	253	62289170	-	BruAb1_0191	-	Crp/FNR family transcriptional regulator
180	 57.14	0	210235..210927	+	230	62289171	-	BruAb1_0192	-	LuxR family transcriptional regulator
181	 33.33	-2	210902..211033	+	43	62289172	-	BruAb1_0193	-	hypothetical protein
182	 58.33	0	211255..212046	+	263	62289173	glpR	BruAb1_0194	-	GlpR, glycerol-3-phosphate transcriptional regulator
183	 60.38	0	212128..213639	+	503	62289174	glpD	BruAb1_0195	-	glycerol-3-phosphate dehydrogenase
184	 64.81	+1	213858..214826	+	322	62289175	-	BruAb1_0196	-	Fis family transcriptional regulator
185	 59.03	0	216972..218006	+	344	62289176	-	BruAb1_0198	-	alcohol dehydrogenase, zinc-containing
186	 60.10	0	218070..218465	+	131	62289177	-	BruAb1_0199	-	hypothetical protein
187	 59.82	0	218491..219513	+	340	62289178	-	BruAb1_0200	-	LacI family transcription regulator
188	 52.74	-1	221522..221722	+	66	62289179	-	BruAb1_0202	-	hypothetical protein
189	 41.41	-2	221764..221862	-	32	62289180	-	BruAb1_0203	-	hypothetical protein
190	 52.56	-1	221857..222012	+	51	62289181	-	BruAb1_0204	-	hypothetical protein
191	 59.21	0	222025..223458	+	477	62289182	-	BruAb1_0205	-	aldehyde dehydrogenase family protein
192	 63.19	+1	223503..224279	-	258	62289183	-	BruAb1_0206	-	ABC transporter, permease protein
193	 58.94	0	224276..224974	-	232	62289184	-	BruAb1_0207	-	transcriptional regulator TenA
194	 57.38	0	224971..225939	-	322	62289185	-	BruAb1_0208	-	ABC transporter, periplasmic substrate-binding protein
195	 60.95	0	225963..226574	-	203	62289186	thiE	BruAb1_0209	-	thiamine-phosphate pyrophosphorylase
196	 62.65	+1	226571..227341	-	256	62289187	thiG	BruAb1_0210	-	thiazole synthase
197	 59.09	0	227343..227540	-	65	62289188	-	BruAb1_0211	-	hypothetical protein
198	 63.38	+1	227537..228541	-	334	62289189	-	BruAb1_0212	-	D-amino acid oxidase family protein
199	 62.67	+1	228541..229416	-	291	62289190	thiD	BruAb1_0213	-	ThiD, phosphomethylpyrimidine kinase
200	 57.72	0	229845..231956	+	703	62289191	-	BruAb1_0214	-	sensory box protein
201	 62.11	+1	232055..234334	+	759	62289192	-	BruAb1_0215	-	copper-translocating P-type ATPase
202	 58.67	0	234314..234763	-	149	62289193	-	BruAb1_0216	-	MerR family transcriptional regulator
203	 61.31	0	234869..235615	-	248	62289194	-	BruAb1_0217	-	ABC transporter, permease protein
204	 63.58	+1	235612..236550	-	312	62289195	-	BruAb1_0218	-	ABC transporter, ATP-binding protein
205	 62.36	+1	236547..237707	-	386	62289196	-	BruAb1_0219	-	ABC transporter, permease protein
206	 56.83	0	237780..238694	-	304	62289197	-	BruAb1_0220	-	ABC transporter periplasmic substrate-binding protein
207	 45.62	-2	238880..239530	-	216	62289198	-	BruAb1_0221	-	hypothetical protein
208	 60.82	0	239834..241099	-	421	62289199	-	BruAb1_0222	-	glutamate dehydrogenase
209	 50.94	-1	241299..241457	+	52	62289200	-	BruAb1_0223	-	hypothetical protein
210	 58.82	0	242698..243003	+	101	62289201	soxD	BruAb1_0225	-	SoxD, sarcosine oxidase, delta subunit
211	 57.48	0	246011..246565	+	184	62289202	soxG	BruAb1_0227	-	SoxG, sarcosine oxidase, gamma subunit
212	 59.84	0	246618..247466	-	282	62289203	-	BruAb1_0228	-	hypothetical protein
213	 60.63	0	247524..248318	-	264	62289204	-	BruAb1_0229	-	IclR family transcriptional regulator
214	 57.65	0	248476..249795	+	439	62289205	-	BruAb1_0230	-	sugar ABC transporter, periplasmic sugar-binding protein
215	 58.66	0	249856..250779	+	307	62289206	-	BruAb1_0231	-	sugar ABC transporter, permease protein
216	 59.82	0	250782..251657	+	291	62289207	-	BruAb1_0232	-	sugar ABC transporter, permease protein
217	 60.26	0	251665..252756	+	363	62289208	-	BruAb1_0233	-	sugar ABC transporter, ATP-binding protein
218	 59.79	0	252759..253877	+	372	62289209	-	BruAb1_0234	-	mandelate racemase/muconate lactonizing enzyme family protein
219	 51.01	-1	253874..254218	+	114	62289210	-	BruAb1_0235	-	hypothetical protein
220	 60.46	0	254211..255290	+	359	62289211	-	BruAb1_0236	-	Gfo/Idh/MocA family oxidoreductase
221	 51.52	-1	255293..255391	+	32	62289212	-	BruAb1_0237	-	hypothetical protein
222	 61.50	+1	255395..256129	+	244	62289213	-	BruAb1_0238	-	short chain dehydrogenase/reductase family oxidoreductase
223	 58.98	0	256170..257015	+	281	62289214	-	BruAb1_0239	-	fumarylacetoacetate hydrolase family protein
224	 58.53	0	257029..258306	+	425	62289215	-	BruAb1_0240	-	mandelate racemase/muconate lactonizing protein
225	 48.01	-2	258705..259256	-	183	62289216	-	BruAb1_0241	-	hypothetical protein
226	 47.47	-2	259291..259488	-	65	62289217	-	BruAb1_0242	-	hypothetical protein
227	 52.38	-1	259666..259875	+	69	62289218	-	BruAb1_0243	-	hypothetical protein
228	 49.09	-1	259958..260287	-	109	62289219	-	BruAb1_0244	-	hypothetical protein
229	 55.47	0	260459..261655	+	398	62289220	-	BruAb1_0245	-	integrase prophage protein
230	 45.64	-2	261652..262098	+	148	62289221	-	BruAb1_0246	-	hypothetical protein
231	 55.71	0	262166..262384	+	72	62289222	-	BruAb1_0247	-	hypothetical protein
57.12	MEAN

4.21	STD DEV
