IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

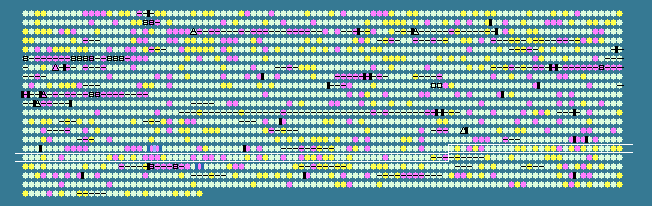

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1572	 58.24	0	1651981..1653915	-	644	62290563	ftsH	BruAb1_1676	-	FtsH, cell division protein FtsH
1573	 61.10	0	1654051..1655397	-	448	62290564	-	BruAb1_1677	-	hypothetical protein
1574	 59.85	0	1655413..1656879	-	488	62290565	-	BruAb1_1678	-	hypothetical protein
1575	 52.99	0	1656996..1657112	-	38	62290566	-	BruAb1_1679	-	hypothetical protein
1576	 62.52	+1	1657276..1657782	-	168	62290567	-	BruAb1_1680	-	Pal family lipoprotein
1577	 48.89	-1	1657831..1658010	-	59	62290568	-	BruAb1_1681	-	hypothetical protein
1578	 59.08	0	1658070..1659401	-	443	62290569	tolB	BruAb1_1682	-	translocation protein TolB
1579	 60.22	0	1659457..1660527	-	356	62290570	tolA	BruAb1_1683	-	TolA, tolA protein
1580	 54.97	0	1660535..1660987	-	150	62290571	-	BruAb1_1684	-	ExbD/TolR family TonB system transport protein
1581	 59.07	0	1661034..1661744	-	236	62290572	tolQ	BruAb1_1685	-	TolQ, tolQ protein
1582	 56.44	0	1662119..1662568	-	149	62290573	-	BruAb1_1686	-	hypothetical protein
1583	 61.58	+1	1662565..1663605	-	346	62290574	ruvB	BruAb1_1687	-	Holliday junction DNA helicase B
1584	 61.33	0	1663646..1664263	-	205	62290575	ruvA	BruAb1_1688	-	Holliday junction DNA helicase motor protein
1585	 59.77	0	1664268..1664789	-	173	62290576	ruvC	BruAb1_1689	-	Holliday junction resolvase
1586	 60.95	0	1664891..1665397	-	168	62290577	-	BruAb1_1690	-	hypothetical protein
1587	 58.35	0	1665884..1667086	-	400	62290578	opgC	BruAb1_1691	-	hypothetical protein
1588	 61.71	+1	1667310..1667975	+	221	62290579	-	BruAb1_1692	-	thiamine-phosphate pyrophosphorylase
1589	 61.71	+1	1667976..1669064	+	362	62290580	-	BruAb1_1693	-	hypothetical protein
1590	 50.93	-1	1669073..1669180	+	35	62290581	-	BruAb1_1694	-	hypothetical protein
1591	 56.51	0	1669329..1669889	+	186	62290582	efp	BruAb1_1695	-	elongation factor P
1592	 61.74	+1	1670075..1670866	+	263	62290583	-	BruAb1_1696	-	inositol monophosphatase family protein
1593	 42.34	-2	1670871..1670981	+	36	62290584	-	BruAb1_1697	-	hypothetical protein
1594	 60.86	0	1671121..1672170	+	349	62290585	-	BruAb1_1698	-	hypothetical protein
1595	 59.59	0	1672177..1673208	+	343	62290586	-	BruAb1_1699	-	hypothetical protein
1596	 60.67	0	1673242..1675041	-	599	62290587	-	BruAb1_1700	-	ABC transporter, ATP binding/permease protein
1597	 59.01	0	1675357..1675578	+	73	62290588	rpmE	BruAb1_1701	-	50S ribosomal protein L31
1598	 57.30	0	1675806..1676552	-	248	62290589	-	BruAb1_1702	-	hypothetical protein
1599	 64.07	+1	1676773..1677465	+	230	62290590	-	BruAb1_1703	-	GntR family transcriptional regulator
1600	 62.67	+1	1677627..1678202	+	191	62290591	-	BruAb1_1704	-	BioY family protein
1601	 59.21	0	1678213..1678641	+	142	62290592	-	BruAb1_1705	-	hypothetical protein
1602	 56.32	0	1678654..1679397	-	247	62290593	-	BruAb1_1706	-	hypothetical protein
1603	 58.79	0	1679608..1680432	-	274	62290594	-	BruAb1_1707	-	hypothetical protein
1604	 62.14	+1	1680541..1681137	-	198	62290595	-	BruAb1_1708	-	5-formyltetrahydrofolate cyclo-ligase family protein
1605	 59.02	0	1681525..1681890	-	121	62290596	-	BruAb1_1709	-	hypothetical protein
1606	 60.44	0	1681900..1682172	-	90	62290597	-	BruAb1_1710	-	hypothetical protein
1607	 46.88	-2	1682315..1682410	-	31	62290598	-	BruAb1_1711	-	hypothetical protein
1608	 60.14	0	1682589..1684580	+	663	62290599	tkt	BruAb1_1712	-	transketolase
1609	 58.53	0	1684721..1685728	+	335	62290600	gap	BruAb1_1713	-	glyceraldehyde-3-phosphate dehydrogenase
1610	 60.35	0	1685799..1686986	+	395	62290601	pgk	BruAb1_1714	-	phosphoglycerate kinase
1611	 56.97	0	1687277..1687441	-	54	62290602	-	BruAb1_1715	-	hypothetical protein
1612	 60.49	0	1687715..1689625	+	636	62290603	prpE	BruAb1_1716	-	PrpE, propionate--CoA ligase
1613	 56.62	0	1689645..1689863	+	72	62290604	-	BruAb1_1717	-	hypothetical protein
1614	 53.78	0	1689970..1690194	+	74	62290605	-	BruAb1_1718	-	hypothetical protein
1615	 61.11	0	1690201..1690902	+	233	62290606	-	BruAb1_1719	-	transcriptional regulator
1616	 39.81	-2	1691155..1691262	-	35	62290607	-	BruAb1_1720	-	hypothetical protein
1617	 61.03	0	1691305..1691712	+	135	62290608	-	BruAb1_1721	-	hypothetical protein
1618	 59.13	0	1691790..1692479	-	229	62290609	-	BruAb1_1722	-	hypothetical protein
1619	 61.59	+1	1692607..1693611	-	334	62290610	-	BruAb1_1723	-	alcohol dehydrogenase, zinc-containing
1620	 56.77	0	1693804..1693995	+	63	62290611	-	BruAb1_1724	-	hypothetical protein
1621	 48.33	-2	1695473..1695652	-	59	62290612	-	BruAb1_1726	-	hypothetical protein
1622	 52.25	-1	1695711..1695932	-	73	62290613	-	BruAb1_1727	-	hypothetical protein
1623	 49.51	-1	1696046..1696249	+	67	62290614	-	BruAb1_1728	-	hypothetical protein
1624	 62.78	+1	1696347..1696835	+	162	62290615	purE	BruAb1_1729	-	PurE, phosphoribosylaminoimidazole carboxylase, catalytic subunit
1625	 60.06	0	1696852..1697940	+	362	62290616	purK	BruAb1_1730	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1626	 57.94	0	1698176..1698301	+	41	62290617	rpmJ	BruAb1_1731	-	50S ribosomal protein L36
1627	 57.10	0	1698339..1699028	+	229	62290618	-	BruAb1_1732	-	TPR domain-containing protein
1628	 59.22	0	1699280..1700716	-	478	62290619	pyk	BruAb1_1733	-	pyruvate kinase
1629	 53.46	0	1700713..1701174	-	153	62290620	-	BruAb1_1734	-	hypothetical protein
1630	 57.98	0	1701326..1702234	+	302	62290621	-	BruAb1_1735	-	hypothetical protein
1631	 51.85	-1	1702231..1702392	+	53	62290622	-	BruAb1_1736	-	hypothetical protein
1632	 50.19	-1	1702407..1702667	+	86	62290623	-	BruAb1_1737	-	hypothetical protein
1633	 59.74	0	1702759..1704576	-	605	62290624	-	BruAb1_1738	-	ABC transporter, ATP-binding protein
1634	 50.29	-1	1704585..1704755	-	56	62290625	-	BruAb1_1739	-	hypothetical protein
1635	 60.35	0	1704724..1705008	-	94	62290626	-	BruAb1_1740	-	lipoprotein
1636	 56.16	0	1705142..1705798	-	218	62290627	-	BruAb1_1741	-	hypothetical protein
1637	 55.82	0	1706105..1707109	+	334	62290628	tbpA	BruAb1_1742	-	thiamine transporter substrate binding subunit
1638	 60.66	0	1707106..1708737	+	543	62290629	thiP	BruAb1_1743	-	thiamine transporter membrane protein
1639	 60.19	0	1708734..1709459	+	241	62290630	-	BruAb1_1744	-	thiamine ABC transporter ATP-binding protein
1640	 52.08	-1	1709456..1709551	-	31	62290631	-	BruAb1_1745	-	hypothetical protein
1641	 61.34	+1	1709726..1711207	+	493	62290632	-	BruAb1_1746	-	peptidase
1642	 57.75	0	1711234..1711962	+	242	62290633	-	BruAb1_1747	-	MOSC domain-containing protein
1643	 58.76	0	1712050..1712985	-	311	62290634	rpoH2	BruAb1_1748	-	RNA polymerase factor sigma-32
1644	 48.10	-2	1713149..1713358	-	69	62290635	-	BruAb1_1749	-	hypothetical protein
1645	 55.21	0	1713330..1713914	-	194	62290636	-	BruAb1_1750	-	transcriptional regulator
1646	 55.75	0	1714419..1714757	-	112	62290637	fdxA	BruAb1_1751	-	FdxA, ferredoxin A
1647	 51.71	-1	1714890..1715123	-	77	62290638	-	BruAb1_1752	-	hypothetical protein
1648	 61.94	+1	1715120..1715521	-	133	62290639	-	BruAb1_1753	-	S4 domain-containing protein
1649	 61.58	+1	1715557..1718643	-	1028	62290640	-	BruAb1_1754	-	ATP-dependent helicase
1650	 49.22	-1	1719012..1719332	-	106	62290641	-	BruAb1_1755	-	hypothetical protein
1651	 62.03	+1	1719316..1720500	-	394	62290642	phbA-1	BruAb1_1756	-	acetyl-CoA acetyltransferase
1652	 62.04	+1	1720676..1721107	+	143	62290643	-	BruAb1_1757	-	hypothetical protein
1653	 54.44	0	1721239..1721418	-	59	62290644	rpmF	BruAb1_1758	-	50S ribosomal protein L32
1654	 56.87	0	1721579..1722313	-	244	62290645	mtgA	BruAb1_1759	-	monofunctional biosynthetic peptidoglycan transglycosylase
1655	 62.95	+1	1722500..1723414	+	304	62290646	ispA	BruAb1_1760	-	IspA, geranyltranstransferase
1656	 60.17	0	1723422..1724684	-	420	62290647	ispG	BruAb1_1761	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1657	 57.20	0	1724852..1725643	+	263	62290648	-	BruAb1_1762	-	D-beta-hydroxybutyrate dehydrogenase
1658	 58.76	0	1725661..1726785	-	374	62290649	-	BruAb1_1763	-	transporter
1659	 58.79	0	1726914..1730390	-	1158	62290650	pyc	BruAb1_1764	-	pyruvate carboxylase
1660	 56.36	0	1730656..1731771	-	371	62290651	-	BruAb1_1765	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
1661	 49.28	-1	1732064..1732201	+	45	62290652	-	BruAb1_1766	-	hypothetical protein
1662	 55.11	0	1732392..1733507	-	371	62290653	-	BruAb1_1767	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
1663	 54.20	0	1733659..1734003	-	114	62290654	-	BruAb1_1768	-	hypothetical protein
1664	 57.33	0	1734013..1734762	-	249	62290655	-	BruAb1_1769	-	branched-chain amino acid ABC transporter, ATP-binding protein
1665	 57.97	0	1736098..1737477	-	459	62290656	-	BruAb1_1771	-	branched-chain amino acid ABC transporter, permease protein
1666	 57.32	0	1737480..1738388	-	302	62290657	-	BruAb1_1772	-	branched-chain amino acid ABC transporter, permease protein
1667	 58.98	0	1738682..1739683	-	333	62290658	-	BruAb1_1773	-	proline racemase
1668	 60.49	0	1739689..1740951	-	420	62290659	-	BruAb1_1774	-	D-amino acid dehydrogenase small subunit
1669	 63.22	+1	1741231..1741926	+	231	62290660	-	BruAb1_1775	-	GntR family transcriptional regulator
1670	 54.86	0	1741999..1742574	-	191	62290661	-	BruAb1_1776	-	MarR family transcriptional regulator
1671	 49.02	-1	1742597..1742698	-	33	62290662	-	BruAb1_1777	-	hypothetical protein
57.12	MEAN

4.21	STD DEV
