IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

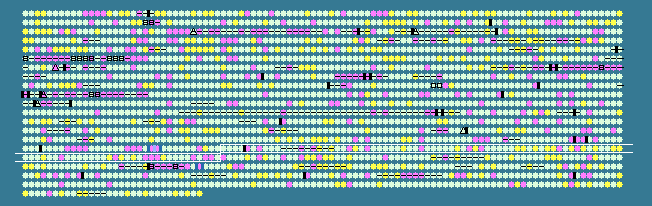

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1534	 57.78	0	1617461..1617955	+	164	62290525	-	BruAb1_1637	-	acetyltransferase
1535	 58.44	0	1618014..1618925	-	303	62290526	-	BruAb1_1638	-	RNA polymerase factor sigma-32
1536	 59.70	0	1619356..1620360	-	334	62290527	-	BruAb1_1639	-	ribosomal large subunit pseudouridine synthase D
1537	 58.28	0	1620416..1620892	+	158	62290528	-	BruAb1_1640	-	hypothetical protein
1538	 53.29	0	1621271..1621696	+	141	62290529	-	BruAb1_1641	-	ferric uptake regulation protein
1539	 56.65	0	1621932..1622939	-	335	62290530	-	BruAb1_1642	-	sensor histidine kinase
1540	 48.48	-2	1623135..1623299	-	54	62290531	-	BruAb1_1643	-	hypothetical protein
1541	 56.23	0	1623449..1624243	-	264	62290532	-	BruAb1_1644	-	two-component response regulator
1542	 60.56	0	1624689..1625261	+	190	62290533	-	BruAb1_1645	-	RNA polymerase sigma factor
1543	 56.96	0	1625462..1626904	+	480	62290534	-	BruAb1_1646	-	sensor histidine kinase
1544	 58.33	0	1626965..1627384	-	139	62290535	-	BruAb1_1647	-	hypothetical protein
1545	 57.63	0	1627405..1627758	-	117	62290536	-	BruAb1_1648	-	hypothetical protein
1546	 57.30	0	1627923..1628765	-	280	62290537	-	BruAb1_1649	-	hypothetical protein
1547	 44.74	-2	1628785..1628898	-	37	62290538	-	BruAb1_1650	-	hypothetical protein
1548	 57.86	0	1628938..1629096	-	52	62290539	-	BruAb1_1651	-	hypothetical protein
1549	 46.30	-2	1629227..1629442	+	71	62290540	-	BruAb1_1652	-	hypothetical protein
1550	 63.64	+1	1629546..1630469	+	307	62290541	exbB	BruAb1_1653	-	ExbB, biopolymer transport protein ExbB
1551	 60.20	0	1630475..1630969	+	164	62290542	-	BruAb1_1654	-	TonB system transport protein ExbD
1552	 61.74	+1	1630966..1631817	+	283	62290543	-	BruAb1_1655	-	TonB-dependent receptor
1553	 55.56	0	1631860..1632606	-	248	62290544	-	BruAb1_1656	-	hypothetical protein
1554	 59.01	0	1634604..1635830	-	408	62290545	-	BruAb1_1658	-	HlyD family secretion protein
1555	 50.00	-1	1635832..1635957	-	41	62290546	-	BruAb1_1659	-	hypothetical protein
1556	 61.18	0	1636065..1636538	-	157	62290547	dut	BruAb1_1660	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1557	 56.48	0	1636761..1637231	-	156	62290548	-	BruAb1_1661	-	AsnC family transcriptional regulator
1558	 53.24	0	1637377..1637592	+	71	62290549	-	BruAb1_1662	-	hypothetical protein
1559	 60.19	0	1637632..1638495	+	287	62290550	-	BruAb1_1663	-	glutamine amidotransferase
1560	 59.35	0	1638522..1639505	-	327	62290551	-	BruAb1_1664	-	hypothetical protein
1561	 59.75	0	1639622..1641052	+	476	62290552	-	BruAb1_1665	-	major facilitator family transporter
1562	 60.52	0	1641262..1642659	-	465	62290553	-	BruAb1_1666	-	hypothetical protein
1563	 54.05	0	1642857..1642967	-	36	62290554	-	BruAb1_1667	-	hypothetical protein
1564	 60.93	0	1642972..1644261	-	429	62290555	purA	BruAb1_1668	-	adenylosuccinate synthetase
1565	 56.86	0	1644579..1645088	-	169	62290556	-	BruAb1_1669	-	acetyltransferase
1566	 57.37	0	1645093..1646694	-	533	62290557	serA-1	BruAb1_1670	-	D-3-phosphoglycerate dehydrogenase
1567	 50.34	-1	1646706..1646852	-	48	62290558	-	BruAb1_1671	-	hypothetical protein
1568	 58.67	0	1646849..1648024	-	391	62290559	serC	BruAb1_1672	-	phosphoserine aminotransferase
1569	 59.14	0	1648175..1649131	-	318	62290560	-	BruAb1_1673	-	sodium/bile acid transporter family protein
1570	 56.00	0	1649312..1650136	-	274	62290561	-	BruAb1_1674	-	outer surface protein
1571	 58.19	0	1650321..1651676	-	451	62290562	glmM	BruAb1_1675	-	GlmM, phosphoglucosamine mutase
1572	 58.24	0	1651981..1653915	-	644	62290563	ftsH	BruAb1_1676	-	FtsH, cell division protein FtsH
1573	 61.10	0	1654051..1655397	-	448	62290564	-	BruAb1_1677	-	hypothetical protein
1574	 59.85	0	1655413..1656879	-	488	62290565	-	BruAb1_1678	-	hypothetical protein
1575	 52.99	0	1656996..1657112	-	38	62290566	-	BruAb1_1679	-	hypothetical protein
1576	 62.52	+1	1657276..1657782	-	168	62290567	-	BruAb1_1680	-	Pal family lipoprotein
1577	 48.89	-1	1657831..1658010	-	59	62290568	-	BruAb1_1681	-	hypothetical protein
1578	 59.08	0	1658070..1659401	-	443	62290569	tolB	BruAb1_1682	-	translocation protein TolB
1579	 60.22	0	1659457..1660527	-	356	62290570	tolA	BruAb1_1683	-	TolA, tolA protein
1580	 54.97	0	1660535..1660987	-	150	62290571	-	BruAb1_1684	-	ExbD/TolR family TonB system transport protein
1581	 59.07	0	1661034..1661744	-	236	62290572	tolQ	BruAb1_1685	-	TolQ, tolQ protein
1582	 56.44	0	1662119..1662568	-	149	62290573	-	BruAb1_1686	-	hypothetical protein
1583	 61.58	+1	1662565..1663605	-	346	62290574	ruvB	BruAb1_1687	-	Holliday junction DNA helicase B
1584	 61.33	0	1663646..1664263	-	205	62290575	ruvA	BruAb1_1688	-	Holliday junction DNA helicase motor protein
1585	 59.77	0	1664268..1664789	-	173	62290576	ruvC	BruAb1_1689	-	Holliday junction resolvase
1586	 60.95	0	1664891..1665397	-	168	62290577	-	BruAb1_1690	-	hypothetical protein
1587	 58.35	0	1665884..1667086	-	400	62290578	opgC	BruAb1_1691	-	hypothetical protein
1588	 61.71	+1	1667310..1667975	+	221	62290579	-	BruAb1_1692	-	thiamine-phosphate pyrophosphorylase
1589	 61.71	+1	1667976..1669064	+	362	62290580	-	BruAb1_1693	-	hypothetical protein
1590	 50.93	-1	1669073..1669180	+	35	62290581	-	BruAb1_1694	-	hypothetical protein
1591	 56.51	0	1669329..1669889	+	186	62290582	efp	BruAb1_1695	-	elongation factor P
1592	 61.74	+1	1670075..1670866	+	263	62290583	-	BruAb1_1696	-	inositol monophosphatase family protein
1593	 42.34	-2	1670871..1670981	+	36	62290584	-	BruAb1_1697	-	hypothetical protein
1594	 60.86	0	1671121..1672170	+	349	62290585	-	BruAb1_1698	-	hypothetical protein
1595	 59.59	0	1672177..1673208	+	343	62290586	-	BruAb1_1699	-	hypothetical protein
1596	 60.67	0	1673242..1675041	-	599	62290587	-	BruAb1_1700	-	ABC transporter, ATP binding/permease protein
1597	 59.01	0	1675357..1675578	+	73	62290588	rpmE	BruAb1_1701	-	50S ribosomal protein L31
1598	 57.30	0	1675806..1676552	-	248	62290589	-	BruAb1_1702	-	hypothetical protein
1599	 64.07	+1	1676773..1677465	+	230	62290590	-	BruAb1_1703	-	GntR family transcriptional regulator
1600	 62.67	+1	1677627..1678202	+	191	62290591	-	BruAb1_1704	-	BioY family protein
1601	 59.21	0	1678213..1678641	+	142	62290592	-	BruAb1_1705	-	hypothetical protein
1602	 56.32	0	1678654..1679397	-	247	62290593	-	BruAb1_1706	-	hypothetical protein
1603	 58.79	0	1679608..1680432	-	274	62290594	-	BruAb1_1707	-	hypothetical protein
1604	 62.14	+1	1680541..1681137	-	198	62290595	-	BruAb1_1708	-	5-formyltetrahydrofolate cyclo-ligase family protein
1605	 59.02	0	1681525..1681890	-	121	62290596	-	BruAb1_1709	-	hypothetical protein
1606	 60.44	0	1681900..1682172	-	90	62290597	-	BruAb1_1710	-	hypothetical protein
1607	 46.88	-2	1682315..1682410	-	31	62290598	-	BruAb1_1711	-	hypothetical protein
1608	 60.14	0	1682589..1684580	+	663	62290599	tkt	BruAb1_1712	-	transketolase
1609	 58.53	0	1684721..1685728	+	335	62290600	gap	BruAb1_1713	-	glyceraldehyde-3-phosphate dehydrogenase
1610	 60.35	0	1685799..1686986	+	395	62290601	pgk	BruAb1_1714	-	phosphoglycerate kinase
1611	 56.97	0	1687277..1687441	-	54	62290602	-	BruAb1_1715	-	hypothetical protein
1612	 60.49	0	1687715..1689625	+	636	62290603	prpE	BruAb1_1716	-	PrpE, propionate--CoA ligase
1613	 56.62	0	1689645..1689863	+	72	62290604	-	BruAb1_1717	-	hypothetical protein
1614	 53.78	0	1689970..1690194	+	74	62290605	-	BruAb1_1718	-	hypothetical protein
1615	 61.11	0	1690201..1690902	+	233	62290606	-	BruAb1_1719	-	transcriptional regulator
1616	 39.81	-2	1691155..1691262	-	35	62290607	-	BruAb1_1720	-	hypothetical protein
1617	 61.03	0	1691305..1691712	+	135	62290608	-	BruAb1_1721	-	hypothetical protein
1618	 59.13	0	1691790..1692479	-	229	62290609	-	BruAb1_1722	-	hypothetical protein
1619	 61.59	+1	1692607..1693611	-	334	62290610	-	BruAb1_1723	-	alcohol dehydrogenase, zinc-containing
1620	 56.77	0	1693804..1693995	+	63	62290611	-	BruAb1_1724	-	hypothetical protein
1621	 48.33	-2	1695473..1695652	-	59	62290612	-	BruAb1_1726	-	hypothetical protein
1622	 52.25	-1	1695711..1695932	-	73	62290613	-	BruAb1_1727	-	hypothetical protein
1623	 49.51	-1	1696046..1696249	+	67	62290614	-	BruAb1_1728	-	hypothetical protein
1624	 62.78	+1	1696347..1696835	+	162	62290615	purE	BruAb1_1729	-	PurE, phosphoribosylaminoimidazole carboxylase, catalytic subunit
1625	 60.06	0	1696852..1697940	+	362	62290616	purK	BruAb1_1730	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1626	 57.94	0	1698176..1698301	+	41	62290617	rpmJ	BruAb1_1731	-	50S ribosomal protein L36
1627	 57.10	0	1698339..1699028	+	229	62290618	-	BruAb1_1732	-	TPR domain-containing protein
1628	 59.22	0	1699280..1700716	-	478	62290619	pyk	BruAb1_1733	-	pyruvate kinase
1629	 53.46	0	1700713..1701174	-	153	62290620	-	BruAb1_1734	-	hypothetical protein
1630	 57.98	0	1701326..1702234	+	302	62290621	-	BruAb1_1735	-	hypothetical protein
1631	 51.85	-1	1702231..1702392	+	53	62290622	-	BruAb1_1736	-	hypothetical protein
1632	 50.19	-1	1702407..1702667	+	86	62290623	-	BruAb1_1737	-	hypothetical protein
1633	 59.74	0	1702759..1704576	-	605	62290624	-	BruAb1_1738	-	ABC transporter, ATP-binding protein
57.12	MEAN

4.21	STD DEV
