IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

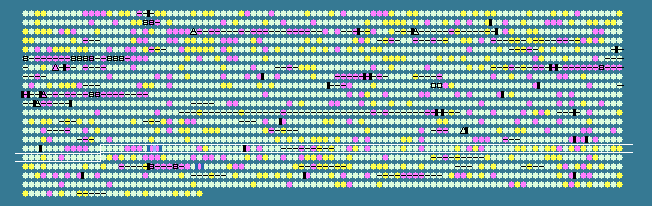

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1514	 55.68	0	1594705..1595478	-	257	62290505	-	BruAb1_1617	-	short chain dehydrogenase
1515	 55.25	0	1595567..1596556	-	329	62290506	-	BruAb1_1618	-	LacI family sugar-binding transcriptional regulator
1516	 57.31	0	1596732..1597736	-	334	62290507	rbsC-2	BruAb1_1619	-	RbsC-2, ribose ABC transporter, permease protein
1517	 55.85	0	1597832..1599310	-	492	62290508	rbsA-2	BruAb1_1620	-	RbsA-2, ribose ABC transporter, ATP-binding protein
1518	 53.62	0	1599472..1599609	+	45	62290509	-	BruAb1_1621	-	hypothetical protein
1519	 53.14	0	1599606..1599923	+	105	62290510	-	BruAb1_1622	-	hypothetical protein
1520	 52.71	-1	1600053..1600181	-	42	62290511	-	BruAb1_1623	-	hypothetical protein
1521	 56.52	0	1600325..1601941	+	538	62290512	-	BruAb1_1624	-	GMC family oxidoreductase
1522	 45.10	-2	1602590..1602742	+	50	62290513	-	BruAb1_1625	-	hypothetical protein
1523	 42.80	-2	1605697..1605939	+	80	62290514	-	BruAb1_1626	-	hypothetical protein
1524	 58.88	0	1608641..1609462	-	273	62290515	-	BruAb1_1627	-	IclR family transcriptional regulator
1525	 58.82	0	1609580..1611031	+	483	62290516	gabD	BruAb1_1628	-	GabD, succinate-semialdehyde dehydrogenase
1526	 58.38	0	1611148..1611738	+	196	62290517	-	BruAb1_1629	-	hypothetical protein
1527	 57.80	0	1611851..1612369	+	172	62290518	-	BruAb1_1630	-	disulfide bond formation protein B
1528	 56.54	0	1612386..1612958	-	190	62290519	-	BruAb1_1631	-	HNH endonuclease family protein
1529	 59.14	0	1612955..1613047	-	30	62290520	-	BruAb1_1632	-	hypothetical protein
1530	 49.07	-1	1613109..1613216	-	35	62290521	-	BruAb1_1633	-	hypothetical protein
1531	 64.70	+1	1613232..1613891	-	219	62290522	-	BruAb1_1634	-	base-excision DNA repair protein
1532	 58.56	0	1613952..1614827	+	291	62290523	-	BruAb1_1635	-	glutamyl-Q tRNA(Asp) synthetase
1533	 58.34	0	1614970..1617156	+	728	62290524	glcB	BruAb1_1636	-	malate synthase G
1534	 57.78	0	1617461..1617955	+	164	62290525	-	BruAb1_1637	-	acetyltransferase
1535	 58.44	0	1618014..1618925	-	303	62290526	-	BruAb1_1638	-	RNA polymerase factor sigma-32
1536	 59.70	0	1619356..1620360	-	334	62290527	-	BruAb1_1639	-	ribosomal large subunit pseudouridine synthase D
1537	 58.28	0	1620416..1620892	+	158	62290528	-	BruAb1_1640	-	hypothetical protein
1538	 53.29	0	1621271..1621696	+	141	62290529	-	BruAb1_1641	-	ferric uptake regulation protein
1539	 56.65	0	1621932..1622939	-	335	62290530	-	BruAb1_1642	-	sensor histidine kinase
1540	 48.48	-2	1623135..1623299	-	54	62290531	-	BruAb1_1643	-	hypothetical protein
1541	 56.23	0	1623449..1624243	-	264	62290532	-	BruAb1_1644	-	two-component response regulator
1542	 60.56	0	1624689..1625261	+	190	62290533	-	BruAb1_1645	-	RNA polymerase sigma factor
1543	 56.96	0	1625462..1626904	+	480	62290534	-	BruAb1_1646	-	sensor histidine kinase
1544	 58.33	0	1626965..1627384	-	139	62290535	-	BruAb1_1647	-	hypothetical protein
1545	 57.63	0	1627405..1627758	-	117	62290536	-	BruAb1_1648	-	hypothetical protein
1546	 57.30	0	1627923..1628765	-	280	62290537	-	BruAb1_1649	-	hypothetical protein
1547	 44.74	-2	1628785..1628898	-	37	62290538	-	BruAb1_1650	-	hypothetical protein
1548	 57.86	0	1628938..1629096	-	52	62290539	-	BruAb1_1651	-	hypothetical protein
1549	 46.30	-2	1629227..1629442	+	71	62290540	-	BruAb1_1652	-	hypothetical protein
1550	 63.64	+1	1629546..1630469	+	307	62290541	exbB	BruAb1_1653	-	ExbB, biopolymer transport protein ExbB
1551	 60.20	0	1630475..1630969	+	164	62290542	-	BruAb1_1654	-	TonB system transport protein ExbD
1552	 61.74	+1	1630966..1631817	+	283	62290543	-	BruAb1_1655	-	TonB-dependent receptor
1553	 55.56	0	1631860..1632606	-	248	62290544	-	BruAb1_1656	-	hypothetical protein
1554	 59.01	0	1634604..1635830	-	408	62290545	-	BruAb1_1658	-	HlyD family secretion protein
1555	 50.00	-1	1635832..1635957	-	41	62290546	-	BruAb1_1659	-	hypothetical protein
1556	 61.18	0	1636065..1636538	-	157	62290547	dut	BruAb1_1660	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1557	 56.48	0	1636761..1637231	-	156	62290548	-	BruAb1_1661	-	AsnC family transcriptional regulator
1558	 53.24	0	1637377..1637592	+	71	62290549	-	BruAb1_1662	-	hypothetical protein
1559	 60.19	0	1637632..1638495	+	287	62290550	-	BruAb1_1663	-	glutamine amidotransferase
1560	 59.35	0	1638522..1639505	-	327	62290551	-	BruAb1_1664	-	hypothetical protein
1561	 59.75	0	1639622..1641052	+	476	62290552	-	BruAb1_1665	-	major facilitator family transporter
1562	 60.52	0	1641262..1642659	-	465	62290553	-	BruAb1_1666	-	hypothetical protein
1563	 54.05	0	1642857..1642967	-	36	62290554	-	BruAb1_1667	-	hypothetical protein
1564	 60.93	0	1642972..1644261	-	429	62290555	purA	BruAb1_1668	-	adenylosuccinate synthetase
1565	 56.86	0	1644579..1645088	-	169	62290556	-	BruAb1_1669	-	acetyltransferase
1566	 57.37	0	1645093..1646694	-	533	62290557	serA-1	BruAb1_1670	-	D-3-phosphoglycerate dehydrogenase
1567	 50.34	-1	1646706..1646852	-	48	62290558	-	BruAb1_1671	-	hypothetical protein
1568	 58.67	0	1646849..1648024	-	391	62290559	serC	BruAb1_1672	-	phosphoserine aminotransferase
1569	 59.14	0	1648175..1649131	-	318	62290560	-	BruAb1_1673	-	sodium/bile acid transporter family protein
1570	 56.00	0	1649312..1650136	-	274	62290561	-	BruAb1_1674	-	outer surface protein
1571	 58.19	0	1650321..1651676	-	451	62290562	glmM	BruAb1_1675	-	GlmM, phosphoglucosamine mutase
1572	 58.24	0	1651981..1653915	-	644	62290563	ftsH	BruAb1_1676	-	FtsH, cell division protein FtsH
1573	 61.10	0	1654051..1655397	-	448	62290564	-	BruAb1_1677	-	hypothetical protein
1574	 59.85	0	1655413..1656879	-	488	62290565	-	BruAb1_1678	-	hypothetical protein
1575	 52.99	0	1656996..1657112	-	38	62290566	-	BruAb1_1679	-	hypothetical protein
1576	 62.52	+1	1657276..1657782	-	168	62290567	-	BruAb1_1680	-	Pal family lipoprotein
1577	 48.89	-1	1657831..1658010	-	59	62290568	-	BruAb1_1681	-	hypothetical protein
1578	 59.08	0	1658070..1659401	-	443	62290569	tolB	BruAb1_1682	-	translocation protein TolB
1579	 60.22	0	1659457..1660527	-	356	62290570	tolA	BruAb1_1683	-	TolA, tolA protein
1580	 54.97	0	1660535..1660987	-	150	62290571	-	BruAb1_1684	-	ExbD/TolR family TonB system transport protein
1581	 59.07	0	1661034..1661744	-	236	62290572	tolQ	BruAb1_1685	-	TolQ, tolQ protein
1582	 56.44	0	1662119..1662568	-	149	62290573	-	BruAb1_1686	-	hypothetical protein
1583	 61.58	+1	1662565..1663605	-	346	62290574	ruvB	BruAb1_1687	-	Holliday junction DNA helicase B
1584	 61.33	0	1663646..1664263	-	205	62290575	ruvA	BruAb1_1688	-	Holliday junction DNA helicase motor protein
1585	 59.77	0	1664268..1664789	-	173	62290576	ruvC	BruAb1_1689	-	Holliday junction resolvase
1586	 60.95	0	1664891..1665397	-	168	62290577	-	BruAb1_1690	-	hypothetical protein
1587	 58.35	0	1665884..1667086	-	400	62290578	opgC	BruAb1_1691	-	hypothetical protein
1588	 61.71	+1	1667310..1667975	+	221	62290579	-	BruAb1_1692	-	thiamine-phosphate pyrophosphorylase
1589	 61.71	+1	1667976..1669064	+	362	62290580	-	BruAb1_1693	-	hypothetical protein
1590	 50.93	-1	1669073..1669180	+	35	62290581	-	BruAb1_1694	-	hypothetical protein
1591	 56.51	0	1669329..1669889	+	186	62290582	efp	BruAb1_1695	-	elongation factor P
1592	 61.74	+1	1670075..1670866	+	263	62290583	-	BruAb1_1696	-	inositol monophosphatase family protein
1593	 42.34	-2	1670871..1670981	+	36	62290584	-	BruAb1_1697	-	hypothetical protein
1594	 60.86	0	1671121..1672170	+	349	62290585	-	BruAb1_1698	-	hypothetical protein
1595	 59.59	0	1672177..1673208	+	343	62290586	-	BruAb1_1699	-	hypothetical protein
1596	 60.67	0	1673242..1675041	-	599	62290587	-	BruAb1_1700	-	ABC transporter, ATP binding/permease protein
1597	 59.01	0	1675357..1675578	+	73	62290588	rpmE	BruAb1_1701	-	50S ribosomal protein L31
1598	 57.30	0	1675806..1676552	-	248	62290589	-	BruAb1_1702	-	hypothetical protein
1599	 64.07	+1	1676773..1677465	+	230	62290590	-	BruAb1_1703	-	GntR family transcriptional regulator
1600	 62.67	+1	1677627..1678202	+	191	62290591	-	BruAb1_1704	-	BioY family protein
1601	 59.21	0	1678213..1678641	+	142	62290592	-	BruAb1_1705	-	hypothetical protein
1602	 56.32	0	1678654..1679397	-	247	62290593	-	BruAb1_1706	-	hypothetical protein
1603	 58.79	0	1679608..1680432	-	274	62290594	-	BruAb1_1707	-	hypothetical protein
1604	 62.14	+1	1680541..1681137	-	198	62290595	-	BruAb1_1708	-	5-formyltetrahydrofolate cyclo-ligase family protein
1605	 59.02	0	1681525..1681890	-	121	62290596	-	BruAb1_1709	-	hypothetical protein
1606	 60.44	0	1681900..1682172	-	90	62290597	-	BruAb1_1710	-	hypothetical protein
1607	 46.88	-2	1682315..1682410	-	31	62290598	-	BruAb1_1711	-	hypothetical protein
1608	 60.14	0	1682589..1684580	+	663	62290599	tkt	BruAb1_1712	-	transketolase
1609	 58.53	0	1684721..1685728	+	335	62290600	gap	BruAb1_1713	-	glyceraldehyde-3-phosphate dehydrogenase
1610	 60.35	0	1685799..1686986	+	395	62290601	pgk	BruAb1_1714	-	phosphoglycerate kinase
1611	 56.97	0	1687277..1687441	-	54	62290602	-	BruAb1_1715	-	hypothetical protein
1612	 60.49	0	1687715..1689625	+	636	62290603	prpE	BruAb1_1716	-	PrpE, propionate--CoA ligase
1613	 56.62	0	1689645..1689863	+	72	62290604	-	BruAb1_1717	-	hypothetical protein
57.12	MEAN

4.21	STD DEV
