IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

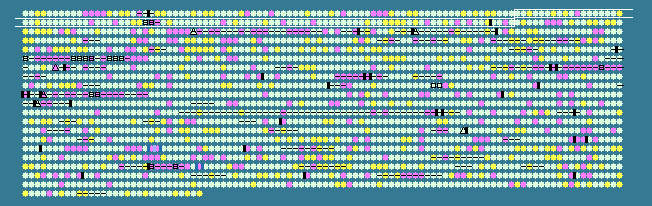

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
83	 60.27	0	98459..101146	-	895	62289074	acnA	BruAb1_0090	-	aconitate hydratase
84	 58.33	0	101490..102137	+	215	62289075	ccmA	BruAb1_0091	-	cytochrome c biogenesis protein CcmA
85	 62.31	+1	102137..102802	+	221	62289076	ccmB	BruAb1_0092	-	CcmB, heme exporter protein
86	 58.40	0	102860..103645	+	261	62289077	ccmC	BruAb1_0093	-	CcmC, heme exporter protein
87	 56.90	0	103642..103815	+	57	62289078	-	BruAb1_0094	-	heme exporter protein D
88	 59.31	0	103812..104423	+	203	62289079	cycY	BruAb1_0095	-	thiol:disulfide interchange protein CycY
89	 61.00	0	104672..106507	-	611	62289080	ilvD	BruAb1_0096	-	dihydroxy-acid dehydratase
90	 54.35	0	106688..106825	+	45	62289081	-	BruAb1_0097	-	hypothetical protein
91	 61.66	+1	106906..107364	-	152	62289082	-	BruAb1_0098	-	hypothetical protein
92	 59.79	0	107364..107741	-	125	62289083	-	BruAb1_0099	-	response regulator
93	 49.37	-1	107916..108152	-	78	62289084	-	BruAb1_0100	-	transcriptional regulator
94	 56.79	0	108805..109209	+	134	62289085	-	BruAb1_0101	-	hypothetical protein
95	 57.02	0	109295..109999	-	234	62289086	-	BruAb1_0102	-	hypothetical protein
96	 53.97	0	110071..110889	+	272	62289087	-	BruAb1_0103	-	hypothetical protein
97	 57.73	0	111168..112196	+	342	62289088	-	BruAb1_0104	-	sulfate ABC transporter, sulfate-binding protein
98	 59.40	0	112291..113157	+	288	62289089	-	BruAb1_0105	-	sulfate ABC transporter, permease protein
99	 59.05	0	113147..114013	+	288	62289090	cysW-1	BruAb1_0106	-	CysW-1, sulfate ABC transporter, permease protein
100	 61.39	+1	114111..115190	+	359	62289091	-	BruAb1_0107	-	sulfate ABC transporter ATP-binding protein
101	 60.50	0	115576..124179	+	2867	62289092	-	BruAb1_0108	-	cyclic beta 1-2 glucan synthetase
102	 58.39	0	124269..125573	+	434	62289093	pncB	BruAb1_0109	-	nicotinate phosphoribosyltransferase
103	 60.77	0	125615..126445	-	276	62289094	-	BruAb1_0110	-	PhzF family phenazine biosynthesis protein
104	 55.77	0	126555..127343	-	262	62289095	-	BruAb1_0111	-	hypothetical protein
105	 59.33	0	127366..128292	-	308	62289096	cscK	BruAb1_0112	-	CscK, fructokinase
106	 59.60	0	128383..129189	-	268	62289097	-	BruAb1_0113	-	short chain dehydrogenase/reductase family oxidoreductase
107	 60.12	0	129310..131601	-	763	62289098	-	BruAb1_0114	-	1A family penicillin-binding protein
108	 56.13	0	131807..132499	-	230	62289099	-	BruAb1_0115	-	hypothetical protein
109	 56.19	0	132766..133452	-	228	62289100	-	BruAb1_0116	-	hypothetical protein
110	 56.15	0	133684..134301	-	205	62289101	-	BruAb1_0117	-	3-5 exonuclease family protein
111	 59.46	0	134340..135755	-	471	62289102	-	BruAb1_0118	-	hypothetical protein
112	 53.52	0	135908..136234	+	108	62289103	-	BruAb1_0119	-	hypothetical protein
113	 59.35	0	136316..139252	+	978	62289104	polA	BruAb1_0120	-	DNA polymerase I
114	 60.29	0	139394..141274	+	626	62289105	-	BruAb1_0121	-	DEAD-box ATP dependent DNA helicase
115	 59.84	0	141370..143802	-	810	62289106	gyrB	BruAb1_0122	-	DNA gyrase subunit B
116	 49.40	-1	143862..144029	-	55	62289107	-	BruAb1_0123	-	hypothetical protein
117	 57.95	0	144130..144966	-	278	62289108	-	BruAb1_0124	-	esterase
118	 56.62	0	145629..146096	-	155	62289109	-	BruAb1_0126	-	acetyltransferase
119	 60.92	0	146096..147208	-	370	62289110	-	BruAb1_0127	-	glutathione-dependent formaldehyde dehydrogenase
120	 60.94	0	150203..151495	+	430	62289111	-	BruAb1_0130	-	sensor histidine kinase
121	 58.01	0	151587..151898	+	103	62289112	-	BruAb1_0131	-	IS711, transposase orfA
122	 52.28	-1	151885..152322	+	145	62289113	-	BruAb1_0132	-	IS711, transposase orfB
123	 45.54	-2	152514..152726	+	70	62289114	-	BruAb1_0133	-	hypothetical protein
124	 60.46	0	152922..153485	+	187	62289115	-	BruAb1_0134	-	DNA-binding response regulator
125	 63.43	+1	153491..153985	-	164	62289116	-	BruAb1_0135	-	hypothetical protein
126	 57.33	0	154255..154875	+	206	62289117	-	BruAb1_0136	-	lipoprotein
127	 59.69	0	154965..155537	-	190	62289118	-	BruAb1_0137	-	NifU-related protein
128	 60.33	0	155646..156134	-	162	62289119	-	BruAb1_0138	-	hypothetical protein
129	 59.83	0	156192..157259	-	355	161611216	trpS	BruAb1_0139	-	tryptophanyl-tRNA synthetase
130	 60.00	0	157356..158945	-	529	62289121	mviN	BruAb1_0140	-	MviN, virulence factor
131	 58.54	0	158959..161763	-	934	62289122	-	BruAb1_0141	-	PII uridylyl-transferase
132	 60.37	0	164356..167088	+	910	62289123	mutS	BruAb1_0143	-	DNA mismatch repair protein
133	 59.10	0	167394..168239	-	281	62289124	-	BruAb1_0144	-	hypothetical protein
134	 52.80	-1	168562..169044	-	160	62289125	lspA	BruAb1_0145	-	LspA, lipoprotein signal peptidase
135	 59.84	0	169046..169939	-	297	62289126	-	BruAb1_0146	-	RNA methyltransferase
136	 61.26	0	169936..171081	-	381	62289127	-	BruAb1_0147	-	SAM dependent methyltransferase
137	 58.95	0	171194..171517	-	107	62289128	-	BruAb1_0148	-	hypothetical protein
138	 56.84	0	171527..171811	-	94	62289129	ihfB	BruAb1_0149	-	integration host factor subunit beta
139	 60.04	0	171858..172853	-	331	62289130	sppA	BruAb1_0150	-	SppA, signal peptide peptidase SppA
140	 55.35	0	173372..174025	+	217	62289131	-	BruAb1_0151	-	hypothetical protein
141	 60.81	0	174349..174963	+	204	62289132	-	BruAb1_0152	-	hypothetical protein
142	 59.95	0	174975..175808	+	277	62289133	-	BruAb1_0153	-	ABC transporter, ATP-binding protein
143	 57.75	0	176104..177606	+	500	62289134	rpoN	BruAb1_0154	-	RNA polymerase factor sigma-54
144	 46.72	-2	177755..178120	-	121	62289135	-	BruAb1_0155	-	hypothetical protein
145	 58.75	0	178356..178949	+	197	62289136	yfiA	BruAb1_0156	-	YfiA, ribosomal subunit interface protein
146	 58.49	0	179052..179516	+	154	62289137	ptsN	BruAb1_0157	-	PtsN, PTS system, nitrogen regulatory IIA component
147	 58.54	0	179597..179842	-	81	62289138	-	BruAb1_0158	-	hypothetical protein
148	 56.26	0	179948..180370	-	140	62289139	-	BruAb1_0159	-	HSP20 family protein
149	 49.25	-1	180461..180661	-	66	62289140	-	BruAb1_0160	-	hypothetical protein
150	 58.63	0	180642..181139	-	165	62289141	-	BruAb1_0161	-	hypothetical protein
151	 60.51	0	181244..181990	+	248	62289142	nth	BruAb1_0162	-	Nth, endonuclease III
152	 58.40	0	182031..182744	-	237	62289143	-	BruAb1_0163	-	CysZ-like protein
153	 56.61	0	182741..182929	-	62	62289144	-	BruAb1_0164	-	hypothetical protein
154	 59.92	0	183004..183996	+	330	62289145	-	BruAb1_0165	-	carbohydrate kinase
155	 59.82	0	184015..184671	-	218	62289146	-	BruAb1_0166	-	hypothetical protein
156	 59.18	0	184804..185484	-	226	62289147	grpE	BruAb1_0167	-	GrpE, heat shock protein
157	 58.93	0	185590..186714	-	374	62289148	hrcA	BruAb1_0168	-	heat-inducible transcription repressor
158	 62.76	+1	186882..187598	+	238	62289149	rph	BruAb1_0169	-	ribonuclease PH
159	 59.58	0	188178..188840	+	220	62289150	-	BruAb1_0171	-	putative deoxyribonucleotide triphosphate pyrophosphatase
160	 60.41	0	188837..190051	+	404	62289151	-	BruAb1_0172	-	coproporphyrinogen III oxidase
161	 62.28	+1	190063..190974	+	303	62289152	-	BruAb1_0173	-	tetrapyrrole methylase family protein
162	 61.42	+1	190971..191351	+	126	62289153	-	BruAb1_0174	-	hypothetical protein
163	 64.16	+1	191571..193004	+	477	62289154	cysG	BruAb1_0175	-	CysG, siroheme synthase
164	 62.71	+1	193022..193324	+	100	62289155	-	BruAb1_0176	-	hypothetical protein
165	 57.57	0	193345..195015	+	556	62289156	cysI	BruAb1_0177	-	CysI, sulfite reductase (NADPH) hemoprotein beta-component
166	 63.37	+1	195005..195763	+	252	62289157	cysH	BruAb1_0178	-	phosphoadenosine phosphosulfate reductase
167	 59.24	0	195816..196340	+	174	62289158	-	BruAb1_0179	-	hypothetical protein
168	 53.40	0	196408..196701	+	97	62289159	-	BruAb1_0180	-	hypothetical protein
169	 59.41	0	196702..197280	-	192	62289160	ogt	BruAb1_0181	-	Ogt, methylated-DNA--protein-cysteine methyltransferase
170	 56.91	0	197538..197783	+	81	62289161	-	BruAb1_0182	-	hypothetical protein
171	 61.28	0	197836..198225	-	129	62289162	-	BruAb1_0183	-	hypothetical protein
172	 59.27	0	198539..202324	+	1261	62289163	metH	BruAb1_0184	-	B12-dependent methionine synthase
173	 51.41	-1	202645..203352	+	235	62289164	-	BruAb1_0185	-	LuxR family transcriptional regulator
174	 59.52	0	203467..204837	+	456	62289165	-	BruAb1_0186	-	aminotransferase
175	 49.19	-1	204816..205061	-	81	62289166	-	BruAb1_0187	-	hypothetical protein
176	 55.70	0	205240..206142	+	300	62289167	cysD	BruAb1_0188	-	sulfate adenylyltransferase subunit 2
177	 58.14	0	206142..208076	+	644	62289168	cysNC	BruAb1_0189	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
178	 61.92	+1	208124..208924	+	266	62289169	cysQ	BruAb1_0190	-	CysQ, 3(2),5-bisphosphate nucleotidase
179	 56.56	0	209186..209947	-	253	62289170	-	BruAb1_0191	-	Crp/FNR family transcriptional regulator
180	 57.14	0	210235..210927	+	230	62289171	-	BruAb1_0192	-	LuxR family transcriptional regulator
181	 33.33	-2	210902..211033	+	43	62289172	-	BruAb1_0193	-	hypothetical protein
182	 58.33	0	211255..212046	+	263	62289173	glpR	BruAb1_0194	-	GlpR, glycerol-3-phosphate transcriptional regulator
57.12	MEAN

4.21	STD DEV
