IslandPathversion 1.0

IslandPath Analysis: Brucella abortus bv. 1 str. 9-941

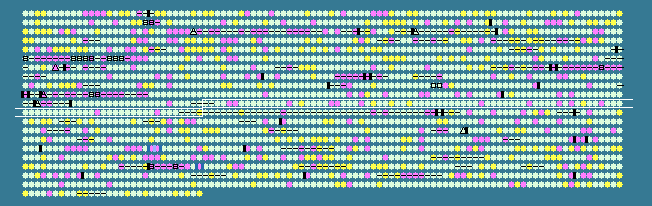

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.12 STD DEV: 4.21
Brucella abortus biovar 1 str. 9-941 chromosome I, complete sequence - 1..2124241
2030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1031	 55.00	0	1101228..1101347	+	39	62290022	-	BruAb1_1113	-	hypothetical protein
1032	 56.31	0	1101339..1102613	-	424	62290023	clpX	BruAb1_1114	-	ATP-dependent protease ATP-binding subunit
1033	 56.51	0	1102995..1103624	-	209	62290024	clpP	BruAb1_1115	-	ATP-dependent Clp protease proteolytic subunit
1034	 59.55	0	1103729..1105147	-	472	62290025	-	BruAb1_1116	-	GTP-binding protein
1035	 45.57	-2	1105338..1105574	-	78	62290026	hfq	BruAb1_1117	-	RNA-binding protein Hfq
1036	 48.33	-2	1105580..1105819	-	79	62290027	-	BruAb1_1118	-	hypothetical protein
1037	 56.28	0	1106682..1108058	-	458	62290028	trkA	BruAb1_1120	-	potassium transporter peripheral membrane component
1038	 60.21	0	1108083..1109444	-	453	62290029	ntrX	BruAb1_1121	-	NtrX, nitrogen regulation protein NtrX
1039	 57.12	0	1109446..1111770	-	774	62290030	ntrY	BruAb1_1122	-	NtrY, nitrogen regulation protein NtrY
1040	 59.42	0	1111861..1113336	-	491	62290031	ntrC	BruAb1_1123	-	NtrC, nitrogen regulation protein NtrC
1041	 59.67	0	1113333..1114475	-	380	62290032	ntrB	BruAb1_1124	-	NtrB, nitrogen regulation protein NtrB
1042	 58.68	0	1114475..1115476	-	333	62290033	nifR3	BruAb1_1125	-	NifR3, nitrogen regulation protein Nifr3
1043	 59.02	0	1115614..1116843	+	409	161611212	ispDF	BruAb1_1126	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1044	 59.24	0	1116840..1117337	+	165	62290035	cinA	BruAb1_1127	-	CinA, competence/damage-inducible protein CinA
1045	 53.16	0	1118214..1118672	-	152	62290036	-	BruAb1_1129	-	hypothetical protein
1046	 56.45	0	1118678..1119646	-	322	62290037	lipA	BruAb1_1130	-	lipoyl synthase
1047	 64.81	+1	1119756..1119917	-	53	62290038	-	BruAb1_1131	-	hypothetical protein
1048	 58.95	0	1120036..1121499	-	487	62290039	lpdA-1	BruAb1_1132	-	dihydrolipoamide dehydrogenase
1049	 59.67	0	1121582..1122925	-	447	62290040	aceF	BruAb1_1133	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1050	 57.50	0	1122943..1124328	-	461	62290041	pdhB	BruAb1_1134	-	pyruvate dehydrogenase subunit beta
1051	 55.91	0	1124347..1125387	-	346	62290042	pdhA	BruAb1_1135	-	PdhA, pyruvate dehydrogenase complex, E1 component, alpha subunit
1052	 49.70	-1	1125526..1125855	-	109	62290043	-	BruAb1_1136	-	hypothetical protein
1053	 49.66	-1	1126127..1126708	-	193	62290044	-	BruAb1_1137	-	hypothetical protein
1054	 57.51	0	1127045..1128322	-	425	62290045	eno	BruAb1_1138	-	enolase
1055	 57.07	0	1128509..1129342	-	277	62290046	kdsA	BruAb1_1139	-	2-dehydro-3-deoxyphosphooctonate aldolase
1056	 55.62	0	1129448..1131076	-	542	62290047	pyrG	BruAb1_1140	-	CTP synthetase
1057	 47.15	-2	1131089..1131211	-	40	62290048	-	BruAb1_1141	-	hypothetical protein
1058	 57.29	0	1131346..1132038	-	230	62290049	-	BruAb1_1142	-	hypothetical protein
1059	 63.53	+1	1132292..1132738	-	148	62290050	secG	BruAb1_1143	-	preprotein translocase subunit SecG
1060	 59.61	0	1132838..1133602	-	254	62290051	tpiA	BruAb1_1144	-	triosephosphate isomerase
1061	 59.25	0	1133821..1135707	+	628	62290052	-	BruAb1_1145	-	rotamase family protein
1062	 61.76	+1	1135722..1136741	+	339	62290053	trpD	BruAb1_1146	-	anthranilate phosphoribosyltransferase
1063	 58.24	0	1136758..1137564	+	268	62290054	trpC	BruAb1_1147	-	indole-3-glycerol-phosphate synthase
1064	 60.44	0	1137561..1138058	+	165	62290055	moaC	BruAb1_1148	-	molybdenum cofactor biosynthesis protein C
1065	 60.82	0	1138154..1139368	+	404	62290056	moeA	BruAb1_1149	-	MoeA, molybdopterin biosynthesis protein MoeA
1066	 57.68	0	1139616..1140338	+	240	62290057	lexA	BruAb1_1150	-	LexA repressor
1067	 57.39	0	1140332..1142863	-	843	62290058	-	BruAb1_1151	-	ComEC/Rec2 family protein
1068	 53.67	0	1142895..1143071	-	58	62290059	-	BruAb1_1152	-	hypothetical protein
1069	 60.06	0	1143084..1144505	+	473	62290060	gltX	BruAb1_1153	-	glutamyl-tRNA synthetase
1070	 57.15	0	1144734..1146026	+	430	62290061	gltA	BruAb1_1154	-	type II citrate synthase
1071	 57.83	0	1146199..1147386	-	395	62290062	lpxB	BruAb1_1155	-	lipid-A-disaccharide synthase
1072	 58.36	0	1147383..1148285	-	300	62290063	-	BruAb1_1156	-	hypothetical protein
1073	 57.47	0	1148266..1149102	-	278	62290064	lpxA	BruAb1_1157	-	UDP-N-acetylglucosamine acyltransferase
1074	 53.80	0	1149111..1149584	-	157	62290065	fabZ	BruAb1_1158	-	(3R)-hydroxymyristoyl-ACP dehydratase
1075	 58.43	0	1149577..1150632	-	351	62290066	lpxD	BruAb1_1159	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1076	 54.43	0	1150686..1153031	-	781	62290067	-	BruAb1_1160	-	surface antigen
1077	 45.83	-2	1153015..1153134	-	39	62290068	-	BruAb1_1161	-	hypothetical protein
1078	 57.11	0	1153367..1154506	-	379	62290069	-	BruAb1_1162	-	membrane-associated zinc metalloprotease
1079	 58.67	0	1154573..1155385	-	270	62290070	cdsA	BruAb1_1163	-	CdsA, phosphatidate cytidylyltransferase
1080	 59.74	0	1155489..1156253	-	254	62290071	uppS	BruAb1_1164	-	UppS, undecaprenyl diphosphate synthase
1081	 57.93	0	1156298..1156858	-	186	62290072	frr	BruAb1_1165	-	ribosome recycling factor
1082	 58.37	0	1156894..1157616	-	240	62290073	pyrH	BruAb1_1166	-	uridylate kinase
1083	 59.48	0	1157783..1158700	-	305	62290074	tsf	BruAb1_1167	-	elongation factor Ts
1084	 59.27	0	1158890..1159660	-	256	62290075	rpsB	BruAb1_1168	-	30S ribosomal protein S2
1085	 52.72	-1	1159954..1160376	-	140	62290076	-	BruAb1_1169	-	hypothetical protein
1086	 53.86	0	1160488..1161330	-	280	62290077	-	BruAb1_1170	-	hypothetical protein
1087	 58.06	0	1161474..1161938	+	154	62290078	-	BruAb1_1171	-	hypothetical protein
1088	 57.35	0	1161940..1162680	+	246	62290079	-	BruAb1_1172	-	glycerophosphoryl diester phosphodiesterase family protein
1089	 54.88	0	1162735..1163922	+	395	62290080	-	BruAb1_1173	-	hypothetical protein
1090	 53.43	0	1163994..1164416	+	140	62290081	-	BruAb1_1174	-	HIT family protein
1091	 57.62	0	1164523..1166997	-	824	62290082	clpA	BruAb1_1175	-	ClpA, ATP-dependent Clp protease, ATP-binding subunit ClpA
1092	 51.58	-1	1167004..1167414	-	136	62290083	clpS	BruAb1_1176	-	ATP-dependent Clp protease adaptor protein ClpS
1093	 56.25	0	1167415..1167606	+	63	62290084	-	BruAb1_1177	-	hypothetical protein
1094	 61.31	0	1167840..1169258	+	472	62290085	-	BruAb1_1178	-	D-alanyl-D-alanine carboxypeptidase
1095	 59.06	0	1169290..1169631	+	113	62290086	-	BruAb1_1179	-	hypothetical protein
1096	 58.68	0	1169745..1170182	-	145	62290087	-	BruAb1_1180	-	hypothetical protein
1097	 50.79	-1	1171873..1171998	-	41	62290088	-	BruAb1_1182	-	hypothetical protein
1098	 56.01	0	1172197..1173003	-	268	62290089	-	BruAb1_1183	-	hypothetical protein
1099	 58.02	0	1173166..1174137	+	323	62290090	-	BruAb1_1184	-	hypothetical protein
1100	 56.07	0	1174148..1174534	-	128	62290091	-	BruAb1_1185	-	transcriptional regulator
1101	 54.64	0	1174772..1175137	+	121	62290092	-	BruAb1_1186	-	hypothetical protein
1102	 59.48	0	1175152..1175499	+	115	62290093	-	BruAb1_1187	-	hypothetical protein
1103	 55.56	0	1175570..1175884	+	104	62290094	-	BruAb1_1188	-	hypothetical protein
1104	 57.69	0	1176329..1176796	+	155	62290095	-	BruAb1_1189	-	7-cyano-7-deazaguanine reductase
1105	 59.32	0	1176927..1177103	+	58	62290096	-	BruAb1_1190	-	hypothetical protein
1106	 54.33	0	1177135..1177677	+	180	62290097	-	BruAb1_1191	-	hypothetical protein
1107	 58.17	0	1177680..1179092	-	470	62290098	-	BruAb1_1192	-	Cro/CI family transcriptional regulator
1108	 58.71	0	1179243..1180775	+	510	62290099	-	BruAb1_1193	-	propionlyl-CoA carboxylase
1109	 59.63	0	1180860..1182863	+	667	62290100	pccA	BruAb1_1194	-	PccA, propionyl-CoA carboxylase, alpha subunit
1110	 58.91	0	1182924..1185062	+	712	62290101	bhbA	BruAb1_1195	-	methylmalonyl-CoA mutase
1111	 56.94	0	1185169..1185600	-	143	62290102	-	BruAb1_1196	-	hypothetical protein
1112	 57.15	0	1185718..1187766	-	682	62290103	-	BruAb1_1197	-	hypothetical protein
1113	 51.63	-1	1187807..1187959	-	50	62290104	-	BruAb1_1198	-	hypothetical protein
1114	 57.88	0	1188003..1188992	-	329	62290105	-	BruAb1_1199	-	hypothetical protein
1115	 57.55	0	1189138..1189971	-	277	62290106	murI	BruAb1_1200	-	glutamate racemase
1116	 57.52	0	1189968..1190798	-	276	62290107	-	BruAb1_1201	-	RNA methyltransferase
1117	 58.29	0	1190978..1191562	+	194	62290108	-	BruAb1_1202	-	ThiJ/PfpI family protein
1118	 57.91	0	1191651..1192061	+	136	62290109	-	BruAb1_1203	-	hypothetical protein
1119	 57.20	0	1192189..1193403	+	404	62290110	-	BruAb1_1204	-	isocitrate dehydrogenase
1120	 58.09	0	1193625..1195070	+	481	62290111	phoA	BruAb1_1205	-	alkaline phosphatase
1121	 58.77	0	1195222..1197879	-	885	62290112	alaS	BruAb1_1206	-	alanyl-tRNA synthetase
1122	 57.00	0	1198272..1199357	-	361	62290113	recA	BruAb1_1207	-	recombinase A
1123	 49.21	-1	1199527..1199652	-	41	62290114	-	BruAb1_1208	-	hypothetical protein
1124	 59.13	0	1199688..1200350	-	220	62290115	-	BruAb1_1209	-	OmpA family protein
1125	 55.90	0	1200437..1201021	-	194	62290116	-	BruAb1_1210	-	lipoprotein
1126	 59.89	0	1201145..1202458	-	437	62290117	-	BruAb1_1211	-	recombination factor protein RarA
1127	 59.16	0	1202605..1204029	-	474	62290118	-	BruAb1_1212	-	serine protease
1128	 58.04	0	1204309..1204737	-	142	62290119	rplQ	BruAb1_1213	-	50S ribosomal protein L17
1129	 57.10	0	1204899..1205912	-	337	62290120	rpoA	BruAb1_1214	-	DNA-directed RNA polymerase subunit alpha
1130	 62.05	+1	1206028..1206417	-	129	62290121	rpsK	BruAb1_1215	-	30S ribosomal protein S11
57.12	MEAN

4.21	STD DEV
