IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

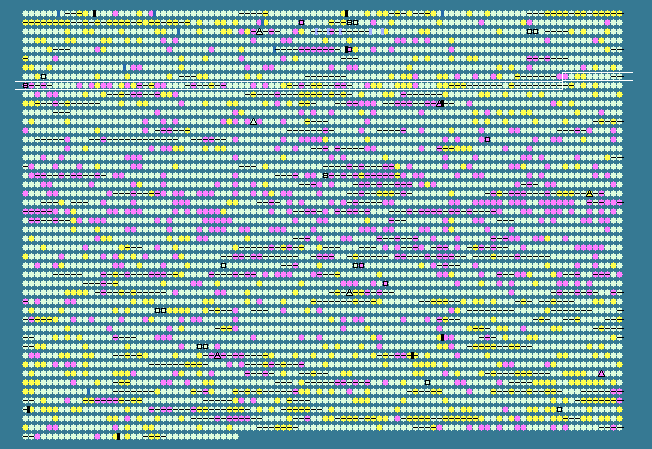

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
791	 28.37	-2	969546..970331	+	261	118476569	-	BALH_0842	-	hypothetical protein
792	 33.48	0	970321..974322	+	1333	118476570	-	BALH_0843	-	type II restriction endonuclease
793	 47.15	+2	975280..976140	+	286	118476571	-	BALH_0844	-	DnaD domain-containing protein
794	 43.83	+2	976128..977423	+	431	118476572	-	BALH_0845	-	replicative DNA helicase
795	 35.37	0	977697..978482	-	261	118476573	-	BALH_0846	-	transcriptional regulator
796	 35.67	0	978699..979511	+	270	118476574	-	BALH_0847	-	hypothetical protein
797	 32.64	0	979754..980329	-	191	118476575	-	BALH_0848	-	TetR family transcriptional regulator
798	 37.13	0	980471..981946	+	491	118476576	-	BALH_0851	-	lincomycin resistance protein
799	 38.86	0	981988..982530	-	180	118476577	-	BALH_0852	-	hypothetical protein
800	 35.38	0	982987..983328	-	113	118476578	-	BALH_0853	-	PadR family transcriptional regulator
801	 30.62	-1	983421..983678	-	85	118476579	-	BALH_0854	-	transposase domain-containing protein
802	 28.35	-2	983836..984096	-	86	118476580	-	BALH_0855	-	hypothetical protein
803	 36.49	0	984227..985462	+	411	118476581	-	BALH_0856	-	hypothetical protein
804	 29.97	-1	985475..985771	+	98	118476582	-	BALH_0857	-	hypothetical protein
805	 37.25	0	986436..986741	+	101	118476583	-	BALH_0858	-	hypothetical protein
806	 35.18	0	987085..988491	-	468	118476584	-	BALH_0859	-	carboxylic ester hydrolase
807	 32.99	0	988915..989499	+	194	118476585	-	BALH_0860	-	hypothetical protein
808	 37.12	0	989617..990171	+	184	118476586	-	BALH_0861	-	membrane spanning protein
809	 35.22	0	990535..992391	-	618	118476587	-	BALH_0862	-	nucleotide sugar epimerase
810	 31.62	-1	992450..993034	-	194	118476588	-	BALH_0863	-	TetR family transcriptional regulator
811	 33.71	0	993435..993701	-	88	118476589	-	BALH_0864	-	hypothetical protein
812	 32.16	-1	994085..994594	+	169	118476590	-	BALH_0865	-	MarR family transcriptional regulator
813	 41.58	+1	994578..995171	+	197	118476591	-	BALH_0866	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
814	 29.87	-1	996549..997184	+	211	118476592	vanZ	BALH_0867	-	teicoplanin resistance protein
815	 31.13	-1	997314..997949	+	211	118476593	-	BALH_0868	-	hypothetical protein
816	 32.42	0	998183..998836	+	217	118476594	-	BALH_0869	-	hypothetical protein
817	 39.66	+1	998951..999961	-	336	118476595	-	BALH_0870	-	dihydroxyacetone kinase
818	 30.21	-1	999969..1000544	-	191	118476596	-	BALH_0871	-	TetR family transcriptional regulator
819	 42.24	+1	1000714..1002465	+	583	118476597	-	BALH_0872	-	dihydroxyacetone kinase
820	 31.46	-1	1002540..1003181	-	213	118476598	-	BALH_0873	-	acyl carrier protein phosphodiesterase
821	 34.31	0	1003386..1003898	+	170	118476599	-	BALH_0874	-	BadM/Rrf2 family transcriptional regulator
822	 43.72	+2	1004078..1004260	+	60	118476600	-	BALH_0875	-	dihydroxyacetone kinase
823	 31.71	-1	1005186..1006358	+	390	118476601	-	BALH_0876	-	response regulator
824	 28.07	-2	1007143..1008282	+	379	118476602	-	BALH_0877	-	HD domain-containing protein
825	 36.52	0	1008947..1009228	+	93	118476603	-	BALH_0878	-	hypothetical protein
826	 37.39	0	1011506..1013257	+	583	118476604	-	BALH_0879	-	S-layer protein
827	 33.64	0	1013386..1013712	+	108	118476605	-	BALH_0880	-	PadR family transcriptional regulator
828	 33.99	0	1013726..1014337	+	203	118476606	-	BALH_0881	-	hypothetical protein
829	 32.03	-1	1015378..1015839	-	153	118476607	-	BALH_0882	-	lipoprotein
830	 34.62	0	1016053..1016442	+	129	118476608	-	BALH_0883	-	hypothetical protein
831	 35.71	0	1016484..1016693	+	69	118476609	-	BALH_0884	-	hypothetical protein
832	 40.08	+1	1016769..1017020	+	83	118476610	-	BALH_0885	-	hypothetical protein
833	 32.84	0	1017203..1017403	-	66	118476611	-	BALH_0886	-	hypothetical protein
834	 28.32	-2	1017601..1017939	+	112	118476612	-	BALH_0887	-	anti-sigma B factor antagonist
835	 33.13	0	1017946..1018428	+	160	118476613	-	BALH_0888	-	serine-protein kinase RsbW
836	 36.16	0	1018391..1019167	+	258	118476614	-	BALH_0889	-	RNA polymerase sigma factor SigB
837	 34.37	0	1019194..1019676	+	160	118476615	-	BALH_0890	-	hypothetical protein
838	 32.20	-1	1019844..1020986	+	380	118476616	-	BALH_0891	-	sigma factor sigB regulation protein
839	 31.93	-1	1021025..1021882	-	285	118476617	-	BALH_0892	-	chemotaxis protein methyltransferase
840	 32.26	-1	1021899..1024589	-	896	118476618	-	BALH_0893	-	sensor histidine kinase
841	 27.78	-2	1024795..1025046	-	83	118476619	-	BALH_0894	-	hypothetical protein
842	 37.85	0	1025432..1025962	+	176	118476620	-	BALH_0895	-	hypothetical protein
843	 32.35	0	1026115..1026318	+	67	118476621	-	BALH_0896	-	hypothetical protein
844	 39.25	+1	1026452..1026772	+	106	118476622	-	BALH_0897	-	hypothetical protein
845	 40.89	+1	1027285..1028277	-	330	118476623	-	BALH_0898	-	NADPH:quinone reductase (quinone oxidoreductase)
846	 32.59	0	1028892..1030109	+	405	118476624	-	BALH_0899	-	sensor histidine kinase
847	 30.15	-1	1030084..1030743	+	219	118476625	-	BALH_0900	-	DNA-binding response regulator
848	 38.81	0	1032593..1032793	-	66	118476626	-	BALH_0901	-	hypothetical protein
849	 41.14	+1	1032946..1034187	+	413	118476627	-	BALH_0903	-	DNA repair exonuclease
850	 39.32	+1	1034184..1037108	+	974	118476628	-	BALH_0904	-	hypothetical protein
851	 37.25	0	1037150..1038094	+	314	118476629	-	BALH_0905	-	3'-5' exoribonuclease YhaM
852	 37.11	0	1038653..1039579	+	308	118476630	-	BALH_0906	-	hypothetical protein
853	 28.83	-2	1039602..1040090	+	162	118476631	-	BALH_0907	-	hypothetical protein
854	 30.21	-1	1040241..1040624	+	127	118476632	-	BALH_0908	-	hypothetical protein
855	 32.95	0	1040719..1040976	+	85	118476633	-	BALH_0909	-	hypothetical protein
856	 38.73	0	1041503..1042447	+	314	118476634	-	BALH_0910	-	glyoxalase family protein
857	 37.26	0	1042477..1043469	+	330	118476635	-	BALH_0911	-	glyoxalase family protein
858	 31.15	-1	1043675..1044820	+	381	118476636	-	BALH_0912	-	response regulator aspartate phosphatase
859	 45.53	+2	1044820..1045065	+	81	118476637	-	BALH_0913	-	hypothetical protein
860	 41.21	+1	1045301..1046176	+	291	118476638	-	BALH_0914	-	alpha/beta hydrolase fold family lipase
861	 35.24	0	1046593..1047483	+	296	118476639	-	BALH_0915	-	hypothetical protein
862	 39.04	+1	1048389..1048949	+	186	118476640	glpP	BALH_0916	-	glycerol uptake operon antiterminator regulatory protein
863	 40.14	+1	1049163..1049999	+	278	118476641	glpF	BALH_0917	-	glycerol uptake facilitator protein
864	 40.17	+1	1050013..1051503	+	496	118476642	glpK	BALH_0918	-	glycerol kinase
865	 40.77	+1	1051598..1053319	+	573	118476643	-	BALH_0919	-	glycerol-3-phosphate dehydrogenase
866	 27.66	-2	1054091..1054513	+	140	118476644	-	BALH_0920	-	hypothetical protein
867	 36.07	0	1054773..1055138	-	121	118476645	-	BALH_0921	-	hypothetical protein
868	 33.52	0	1055462..1055995	+	177	118476646	-	BALH_0922	-	RNA polymerase factor sigma C
869	 36.13	0	1056415..1057665	+	416	118476647	-	BALH_0923	-	cell cycle protein FtsW
870	 39.92	+1	1057723..1058208	-	161	118476648	-	BALH_0924	-	MarR family transcriptional regulator
871	 42.13	+1	1058612..1058827	-	71	118476649	-	BALH_0925	-	hypothetical protein
872	 39.37	+1	1059020..1060411	+	463	118476650	tetB	BALH_0927	-	major facilitator family transporter metal-tetracycline/H(+) antiporter
873	 39.26	+1	1060434..1061885	+	483	118476651	-	BALH_0929	-	permease, general substrate transporter
874	 39.94	+1	1062442..1064772	-	776	118476652	-	BALH_0930	-	ATP-dependent DNA helicase UvrD
875	 34.38	0	1065232..1066095	-	287	118476653	prsA	BALH_0931	-	peptidylprolyl isomerase
876	 35.63	0	1066822..1067169	+	115	118476654	-	BALH_0932	-	hypothetical protein
877	 35.48	0	1067175..1067732	-	185	118476655	-	BALH_0933	-	transcriptional regulator Hpr
878	 36.18	0	1068031..1068522	-	163	118476656	-	BALH_0934	-	hypothetical protein
879	 35.94	0	1068579..1069076	-	165	118476657	-	BALH_0935	-	HIT family protein
880	 37.63	0	1069576..1070319	+	247	118476658	ecsA	BALH_0936	-	ABC transporter, ATP-binding protein
881	 37.05	0	1070312..1071523	+	403	118476659	ecsB	BALH_0937	-	ABC transporter, permease component
882	 40.82	+1	1071537..1072244	+	235	118476660	ecsC	BALH_0938	-	ecsC-like protein
883	 36.20	0	1072560..1073153	+	197	118476661	-	BALH_0939	-	TetR family transcriptional regulator
884	 37.37	0	1073863..1075323	+	486	118476662	-	BALH_0940	-	hypothetical protein
885	 37.83	0	1075873..1076139	+	88	118476663	-	BALH_0941	-	hypothetical protein
886	 36.69	0	1076926..1077462	+	178	118476664	-	BALH_0942	-	TetR family transcriptional regulator
887	 33.62	0	1077788..1083427	+	1879	118476665	-	BALH_0943	-	collagen adhesion protein
888	 32.22	-1	1084210..1085106	+	298	118476666	-	BALH_0944	-	hypothetical protein
889	 34.27	0	1085333..1085653	+	106	118476667	-	BALH_0945	-	hypothetical protein
890	 37.74	0	1085729..1086205	+	158	118476668	-	BALH_0946	-	hypothetical protein
35.66	MEAN

3.36	STD DEV
