IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

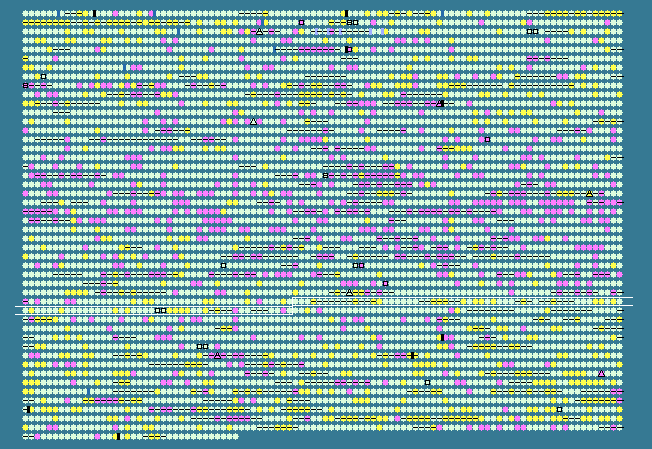

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3246	 35.93	0	3643527..3643796	-	89	118479024	-	BALH_3432	-	hypothetical protein
3247	 33.49	0	3643905..3645203	-	432	118479025	-	BALH_3433	-	zinc protease
3248	 35.78	0	3645233..3646132	-	299	118479026	-	BALH_3434	-	polysaccharide deacetylase
3249	 39.27	+1	3646284..3648422	-	712	118479027	pnpA	BALH_3435	-	polynucleotide phosphorylase/polyadenylase
3250	 38.89	0	3648583..3648852	-	89	118479028	rpsO	BALH_3436	-	30S ribosomal protein S15
3251	 34.52	0	3648953..3649960	-	335	118479029	-	BALH_3437	-	bifunctional riboflavin kinase/FMN adenylyltransferase
3252	 36.36	0	3649968..3650891	-	307	118479030	truB	BALH_3438	-	tRNA pseudouridine synthase B
3253	 35.57	0	3650978..3651334	-	118	118479031	rbfA	BALH_3439	-	ribosome-binding factor A
3254	 37.59	0	3651350..3651631	-	93	118479032	-	BALH_3440	-	hypothetical protein
3255	 38.57	0	3651628..3653748	-	706	118479033	infB	BALH_3441	-	translation initiation factor IF-2
3256	 44.87	+2	3653693..3654004	-	103	118479034	-	BALH_3442	-	hypothetical protein
3257	 36.88	0	3654005..3654286	-	93	118479035	-	BALH_3443	-	hypothetical protein
3258	 38.66	0	3654289..3655395	-	368	118479036	nusA	BALH_3444	-	transcription elongation factor NusA
3259	 39.81	+1	3655413..3655937	-	174	118479037	-	BALH_3445	-	hypothetical protein
3260	 39.39	+1	3656216..3657667	-	483	118479038	dnaE	BALH_3446	-	DNA polymerase III, alpha subunit
3261	 33.33	0	3657729..3659555	-	608	118479039	-	BALH_3447	-	group II intron
3262	 37.44	0	3660271..3663189	-	972	118479040	polC	BALH_3448	-	DNA polymerase III, alpha subunit
3263	 38.62	0	3663308..3665008	-	566	118479041	proS	BALH_3449	-	prolyl-tRNA synthetase
3264	 36.82	0	3665118..3666380	-	420	118479042	-	BALH_3450	-	peptidase RseP
3265	 38.93	0	3666391..3667533	-	380	162382777	-	BALH_3451	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
3266	 32.83	0	3667557..3668354	-	265	118479044	-	BALH_3453	-	phosphatidate cytidylyltransferase
3267	 38.10	0	3668366..3669142	-	258	118479045	-	BALH_3454	-	undecaprenyl pyrophosphate synthetase
3268	 36.38	0	3669228..3669785	-	185	118479046	frr	BALH_3455	-	ribosome recycling factor
3269	 39.56	+1	3669788..3670510	-	240	118479047	pyrH	BALH_3456	-	uridylate kinase
3270	 40.25	+1	3670577..3671473	-	298	118479048	tsf	BALH_3457	-	elongation factor Ts
3271	 39.17	+1	3671568..3672269	-	233	118479049	rpsB	BALH_3458	-	30S ribosomal protein S2
3272	 37.05	0	3672622..3673401	-	259	118479050	-	BALH_3459	-	transcriptional repressor CodY
3273	 37.11	0	3673479..3674909	-	476	118479051	hslU	BALH_3460	-	ATP-dependent protease ATP-binding subunit
3274	 41.62	+1	3674893..3675435	-	180	118479052	-	BALH_3461	-	ATP-dependent protease peptidase subunit
3275	 36.74	0	3675478..3676386	-	302	118479053	xerC	BALH_3462	-	site-specific tyrosine recombinase XerC
3276	 40.03	+1	3676443..3677801	-	452	118479054	gidA	BALH_3463	-	tRNA (uracil-5-)-methyltransferase Gid
3277	 39.25	+1	3677798..3679876	-	692	118479055	-	BALH_3464	-	DNA topoisomerase I
3278	 32.76	0	3680021..3680890	-	289	118479056	-	BALH_3465	-	SMF family nucleotide-binding protein
3279	 41.09	+1	3680978..3681880	-	300	118479057	-	BALH_3466	-	succinyl-CoA synthetase subunit alpha
3280	 37.81	0	3681901..3683061	-	386	118479058	sucC	BALH_3467	-	succinyl-CoA synthetase subunit beta
3281	 37.08	0	3683255..3684028	-	257	118479059	rnhB	BALH_3468	-	ribonuclease HII
3282	 36.83	0	3684080..3685024	-	314	118479060	rbgA	BALH_3469	-	ribosomal biogenesis GTPase
3283	 36.16	0	3684991..3685557	-	188	118479061	-	BALH_3470	-	signal peptidase SipM
3284	 40.58	+1	3685644..3685988	-	114	118479062	rplS	BALH_3471	-	50S ribosomal protein L19
3285	 39.05	+1	3686135..3686869	-	244	118479063	trmD	BALH_3472	-	tRNA (guanine-N(1)-)-methyltransferase
3286	 34.19	0	3686869..3687450	-	193	118479064	rimM	BALH_3473	-	16S rRNA-processing protein
3287	 38.03	0	3687505..3687738	-	77	118479065	-	BALH_3474	-	KH domain-containing protein
3288	 38.46	0	3687747..3688019	-	90	118479066	rpsP	BALH_3475	-	30S ribosomal protein S16
3289	 39.63	+1	3688120..3689469	-	449	118479067	-	BALH_3476	-	signal recognition particle subunit FFH/SRP54 (srp54)
3290	 33.33	0	3689482..3689814	-	110	118479068	-	BALH_3477	-	hypothetical protein
3291	 36.57	0	3689949..3690938	-	329	118479069	-	BALH_3478	-	signal recognition particle-docking protein FtsY
3292	 37.09	0	3690954..3694523	-	1189	118479070	smc	BALH_3479	-	condensin subunit Smc
3293	 37.90	0	3694670..3695458	-	262	118479071	rnc	BALH_3480	-	ribonuclease III
3294	 38.68	0	3695466..3695708	-	80	118479072	acpP	BALH_3481	-	acyl carrier protein
3295	 36.84	0	3695769..3696509	-	246	118479073	fabG	BALH_3482	-	3-ketoacyl-(acyl-carrier-protein) reductase
3296	 40.42	+1	3696509..3697453	-	314	118479074	-	BALH_3483	-	[Acyl-carrier-protein] S-malonyltransferase
3297	 39.38	+1	3697468..3698460	-	330	118479075	-	BALH_3484	-	putative glycerol-3-phosphate acyltransferase PlsX
3298	 36.79	0	3698457..3699209	-	250	118479076	-	BALH_3485	-	fatty acid biosynthesis transcriptional regulator
3299	 39.60	+1	3699139..3701196	-	685	118479077	recG	BALH_3486	-	ATP-dependent DNA helicase RecG
3300	 38.52	0	3701477..3703153	-	558	118479078	-	BALH_3487	-	dihydroxyacetone-related kinase
3301	 35.17	0	3703176..3703556	-	126	118479079	-	BALH_3488	-	hypothetical protein
3302	 43.39	+2	3703917..3704105	+	62	118479080	rpmB	BALH_3489	-	50S ribosomal protein L28
3303	 36.14	0	3704326..3704967	-	213	118479081	-	BALH_3490	-	thiamine pyrophosphokinase
3304	 37.98	0	3705106..3705750	-	214	118479082	-	BALH_3491	-	ribulose-phosphate 3-epimerase
3305	 36.47	0	3705753..3706676	-	307	118479083	-	BALH_3492	-	ribosome-associated GTPase
3306	 36.00	0	3706903..3708888	-	661	118479084	-	BALH_3493	-	serine/threonine protein kinase
3307	 39.23	+1	3708885..3709715	-	276	118479085	-	BALH_3494	-	protein phosphatase 2C
3308	 36.73	0	3709642..3710730	-	362	118479086	-	BALH_3495	-	radical SAM protein
3309	 36.70	0	3710735..3712069	-	444	118479087	-	BALH_3496	-	sun protein
3310	 38.52	0	3712066..3713010	-	314	118479088	fmt	BALH_3497	-	methionyl-tRNA formyltransferase
3311	 38.85	0	3713034..3713504	-	156	118479089	-	BALH_3498	-	peptide deformylase
3312	 37.36	0	3713516..3715921	-	801	118479090	priA	BALH_3499	-	primosome assembly protein PriA
3313	 38.14	0	3715918..3717123	-	401	118479091	-	BALH_3500	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3314	 33.33	0	3717296..3717508	-	70	118479092	rpoZ	BALH_3501	-	DNA-directed RNA polymerase subunit omega
3315	 38.29	0	3717511..3718155	-	214	118479093	gmk	BALH_3502	-	guanylate kinase
3316	 39.39	+1	3718142..3718405	-	87	118479094	-	BALH_3503	-	hypothetical protein
3317	 34.82	0	3718473..3719348	-	291	118479095	-	BALH_3504	-	hypothetical protein
3318	 39.76	+1	3719449..3722169	-	906	118479096	pacL	BALH_3505	-	cation transporter E1-E2 family ATPase
3319	 33.68	0	3722275..3723984	+	569	118479097	-	BALH_3506	-	fibronectin-binding protein
3320	 34.64	0	3724312..3725382	+	356	118479098	pepQ	BALH_3507	-	proline dipeptidase
3321	 34.48	0	3725467..3725991	+	174	118479099	-	BALH_3508	-	hypothetical protein
3322	 39.12	+1	3726855..3728324	+	489	118479100	-	BALH_3509	-	hypothetical protein
3323	 33.60	0	3728873..3729250	+	125	118479101	-	BALH_3510	-	transposase
3324	 35.09	0	3729385..3730125	+	246	118479102	-	BALH_3511	-	transposase
3325	 39.78	+1	3730182..3730832	-	216	118479103	pyrE	BALH_3512	-	orotate phosphoribosyltransferase
3326	 40.99	+1	3730811..3731554	-	247	118479104	-	BALH_3513	-	orotidine 5'-phosphate decarboxylase
3327	 40.43	+1	3731512..3732441	-	309	118479105	-	BALH_3514	-	dihydroorotate dehydrogenase 1B
3328	 41.28	+1	3732438..3733217	-	259	118479106	-	BALH_3515	-	dihydroorotate dehydrogenase electron transfer subunit
3329	 38.43	0	3733214..3736432	-	1072	118479107	carB	BALH_3516	-	carbamoyl phosphate synthase large subunit
3330	 37.43	0	3736417..3737538	-	373	118479108	-	BALH_3517	-	carbamoyl phosphate synthase small subunit
3331	 40.02	+1	3737511..3738797	-	428	118479109	pyrC	BALH_3518	-	dihydroorotase
3332	 38.87	0	3738781..3739701	-	306	118479110	pyrB	BALH_3519	-	aspartate carbamoyltransferase catalytic subunit
3333	 39.64	+1	3739844..3741160	-	438	118479111	-	BALH_3521	-	uracil permease
3334	 37.38	0	3741274..3741816	-	180	118479112	-	BALH_3522	-	pyrimidine regulatory protein PyrR
3335	 37.84	0	3742019..3742927	-	302	118479113	rluD	BALH_3523	-	ribosomal large subunit pseudouridine synthase D
3336	 31.91	-1	3742932..3743423	-	163	118479114	lspA	BALH_3524	-	lipoprotein signal peptidase
3337	 32.73	0	3743515..3743844	-	109	118479115	-	BALH_3525	-	DnaK suppressor protein
3338	 38.28	0	3744000..3746771	-	923	118479116	ileS	BALH_3526	-	isoleucyl-tRNA synthetase
3339	 34.12	0	3747113..3747619	-	168	118479117	-	BALH_3527	-	cell-division initiation protein (DivIVA)
3340	 36.33	0	3747709..3748476	-	255	118479118	-	BALH_3528	-	S4 domain-containing protein
3341	 37.15	0	3748762..3749232	-	156	118479119	-	BALH_3529	-	hypothetical protein
3342	 34.22	0	3749252..3749926	-	224	118479120	-	BALH_3530	-	hypothetical protein
3343	 36.25	0	3749923..3750780	-	285	118479121	-	BALH_3531	-	hypothetical protein
3344	 32.17	-1	3750859..3751203	-	114	118479122	-	BALH_3532	-	hypothetical protein
3345	 35.98	0	3751312..3752181	-	289	118479123	-	BALH_3533	-	sporulation sigma factor SigG
35.66	MEAN

3.36	STD DEV
