IslandPathversion 1.0

IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

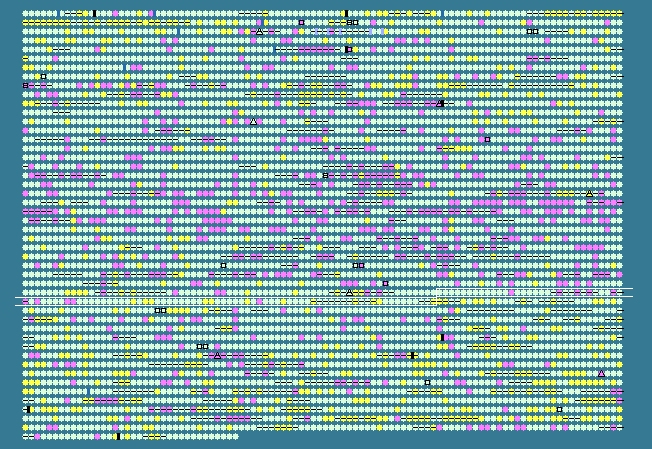

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3170	 36.89	0	3557387..3558202	+	271	118478948	-	BALH_3353	-	formate transporter
3171	 37.59	0	3558337..3558618	+	93	118478949	-	BALH_3354	-	HU family DNA-binding protein
3172	 36.92	0	3558730..3561156	-	808	118478950	-	BALH_3355	-	heavy metal-transporting ATPase
3173	 36.23	0	3561243..3561449	-	68	118478951	-	BALH_3356	-	copper-ion-binding protein
3174	 32.34	0	3561638..3561940	-	100	118478952	-	BALH_3357	-	hypothetical protein
3175	 32.46	0	3562232..3562459	-	75	118478953	-	BALH_3358	-	hypothetical protein
3176	 34.62	0	3562762..3563151	-	129	118478954	-	BALH_3359	-	LuxR family transcriptional regulator
3177	 34.80	0	3563343..3564161	-	272	118478955	-	BALH_3360	-	esterase
3178	 34.67	0	3564178..3564999	-	273	118478956	-	BALH_3361	-	bacillibactin ABC transporter ATPase protein
3179	 35.87	0	3565014..3566036	-	340	118478957	-	BALH_3363	-	bacillibactin ABC transporter integral membrane protein
3180	 36.58	0	3566029..3567045	-	338	118478958	fecD	BALH_3364	-	bacillibactin ABC transporter integral membrane protein
3181	 33.54	0	3567064..3568029	-	321	118478959	feuA	BALH_3365	-	bacillibactin ABC transporter substrate-binding protein
3182	 26.95	-2	3568085..3568225	+	46	118478960	-	BALH_3366	-	hypothetical protein
3183	 35.31	0	3568329..3569087	-	252	118478961	-	BALH_3367	-	exodeoxyribonuclease III
3184	 35.51	0	3569242..3569838	+	198	118478962	adaA	BALH_3368	-	AraC family transcriptional regulator
3185	 34.09	0	3569819..3570349	+	176	118478963	-	BALH_3369	-	methylated-DNA--protein-cysteine S-methyltransferase
3186	 33.77	0	3570346..3571257	+	303	118478964	-	BALH_3370	-	DNA-3-methyladenine glycosylase II
3187	 36.25	0	3571294..3572526	-	410	118478965	-	BALH_3371	-	peptidase T
3188	 34.55	0	3572618..3573358	+	246	118478966	-	BALH_3373	-	hypothetical protein
3189	 33.96	0	3573449..3573766	-	105	118478967	-	BALH_3374	-	hypothetical protein
3190	 31.77	-1	3574090..3574665	-	191	118478968	pgm	BALH_3375	-	phosphoglycerate mutase
3191	 34.31	0	3574696..3575511	-	271	118478969	-	BALH_3376	-	alpha/beta fold family hydrolase
3192	 36.26	0	3575696..3575968	-	90	118478970	-	BALH_3377	-	glyoxylase family protein
3193	 30.48	-1	3576513..3579242	+	909	118478971	-	BALH_3378	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3194	 35.02	0	3579343..3580407	-	354	118478972	murG	BALH_3379	-	N-acetylglucosaminyl transferase
3195	 30.22	-1	3580456..3580776	-	106	118478973	-	BALH_3380	-	hypothetical protein
3196	 33.33	0	3580802..3581713	-	303	118478974	-	BALH_3381	-	UDP-2-acetamido-2,6-dideoxy-hexulose 4-reductase
3197	 34.13	0	3581710..3582714	-	334	118478975	-	BALH_3382	-	UDP-N-acetylglucosamine 4,6-dehydratase
3198	 33.58	0	3582965..3584164	+	399	118478976	-	BALH_3383	-	hypothetical protein
3199	 32.16	-1	3584605..3585369	-	254	118478977	-	BALH_3384	-	HAD superfamily hydrolase
3200	 33.77	0	3585439..3586128	+	229	118478978	-	BALH_3385	-	Crp/FNR family transcriptional regulator
3201	 31.27	-1	3586192..3586773	-	193	118478979	-	BALH_3386	-	hypothetical protein
3202	 37.73	0	3587003..3588436	-	477	118478980	-	BALH_3387	-	GntR family transcriptional regulator
3203	 31.62	-1	3589229..3590218	-	329	118478981	-	BALH_3388	-	glycosylphosphatidylinositol diacylglycerol-lyase
3204	 34.91	0	3590396..3592237	-	613	118478982	-	BALH_3389	-	serine protease
3205	 36.09	0	3592532..3593329	+	265	118478983	-	BALH_3390	-	cell wall hydrolase
3206	 35.43	0	3593592..3594929	+	445	118478984	-	BALH_3391	-	hypothetical protein
3207	 32.86	0	3595350..3597245	+	631	118478985	-	BALH_3392	-	sulfatase
3208	 31.02	-1	3597345..3600158	-	937	118478986	-	BALH_3393	-	TPR repeat-containing protein
3209	 26.88	-2	3600612..3600797	+	61	118478987	-	BALH_3394	-	hypothetical protein
3210	 38.15	0	3601113..3602108	-	331	118478988	-	BALH_3395	-	penicillin V acylase precursor. cysteine peptidase. MEROPS family C59
3211	 38.73	0	3602319..3604262	-	647	118478989	mutL	BALH_3396	-	DNA mismatch repair protein
3212	 36.55	0	3604271..3606943	-	890	118478990	mutS	BALH_3397	-	DNA mismatch repair protein
3213	 36.10	0	3607125..3607667	-	180	118478991	-	BALH_3398	-	spore coat protein E
3214	 34.03	0	3607793..3608224	-	143	118478992	-	BALH_3399	-	hypothetical protein
3215	 36.89	0	3608228..3609802	-	524	118478993	-	BALH_3400	-	tRNA 2-methylthioadenine synthetase
3216	 37.14	0	3610185..3611051	-	288	118478994	-	BALH_3401	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
3217	 38.11	0	3611038..3612795	-	585	118478995	-	BALH_3402	-	pyruvate ferredoxin oxidoreductase, alpha subunit
3218	 34.48	0	3613023..3613982	-	319	118478996	-	BALH_3403	-	thermostable dipeptidase
3219	 42.33	+1	3614006..3614305	-	99	118478997	-	BALH_3404	-	stage V sporulation protein S
3220	 38.11	0	3614415..3615209	-	264	118478998	-	BALH_3405	-	calcineurin-like phosphoesterase
3221	 39.67	+1	3615375..3617000	-	541	118478999	-	BALH_3406	-	phosphodiesterase
3222	 40.50	+1	3617419..3618450	-	343	118479000	recA	BALH_3407	-	recombinase A
3223	 38.66	0	3618595..3619833	-	412	118479001	-	BALH_3408	-	competence damage-inducible protein A
3224	 34.89	0	3619854..3620432	-	192	118479002	-	BALH_3409	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
3225	 37.79	0	3620496..3621416	-	306	118479003	-	BALH_3410	-	hypothetical protein
3226	 36.13	0	3621429..3622214	-	261	118479004	-	BALH_3411	-	ACT domain-containing protein
3227	 37.12	0	3622354..3622617	-	87	118479005	-	BALH_3412	-	hypothetical protein
3228	 38.66	0	3622678..3623391	-	237	118479006	fabG	BALH_3413	-	3-ketoacyl-(acyl-carrier-protein) reductase
3229	 33.33	0	3623495..3624781	-	428	118479007	-	BALH_3414	-	insulinase
3230	 34.43	0	3624782..3626056	-	424	118479008	-	BALH_3415	-	insulinase
3231	 39.58	+1	3626255..3627214	-	319	118479009	-	BALH_3416	-	ABC transporter, permease
3232	 39.38	+1	3627215..3628273	-	352	118479010	-	BALH_3417	-	ABC transporter, permease
3233	 36.60	0	3628266..3629825	-	519	118479011	-	BALH_3419	-	ABC transporter, ATP-binding protein
3234	 36.14	0	3629907..3630974	-	355	118479012	-	BALH_3420	-	Bmp family lipoprotein
3235	 36.98	0	3631064..3631804	-	246	118479013	-	BALH_3421	-	GntR family transcriptional regulator
3236	 37.78	0	3632328..3634709	-	793	118479014	ftsK	BALH_3422	-	stage III sporulation protein E
3237	 35.29	0	3634921..3635124	-	67	118479015	-	BALH_3423	-	hypothetical protein
3238	 39.33	+1	3635121..3635870	-	249	118479016	-	BALH_3424	-	ATP-dependent Clp protease proteolytic subunit ClpP
3239	 36.21	0	3635974..3637644	-	556	118479017	-	BALH_3425	-	metallo-beta-lactamase family protein
3240	 23.25	-2	3638149..3638376	+	75	118479018	-	BALH_3426	-	hypothetical protein
3241	 39.14	+1	3638411..3639289	-	292	118479019	-	BALH_3427	-	dihydrodipicolinate synthase
3242	 39.05	+1	3639301..3640542	-	413	118479020	-	BALH_3428	-	aspartate kinase I
3243	 37.62	0	3640557..3641606	-	349	118479021	-	BALH_3429	-	aspartate-semialdehyde dehydrogenase
3244	 39.50	+1	3641754..3642353	-	199	118479022	spoVFB	BALH_3430	-	dipicolinate synthase subunit B
3245	 37.54	0	3642350..3643252	-	300	118479023	dapA	BALH_3431	-	dipicolinate synthase subunit A
3246	 35.93	0	3643527..3643796	-	89	118479024	-	BALH_3432	-	hypothetical protein
3247	 33.49	0	3643905..3645203	-	432	118479025	-	BALH_3433	-	zinc protease
3248	 35.78	0	3645233..3646132	-	299	118479026	-	BALH_3434	-	polysaccharide deacetylase
3249	 39.27	+1	3646284..3648422	-	712	118479027	pnpA	BALH_3435	-	polynucleotide phosphorylase/polyadenylase
3250	 38.89	0	3648583..3648852	-	89	118479028	rpsO	BALH_3436	-	30S ribosomal protein S15
3251	 34.52	0	3648953..3649960	-	335	118479029	-	BALH_3437	-	bifunctional riboflavin kinase/FMN adenylyltransferase
3252	 36.36	0	3649968..3650891	-	307	118479030	truB	BALH_3438	-	tRNA pseudouridine synthase B
3253	 35.57	0	3650978..3651334	-	118	118479031	rbfA	BALH_3439	-	ribosome-binding factor A
3254	 37.59	0	3651350..3651631	-	93	118479032	-	BALH_3440	-	hypothetical protein
3255	 38.57	0	3651628..3653748	-	706	118479033	infB	BALH_3441	-	translation initiation factor IF-2
3256	 44.87	+2	3653693..3654004	-	103	118479034	-	BALH_3442	-	hypothetical protein
3257	 36.88	0	3654005..3654286	-	93	118479035	-	BALH_3443	-	hypothetical protein
3258	 38.66	0	3654289..3655395	-	368	118479036	nusA	BALH_3444	-	transcription elongation factor NusA
3259	 39.81	+1	3655413..3655937	-	174	118479037	-	BALH_3445	-	hypothetical protein
3260	 39.39	+1	3656216..3657667	-	483	118479038	dnaE	BALH_3446	-	DNA polymerase III, alpha subunit
3261	 33.33	0	3657729..3659555	-	608	118479039	-	BALH_3447	-	group II intron
3262	 37.44	0	3660271..3663189	-	972	118479040	polC	BALH_3448	-	DNA polymerase III, alpha subunit
3263	 38.62	0	3663308..3665008	-	566	118479041	proS	BALH_3449	-	prolyl-tRNA synthetase
3264	 36.82	0	3665118..3666380	-	420	118479042	-	BALH_3450	-	peptidase RseP
3265	 38.93	0	3666391..3667533	-	380	162382777	-	BALH_3451	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
3266	 32.83	0	3667557..3668354	-	265	118479044	-	BALH_3453	-	phosphatidate cytidylyltransferase
3267	 38.10	0	3668366..3669142	-	258	118479045	-	BALH_3454	-	undecaprenyl pyrophosphate synthetase
3268	 36.38	0	3669228..3669785	-	185	118479046	frr	BALH_3455	-	ribosome recycling factor
3269	 39.56	+1	3669788..3670510	-	240	118479047	pyrH	BALH_3456	-	uridylate kinase
35.66	MEAN

3.36	STD DEV
