IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

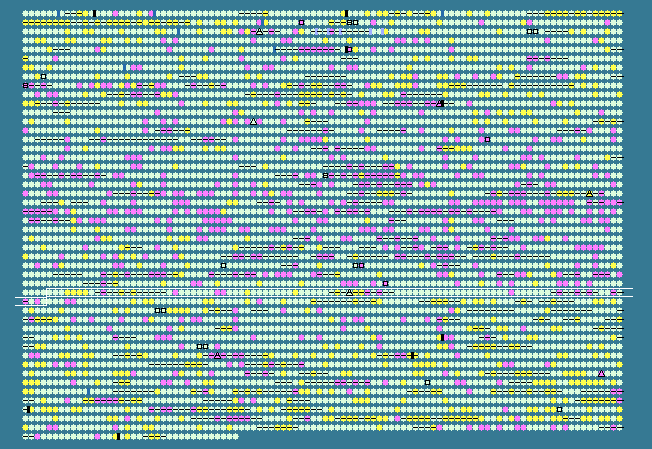

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3105	 37.94	0	3479547..3480740	-	397	118478883	-	BALH_3282	-	Oye family NADH-dependent flavin oxidoreductase
3106	 32.54	0	3481256..3481759	-	167	118478884	-	BALH_3283	-	CarD family transcriptional regulator
3107	 38.89	0	3481979..3482950	-	323	118478885	hutG	BALH_3284	-	formimidoylglutamase
3108	 40.25	+1	3482929..3484200	-	423	118478886	hutI	BALH_3285	-	imidazolonepropionase
3109	 41.47	+1	3484213..3485871	-	552	118478887	-	BALH_3286	-	urocanate hydratase
3110	 39.66	+1	3485895..3487412	-	505	118478888	-	BALH_3287	-	histidine ammonia-lyase
3111	 43.54	+2	3487517..3487957	-	146	118478889	hutP	BALH_3288	-	anti-terminator HutP
3112	 35.29	0	3488131..3489099	+	322	118478890	-	BALH_3289	-	ubiquinone/menaquinone methyltransferase
3113	 36.20	0	3489113..3489706	-	197	118478891	-	BALH_3290	-	4-methyl-5(B-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme
3114	 30.43	-1	3489682..3490335	-	217	118478892	-	BALH_3291	-	hypothetical protein
3115	 32.32	0	3490515..3490811	+	98	118478893	-	BALH_3292	-	hypothetical protein
3116	 32.43	0	3490915..3491355	+	146	118478894	-	BALH_3293	-	hypothetical protein
3117	 39.30	+1	3491385..3492440	-	351	118478895	-	BALH_3295	-	hypothetical protein
3118	 38.80	0	3492490..3493569	-	359	118478896	-	BALH_3297	-	hypothetical protein
3119	 39.76	+1	3493838..3501400	+	2520	118478897	-	BALH_3298	-	hypothetical protein
3120	 32.35	0	3501463..3501969	-	168	118478898	-	BALH_3299	-	cyotchrome c defective protein
3121	 33.86	0	3502060..3502824	-	254	118478899	-	BALH_3300	-	cytochrome c-type biogenesis protein (holocytochrome-c synthase)
3122	 35.53	0	3503255..3504163	+	302	118478900	-	BALH_3302	-	drug/metabolite exporter family protein
3123	 38.92	0	3504251..3505396	+	381	118478901	-	BALH_3303	-	N-acyl-L-amino acid amidohydrolase
3124	 33.76	0	3505434..3506378	-	314	118478902	-	BALH_3305	-	bacitracin transport permease
3125	 35.84	0	3506371..3507366	-	331	118478903	bcrA	BALH_3306	-	bacitracin transport ATP-binding protein
3126	 29.69	-1	3507373..3507948	-	191	118478904	-	BALH_3307	-	ABC transporter permease
3127	 35.81	0	3508179..3509108	-	309	118478905	-	BALH_3308	-	LysR family transcriptional regulator
3128	 37.25	0	3509536..3510276	+	246	118478906	-	BALH_3309	-	murein hydrolase export regulator
3129	 35.24	0	3510289..3510708	-	139	118478907	-	BALH_3310	-	MutT/NUDIX family protein
3130	 33.83	0	3510844..3511044	+	66	118478908	-	BALH_3311	-	hypothetical protein
3131	 36.14	0	3511360..3512178	-	272	118478909	-	BALH_3312	-	permease
3132	 36.58	0	3512535..3514319	-	594	118478910	-	BALH_3313	-	N-acetylmuramoyl-L-alanine amidase
3133	 32.10	-1	3514478..3515044	-	188	118478911	-	BALH_3314	-	hypothetical protein
3134	 31.08	-1	3515051..3516070	-	339	118478912	-	BALH_3315	-	hypothetical protein
3135	 32.88	0	3516190..3517956	-	588	118478913	-	BALH_3316	-	ABC transporter, ATP-binding and permease component
3136	 36.99	0	3517953..3519704	-	583	118478914	-	BALH_3317	-	ABC transporter, ATP-binding and permease component
3137	 33.33	0	3520128..3520568	-	146	118478915	-	BALH_3318	-	hypothetical protein
3138	 40.72	+1	3520725..3522767	-	680	118478916	-	BALH_3319	-	transketolase
3139	 37.69	0	3523028..3523831	-	267	118478917	-	BALH_3321	-	phosphonate ABC transporter, permease
3140	 37.61	0	3523831..3524625	-	264	118478918	-	BALH_3322	-	phosphonate ABC transporter, permease
3141	 37.86	0	3524622..3525395	-	257	118478919	phnC	BALH_3323	-	phosphonate ABC transporter, ATP-binding protein
3142	 33.93	0	3525479..3526480	-	333	118478920	-	BALH_3324	-	phosphonate ABC transporter, phosphate-binding protein
3143	 33.90	0	3526603..3528186	+	527	118478921	cpdC	BALH_3325	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase
3144	 33.75	0	3528226..3528465	-	79	118478922	-	BALH_3326	-	hypothetical protein
3145	 34.70	0	3528511..3529167	-	218	118478923	-	BALH_3327	-	site-specific recombinase
3146	 39.29	+1	3529309..3529929	+	206	118478924	-	BALH_3328	-	LexA repressor
3147	 34.08	0	3530031..3530834	-	267	118478925	-	BALH_3329	-	hypothetical protein
3148	 35.53	0	3530835..3531425	-	196	118478926	-	BALH_3330	-	hypothetical protein
3149	 38.90	0	3531993..3533357	-	454	118478927	-	BALH_3331	-	L-glutamine synthetase
3150	 33.85	0	3533376..3533765	-	129	118478928	-	BALH_3332	-	MerR family transcriptional regulator
3151	 38.92	0	3533941..3535212	-	423	118478929	-	BALH_3333	-	aluminum resistance protein
3152	 36.62	0	3535205..3536482	-	425	118478930	-	BALH_3334	-	GTP-binding protein
3153	 39.90	+1	3536572..3537195	+	207	118478931	-	BALH_3335	-	hypothetical protein
3154	 35.32	0	3537467..3538423	-	318	118478932	spoVK	BALH_3336	-	stage V sporulation protein K
3155	 33.82	0	3538465..3539502	+	345	118478933	-	BALH_3337	-	phage integrase
3156	 54.45	+2	3539616..3542153	+	845	118478934	-	BALH_3338	-	triple helix repeat-containing collagen
3157	 57.03	+2	3540115..3543924	+	1269	118478935	-	BALH_3339	-	triple helix repeat-containing collagen
3158	 30.67	-1	3544005..3544229	-	74	118478936	hfq	BALH_3340	-	RNA-binding protein Hfq
3159	 37.07	0	3544251..3545213	-	320	118478937	miaA	BALH_3341	-	tRNA delta(2)-isopentenylpyrophosphate transferase
3160	 28.86	-2	3545386..3545631	+	81	118478938	-	BALH_3342	-	hypothetical protein
3161	 38.91	0	3545694..3546626	-	310	118478939	-	BALH_3343	-	enterotoxin/cell-wall binding protein
3162	 37.96	0	3546974..3548830	-	618	118478940	fruA	BALH_3344	-	PTS fructose-specific enzyme IIBC component
3163	 36.62	0	3548844..3549755	-	303	118478941	-	BALH_3345	-	1-phosphofructokinase
3164	 35.05	0	3549752..3550567	-	271	118478942	-	BALH_3346	-	DeoR family transcriptional regulator
3165	 36.51	0	3550663..3551826	-	387	118478943	-	BALH_3347	-	NADH-dependent butanol dehydrogenase A
3166	 33.16	0	3551943..3552509	-	188	118478944	-	BALH_3348	-	hypothetical protein
3167	 37.20	0	3553250..3554644	-	464	118478945	gabP	BALH_3350	-	gamma-aminobutyrate permease
3168	 37.78	0	3555000..3556100	+	366	118478946	-	BALH_3351	-	glycosyl hydrolase family chitinase
3169	 34.12	0	3556297..3557190	-	297	118478947	-	BALH_3352	-	Ser/thr protein phosphatase family protein
3170	 36.89	0	3557387..3558202	+	271	118478948	-	BALH_3353	-	formate transporter
3171	 37.59	0	3558337..3558618	+	93	118478949	-	BALH_3354	-	HU family DNA-binding protein
3172	 36.92	0	3558730..3561156	-	808	118478950	-	BALH_3355	-	heavy metal-transporting ATPase
3173	 36.23	0	3561243..3561449	-	68	118478951	-	BALH_3356	-	copper-ion-binding protein
3174	 32.34	0	3561638..3561940	-	100	118478952	-	BALH_3357	-	hypothetical protein
3175	 32.46	0	3562232..3562459	-	75	118478953	-	BALH_3358	-	hypothetical protein
3176	 34.62	0	3562762..3563151	-	129	118478954	-	BALH_3359	-	LuxR family transcriptional regulator
3177	 34.80	0	3563343..3564161	-	272	118478955	-	BALH_3360	-	esterase
3178	 34.67	0	3564178..3564999	-	273	118478956	-	BALH_3361	-	bacillibactin ABC transporter ATPase protein
3179	 35.87	0	3565014..3566036	-	340	118478957	-	BALH_3363	-	bacillibactin ABC transporter integral membrane protein
3180	 36.58	0	3566029..3567045	-	338	118478958	fecD	BALH_3364	-	bacillibactin ABC transporter integral membrane protein
3181	 33.54	0	3567064..3568029	-	321	118478959	feuA	BALH_3365	-	bacillibactin ABC transporter substrate-binding protein
3182	 26.95	-2	3568085..3568225	+	46	118478960	-	BALH_3366	-	hypothetical protein
3183	 35.31	0	3568329..3569087	-	252	118478961	-	BALH_3367	-	exodeoxyribonuclease III
3184	 35.51	0	3569242..3569838	+	198	118478962	adaA	BALH_3368	-	AraC family transcriptional regulator
3185	 34.09	0	3569819..3570349	+	176	118478963	-	BALH_3369	-	methylated-DNA--protein-cysteine S-methyltransferase
3186	 33.77	0	3570346..3571257	+	303	118478964	-	BALH_3370	-	DNA-3-methyladenine glycosylase II
3187	 36.25	0	3571294..3572526	-	410	118478965	-	BALH_3371	-	peptidase T
3188	 34.55	0	3572618..3573358	+	246	118478966	-	BALH_3373	-	hypothetical protein
3189	 33.96	0	3573449..3573766	-	105	118478967	-	BALH_3374	-	hypothetical protein
3190	 31.77	-1	3574090..3574665	-	191	118478968	pgm	BALH_3375	-	phosphoglycerate mutase
3191	 34.31	0	3574696..3575511	-	271	118478969	-	BALH_3376	-	alpha/beta fold family hydrolase
3192	 36.26	0	3575696..3575968	-	90	118478970	-	BALH_3377	-	glyoxylase family protein
3193	 30.48	-1	3576513..3579242	+	909	118478971	-	BALH_3378	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3194	 35.02	0	3579343..3580407	-	354	118478972	murG	BALH_3379	-	N-acetylglucosaminyl transferase
3195	 30.22	-1	3580456..3580776	-	106	118478973	-	BALH_3380	-	hypothetical protein
3196	 33.33	0	3580802..3581713	-	303	118478974	-	BALH_3381	-	UDP-2-acetamido-2,6-dideoxy-hexulose 4-reductase
3197	 34.13	0	3581710..3582714	-	334	118478975	-	BALH_3382	-	UDP-N-acetylglucosamine 4,6-dehydratase
3198	 33.58	0	3582965..3584164	+	399	118478976	-	BALH_3383	-	hypothetical protein
3199	 32.16	-1	3584605..3585369	-	254	118478977	-	BALH_3384	-	HAD superfamily hydrolase
3200	 33.77	0	3585439..3586128	+	229	118478978	-	BALH_3385	-	Crp/FNR family transcriptional regulator
3201	 31.27	-1	3586192..3586773	-	193	118478979	-	BALH_3386	-	hypothetical protein
3202	 37.73	0	3587003..3588436	-	477	118478980	-	BALH_3387	-	GntR family transcriptional regulator
3203	 31.62	-1	3589229..3590218	-	329	118478981	-	BALH_3388	-	glycosylphosphatidylinositol diacylglycerol-lyase
3204	 34.91	0	3590396..3592237	-	613	118478982	-	BALH_3389	-	serine protease
35.66	MEAN

3.36	STD DEV
