IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

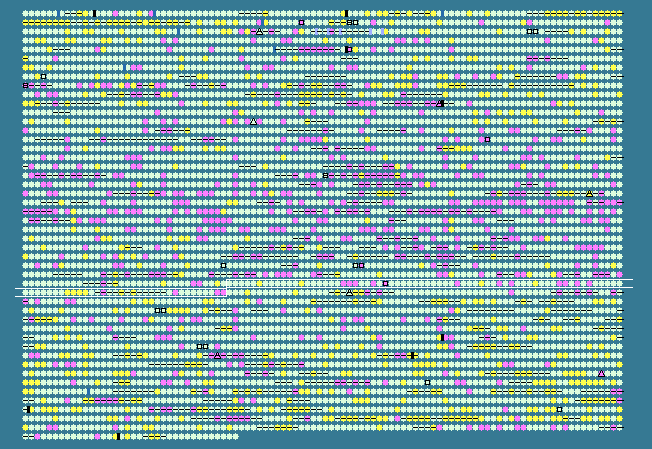

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3035	 38.56	0	3397209..3398030	-	273	118478813	-	BALH_3207	-	formate/nitrite transporter
3036	 36.18	0	3398178..3399194	-	338	118478814	moaA	BALH_3208	-	molybdenum cofactor biosynthesis protein A
3037	 34.59	0	3399215..3400012	-	265	118478815	fdhD	BALH_3209	-	formate dehydrogenase accessory protein
3038	 34.49	0	3400029..3400373	-	114	118478816	-	BALH_3210	-	hypothetical protein
3039	 34.78	0	3400489..3400971	-	160	118478817	-	BALH_3211	-	hypothetical protein
3040	 39.78	+1	3400984..3404022	-	1012	118478818	-	BALH_3212	-	formate dehydrogenase, alpha subunit
3041	 38.01	0	3404371..3405909	+	512	118478819	gerKA	BALH_3213	-	spore germination protein
3042	 34.79	0	3405906..3407003	+	365	118478820	gerSB	BALH_3214	-	spore germination protein SB
3043	 32.81	0	3407004..3408140	+	378	118478821	gerQC	BALH_3215	-	spore germination protein
3044	 36.29	0	3408412..3411894	-	1160	118478822	-	BALH_3216	-	hypothetical protein
3045	 35.57	0	3411848..3414040	-	730	118478823	-	BALH_3217	-	hypothetical protein
3046	 37.20	0	3414198..3414533	-	111	118478824	-	BALH_3218	-	hypothetical protein
3047	 52.78	+2	3414847..3415062	-	71	118478825	-	BALH_3220	-	hypothetical protein
3048	 37.64	0	3415107..3415826	-	239	118478826	-	BALH_3221	-	methyltransferase
3049	 35.02	0	3415910..3417688	-	592	118478827	oppA	BALH_3222	-	oligopeptide transporter, periplasmic-binding protein
3050	 35.97	0	3418549..3420255	-	568	118478828	oppA	BALH_3223	-	oligopeptide transporter, periplasmic-binding protein
3051	 36.14	0	3420595..3422307	-	570	118478829	oppA	BALH_3224	-	oligopeptide transporter, periplasmic-binding protein
3052	 35.63	0	3422655..3423917	-	420	118478830	dctA	BALH_3225	-	C4-dicarboxylate transporter DctA
3053	 32.66	0	3424117..3425154	-	345	118478831	lytR	BALH_3227	-	transcriptional regulator LytR, attenuator for lytABC and lytR expression
3054	 30.95	-1	3425170..3426177	-	335	118478832	-	BALH_3228	-	hypothetical protein
3055	 32.02	-1	3426181..3426714	-	177	118478833	sigW	BALH_3229	-	ECF subfamily RNA polymerase sigma factor
3056	 25.29	-2	3427092..3427601	+	169	118478834	-	BALH_3230	-	hypothetical protein
3057	 33.58	0	3428199..3429005	-	268	118478835	-	BALH_3232	-	ABC transporter, permease component
3058	 35.68	0	3428998..3429891	-	297	118478836	berA	BALH_3233	-	ABC transporter, ATP-binding protein
3059	 29.34	-1	3429924..3430649	+	241	118478837	-	BALH_3234	-	TetR family transcriptional regulator
3060	 35.08	0	3430674..3431705	-	343	118478838	-	BALH_3235	-	Gfo/Idh/MocA family oxidoreductase
3061	 30.43	-1	3431951..3433498	-	515	118478839	-	BALH_3236	-	IS605 family transposase
3062	 37.13	0	3433775..3436198	-	807	118478840	-	BALH_3237	-	DNA topoisomerase IV subunit A
3063	 38.98	0	3436200..3438164	-	654	118478841	-	BALH_3238	-	DNA topoisomerase IV subunit B
3064	 34.78	0	3438541..3438954	-	137	118478842	-	BALH_3239	-	CoA-binding domain-containing protein
3065	 36.77	0	3439034..3440401	-	455	118478843	-	BALH_3241	-	serine protease
3066	 34.81	0	3440478..3441155	-	225	118478844	-	BALH_3242	-	transcriptional regulatory protein
3067	 35.98	0	3441175..3441627	-	150	118478845	-	BALH_3243	-	ribonucleoside-triphosphate reductase class III activase subunit
3068	 37.43	0	3441624..3443480	-	618	118478846	-	BALH_3244	-	anaerobic ribonucleoside triphosphate reductase
3069	 37.35	0	3443706..3444302	+	198	118478847	-	BALH_3245	-	putative glycerol-3-phosphate acyltransferase PlsY
3070	 34.31	0	3444396..3444701	+	101	118478848	-	BALH_3246	-	hypothetical protein
3071	 36.43	0	3444728..3445147	-	139	118478849	-	BALH_3247	-	4-hydroxybenzoyl-CoA thioesterase
3072	 38.28	0	3445257..3446549	+	430	118478850	-	BALH_3248	-	glycosyl hydrolase
3073	 31.31	-1	3446578..3446775	-	65	118478851	-	BALH_3249	-	small acid-soluble spore protein Tlp
3074	 33.44	0	3447336..3448283	-	315	118478852	dnaE	BALH_3250	-	DNA polymerase III subunit epsilon
3075	 35.94	0	3448399..3448974	-	191	118478853	-	BALH_3251	-	AhpC/TSA family protein
3076	 36.19	0	3449507..3451222	-	571	118478854	-	BALH_3252	-	ABC transporter, ATP-binding protein and permease component
3077	 39.32	+1	3451274..3453997	-	907	118478855	-	BALH_3253	-	aconitate hydratase
3078	 34.02	0	3454479..3455204	-	241	118478856	-	BALH_3254	-	peptidoglycan N-acetylglucosamine deacetylase
3079	 35.23	0	3455251..3455514	-	87	118478857	-	BALH_3255	-	hypothetical protein
3080	 31.57	-1	3455874..3456269	+	131	118478858	-	BALH_3256	-	spore coat protein M
3081	 32.61	0	3456313..3456588	-	91	118478859	-	BALH_3257	-	multidrug resistance protein
3082	 29.95	-1	3456646..3457059	-	137	118478860	-	BALH_3258	-	hypothetical protein
3083	 36.81	0	3457158..3458393	+	411	118478861	alaS	BALH_3259	-	alanine--tRNA ligase
3084	 34.36	0	3458438..3458926	-	162	118478862	-	BALH_3260	-	MutT/NUDIX family protein
3085	 35.05	0	3458986..3459567	+	193	118478863	-	BALH_3261	-	hypothetical protein
3086	 41.28	+1	3459575..3460744	-	389	118478864	mmgA	BALH_3262	-	acetyl-CoA acetyltransferase
3087	 34.60	0	3460677..3462338	-	553	118478865	fadD	BALH_3263	-	acyl-CoA synthetase
3088	 36.81	0	3462188..3462763	-	191	118478866	bioY	BALH_3264	-	bioY family protein
3089	 38.91	0	3462887..3464500	-	537	118478867	alkK	BALH_3265	-	medium-chain-fatty-acid--CoA ligase
3090	 29.95	-1	3464637..3465287	-	216	118478868	-	BALH_3266	-	hypothetical protein
3091	 30.46	-1	3465288..3465635	-	115	118478869	-	BALH_3267	-	ABC transporter, ATP-binding protein
3092	 35.07	0	3466258..3467064	+	268	118478870	-	BALH_3268	-	acetyltransferase
3093	 30.99	-1	3467236..3467448	+	70	118478871	-	BALH_3269	-	hypothetical protein
3094	 35.09	0	3467574..3469106	-	510	118478872	-	BALH_3270	-	S-layer protein
3095	 30.95	-1	3469473..3469724	-	83	118478873	-	BALH_3272	-	hypothetical protein
3096	 32.51	0	3469736..3470218	-	160	118478874	-	BALH_3273	-	N-acetylmuramoyl-L-alanine amidase
3097	 35.40	0	3470208..3471029	-	273	118478875	-	BALH_3274	-	hypothetical protein
3098	 35.12	0	3471126..3471965	+	279	118478876	-	BALH_3275	-	hypothetical protein
3099	 36.29	0	3471986..3472357	-	123	118478877	-	BALH_3276	-	glyoxalase/bleomycin resistance protein
3100	 33.53	0	3472576..3474126	+	516	118478878	kinA	BALH_3277	-	PAS/PAC sensor signal transduction histidine kinase
3101	 36.93	0	3474182..3474793	-	203	118478879	-	BALH_3278	-	phospholipase/carboxylesterase family protein
3102	 37.97	0	3474818..3475765	-	315	118478880	-	BALH_3279	-	glyoxalase/bleomycin resistance protein
3103	 36.84	0	3476142..3477623	-	493	118478881	-	BALH_3280	-	sodium/proline symporter
3104	 37.48	0	3477911..3479479	-	522	118478882	-	BALH_3281	-	ferredoxin-dependent glutamate synthase
3105	 37.94	0	3479547..3480740	-	397	118478883	-	BALH_3282	-	Oye family NADH-dependent flavin oxidoreductase
3106	 32.54	0	3481256..3481759	-	167	118478884	-	BALH_3283	-	CarD family transcriptional regulator
3107	 38.89	0	3481979..3482950	-	323	118478885	hutG	BALH_3284	-	formimidoylglutamase
3108	 40.25	+1	3482929..3484200	-	423	118478886	hutI	BALH_3285	-	imidazolonepropionase
3109	 41.47	+1	3484213..3485871	-	552	118478887	-	BALH_3286	-	urocanate hydratase
3110	 39.66	+1	3485895..3487412	-	505	118478888	-	BALH_3287	-	histidine ammonia-lyase
3111	 43.54	+2	3487517..3487957	-	146	118478889	hutP	BALH_3288	-	anti-terminator HutP
3112	 35.29	0	3488131..3489099	+	322	118478890	-	BALH_3289	-	ubiquinone/menaquinone methyltransferase
3113	 36.20	0	3489113..3489706	-	197	118478891	-	BALH_3290	-	4-methyl-5(B-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme
3114	 30.43	-1	3489682..3490335	-	217	118478892	-	BALH_3291	-	hypothetical protein
3115	 32.32	0	3490515..3490811	+	98	118478893	-	BALH_3292	-	hypothetical protein
3116	 32.43	0	3490915..3491355	+	146	118478894	-	BALH_3293	-	hypothetical protein
3117	 39.30	+1	3491385..3492440	-	351	118478895	-	BALH_3295	-	hypothetical protein
3118	 38.80	0	3492490..3493569	-	359	118478896	-	BALH_3297	-	hypothetical protein
3119	 39.76	+1	3493838..3501400	+	2520	118478897	-	BALH_3298	-	hypothetical protein
3120	 32.35	0	3501463..3501969	-	168	118478898	-	BALH_3299	-	cyotchrome c defective protein
3121	 33.86	0	3502060..3502824	-	254	118478899	-	BALH_3300	-	cytochrome c-type biogenesis protein (holocytochrome-c synthase)
3122	 35.53	0	3503255..3504163	+	302	118478900	-	BALH_3302	-	drug/metabolite exporter family protein
3123	 38.92	0	3504251..3505396	+	381	118478901	-	BALH_3303	-	N-acyl-L-amino acid amidohydrolase
3124	 33.76	0	3505434..3506378	-	314	118478902	-	BALH_3305	-	bacitracin transport permease
3125	 35.84	0	3506371..3507366	-	331	118478903	bcrA	BALH_3306	-	bacitracin transport ATP-binding protein
3126	 29.69	-1	3507373..3507948	-	191	118478904	-	BALH_3307	-	ABC transporter permease
3127	 35.81	0	3508179..3509108	-	309	118478905	-	BALH_3308	-	LysR family transcriptional regulator
3128	 37.25	0	3509536..3510276	+	246	118478906	-	BALH_3309	-	murein hydrolase export regulator
3129	 35.24	0	3510289..3510708	-	139	118478907	-	BALH_3310	-	MutT/NUDIX family protein
3130	 33.83	0	3510844..3511044	+	66	118478908	-	BALH_3311	-	hypothetical protein
3131	 36.14	0	3511360..3512178	-	272	118478909	-	BALH_3312	-	permease
3132	 36.58	0	3512535..3514319	-	594	118478910	-	BALH_3313	-	N-acetylmuramoyl-L-alanine amidase
3133	 32.10	-1	3514478..3515044	-	188	118478911	-	BALH_3314	-	hypothetical protein
3134	 31.08	-1	3515051..3516070	-	339	118478912	-	BALH_3315	-	hypothetical protein
35.66	MEAN

3.36	STD DEV
