IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

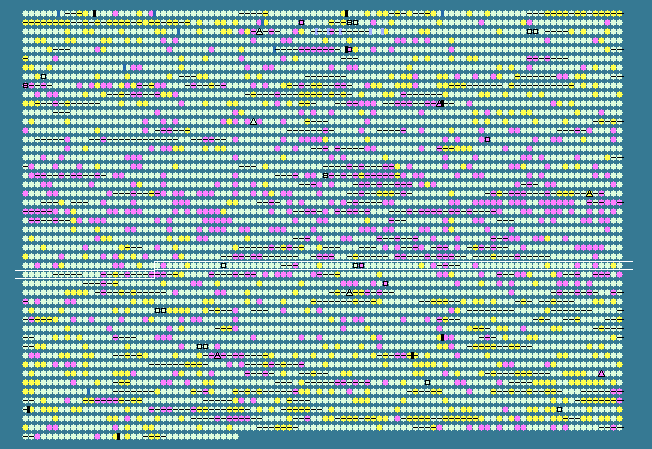

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2823	 38.54	0	3166084..3166275	+	63	118478601	-	BALH_2978	-	hypothetical protein
2824	 29.74	-1	3166308..3167030	-	240	118478602	-	BALH_2979	-	hypothetical protein
2825	 37.07	0	3167214..3167936	-	240	118478603	-	BALH_2981	-	hypothetical protein
2826	 36.16	0	3167888..3169549	-	553	118478604	cbiO	BALH_2982	-	cobalt ABC transporter, ATP-binding protein
2827	 34.24	0	3169522..3170400	-	292	118478605	-	BALH_2983	-	cobalt ABC transporter, permease
2828	 39.33	+1	3170423..3171256	-	277	118478606	-	BALH_2984	-	hypothetical protein
2829	 37.81	0	3171301..3173154	-	617	118478607	-	BALH_2985	-	cell wall anchor domain-containing protein
2830	 38.33	0	3173463..3173942	-	159	118478608	-	BALH_2986	-	ribonuclease activity regulator protein RraA
2831	 38.57	0	3174143..3175573	+	476	118478609	-	BALH_2987	-	transporter
2832	 36.59	0	3175720..3176547	-	275	118478610	-	BALH_2988	-	extracellular ribonuclease
2833	 35.35	0	3177072..3178061	-	329	118478611	mtn	BALH_2989	-	putative 5-methylthioadenosine nucleosidase/S-adenosylhomocysteine nucleosidase
2834	 34.37	0	3178514..3178900	-	128	118478612	-	BALH_2991	-	putative transposase
2835	 38.53	0	3180001..3181020	-	339	118478613	-	BALH_2992	-	hypothetical protein
2836	 33.60	0	3181030..3182154	-	374	118478614	-	BALH_2993	-	transcriptional regulator
2837	 33.96	0	3182773..3184380	+	535	118478615	znuA	BALH_2994	-	high-affinity zinc uptake system periplasmic-binding protein
2838	 34.32	0	3185041..3186456	-	471	118478616	-	BALH_2995	-	GntR family transcriptional regulator
2839	 35.31	0	3186574..3187533	+	319	118478617	putA	BALH_2996	-	L-proline dehydrogenase
2840	 38.36	0	3188817..3189293	-	158	118478618	-	BALH_2997	-	transcriptional regulator
2841	 38.47	0	3189492..3191654	-	720	118478619	adp	BALH_2998	-	alkaline D-peptidase
2842	 35.56	0	3191923..3193716	+	597	118478620	-	BALH_2999	-	DNA-binding response regulator
2843	 37.68	0	3193941..3195275	+	444	118478621	-	BALH_3000	-	histidyl-tRNA synthetase
2844	 33.33	0	3195447..3195758	+	103	118478622	-	BALH_3001	-	hypothetical protein
2845	 37.00	0	3196024..3196623	+	199	118478623	-	BALH_3002	-	hypothetical protein
2846	 31.47	-1	3197125..3197874	+	249	118478624	-	BALH_3003	-	nitroreductase family protein
2847	 37.37	0	3198007..3198303	+	98	118478625	-	BALH_3004	-	hypothetical protein
2848	 35.79	0	3198350..3199450	-	366	118478626	pykA	BALH_3005	-	pyruvate kinase
2849	 34.03	0	3199501..3200217	-	238	118478627	-	BALH_3006	-	hypothetical protein
2850	 39.53	+1	3200556..3201314	-	252	118478628	-	BALH_3007	-	3-ketoacyl-(acyl-carrier-protein) reductase
2851	 32.31	0	3201371..3203029	-	552	118478629	-	BALH_3010	-	ABC transporter permease
2852	 36.19	0	3203022..3203756	-	244	118478630	-	BALH_3011	-	ABC transporter, ATP-binding protein
2853	 38.24	0	3204555..3204758	+	67	118478631	-	BALH_3012	-	transcriptional regulator
2854	 36.86	0	3204814..3205776	-	320	118478632	-	BALH_3013	-	hypothetical protein
2855	 35.16	0	3205909..3206619	-	236	118478633	-	BALH_3014	-	HAD superfamily hydrolase
2856	 33.51	0	3206775..3207932	-	385	118478634	-	BALH_3015	-	transposase
2857	 31.28	-1	3207929..3208171	-	80	118478635	-	BALH_3016	-	transposase
2858	 32.87	0	3208290..3208505	-	71	118478636	hin	BALH_3017	-	DNA invertase
2859	 33.10	0	3208876..3209301	+	141	118478637	-	BALH_3018	-	hypothetical protein
2860	 37.63	0	3209340..3210362	-	340	118478638	-	BALH_3019	-	protein-tyrosine-phosphatase
2861	 36.27	0	3210452..3211336	-	294	118478639	-	BALH_3020	-	hypothetical protein
2862	 32.37	0	3211340..3212062	-	240	118478640	-	BALH_3021	-	acetyltransferase
2863	 32.26	-1	3212186..3213025	+	279	118478641	-	BALH_3022	-	hypothetical protein
2864	 37.01	0	3213043..3213504	+	153	118478642	-	BALH_3023	-	MutT/NUDIX family protein
2865	 34.31	0	3213603..3214013	-	136	118478643	-	BALH_3024	-	glyoxylase family protein (lactoylglutathione lyase)
2866	 33.52	0	3214045..3215097	-	350	118478644	-	BALH_3025	-	ROK family protein
2867	 40.07	+1	3215196..3216398	-	400	118478645	-	BALH_3028	-	sugar (and other) transporter
2868	 38.75	0	3216446..3217054	-	202	118478646	maa	BALH_3029	-	maltose O-acetyltransferase
2869	 31.74	-1	3217306..3218436	-	376	118478647	-	BALH_3030	-	permease
2870	 36.55	0	3218491..3218739	-	82	118478648	-	BALH_3031	-	hypothetical protein
2871	 31.72	-1	3218843..3219337	+	164	118478649	-	BALH_3032	-	acetyltransferase
2872	 36.24	0	3219814..3220569	-	251	118478650	-	BALH_3033	-	ubiE/COQ5 methyltransferase family protein
2873	 35.88	0	3220611..3221159	-	182	118478651	-	BALH_3034	-	hypothetical protein
2874	 33.33	0	3221266..3222447	+	393	118478652	-	BALH_3035	-	major facilitator family protein
2875	 33.88	0	3222504..3223418	-	304	118478653	-	BALH_3036	-	TPR repeat-containing protein
2876	 31.06	-1	3223685..3224080	+	131	118478654	-	BALH_3037	-	hypothetical protein
2877	 34.43	0	3224472..3225020	-	182	118478655	-	BALH_3038	-	hypothetical protein
2878	 37.44	0	3225219..3225632	-	137	118478656	-	BALH_3040	-	ATP synthase protein I
2879	 35.74	0	3225685..3227013	-	442	118478657	-	BALH_3041	-	hypothetical protein
2880	 37.75	0	3227133..3227540	-	135	118478658	-	BALH_3042	-	MerR family transcriptional regulator
2881	 34.58	0	3227988..3228872	+	294	118478659	-	BALH_3043	-	DMT family permease
2882	 38.26	0	3228919..3229791	-	290	118478660	-	BALH_3044	-	pentapeptide repeat-containing protein
2883	 35.77	0	3230298..3231365	-	355	118478661	-	BALH_3045	-	hypothetical protein
2884	 37.94	0	3231486..3233027	-	513	118478662	-	BALH_3046	-	gluconate kinase (2-dehydro-3-deoxygluconokinase)
2885	 36.25	0	3233083..3234522	-	479	118478663	-	BALH_3048	-	gluconate permease
2886	 37.82	0	3234799..3235467	-	222	162382779	-	BALH_3049	-	putative translaldolase
2887	 37.92	0	3235519..3236412	-	297	162382778	-	BALH_3050	-	6-phosphogluconate dehydrogenase-like protein
2888	 39.81	+1	3236517..3238538	-	673	118478666	-	BALH_3051	-	transketolase
2889	 37.85	0	3238551..3240035	-	494	118478667	-	BALH_3052	-	glucose-6-phosphate 1-dehydrogenase
2890	 34.71	0	3241232..3241741	-	169	118478668	-	BALH_3054	-	hypothetical protein
2891	 32.91	0	3241983..3242456	-	157	118478669	-	BALH_3055	-	hypothetical protein
2892	 34.72	0	3242513..3243883	-	456	118478670	-	BALH_3056	-	serine transporter
2893	 30.17	-1	3244843..3245538	-	231	118478671	-	BALH_3057	-	hypothetical protein
2894	 34.23	0	3245621..3245956	-	111	118478672	-	BALH_3058	-	hypothetical protein
2895	 37.68	0	3246084..3246497	-	137	118478673	-	BALH_3059	-	BadM/Rrf2 family transcriptional regulator
2896	 32.07	-1	3246841..3247236	-	131	118478674	-	BALH_3060	-	transcriptional regulator Spx
2897	 39.11	+1	3248142..3248885	-	247	118478675	-	BALH_3061	-	GntR family transcriptional regulator
2898	 36.88	0	3248912..3249982	-	356	118478676	-	BALH_3062	-	Gfo/Idh/MocA family oxidoreductase
2899	 40.19	+1	3250101..3250523	+	140	118478677	-	BALH_3063	-	hypothetical protein
2900	 36.68	0	3250568..3251134	-	188	118478678	-	BALH_3064	-	esterase
2901	 37.35	0	3251151..3252047	-	298	118478679	-	BALH_3065	-	metallo-beta-lactamase family protein
2902	 33.69	0	3252004..3252561	-	185	118478680	-	BALH_3066	-	hypothetical protein
2903	 33.75	0	3252589..3253542	-	317	118478681	-	BALH_3067	-	hypothetical protein
2904	 36.67	0	3253604..3253813	+	69	118478682	-	BALH_3068	-	hypothetical protein
2905	 35.78	0	3253846..3254745	-	299	118478683	-	BALH_3069	-	PhzF family phenazine biosynthesis protein
2906	 33.96	0	3254742..3255536	-	264	118478684	-	BALH_3070	-	acetyltransferase
2907	 36.17	0	3255530..3256234	-	234	118478685	-	BALH_3071	-	short chain dehydrogenase
2908	 36.17	0	3256231..3256794	-	187	118478686	-	BALH_3072	-	acetyltransferase
2909	 32.79	0	3256954..3257502	-	182	118478687	-	BALH_3073	-	acetyltransferase
2910	 35.80	0	3257668..3258966	-	432	118478688	-	BALH_3074	-	long-chain-fatty-acid--CoA ligase
2911	 32.40	0	3259303..3259839	-	178	118478689	-	BALH_3075	-	NAD(P)H oxidoreductase
2912	 32.21	-1	3260478..3261278	-	266	118478690	-	BALH_3076	-	hypothetical protein
2913	 34.65	0	3261624..3262835	+	403	118478691	-	BALH_3077	-	ankyrin repeat-containing protein
2914	 31.16	-1	3262996..3263271	-	91	118478692	-	BALH_3078	-	ArsR family transcriptional regulator
2915	 34.14	0	3263500..3266859	-	1119	118478693	-	BALH_3079	-	glycosyl transferase and polysaccharide deacetylase fusion protein
2916	 39.84	+1	3267079..3268446	-	455	118478694	-	BALH_3080	-	membrane associated protein
2917	 33.87	0	3268436..3269182	-	248	118478695	-	BALH_3081	-	putative RNA polymerase sigma factor SigI
2918	 30.89	-1	3269934..3270587	-	217	118478696	-	BALH_3082	-	CAAX amino terminal protease family protein
2919	 33.84	0	3271257..3271847	+	196	118478697	-	BALH_3083	-	TetR family transcriptional regulator
2920	 34.22	0	3272526..3273089	-	187	118478698	-	BALH_3084	-	hypothetical protein
2921	 34.48	0	3273116..3274078	+	320	118478699	-	BALH_3085	-	DeoR family transcriptional regulator
2922	 30.77	-1	3275247..3275714	-	155	118478700	-	BALH_3086	-	hypothetical protein
35.66	MEAN

3.36	STD DEV
