IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

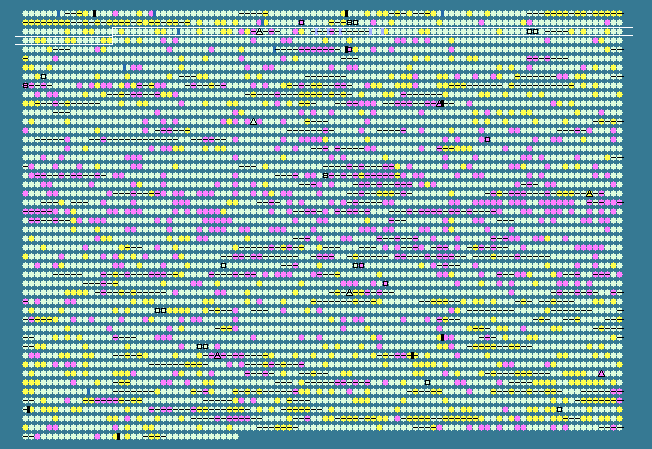

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
216	 36.53	0	245137..246513	+	458	118475994	murF	BALH_0231	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
217	 41.65	+1	246819..248405	+	528	118475995	deaD	BALH_0232	-	DEAD-box ATP dependent DNA helicase
218	 35.44	0	248421..249464	+	347	118475996	uvsE	BALH_0233	-	putative UV damage endonuclease
219	 36.82	0	249457..250029	-	190	118475997	-	BALH_0234	-	rhomboid family protein
220	 36.11	0	250122..250481	+	119	118475998	acpS	BALH_0235	-	holo-[acyl-carrier protein] synthase
221	 36.73	0	250500..251588	+	362	118475999	-	BALH_0236	-	hypothetical protein
222	 38.46	0	251707..252876	+	389	118476000	alr	BALH_0237	-	alanine racemase
223	 41.67	+1	253186..253473	+	95	118476001	-	BALH_0238	-	hypothetical protein
224	 40.17	+1	253478..253828	+	116	118476002	-	BALH_0239	-	pemK-like protein
225	 36.46	0	253890..256064	+	724	118476003	-	BALH_0240	-	transcription accessory protein
226	 35.05	0	256428..256892	+	154	118476004	-	BALH_0241	-	hypothetical protein
227	 35.40	0	263321..263803	+	160	118476005	-	BALH_0243	-	kinase
228	 35.58	0	263676..264476	+	266	118476006	gcp	BALH_0244	-	O-sialoglycoprotein endopeptidase
229	 35.98	0	264481..264933	+	150	118476007	rimI	BALH_0245	-	SSU ribosomal protein S18P alanine acetyltransferase
230	 40.02	+1	264918..265949	+	343	118476008	gcp	BALH_0246	-	O-sialoglycoprotein endopeptidase
231	 35.71	0	266370..268346	-	658	118476009	-	BALH_0247	-	ABC transporter, ATP-binding protein
232	 35.40	0	268480..269109	+	209	118476010	-	BALH_0248	-	redox-sensing transcriptional repressor Rex
233	 35.60	0	269327..270076	-	249	118476011	-	BALH_0249	-	CAAX amino protease
234	 39.30	+1	270478..270762	+	94	162382787	groES	BALH_0250	-	co-chaperonin GroES
235	 41.77	+1	270801..272435	+	544	118476013	groEL	BALH_0251	-	chaperonin GroEL
236	 35.35	0	272722..273762	+	346	118476014	-	BALH_0252	-	hypothetical protein
237	 29.61	-1	273786..274241	+	151	118476015	-	BALH_0253	-	hypothetical protein
238	 39.79	+1	274901..276448	+	515	118476016	guaA	BALH_0254	-	bifunctional GMP synthase/glutamine amidotransferase protein
239	 30.88	-1	276584..277438	+	284	118476017	-	BALH_0255	-	hypothetical protein
240	 32.26	-1	277538..278746	-	402	118476018	-	BALH_0256	-	phage integrase family site specific recombinase
241	 33.33	0	278715..278930	-	71	118476019	-	BALH_0257	-	hypothetical protein
242	 30.32	-1	279218..280048	-	276	118476020	-	BALH_0258	-	Rep protein
243	 35.65	0	280204..281541	-	445	118476021	-	BALH_0259	-	FtsK/SpoIIIE family protein
244	 36.34	0	281548..281880	-	110	118476022	-	BALH_0260	-	hypothetical protein
245	 33.52	0	282019..282540	-	173	118476023	-	BALH_0261	-	hypothetical protein
246	 29.63	-1	282647..283240	+	197	118476024	-	BALH_0262	-	hypothetical protein
247	 40.27	+1	283788..285113	+	441	118476025	-	BALH_0264	-	guanine-hypoxanthine permease, xanthine/uracil permease family protein
248	 36.32	0	285259..285960	+	233	118476026	-	BALH_0265	-	DNA-binding response regulator
249	 34.26	0	285944..287449	+	501	118476027	-	BALH_0266	-	sensor histidine kinase
250	 35.00	0	292808..293767	+	319	118476028	-	BALH_0268	-	alpha/beta hydrolase
251	 36.20	0	293933..294664	+	243	118476029	frnE	BALH_0269	-	frnE protein
252	 25.67	-2	300262..300561	+	99	118476030	galE	BALH_0271	-	UDP-glucose 4-epimerase, N-terminal region
253	 33.97	0	301339..301650	-	103	118476031	-	BALH_0272	-	glycosyl transferase, group 1 family protein
254	 36.84	0	307570..308367	-	265	118476032	bacA	BALH_0274	-	undecaprenyl pyrophosphate phosphatase
255	 34.53	0	308385..309137	-	250	118476033	bcrB	BALH_0275	-	bacitracin ABC transporter, permease component
256	 34.30	0	309115..310044	-	309	118476034	bcrA	BALH_0276	-	bacitracin ABC transporter, ATP-binding protein
257	 33.53	0	310113..311135	-	340	118476035	-	BALH_0277	-	sensor histidine kinase
258	 32.49	0	311116..311829	-	237	118476036	-	BALH_0278	-	DNA-binding response regulator
259	 33.55	0	317361..318293	+	310	118476037	-	BALH_0279	-	DMT family permease
260	 33.33	0	318376..319167	-	263	118476038	-	BALH_0280	-	hypothetical protein
261	 41.42	+1	324944..325450	+	168	118476039	purE	BALH_0282	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
262	 37.76	0	325447..326598	+	383	118476040	purK	BALH_0283	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
263	 37.87	0	326559..327902	+	447	118476041	purB	BALH_0284	-	adenylosuccinate lyase
264	 35.39	0	327934..328710	+	258	118476042	purC	BALH_0285	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
265	 35.29	0	328703..328957	+	84	118476043	purS	BALH_0286	-	phosphoribosylformylglycinamidine synthase subunit PurS
266	 38.30	0	328954..329637	+	227	118476044	purQ	BALH_0287	-	phosphoribosylformylglycinamidine synthase subunit I
267	 40.72	+1	329621..331840	+	739	118476045	purL	BALH_0288	-	phosphoribosylformylglycinamidine synthase II
268	 40.10	+1	331807..333240	+	477	118476046	purF	BALH_0289	-	amidophosphoribosyltransferase
269	 38.71	0	333347..334387	+	346	118476047	purM	BALH_0290	-	phosphoribosylaminoimidazole synthetase
270	 36.22	0	334384..334971	+	195	118476048	purN	BALH_0291	-	phosphoribosylglycinamide formyltransferase
271	 37.57	0	334996..336531	+	511	118476049	purH	BALH_0292	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
272	 38.29	0	336652..337923	+	423	118476050	purD	BALH_0293	-	phosphoribosylamine--glycine ligase
273	 36.64	0	338142..338987	-	281	118476051	-	BALH_0294	-	SPFH domain-containing protein/band 7 family protein
274	 37.79	0	339197..339667	-	156	118476052	-	BALH_0295	-	hypothetical protein
275	 36.39	0	339847..340599	+	250	118476053	-	BALH_0296	-	geranylgeranylglyceryl phosphate synthase-like protein
276	 38.59	0	340600..342861	+	753	118476054	pcrA	BALH_0297	-	ATP-dependent DNA helicase PcrA
277	 38.31	0	342877..344886	+	669	118476055	ligA	BALH_0298	-	NAD-dependent DNA ligase LigA
278	 36.18	0	344903..346096	+	397	118476056	-	BALH_0299	-	hypothetical protein
279	 32.81	0	346192..346962	+	256	118476057	-	BALH_0300	-	integral membrane protein
280	 40.44	+1	347116..348663	+	515	118476058	rocA	BALH_0301	-	1-pyrroline-5-carboxylate dehydrogenase
281	 35.86	0	349230..349823	-	197	118476059	-	BALH_0302	-	isochorismatase
282	 35.38	0	350164..351285	+	373	118476060	-	BALH_0303	-	ABC transporter, ATP-binding protein
283	 37.09	0	351275..351940	+	221	118476061	-	BALH_0304	-	ABC transporter, permease component
284	 36.49	0	351962..352816	+	284	118476062	-	BALH_0305	-	ABC transporter, substrate-binding protein
285	 33.60	0	353005..353382	+	125	118476063	-	BALH_0306	-	transposase
286	 35.09	0	353517..354257	+	246	118476064	-	BALH_0307	-	transposase
287	 34.30	0	354838..355044	-	68	118476065	-	BALH_0308	-	hypothetical protein
288	 36.55	0	355022..356203	-	393	118476066	arsA	BALH_0309	-	anion-transporting ATPase
289	 34.78	0	356281..356763	-	160	118476067	-	BALH_0310	-	MarR family transcriptional regulator
290	 32.91	0	357004..357240	+	78	118476068	-	BALH_0311	-	hypothetical protein
291	 33.68	0	357382..357672	+	96	118476069	gatC	BALH_0312	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
292	 39.37	+1	357688..359145	+	485	118476070	gatA	BALH_0313	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
293	 37.54	0	359160..360587	+	475	118476071	gatB	BALH_0314	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
294	 39.40	+1	361060..361965	+	301	118476072	-	BALH_0315	-	putative lipid kinase
295	 37.90	0	362105..362848	+	247	118476073	-	BALH_0316	-	haloacid dehalogenase-like hydrolase
296	 39.04	+1	362931..364367	+	478	118476074	gabT	BALH_0317	-	4-aminobutyrate aminotransferase
297	 35.84	0	364453..365847	+	464	118476075	-	BALH_0318	-	sensory box sigma-54 dependent DNA-binding response regulator
298	 41.60	+1	365840..367291	+	483	118476076	gadD	BALH_0319	-	succinate semialdehyde dehydrogenase
299	 37.13	0	367702..369045	-	447	118476077	ampS	BALH_0320	-	aminopeptidase II
300	 35.46	0	369048..370130	-	360	118476078	-	BALH_0321	-	polysaccharide deacetylase
301	 34.51	0	370282..371385	-	367	118476079	-	BALH_0322	-	polysaccharide deacetylase-like protein
302	 36.01	0	371660..372856	-	398	118476080	-	BALH_0323	-	NupC family nucleoside transporter
303	 40.06	+1	373261..374658	+	465	118476081	trmA	BALH_0324	-	RNA methyltransferase
304	 41.35	+1	374734..375744	+	336	118476082	-	BALH_0325	-	dihydrouridine synthase family protein
305	 35.40	0	376046..378079	+	677	118476083	-	BALH_0326	-	GAF sensor signal transduction histidine kinase
306	 36.03	0	378157..378675	+	172	118476084	-	BALH_0327	-	hypothetical protein
307	 36.72	0	378770..379477	+	235	118476085	-	BALH_0328	-	zinc metalloprotease
308	 40.52	+1	379719..380414	-	231	118476086	-	BALH_0329	-	hypothetical protein
309	 39.46	+1	380429..381538	-	369	118476087	-	BALH_0330	-	mandelate racemase/muconate lactonizing enzyme family protein
310	 34.12	0	381631..382902	+	423	118476088	-	BALH_0331	-	hypothetical protein
311	 37.13	0	382891..384312	-	473	118476089	nhaC	BALH_0332	-	Na+/H+ antiporter
312	 38.38	0	384559..385707	+	382	118476090	amhX	BALH_0333	-	amidohydrolase
313	 33.99	0	385859..386467	+	202	118476091	-	BALH_0334	-	methyltransferase
314	 40.80	+1	386514..388040	-	508	118476092	ahpF	BALH_0335	-	alkyl hydroperoxide reductase, subunit F
315	 40.43	+1	388055..388618	-	187	118476093	ahpC	BALH_0336	-	alkyl hydroperoxide reductase, subunit C
35.66	MEAN

3.36	STD DEV
