IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

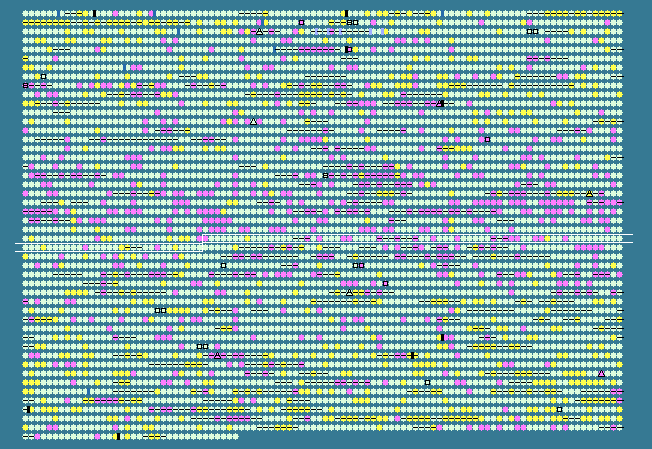

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2531	 30.10	-1	2834791..2835378	-	195	118478309	-	BALH_2672	-	hypothetical protein
2532	 37.50	0	2835478..2835813	-	111	118478310	-	BALH_2673	-	hypothetical protein
2533	 36.69	0	2835901..2837121	-	406	118478311	-	BALH_2674	-	macrolide efflux protein
2534	 35.44	0	2837173..2838216	-	347	118478312	-	BALH_2675	-	ArsR family transcriptional regulator
2535	 37.00	0	2838397..2838996	+	199	118478313	-	BALH_2676	-	hypothetical protein
2536	 33.33	0	2839200..2840393	+	397	118478314	nupC	BALH_2677	-	nucleoside transporter
2537	 37.74	0	2840443..2841759	-	438	118478315	proA	BALH_2678	-	gamma-glutamyl phosphate reductase
2538	 40.08	+1	2841722..2842966	-	414	118478316	-	BALH_2679	-	gamma-glutamyl kinase
2539	 36.26	0	2843524..2844342	+	272	118478317	proC	BALH_2680	-	pyrroline-5-carboxylate reductase
2540	 35.16	0	2844479..2846119	-	546	118478318	-	BALH_2681	-	M20 family peptidase
2541	 34.80	0	2846195..2846944	-	249	118478319	-	BALH_2682	-	IclR family transcriptional regulator
2542	 36.19	0	2847200..2848636	+	478	118478320	rocC	BALH_2683	-	amino acid permease, arginine permease
2543	 34.01	0	2848697..2849884	-	395	118478321	-	BALH_2684	-	hypothetical protein
2544	 34.98	0	2850157..2851188	-	343	118478322	-	BALH_2685	-	delta5 acyl-lipid desaturase
2545	 37.04	0	2851391..2853064	-	557	118478323	-	BALH_2686	-	alkaline phosphatase
2546	 33.54	0	2853340..2853831	+	163	118478324	-	BALH_2687	-	hypothetical protein
2547	 33.33	0	2853833..2854057	+	74	118478325	-	BALH_2688	-	Cro/CI family transcriptional regulator
2548	 29.46	-1	2854511..2854897	-	128	118478326	-	BALH_2689	-	hypothetical protein
2549	 34.36	0	2854894..2855577	-	227	118478327	-	BALH_2690	-	hypothetical protein
2550	 29.99	-1	2855667..2856983	-	438	118478328	-	BALH_2691	-	sensor histidine kinase
2551	 34.13	0	2856983..2857738	-	251	118478329	-	BALH_2692	-	response regulator
2552	 32.66	0	2857880..2858473	-	197	118478330	-	BALH_2693	-	uridine kinase
2553	 35.07	0	2858461..2859036	-	191	118478331	-	BALH_2694	-	ribosomal-protein-alanine acetyltransferase
2554	 31.51	-1	2859018..2859401	-	127	118478332	-	BALH_2695	-	lactoylglutathione lyase
2555	 31.10	-1	2860308..2860844	-	178	118478333	-	BALH_2696	-	hypothetical protein
2556	 38.29	0	2861358..2862305	+	315	118478334	-	BALH_2697	-	magnesium chelatase
2557	 34.62	0	2862302..2863465	+	387	118478335	-	BALH_2698	-	hypothetical protein
2558	 33.60	0	2863440..2864549	+	369	118478336	-	BALH_2699	-	hypothetical protein
2559	 36.27	0	2864601..2866100	-	499	118478337	-	BALH_2701	-	glycine betaine/L-proline ABC transporter, permease
2560	 25.29	-2	2866462..2866722	+	86	118478338	-	BALH_2702	-	hypothetical protein
2561	 32.80	0	2866806..2868302	+	498	118478339	-	BALH_2703	-	glycosyl transferase, group 2 family protein
2562	 34.57	0	2868444..2868686	-	80	118478340	-	BALH_2704	-	hypothetical protein
2563	 28.77	-2	2868804..2869088	+	94	118478341	-	BALH_2705	-	hypothetical protein
2564	 32.25	-1	2869301..2871691	-	796	118478342	-	BALH_2706	-	glycosyl transferase, group 2 family protein
2565	 33.08	0	2871675..2873237	-	520	118478343	-	BALH_2707	-	glycosyl transferase, group 2 family protein
2566	 28.84	-2	2873444..2874466	-	340	118478344	-	BALH_2708	-	hypothetical protein
2567	 33.33	0	2874764..2875981	-	405	118478345	argD	BALH_2709	-	aminotransferase
2568	 37.12	0	2876181..2877632	+	483	118478346	-	BALH_2710	-	catalase
2569	 31.32	-1	2877756..2878301	-	181	118478347	-	BALH_2711	-	hypothetical protein
2570	 36.41	0	2878397..2880151	-	584	118478348	-	BALH_2712	-	adenine deaminase
2571	 38.05	0	2880521..2881687	-	388	118478349	-	BALH_2713	-	alkaline D-peptidase
2572	 33.14	0	2881946..2882452	-	168	118478350	-	BALH_2714	-	hypothetical protein
2573	 30.05	-1	2882653..2883048	-	131	118478351	-	BALH_2715	-	hypothetical protein
2574	 32.58	0	2883215..2883745	-	176	118478352	-	BALH_2716	-	hypothetical protein
2575	 32.39	0	2884015..2884332	-	105	118478353	-	BALH_2717	-	hypothetical protein
2576	 37.72	0	2884347..2884985	-	212	118478354	-	BALH_2718	-	NAD(P)H nitroreductase
2577	 33.33	0	2885004..2885432	-	142	118478355	-	BALH_2719	-	MarR family transcriptional regulator
2578	 37.29	0	2885697..2887640	+	647	118478356	tetP	BALH_2720	-	tetracycline resistance protein
2579	 30.76	-1	2887688..2888347	-	219	118478357	-	BALH_2721	-	hypothetical protein
2580	 34.40	0	2888354..2888821	-	155	118478358	-	BALH_2722	-	MutT/Nudix family protein
2581	 29.45	-1	2889505..2890122	-	205	118478359	-	BALH_2723	-	hypothetical protein
2582	 31.39	-1	2890110..2890982	-	290	118478360	-	BALH_2724	-	ABC transporter, ATP-binding protein
2583	 31.28	-1	2890970..2891359	-	129	118478361	-	BALH_2725	-	GntR family transcriptional regulator
2584	 37.52	0	2892296..2893321	-	341	118478362	-	BALH_2726	-	isoflavone reductase
2585	 34.08	0	2893509..2894174	-	221	118478363	-	BALH_2727	-	ABC transporter, ATP-binding protein
2586	 28.82	-2	2894174..2895436	-	420	118478364	-	BALH_2728	-	ABC transporter, permease
2587	 29.65	-1	2895442..2896527	-	361	118478365	-	BALH_2729	-	ABC transporter, permease
2588	 39.30	+1	2896593..2896961	-	122	118478366	-	BALH_2730	-	hypothetical protein
2589	 36.50	0	2897169..2898116	-	315	118478367	-	BALH_2731	-	beta-lactamase class C and other pencillin-binding proteins
2590	 34.23	0	2898141..2899031	-	296	118478368	-	BALH_2732	-	AraC family transcriptional regulator
2591	 28.43	-2	2899568..2899975	-	135	118478369	-	BALH_2733	-	hypothetical protein
2592	 34.58	0	2900060..2900539	+	159	118478370	-	BALH_2734	-	7,8-dihydro-8-oxoguanine-triphosphatase
2593	 37.58	0	2900558..2901523	-	321	118478371	-	BALH_2735	-	DMT family permease
2594	 38.97	0	2901565..2903037	+	490	118478372	-	BALH_2736	-	GntR family transcriptional regulator
2595	 37.33	0	2903058..2903558	+	166	118478373	-	BALH_2737	-	hypothetical protein
2596	 34.83	0	2903645..2903977	-	110	118478374	-	BALH_2738	-	hypothetical protein
2597	 36.97	0	2904039..2904863	-	274	118478375	-	BALH_2739	-	hypothetical protein
2598	 34.61	0	2904992..2905696	-	234	118478376	-	BALH_2740	-	uridine kinase
2599	 35.66	0	2905796..2906569	-	257	118478377	prpA	BALH_2741	-	serine/threonine protein phosphatase
2600	 32.49	0	2906553..2907497	-	314	118478378	-	BALH_2742	-	aminoglycoside phosphotransferase
2601	 37.72	0	2907494..2908291	-	265	118478379	-	BALH_2743	-	hypothetical protein
2602	 37.80	0	2908372..2909400	+	342	118478380	-	BALH_2745	-	hypothetical protein
2603	 37.01	0	2909421..2909882	-	153	118478381	-	BALH_2746	-	ribosomal-protein-alanine acetyltransferase
2604	 40.01	+1	2910405..2911976	+	523	118478382	lysP	BALH_2747	-	lysine specific permease
2605	 33.83	0	2911997..2912395	+	132	118478383	-	BALH_2748	-	hypothetical protein
2606	 32.56	0	2912429..2913199	+	256	118478384	-	BALH_2749	-	DNA-3-methylpurine glycosylase
2607	 33.54	0	2913263..2913754	-	163	118478385	-	BALH_2750	-	hypothetical protein
2608	 36.29	0	2914199..2914705	+	168	118478386	-	BALH_2751	-	methyltransferase
2609	 32.79	0	2914849..2915397	-	182	118478387	-	BALH_2752	-	MutT/NUDIX family phosphohydrolase
2610	 34.03	0	2915579..2916154	+	191	118478388	-	BALH_2753	-	cephalosporin hydroxylase
2611	 30.20	-1	2916188..2916730	-	180	118478389	-	BALH_2754	-	signal peptidase I
2612	 36.21	0	2916792..2918945	-	717	118478390	-	BALH_2755	-	penicillin-binding protein
2613	 34.69	0	2919414..2920151	-	245	118478391	-	BALH_2756	-	NAD-dependent deacetylase
2614	 38.27	0	2920218..2920865	-	215	118478392	-	BALH_2757	-	pyrrolidone-carboxylate peptidase
2615	 39.04	+1	2920882..2921844	-	320	118478393	-	BALH_2758	-	permease
2616	 37.87	0	2921846..2922550	-	234	118478394	-	BALH_2759	-	permease
2617	 39.36	+1	2922565..2923344	-	259	118478395	-	BALH_2760	-	hypothetical protein
2618	 39.49	+1	2923345..2924334	-	329	118478396	-	BALH_2761	-	urea amidolyase-related protein
2619	 38.66	0	2924325..2925038	-	237	118478397	-	BALH_2762	-	hypothetical protein
2620	 38.17	0	2925053..2925859	-	268	118478398	-	BALH_2763	-	IclR family transcriptional regulator
2621	 35.51	0	2925946..2926497	-	183	118478399	-	BALH_2764	-	signal peptidase I
2622	 36.14	0	2926521..2927198	-	225	118478400	-	BALH_2765	-	copper homeostasis protein
2623	 31.36	-1	2927513..2928679	-	388	118478401	-	BALH_2766	-	stage II sporulation protein P
2624	 34.33	0	2928847..2929551	-	234	118478402	-	BALH_2767	-	ArsR family transcriptional regulator
2625	 33.97	0	2929621..2930091	+	156	118478403	-	BALH_2768	-	hypothetical protein
2626	 40.15	+1	2930308..2931495	-	395	118478404	acdA	BALH_2769	-	acyl-CoA dehydrogenase, short-chain specific
2627	 32.89	0	2931609..2932286	-	225	118478405	-	BALH_2770	-	hypothetical protein
2628	 36.39	0	2932572..2933159	-	195	118478406	-	BALH_2771	-	acetyltransferase
2629	 36.79	0	2933834..2935162	-	442	118478407	-	BALH_2773	-	hypothetical protein
2630	 39.14	+1	2935276..2936154	-	292	118478408	-	BALH_2774	-	phosphotransferase family protein
35.66	MEAN

3.36	STD DEV
