IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

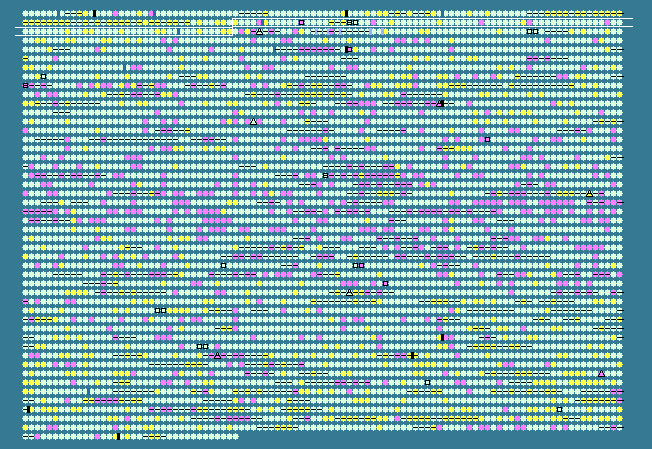

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
136	 39.24	+1	147208..148308	+	366	118475914	-	BALH_0144	-	iron-sulfur cluster assembly/repair protein ApbC
137	 35.76	0	148365..148982	-	205	118475915	gerD	BALH_0145	-	spore germination protein
138	 36.27	0	149122..149733	+	203	118475916	kbaA	BALH_0146	-	kinB signaling pathway activation protein
139	 36.08	0	149838..150602	-	254	118475917	cda	BALH_0147	-	xylanase/chitin deacetylase
140	 29.68	-1	150773..150991	+	72	118475918	-	BALH_0148	-	hypothetical protein
141	 39.55	+1	156963..158120	+	385	118475919	garK	BALH_0150	-	glycerate kinase
142	 37.92	0	158331..159224	+	297	118475920	rocF	BALH_0151	-	arginase
143	 38.69	0	159474..160295	+	273	118475921	-	BALH_0152	-	hypothetical protein
144	 37.76	0	160234..161769	+	511	118475922	-	BALH_0153	-	hypothetical protein
145	 38.68	0	161762..163108	+	448	118475923	glmM	BALH_0154	-	phosphoglucosamine mutase
146	 38.99	0	163593..165395	+	600	118475924	glmS	BALH_0155	-	D-fructose-6-phosphate amidotransferase
147	 29.96	-1	165498..165734	+	78	118475925	tnsA	BALH_0156	-	transposase
148	 32.44	0	165986..166654	+	222	118475926	-	BALH_0157	-	hypothetical protein
149	 35.11	0	166908..167639	+	243	118475927	gntR	BALH_0158	-	GntR family transcriptional regulator
150	 38.91	0	167536..169167	+	543	118475928	gntK	BALH_0159	-	gluconate kinase
151	 38.68	0	169284..170630	+	448	118475929	gntP	BALH_0161	-	gluconate permease
152	 39.22	+1	170895..172304	+	469	118475930	gntZ	BALH_0162	-	6-phosphogluconate dehydrogenase
153	 34.66	0	172647..174611	+	654	118475931	-	BALH_0163	-	prolyl oligopeptidase family protein
154	 39.33	+1	174730..175296	+	188	118475932	-	BALH_0164	-	hypothetical protein
155	 35.09	0	175363..176103	-	246	118475933	-	BALH_0165	-	transposase
156	 33.60	0	176238..176615	-	125	118475934	-	BALH_0166	-	transposase
157	 37.28	0	176688..177194	-	168	118475935	-	BALH_0167	-	hypothetical protein
158	 33.99	0	177435..178349	-	304	118475936	-	BALH_0168	-	hypothetical protein
159	 30.71	-1	178349..178843	-	164	118475937	-	BALH_0169	-	ECF subfamily RNA polymerase sigma factor
160	 34.03	0	178981..180267	-	428	118475938	-	BALH_0170	-	hypothetical protein
161	 37.06	0	180681..181484	+	267	118475939	-	BALH_0171	-	3-ketoacyl-(acyl-carrier-protein) reductase
162	 39.16	+1	181522..182190	-	222	118475940	-	BALH_0172	-	ABC transporter, permease component
163	 36.50	0	182165..183205	-	346	118475941	-	BALH_0173	-	ABC transporter, ATP-binding protein
164	 34.69	0	183218..184030	-	270	118475942	-	BALH_0174	-	ABC transporter, substrate-binding protein
165	 36.02	0	184312..185280	-	322	118475943	-	BALH_0175	-	alcohol dehydrogenase, zinc containing
166	 34.90	0	185366..186130	+	254	118475944	-	BALH_0176	-	hypothetical protein
167	 34.38	0	186242..187678	+	478	118475945	-	BALH_0177	-	oxidoreductase, FAD-binding
168	 35.96	0	187675..188208	+	177	118475946	-	BALH_0178	-	membrane transport protein, multidrug resistance protein
169	 36.86	0	188278..190008	+	576	118475947	-	BALH_0180	-	hypothetical protein
170	 39.49	+1	190136..191386	+	416	118475948	-	BALH_0182	-	Bcr/CflA subfamily drug resistance transporter
171	 34.13	0	191637..192140	+	167	118475949	-	BALH_0183	-	hypothetical protein
172	 35.73	0	192787..193704	+	305	118475950	oppB	BALH_0184	-	oligopeptide ABC transporter, permease component
173	 38.31	0	193721..194725	+	334	118475951	oppC	BALH_0185	-	oligopeptide ABC transporter, permease component
174	 36.89	0	194682..195692	+	336	118475952	oppD	BALH_0186	-	oligopeptide ABC transporter, ATP-binding protein
175	 38.63	0	195689..196462	+	257	118475953	oppF	BALH_0187	-	oligopeptide ABC transporter, ATP-binding protein
176	 32.46	0	196476..198086	+	536	118475954	oppA	BALH_0188	-	oligopeptide transporter, periplasmic-binding protein
177	 31.15	-1	198103..198606	-	167	118475955	-	BALH_0189	-	hypothetical protein
178	 36.22	0	198743..199642	+	299	118475956	-	BALH_0190	-	AraC family transcriptional regulator
179	 33.51	0	199918..200499	+	193	118475957	-	BALH_0191	-	TetR/AcrR family transcriptional regulator
180	 34.36	0	200525..201697	+	390	118475958	-	BALH_0192	-	hypothetical protein
181	 36.38	0	201742..203514	-	590	118475959	oppA	BALH_0194	-	oligopeptide transporter, periplasmic-binding protein
182	 35.41	0	203770..205410	-	546	118475960	oppA	BALH_0195	-	oligopeptide transporter, periplasmic-binding protein
183	 35.25	0	205803..206636	-	277	118475961	-	BALH_0196	-	aldo/keto reductase
184	 40.05	+1	206638..207441	-	267	118475962	proC	BALH_0197	-	pyrroline-5-carboxylate reductase
185	 31.08	-1	207541..208251	+	236	118475963	pnuC	BALH_0198	-	nicotinamide mononucleotide transporter
186	 37.09	0	208319..209170	-	283	118475964	glcU	BALH_0200	-	glucose uptake protein
187	 38.52	0	209472..210146	-	224	118475966	modC	BALH_0202	-	molybdenum ABC transporter, permease component
188	 36.59	0	209923..210168	+	81	118475965	-	BALH_0201	-	hypothetical protein
189	 35.19	0	210152..210958	-	268	118475967	modA	BALH_0203	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
190	 34.39	0	211093..212040	+	315	118475968	-	BALH_0204	-	molybdate-binding protein
191	 35.67	0	212611..213507	-	298	118475969	-	BALH_0205	-	LysR family transcriptional regulator
192	 34.89	0	213545..214573	+	342	118475970	-	BALH_0206	-	DMT family permease
193	 35.48	0	215103..215708	+	201	118475971	plsC	BALH_0207	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
194	 36.71	0	216184..217161	+	325	118475972	-	BALH_0208	-	LacI family transcription regulator
195	 35.13	0	217759..218595	+	278	118475973	-	BALH_0209	-	hypothetical protein
196	 34.15	0	218694..219059	+	121	118475974	-	BALH_0210	-	hypothetical protein
197	 33.57	0	219765..220616	+	283	118475975	-	BALH_0211	-	TatD-related deoxyribonuclease
198	 31.77	-1	220713..222251	+	512	118475976	-	BALH_0212	-	hypothetical protein
199	 32.30	0	222287..223936	-	549	118475977	-	BALH_0213	-	hypothetical protein
200	 38.58	0	224187..224720	+	177	118475978	-	BALH_0214	-	invasion protein LagB
201	 33.45	0	224736..225620	-	294	118475979	-	BALH_0215	-	hypothetical protein
202	 33.33	0	226145..226336	+	63	118475980	-	BALH_0216	-	hypothetical protein
203	 36.73	0	226398..228341	+	647	118475981	-	BALH_0217	-	ABC transporter, ATP-binding protein
204	 34.83	0	229230..230966	+	578	118475982	oppA	BALH_0218	-	oligopeptide transporter, periplasmic-binding protein
205	 32.82	0	231060..232031	+	323	118475983	oppB	BALH_0220	-	oligopeptide ABC transporter, permease component
206	 37.88	0	232044..232967	+	307	118475984	oppC	BALH_0221	-	oligopeptide ABC transporter, permease component
207	 36.90	0	232978..233958	+	326	118475985	oppD	BALH_0222	-	oligopeptide ABC transporter, ATP-binding protein
208	 39.44	+1	233955..234920	+	321	118475986	oppF	BALH_0223	-	oligopeptide ABC transporter, ATP-binding protein
209	 33.65	0	234960..235919	-	319	118475987	-	BALH_0224	-	HAD superfamily hydrolase
210	 36.24	0	237251..238420	+	389	118475988	hppD	BALH_0225	-	4-hydroxyphenylpyruvate dioxygenase
211	 39.69	+1	238484..239443	+	319	118475989	hpcE	BALH_0226	-	fumarylacetoacetate hydrolase
212	 39.59	+1	239400..240581	+	393	118475990	hmgA	BALH_0227	-	homogentisate 1,2-dioxygenase
213	 38.16	0	240798..242228	+	476	118475991	-	BALH_0228	-	amino acid permease
214	 37.73	0	242313..243608	+	431	118475992	-	BALH_0229	-	major facilitator family transporter
215	 36.50	0	243973..245076	+	367	118475993	ddl	BALH_0230	-	D-alanyl-alanine synthetase A
216	 36.53	0	245137..246513	+	458	118475994	murF	BALH_0231	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
217	 41.65	+1	246819..248405	+	528	118475995	deaD	BALH_0232	-	DEAD-box ATP dependent DNA helicase
218	 35.44	0	248421..249464	+	347	118475996	uvsE	BALH_0233	-	putative UV damage endonuclease
219	 36.82	0	249457..250029	-	190	118475997	-	BALH_0234	-	rhomboid family protein
220	 36.11	0	250122..250481	+	119	118475998	acpS	BALH_0235	-	holo-[acyl-carrier protein] synthase
221	 36.73	0	250500..251588	+	362	118475999	-	BALH_0236	-	hypothetical protein
222	 38.46	0	251707..252876	+	389	118476000	alr	BALH_0237	-	alanine racemase
223	 41.67	+1	253186..253473	+	95	118476001	-	BALH_0238	-	hypothetical protein
224	 40.17	+1	253478..253828	+	116	118476002	-	BALH_0239	-	pemK-like protein
225	 36.46	0	253890..256064	+	724	118476003	-	BALH_0240	-	transcription accessory protein
226	 35.05	0	256428..256892	+	154	118476004	-	BALH_0241	-	hypothetical protein
227	 35.40	0	263321..263803	+	160	118476005	-	BALH_0243	-	kinase
228	 35.58	0	263676..264476	+	266	118476006	gcp	BALH_0244	-	O-sialoglycoprotein endopeptidase
229	 35.98	0	264481..264933	+	150	118476007	rimI	BALH_0245	-	SSU ribosomal protein S18P alanine acetyltransferase
230	 40.02	+1	264918..265949	+	343	118476008	gcp	BALH_0246	-	O-sialoglycoprotein endopeptidase
231	 35.71	0	266370..268346	-	658	118476009	-	BALH_0247	-	ABC transporter, ATP-binding protein
232	 35.40	0	268480..269109	+	209	118476010	-	BALH_0248	-	redox-sensing transcriptional repressor Rex
233	 35.60	0	269327..270076	-	249	118476011	-	BALH_0249	-	CAAX amino protease
234	 39.30	+1	270478..270762	+	94	162382787	groES	BALH_0250	-	co-chaperonin GroES
235	 41.77	+1	270801..272435	+	544	118476013	groEL	BALH_0251	-	chaperonin GroEL
35.66	MEAN

3.36	STD DEV
