IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

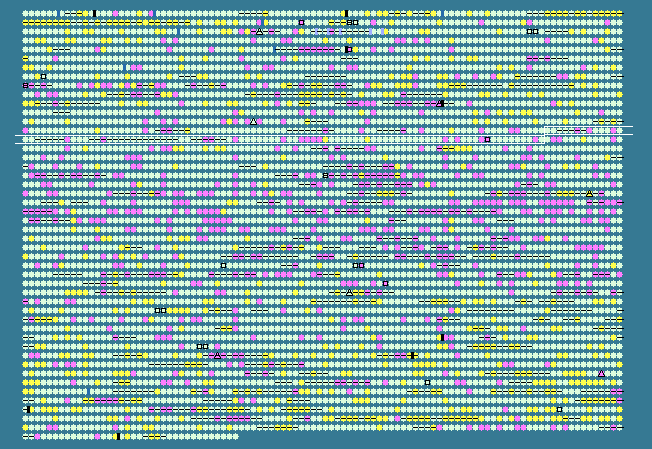

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1388	 34.83	0	1618468..1620471	+	667	118477166	-	BALH_1471	-	chemotaxis protein
1389	 36.01	0	1620645..1622288	+	547	118477167	-	BALH_1472	-	flagellar motor switch protein
1390	 34.99	0	1622318..1623706	+	462	118477168	-	BALH_1473	-	hypothetical protein
1391	 34.31	0	1623734..1624450	+	238	118477169	-	BALH_1474	-	hypothetical protein
1392	 32.83	0	1624484..1625281	-	265	118477170	-	BALH_1475	-	chemotaxis protein methyltransferase
1393	 31.17	-1	1625306..1625860	-	184	118477171	-	BALH_1476	-	hypothetical protein
1394	 32.91	0	1625938..1626411	+	157	118477172	-	BALH_1477	-	hypothetical protein
1395	 27.37	-2	1626428..1626880	+	150	118477173	-	BALH_1478	-	hypothetical protein
1396	 35.49	0	1626898..1628196	+	432	118477174	flgK	BALH_1479	-	flagellar hook-associated protein FlgK
1397	 34.95	0	1628402..1629265	+	287	118477175	flgL	BALH_1480	-	flagellar hook-associated protein FlgL
1398	 33.91	0	1629286..1630662	+	458	118477176	fliD	BALH_1481	-	flagellar capping protein
1399	 31.44	-1	1630685..1631053	+	122	118477177	-	BALH_1482	-	flagellar protein
1400	 37.28	0	1631037..1631315	+	92	118477178	-	BALH_1483	-	hypothetical protein
1401	 33.81	0	1631673..1632089	+	138	118477179	flgB	BALH_1484	-	flagellar basal body rod protein FlgB
1402	 36.23	0	1632110..1632523	+	137	118477180	flgC	BALH_1485	-	flagellar basal body rod protein FlgC
1403	 36.06	0	1632510..1632839	+	109	118477181	fliE	BALH_1486	-	flagellar hook-basal body protein FliE
1404	 37.08	0	1632862..1634436	+	524	118477182	fliF	BALH_1487	-	flagellar MS-ring protein
1405	 33.92	0	1634426..1635454	+	342	118477183	fliG	BALH_1488	-	flagellar motor switch protein G
1406	 35.20	0	1635432..1636127	+	231	118477184	fliH	BALH_1489	-	flagellar assembly protein H
1407	 36.78	0	1636124..1637428	+	434	118477185	fliI	BALH_1490	-	flagellum-specific ATP synthase
1408	 31.39	-1	1637545..1637955	+	136	118477186	-	BALH_1491	-	hypothetical protein
1409	 34.39	0	1637948..1639081	+	377	118477187	-	BALH_1492	-	hypothetical protein
1410	 38.05	0	1639085..1639657	+	190	118477188	flgD	BALH_1493	-	flagellar basal body rod modification protein
1411	 37.06	0	1639679..1640992	+	437	118477189	flgE	BALH_1494	-	flagellar hook protein FlgE
1412	 35.56	0	1641663..1642157	+	164	118477190	-	BALH_1495	-	hypothetical protein
1413	 33.77	0	1642286..1643194	+	302	118477191	-	BALH_1496	-	chemotaxis protein
1414	 31.56	-1	1643983..1644942	+	319	118477192	-	BALH_1497	-	hypothetical protein
1415	 38.27	0	1645038..1645847	-	269	118477193	-	BALH_1498	-	flagellin
1416	 37.02	0	1646077..1647432	-	451	162382783	-	BALH_1499	-	flagellin
1417	 38.30	0	1647690..1648475	+	261	118477195	-	BALH_1500	-	soluble lytic murein transglycosylase
1418	 32.44	0	1648538..1648762	+	74	118477196	-	BALH_1501	-	flagellar motor switch protein
1419	 38.10	0	1648777..1649763	+	328	118477197	fliM	BALH_1502	-	flagellar motor switch protein FliM
1420	 38.06	0	1649774..1650133	+	119	118477198	-	BALH_1503	-	flagellar motor switch protein
1421	 34.91	0	1650463..1651221	+	252	118477199	fliP	BALH_1504	-	flagellar biosynthesis protein FliP
1422	 34.78	0	1651546..1652307	+	253	118477200	fliR	BALH_1505	-	flagellar biosynthesis protein FliR
1423	 34.77	0	1652318..1653364	+	348	118477201	flhB	BALH_1506	-	flagellar biosynthesis protein FlhB
1424	 36.57	0	1653388..1655454	+	688	162382782	flhA	BALH_1507	-	flagellar biosynthesis protein FlhA
1425	 35.85	0	1655469..1656779	+	436	118477203	flhF	BALH_1508	-	flagellar biosynthesis regulator FlhF
1426	 36.82	0	1656822..1657595	+	257	118477204	flgG	BALH_1509	-	flagellar basal body rod protein FlgG
1427	 35.02	0	1657713..1658423	+	236	118477205	-	BALH_1510	-	metal-dependent hydrolases related to alanyl-tRNA synthetase
1428	 36.92	0	1658441..1659277	+	278	118477206	-	BALH_1511	-	transcriptional regulator
1429	 38.64	0	1659261..1659995	+	244	118477207	-	BALH_1512	-	branched-chain amino acid transport protein
1430	 34.19	0	1660618..1661202	+	194	118477208	-	BALH_1513	-	TetR family transcriptional regulator
1431	 31.40	-1	1661173..1661379	-	68	118477209	-	BALH_1514	-	hypothetical protein
1432	 27.03	-2	1661687..1662289	-	200	118477210	-	BALH_1515	-	VanZ family protein
1433	 33.65	0	1662348..1662662	-	104	118477211	-	BALH_1516	-	hypothetical protein
1434	 32.67	0	1663512..1664117	-	201	118477212	-	BALH_1517	-	hypothetical protein
1435	 36.01	0	1664120..1664455	-	111	118477213	-	BALH_1518	-	hypothetical protein
1436	 30.45	-1	1664889..1666100	-	403	118477214	-	BALH_1519	-	transcriptional regulator
1437	 35.38	0	1666219..1667487	+	422	118477215	-	BALH_1520	-	multidrug resistance protein
1438	 33.51	0	1667563..1668117	+	184	118477216	-	BALH_1521	-	hypothetical protein
1439	 32.66	0	1668158..1669051	-	297	118477217	-	BALH_1522	-	LysR family transcriptional regulator
1440	 38.47	0	1669214..1670206	+	330	118477218	-	BALH_1523	-	ABC transporter, ATP-binding protein
1441	 34.99	0	1670184..1671209	+	341	118477219	-	BALH_1524	-	ABC transporter, substrate-binding protein
1442	 36.21	0	1671222..1672892	+	556	118477220	-	BALH_1526	-	iron/thiamine ABC transporter, permease
1443	 35.77	0	1672841..1674151	+	436	118477221	-	BALH_1527	-	Zn-dependent hydrolase
1444	 31.41	-1	1674172..1675005	+	277	118477222	-	BALH_1528	-	hypothetical protein
1445	 32.86	0	1675059..1675481	-	140	118477223	-	BALH_1529	-	hypothetical protein
1446	 38.52	0	1675988..1676662	+	224	118477224	-	BALH_1530	-	hypothetical protein
1447	 31.34	-1	1676760..1677161	+	133	118477225	-	BALH_1531	-	hypothetical protein
1448	 31.22	-1	1677189..1677851	+	220	118477226	-	BALH_1532	-	D-alanyl-D-alanine carboxypeptidase
1449	 29.44	-1	1677902..1678543	+	213	118477227	-	BALH_1533	-	hypothetical protein
1450	 31.25	-1	1678702..1679277	+	191	118477228	gpm	BALH_1534	-	phosphoglycerate mutase family protein
1451	 39.19	+1	1679346..1679738	+	130	118477229	-	BALH_1535	-	hypothetical protein
1452	 35.60	0	1679778..1680617	-	279	118477230	-	BALH_1536	-	alpha/beta fold family hydrolase
1453	 32.60	0	1680967..1681377	-	136	118477231	-	BALH_1537	-	MarR family transcriptional regulator
1454	 33.45	0	1681503..1682330	+	275	118477232	-	BALH_1538	-	hypothetical protein
1455	 36.01	0	1682373..1684202	-	609	118477233	-	BALH_1539	-	asparagine synthetase, glutamine-hydrolyzing
1456	 32.63	0	1684461..1685027	+	188	118477234	-	BALH_1540	-	RNA polymerase factor sigma-70
1457	 35.32	0	1685024..1686130	+	368	118477235	-	BALH_1541	-	ECF-type sigma factor negative effector
1458	 40.25	+1	1686171..1687283	-	370	118477236	-	BALH_1542	-	glycosyl hydrolase
1459	 35.89	0	1687435..1688334	+	299	118477237	czcD	BALH_1543	-	cobalt-zinc-cadmium resistance protein
1460	 32.92	0	1688755..1689474	-	239	118477238	gntR	BALH_1544	-	GntR family transcriptional regulator
1461	 32.87	0	1689443..1690519	-	358	118477239	-	BALH_1546	-	drug/metabolite exporter family protein
1462	 32.32	0	1690594..1692177	-	527	118477240	-	BALH_1547	-	cobalamin synthesis protein
1463	 32.94	0	1692182..1692946	+	254	118477241	-	BALH_1548	-	permease
1464	 34.14	0	1692960..1693832	+	290	118477242	-	BALH_1549	-	permease
1465	 35.68	0	1693924..1694604	+	226	118477243	-	BALH_1550	-	hypothetical protein
1466	 36.04	0	1694937..1696340	+	467	118477244	-	BALH_1552	-	Na+/H+ antiporter
1467	 37.87	0	1696594..1697982	+	462	118477245	fumC	BALH_1553	-	fumarate hydratase
1468	 32.69	0	1699171..1699944	+	257	118477246	-	BALH_1554	-	hypothetical protein
1469	 36.17	0	1700043..1701452	+	469	118477247	-	BALH_1556	-	Na+ driven multidrug efflux pump
1470	 33.75	0	1701508..1702227	-	239	118477248	-	BALH_1557	-	peptidase E
1471	 31.00	-1	1702570..1702998	+	142	118477249	-	BALH_1558	-	hypothetical protein
1472	 33.09	0	1703106..1703519	+	137	118477250	-	BALH_1559	-	hypothetical protein
1473	 32.10	-1	1703524..1704336	+	270	118477251	-	BALH_1560	-	cell surface protein
1474	 36.13	0	1704390..1705103	+	237	118477252	-	BALH_1562	-	cytochrome c-type biogenesis protein
1475	 35.14	0	1705122..1705676	+	184	118477253	-	BALH_1563	-	thioredoxin family protein
1476	 34.21	0	1705691..1706374	+	227	118477254	-	BALH_1565	-	prolipoprotein diacylglyceryl transferase
1477	 31.87	-1	1706425..1706970	-	181	118477255	-	BALH_1566	-	MerR family transcriptional regulator
1478	 30.53	-1	1707205..1708773	+	522	118477256	-	BALH_1567	-	IS605 family transposase
1479	 36.60	0	1708955..1710361	+	468	118477257	-	BALH_1568	-	D-serine dehydratase
1480	 33.65	0	1710497..1711753	+	418	118477258	-	BALH_1569	-	hypothetical protein
1481	 33.54	0	1711784..1712740	-	318	118477259	-	BALH_1570	-	hypothetical protein
1482	 35.01	0	1712737..1713807	-	356	118477260	-	BALH_1571	-	hypothetical protein
1483	 32.47	0	1713800..1714264	-	154	118477261	-	BALH_1572	-	hypothetical protein
1484	 33.75	0	1714240..1714722	-	160	118477262	-	BALH_1573	-	RNA polymerase sigma factor SigW
1485	 33.76	0	1714943..1715644	+	233	118477263	-	BALH_1574	-	response regulator
1486	 32.16	-1	1715649..1716755	+	368	118477264	-	BALH_1575	-	sensor histidine kinase
1487	 34.29	0	1716870..1717811	+	313	118477265	-	BALH_1576	-	multidrug ABC transporter, ATP-binding protein
35.66	MEAN

3.36	STD DEV
