IslandPathversion 1.0

IslandPath Analysis: Bacillus thuringiensis str. Al Hakam

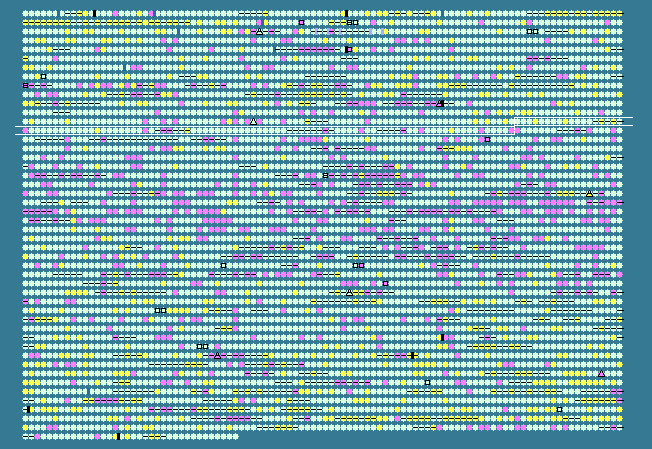

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.66 STD DEV: 3.36
Bacillus thuringiensis str. Al Hakam, complete genome - 1..5257091
4736 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1283	 33.61	0	1503970..1504683	+	237	118477061	-	BALH_1362	-	hypothetical protein
1284	 38.61	0	1504926..1506404	+	492	118477062	-	BALH_1363	-	stage IV sporulation protein A
1285	 38.98	0	1506622..1506975	+	117	118477063	-	BALH_1364	-	DNA-binding protein HU
1286	 39.82	+1	1507096..1507665	+	189	118477064	folE	BALH_1365	-	GTP cyclohydrolase I
1287	 33.99	0	1507871..1508629	+	252	118477065	-	BALH_1366	-	heptaprenyl diphosphate synthase component I
1288	 36.30	0	1508530..1509372	+	280	118477066	ubiE	BALH_1367	-	ubiquinone/menaquinone biosynthesis methyltransferase
1289	 36.42	0	1509395..1510366	+	323	118477067	hepT	BALH_1368	-	heptaprenyl diphosphate synthase, component II
1290	 37.88	0	1510410..1510937	+	175	118477068	ndk	BALH_1369	-	nucleoside diphosphate kinase
1291	 40.66	+1	1511208..1512380	+	390	118477069	-	BALH_1370	-	chorismate synthase
1292	 37.73	0	1512380..1513471	+	363	118477070	aroB	BALH_1371	-	3-dehydroquinate synthase
1293	 36.69	0	1513585..1514715	+	376	118477071	-	BALH_1372	-	histidinol-phosphate aminotransferase
1294	 34.18	0	1514986..1516290	+	434	118477072	-	BALH_1373	-	TPR repeat-containing protein
1295	 33.33	0	1516364..1516900	+	178	118477073	-	BALH_1374	-	hypothetical protein
1296	 34.81	0	1517037..1517510	+	157	118477074	-	BALH_1375	-	hypothetical protein
1297	 44.83	+2	1517654..1518166	+	170	118477075	-	BALH_1376	-	menaquinol-cytochrome c reductase, iron-sulfur subunit
1298	 37.93	0	1518167..1518841	+	224	118477076	-	BALH_1377	-	cytochrome b6
1299	 39.45	+1	1518885..1519652	+	255	118477077	qcrC	BALH_1378	-	menaquinol-cytochrome c reductase, cytochrome c subunit
1300	 32.83	0	1519763..1520353	+	196	118477078	-	BALH_1379	-	hypothetical protein
1301	 29.26	-1	1520379..1521065	+	228	118477079	-	BALH_1380	-	hypothetical protein
1302	 34.65	0	1521125..1521961	+	278	118477080	-	BALH_1381	-	hypothetical protein
1303	 36.46	0	1521891..1522754	+	287	118477081	-	BALH_1382	-	hypothetical protein
1304	 35.64	0	1522847..1523497	+	216	118477082	-	BALH_1383	-	uracil-DNA glycosylase family protein
1305	 34.47	0	1523526..1524407	-	293	118477083	-	BALH_1384	-	hypothetical protein
1306	 35.09	0	1524619..1525017	+	132	118477084	-	BALH_1385	-	hypothetical protein
1307	 38.58	0	1525017..1525817	+	266	118477085	-	BALH_1386	-	dihydrodipicolinate reductase
1308	 38.89	0	1525832..1526227	+	131	118477086	mgsA	BALH_1387	-	methylglyoxal synthase
1309	 37.50	0	1526224..1526943	+	239	118477087	-	BALH_1388	-	hypothetical protein
1310	 36.91	0	1526940..1528085	+	381	118477088	-	BALH_1389	-	glycosyltransferase, group 1 family protein
1311	 37.32	0	1528063..1529265	+	400	118477089	-	BALH_1390	-	tRNA CCA-pyrophosphorylase
1312	 39.00	0	1529226..1530230	+	334	118477090	-	BALH_1391	-	biotin operon repressor
1313	 41.07	+1	1531127..1531966	+	279	118477091	panB	BALH_1392	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1314	 37.32	0	1531933..1532811	+	292	118477092	panC	BALH_1393	-	pantoate--beta-alanine ligase
1315	 33.59	0	1532824..1533207	+	127	118477093	-	BALH_1394	-	aspartate alpha-decarboxylase
1316	 35.61	0	1533336..1536140	+	934	118477094	-	BALH_1395	-	bifunctional ATP-dependent DNA helicase/DNA polymerase III subunit epsilon
1317	 32.74	0	1536569..1537072	+	167	118477095	-	BALH_1396	-	hypothetical protein
1318	 37.88	0	1537091..1538278	+	395	118477096	aspB	BALH_1397	-	aspartate aminotransferase
1319	 34.59	0	1538394..1539107	+	237	118477097	-	BALH_1398	-	DNA replication protein DnaD
1320	 36.73	0	1539123..1539770	+	215	118477098	-	BALH_1399	-	endonuclease III / DNA-(apurinic or apyrimidinic site) lyase
1321	 29.87	-1	1539774..1540292	+	172	118477099	-	BALH_1400	-	hypothetical protein
1322	 37.94	0	1540316..1543009	-	897	118477100	-	BALH_1401	-	penicillin-binding protein
1323	 32.67	0	1543075..1543677	-	200	118477101	recU	BALH_1402	-	Holliday junction-specific endonuclease
1324	 31.96	-1	1543718..1544806	+	362	118477102	-	BALH_1403	-	hypothetical protein
1325	 29.86	-1	1545593..1545937	+	114	118477103	-	BALH_1404	-	hypothetical protein
1326	 32.29	-1	1545963..1546154	-	63	118477104	-	BALH_1405	-	hypothetical protein
1327	 35.21	0	1546332..1546811	+	159	118477105	-	BALH_1406	-	hypothetical protein
1328	 42.22	+1	1546945..1547394	+	149	118477106	-	BALH_1407	-	spore coat protein D
1329	 32.61	0	1547451..1548005	+	184	118477107	-	BALH_1408	-	hypothetical protein
1330	 32.47	0	1548094..1548441	+	115	118477108	-	BALH_1409	-	cell division protein DivIVA
1331	 38.74	0	1549094..1550239	+	381	118477109	-	BALH_1410	-	methyltransferase
1332	 34.31	0	1550280..1550483	+	67	118477110	-	BALH_1411	-	hypothetical protein
1333	 36.74	0	1550621..1552558	+	645	118477111	-	BALH_1412	-	ATP-dependent helicase DinG
1334	 35.51	0	1552664..1554181	+	505	118477112	-	BALH_1413	-	thermostable carboxypeptidase 1
1335	 33.33	0	1554226..1554567	+	113	118477113	-	BALH_1414	-	ribosomal-protein-alanine acetyltransferase
1336	 34.43	0	1554753..1555664	-	303	118477114	-	BALH_1415	-	macrolide 2-phosphotransferase
1337	 36.95	0	1556184..1556930	+	248	118477115	map	BALH_1416	-	methionine aminopeptidase
1338	 36.27	0	1557169..1557849	+	226	118477116	-	BALH_1417	-	xanthine phosphoribosyltransferase
1339	 38.47	0	1557853..1559175	+	440	118477117	pbuX	BALH_1418	-	xanthine permease
1340	 34.48	0	1559248..1560555	-	435	118477118	-	BALH_1420	-	hypothetical protein
1341	 35.55	0	1560960..1564619	+	1219	118477119	-	BALH_1421	-	GTP1/OBG family GTPase
1342	 34.83	0	1564950..1565417	+	155	118477120	-	BALH_1422	-	acetyltransferase
1343	 35.90	0	1565439..1565711	+	90	118477121	-	BALH_1423	-	hypothetical protein
1344	 38.25	0	1565714..1566547	+	277	118477122	-	BALH_1424	-	thiosulfate sulfurtransferase
1345	 34.00	0	1567104..1567553	-	149	118477123	-	BALH_1425	-	hypothetical protein
1346	 35.67	0	1567952..1569190	+	412	118477124	-	BALH_1426	-	glutathionylspermidine synthase
1347	 34.37	0	1569183..1569569	+	128	118477125	-	BALH_1427	-	hypothetical protein
1348	 34.02	0	1570262..1570987	+	241	118477126	-	BALH_1428	-	cation transporter
1349	 36.53	0	1571079..1571984	+	301	118477127	-	BALH_1429	-	5'-3' exonuclease
1350	 37.72	0	1572383..1587415	-	5010	118477128	-	BALH_1430	-	hypothetical protein
1351	 30.78	-1	1587538..1588398	+	286	118477129	-	BALH_1431	-	acetyltransferase
1352	 34.40	0	1588439..1588999	-	186	118477130	-	BALH_1432	-	isochorismatase
1353	 35.63	0	1589181..1589441	+	86	118477131	-	BALH_1433	-	hypothetical protein
1354	 36.51	0	1589444..1590355	-	303	118477132	-	BALH_1435	-	DMT family permease
1355	 36.69	0	1590363..1590749	-	128	118477133	rnhA	BALH_1436	-	ribonuclease H
1356	 34.94	0	1590819..1591691	-	290	118477134	-	BALH_1437	-	lacX protein
1357	 31.89	-1	1591875..1592360	+	161	118477135	-	BALH_1438	-	hypothetical protein
1358	 34.70	0	1592513..1593172	+	219	118477136	-	BALH_1439	-	hypothetical protein
1359	 36.55	0	1593395..1593643	-	82	118477137	-	BALH_1440	-	hypothetical protein
1360	 37.18	0	1593763..1593996	-	77	118477138	cspB	BALH_1441	-	cold-shock DNA-binding protein family protein
1361	 36.21	0	1594224..1594952	+	242	118477139	-	BALH_1442	-	hypothetical protein
1362	 33.48	0	1595019..1595723	+	234	118477140	-	BALH_1444	-	amino acid transporter LysE
1363	 34.78	0	1595692..1596036	+	114	118477141	-	BALH_1445	-	hypothetical protein
1364	 28.73	-2	1596127..1596756	+	209	118477142	-	BALH_1446	-	fatty acid hydroxylase FAH1P
1365	 39.14	+1	1597324..1598874	+	516	118477143	-	BALH_1447	-	sodium/proline symporter
1366	 37.86	0	1598977..1600413	+	478	118477144	bioA	BALH_1448	-	aminotransferase
1367	 30.11	-1	1600496..1600774	+	92	118477145	-	BALH_1449	-	hypothetical protein
1368	 37.29	0	1600834..1601997	-	387	118477146	gerN	BALH_1450	-	Na+/H+ exchanger family protein
1369	 33.81	0	1602309..1604003	+	564	118477147	-	BALH_1451	-	Zn-dependent hydrolase
1370	 33.81	0	1604099..1604929	+	276	118477148	-	BALH_1452	-	MerR family transcriptional regulator
1371	 34.96	0	1605068..1606423	+	451	118477150	-	BALH_1454	-	Na+ driven multidrug efflux pump
1372	 40.32	+1	1605121..1605306	-	61	118477149	-	BALH_1453	-	hypothetical protein
1373	 32.75	0	1606459..1607145	-	228	118477151	-	BALH_1455	-	hypothetical protein
1374	 33.16	0	1607285..1607863	+	192	118477152	-	BALH_1456	-	hypothetical protein
1375	 36.96	0	1608612..1609355	+	247	118477153	-	BALH_1457	-	oxygen-insensitive NADPH nitroreductase
1376	 33.19	0	1609352..1610026	+	224	118477154	-	BALH_1458	-	thiJ/PfpI family protein
1377	 29.34	-1	1610139..1610864	-	241	118477155	-	BALH_1459	-	membrane protein
1378	 36.04	0	1610989..1612209	-	406	118477156	-	BALH_1461	-	permease
1379	 36.22	0	1612229..1612678	-	149	118477157	-	BALH_1462	-	ArsR family transcriptional regulator
1380	 32.62	0	1612807..1614075	-	422	118477158	-	BALH_1463	-	macrolide efflux protein
1381	 33.12	0	1614029..1614496	-	155	118477159	-	BALH_1464	-	fosfomycin resistance protein
1382	 25.57	-2	1615024..1615242	+	72	118477160	-	BALH_1465	-	stage 0 sporulation regulatory protein
35.66	MEAN

3.36	STD DEV
